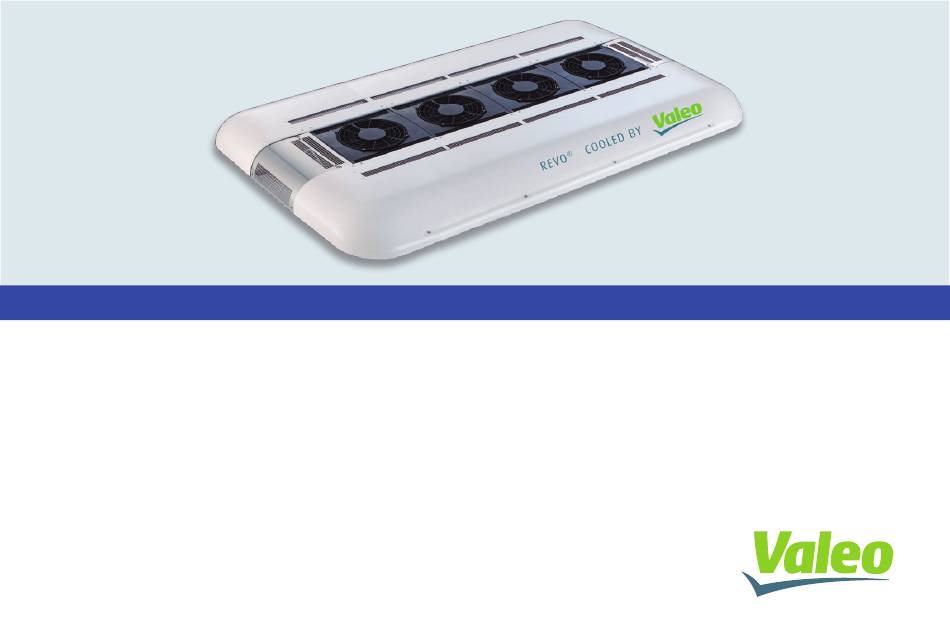

- Page 1 AIR CONDITIONER COACHBUS / CITY BUS REVO 400 eCBC Owner’s Manual Warranty Certificate Rev.00/July 2022 Code: 036-00364-002...
-
Page 2: Table Of Contents
INDEX REVO 400 eCBC INTRODUCTION_____________________________________________________________ ELECTRICAL DIAGRAM OF THE EQUIPMENT WARRANTY TERMS 4- REVO 400 C2 Step 3 - Overview____________________________________ Warrant Terms__________________________________________ 4.1- Terminal Plate Connection______________________________________ SAFETY PRECAUTION PREVENTIVE MAINTENANCE Preventive Maintenance Frequency Check List_____________________________ 5- Personal Precaution_______________________________________________ Dry Filter___________________________________________________________... -
Page 3: Introduction
Thank you for choosing VALEO Climatização do Brasil - Veículos Comerciais S/A products. In case of doubts, contact the VALEO Climatização do Brasil - Veículos Comerciais S/A authorized service network or contact the technical assistance... -
Page 4: Warranty Terms
7 - The Warrant Loses its Validity VALEO Climatização do Brasil - Veículos Comerciais S/A warrants its products for a) If the installation or use of the product is not in accordance with the VALEO two-years period in accordance with the terms listed below: Climatização do Brasil - Veículos Comerciais S/A technical recommendations. -
Page 5: Preventive Maintenance
PREVENTIVE MAINTENANCE REVO 400 eCBC Preventive Maintenance Preventive Maintenance Frequency Check List WEEKLY 1 - Clean or change the return air filter. 1 - Accomplish the weekly check list. 2 - Clean the condenser capillary tube coil (Apply only water and neutral non-aggressive soup to cooper and aluminum). See note (*) MONTHLY 3 - Check if the evaporator hatches are closed to avoid air intake into the equipment. -
Page 6: Dry Filter
If a third party installs the equipment, VALEO Climatização do Brasil - Veículos Comerciais S/A, guarantees only the product, not the installation of it. -
Page 7: Equipment Identification (Id)
EQUIPMENT IDENTIFICATION (ID) REVO 400 eCBC Identification Tag It is very important, when you need to ask for spare parts or after sales parts, and similar ones, customer must identify the model of the air conditioning, telling the series number, model and manufacturing date. -
Page 8: 1- Main Components Air Conditioner Module
AIR CONDITIONING OPERATION REVO 400 eCBC 1- Main Components Air Conditioner Module Note: illustrative drawing. - Page 9 Controller the outside. VALEO Climatização do Brasil - Veículos Comerciais S/A, products apply refrigerant R134a, It is installed in the instrument panel, it offers to the according to the Protection Environmental Law.
-
Page 10: Technical Specifications Of The Device
OPERATING THE AIR CONDITIONER REVO 400 eCBC 2- Technical Specifications of the Device REVO 400 eCBC Component Characteristics Maximum Cooling Capacity 136.500 BTU/h (40kW) Maximum Heating Capacity 130.000 BTU/h (38kW) Air Renewal AIR CONDITIONING Evaporator Air flow (free blowing) 9.280 m³/h... -
Page 11: Equipment Description
ITEM DESCRIPTION QTY. REVO 400 eCBC Condenser Unit MPE REVO 400 eCBC Condenser Coil REVO 400 eCBC axial Fan Module Axial SPAL Fan 24V REVO 400 eCBC Condenser Support Plastic Strap with Clip REVO 400 eCBC (11117934) Condenser Electric Harness... -
Page 12: Evaporators Modules
REVO 400 eCBC Right and Left Side Evaporators base REVO 400 eCBC Right and Left Side Evaporator Coil - Aluminum Viral Filter REVO Electronic Radial Blower - 1150 024 BLDC 0 - REVO 400 eCBC REVO 400 eCBC Blower Clamp Body Clamp for Blower... -
Page 13: Covering And Fixation Components
Air Duct Adapter I (Evaporator Insufflation) REVO 400 eCBC Air Duct Adapter II (Evaporator Insufflation) REVO 400 eCBC REVO 400 eCBC Water Deflector Plate Expanded Metal Mesh Grid REVO 400 eCBC 450 Left or Right Side REVO 400 eCBC Coverage Stick REVO 400 eCBC Hood Jamb Support... -
Page 14: Air Conditioning Tubing Components
REVO 400 eCBC Liquid Tank 3 Liters Aluminum Liquid Tank X Condenser Tube Set - REVO 400 eCBC Liquid Tank Tube Set - Sub Cooling - REVO 400 eCBC Right or Left Side Closure Support REVO 400 eCBC REVO 400 eCBC Cover Support Foam Shield... -
Page 15: Air Renewall Set
REVO 400 eCBC Engine Damper Base Support DAMPER II REVO 400 eCBC Base Support BUSCHJOST 24V Electric Engine Air Renewall REVO 400 eCBC Gear for Engine Side Air Flap REVO 400 eCBC Gear for Engine Side Air Flap REVO 400 eCBC Axis for Flap Partition... -
Page 16: 4- Revo 400 C2 Step 3 - Overview
ELECTRICAL DIAGRAM OF THE EQUIPMENT REVO 400 eCBC 4- REVO 400 C2 Step 3 - Overview... -
Page 17: Terminal Plate Connection
ELECTRICAL DIAGRAM OF THE EQUIPMENT REVO 400 eCBC 4.1- Terminal Plate Connections TERMINAL PLATE CONNECTIONS 25 PIN MCP CONNECTOR 36 PIN MCP CONNECTOR AMP N 1-1718492-1 (X57M) AMP N 1-171849-1 (X58M) Description Imput Output Description Imput Output Blower floor stage 1... -
Page 18: Safety Precaution
SAFETY PRECAUTION REVO 400 eCBC 5- Personal Protection Air conditioning systems offers chemic, mechanic and electric risks. It is mandatory to wear IPE (Individual Protection Equipment), picture 1 to protect yourself from refrigerant gas, refrigerant oil, battery acid, waste launched, engine high temperature and noise. -
Page 19: Sustainability 6- Product Disposal
SUSTAINABILITY REVO 400 eCBC 6- Product Discard Concerned about sustainability at Valeo Climatização do Brasil - Veículos Comerciais S/A guides its customers and its authorized service network to discard products in an environmentally sound and safe manner. Proper disposal of the product or components at the end of their useful life will contribute with the preservation and pollutinon reduction of the environment, creating economic growth through the Reverse Logistics Program. - Page 20 Valeo Climatização do Brasil - Veículos Comerciais S/A Av. Rio Branco, 4688 - Bairro São Cristóvão - CEP 95060-145 | Caxias do Sul - RS - Brasil | Tel. +55 (54) 2101.5700 www.valeo-thermalbus.com/br...
