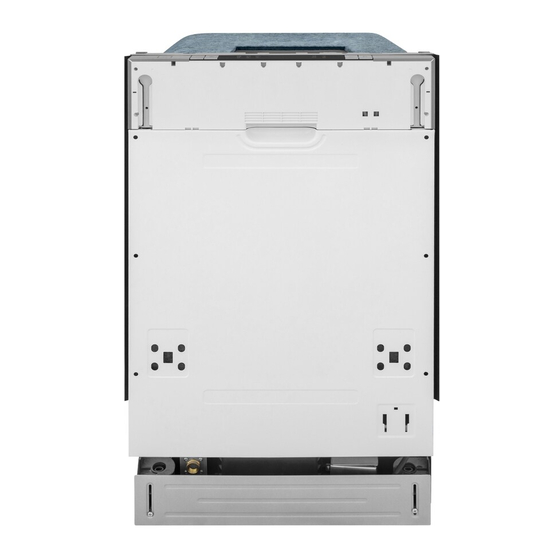

- Page 1 Installation Guide and User Manual...
- Page 2 By registering your appliance, you will have easy and accurate access to: • Technical Support ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end • Warranty Service luxury designs and professional features into everyone’s homes. Because we continually strive •...
- Page 3 COVERAGE ZLINE Kitchen and Bath dishwasher parts will be warrantied for one year from the original purchase date for the original purchaser of the product. TERMS This warranty applies only to the original purchaser of the product installed for normal residential use. This is defined as a single-family, residential dwelling in a non-commercial setting.
-
Page 4: Table Of Contents
CONTENTS CONTENTS Installation Guide Users Manual SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Important Safety Instructions Proper Installation Grounding Instructions Basic Precaution Before Use BEFORE INSTALLING FEATURES OF YOUR NEW DISHWASHER Electric Shock Hazard Specification Filter System PREPARING THE DISHWASHER ENCLOSURE Smart Wash System Product Dimensions OPERATING INSTRUCTIONS Enclosure Dimensions... -
Page 5: Installation Guide
It’s your responsibility to use common sense, caution, and care when installing, maintaining, and operating the dishwasher. ZLINE is not liable for damages resulting from improper use. -
Page 6: Grounding Instructions
SAFETY INSTRUCTIONS BEFORE INSTALLING Prior to removal of original dishwasher and the installation of your new unit, Do not use the dishwasher until it is correctly installed. make sure to switch off your circuit breaker. Do not connect the dishwasher Do not push down on the door when it is open. -
Page 7: Preparing The Dishwasher Enclosure
preparing the dishwasher enclosure installing the dishwasher Product Dimensions Be sure that the plumber follows these instructions closely so that the new dishwasher works properly and that you’re not at risk of injury when washing dishes. Step 1: Check the Parts and Tools Before starting on the installation, prepare all the necessary tools and parts required to install the dishwasher. - Page 8 installing the dishwasher installing the dishwasher Not Provided: Tools Required (Not Provided): Electric drill Safety glasses Gloves Electrical tape & standard Twist on wire connector Strain relief (optional) duct tape Adjustable wrench Wire stripper Pliers Hot water supply line 90° Elbow Tube fittings (3/8 flexible braided line (3/8 MIP x 3/8 Compression)
-
Page 9: Step 2: Select The Best Location For The Dishwasher
installing the dishwasher installing the dishwasher If the dishwasher is a new installation, most of the installation work must be done Step 3: Check Water Supply Requirements and Cautions before the dishwasher is moved into place. If the dishwasher is replacing an old The hot water supply line pressure must be between 20 PSI -145 PSI. -
Page 10: Step 4: Check The Electrical Requirements And Cautions
installing the dishwasher installing the dishwasher Step 4: Check the Electrical Requirements and Cautions Step 5: Unpacking and Inspecting the Dishwasher The electrical requirements for the dishwasher are as follows: Unbox the dishwasher in an open area free of obstruction both around the carton In the United States, install in accordance with the National Electric Code/State and and overhead. -
Page 11: Step 6: Preparing The Dishwasher
installing the dishwasher installing the dishwasher Step 5: Unpacking and Inspecting the Dishwasher Continued Step 6: Preparing the Dishwasher Plumbing Inspection Ensure that the circuit breaker and water supply valve are turned off before 1. Check the hot water connection on the front left side of the base of the dishwasher. proceeding with the following Steps. -
Page 12: Step 8: Leveling The Dishwasher
installing the dishwasher installing the dishwasher Step 7: Placing the Dishwasher and Connecting the Hot Water Step 8: Leveling the Dishwasher Supply Line 1. Open the door and place the level against the top of the 1. Adjust the three leveling legs at the bottom of the dishwasher after measuring the tub on the inside and check if the dishwasher is level. -
Page 13: Step 9: Securing The Dishwasher
installing the dishwasher installing the dishwasher Step 9: Securing the Dishwasher Firstly, put the installation bracket into the slot of the side plane and tighten to the dishwasher with screw ST3.5*9. Secondly, insert the provided screws into the holes, You must fix the dishwasher to the countertop or cabinet side walls for additional and then tighten to secure the dishwasher to the cabinet. -
Page 14: Step 10: Connecting The Drain Hose
installing the dishwasher installing the dishwasher Step 10: Connecting the Drain Hose Step 10: Connecting the Drain Hose Continued 1. Check the parts on the sink to which the drain hose will be connected. To prevent leaks or drainage problems, make sure the drain hose is not damaged, 2. -
Page 15: Step 1 1: Wiring Connections
installing the dishwasher installing the dishwasher Step 1 1: Wiring Connections Step 12: Completing the Installation 1. Before connecting the power cable to the dishwasher, make sure the circuit breaker 1. Open the door and remove all foam, paper packaging, and unnecessary parts. is completely turned off. -
Page 16: Specifications
120°F The door springs are set at the factory to the proper tension of a field installed ZLINE panel. If a custom panel is installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjuster to strain or relax the steel cable, see Figure 20. -
Page 17: Users Manual
Safety Instructions Proper Installation Plumber is required for installation. Please install your dishwasher properly by following the installation guide. Water supply inlet temperature should be between 120°F and 149°F. Dispose of the discarded appliance and packing material properly. The dishwasher must be properly grounded or it can result in a risk of electric shock. PERMANENTLY CONNECTED is allowed. -
Page 18: Features Of Your New Dishwasher
Safety Instructions Features of your New Dishwasher Basic Precaution Before Use Continued Specifications for Model DW7714-18 Under certain conditions, hydrogen gas may be produced in a hot water system that Capacity Up to 8 place settings has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the Dimensions 17.6"... -
Page 19: Filter System
Features of your New Dishwasher Features of your New Dishwasher Specifications for Model DW7713 - 24 Filter System Your dishwasher has a multiple filter system. In the system, there are three mesh filters. Capacity Up to 12 place settings It can separate soiled water and clean water in different chambers. Dimensions 23.5"... -
Page 20: Operating Instructions
Features of your New Dishwasher Operating Instructions How Your Dishwasher Cleans Control Panel Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. The dishwasher fills with water covering the filter area. Water is then pumped through the multiple filter and spray arms. - Page 21 Operating Instructions Operating Instructions 3. Delay E - Energy Save To delay the start of a selected cycle, press the delay start pad until the desired delay When the energy save function is selected, energy consumption will be time shows in the LED display. You can delay the start for 1 to 24 hours. To cancel the reduced during the washing process.
-
Page 22: Cycle Chart
Preparing and Loading Dishes Operating Instructions Cycle Chart Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The Program Description of Cycle Water (L or G) Cycle Time (min) continuously filtered wash system will remove the remaining food Heavy Pre Wash 19.7 or 5.2... -
Page 23: Loading The Silverware Basket
Preparing and Loading Dishes Preparing and Loading Dishes Loading the Lower Basket Loading the Silverware Basket The silverware basket can be divided into three The lower basket has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates. separate modules that can be used in both upper Load large items such as pans and pots into the dishwasher so their open sides face and lower racks. -
Page 24: Filling The Detergent Dispenser
User Maintenance Preparing and Loading Dishes Filling the Rinse Aid Dispenser Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. Your dishwasher is designed to use a liquid rinse aid. The use of rinse greatly improves drying performance after the Cleaning the Exterior final rinse. - Page 25 Troubleshooting Troubleshooting Problem Possible Cause Solution Problem Possible Cause Solution Dishwasher won't start Power supply or power Check and connect Detergent left in dispenser Detergent may be too Use fresh detergent line is not connected power supply Delay start option has Refer to delay start Spray arm is blocked Unblock spray arms...
- Page 26 Troubleshooting Troubleshooting Error Message Error Message Symptom Symptom Possible Reason Possible Reason During the water inlet Step, if the flow 1. Check the water supply (Only appears in the factory mode) 1. Check the inlet water meter can't detect the water after 4 2.
-
Page 27: Troubleshooting
Troubleshooting E1 Longer Inlet Time Is there any water in the tub? Is the incoming water pressure Is the incoming water turned on? 20 PSI -145 PSI? Is the water supply line installed correctly? Is the drain hose Adjust water pressure Is the water supply Replace the hose. - Page 28 1.2.0 1-614-777-5004 contact@zlinekitchen.com www.zlinekitchen.com...
