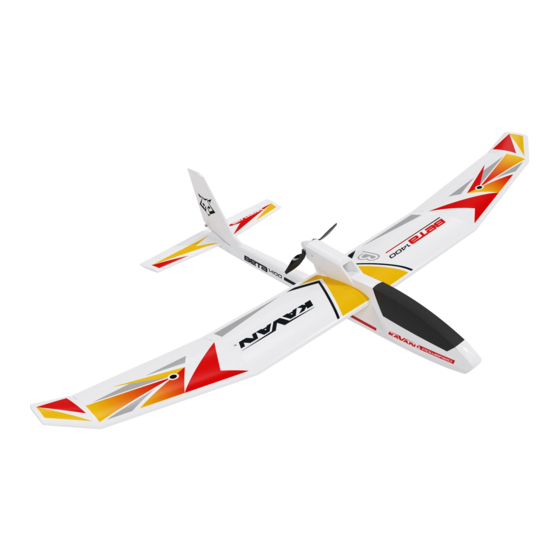

BETA 1400
Instruction Manual / Návod ke stavbě/Bauanleitung / Návod na stavbu
PRECAUTIONS:
This R/C model is not a toy. Use it with care and stricktly following the instructions in this
manual.
Assemble this model following stricktly these instructions. DO NOT modify or alter the mod-
el. Failure to do so, the warranty will lapse automatically. Follow the instructions in order to
obtain a safe and solid model at the end of the assembly.
Children under the age of 14 must operate the model under the supervision of an adult.
Assure that the model is in perfect conditions before every flight, taking care that all the
equipment works correctly and that the model is undamaged in its structure.
Fly only in days with light breeze and in a safe place away from any obstacles.
UPOZORNĚNÍ:
Tento RC model není hračka. Je určen k provozování osobami staršími 15 let.
Model dokončete a připravte k letu PŘESNĚ podle návodu. Model NEUPRAVUJTE, v opačném
případě automaticky ztrácí záruka svoji platnost.
Model provozujte opatrně a ohleduplně, důsledně se řiďte pokyny v tomto návodu.
Před každým letem se ujistěte, že model je v prvotřídním stavu, dbejte, aby všechny části
pracovaly správně, a model nebyl poškozený.
S modelem létejte na vhodné ploše bez překážek, stromů, elektrických vedení apod. Vyhle-
dejte bezpečné místo, mimo cesty a veřejné komunikace, dbejte na bezpečnost přihlížejících
diváků.
VORSICHTSMAßNAHMEN:
Dieses R/C Modell ist kein Spielzeug. Benutzen Sie es mit Vorsicht und halten
Sie sich an die Anweisungen in dieser Anleitung. Bauen Sie das Modell gemäß der Anleitung
zusammen. Modifizieren und verändern Sie das Modell nicht. Bei Nichteinhaltung erlischt die
Garantie. Folgen Sie der Anleitung um ein sicheres und haltbares Modell nach dem Zusam-
menbau zu erhalten.
Kinder unter 14 Jahren müssen das Modell unter Aufsicht eines Erwachsenen betreiben.
Versichern Sie sich vor jedem Flug, dass das Modell in einwandfreiem Zustand ist, dass alles
einwandfrei funktioniert und das Modell unbeschädigt ist.
Fliegen Sie nur an Tagen mit leichtem Wind und an einem sicheren Platz ohne Hindernisse.
UPOZORNENIE:
Tento RC model nie je hračka. Je určený na prevádzkovanie osobami staršími ako 14 rokov.
Model dokončite a pripravte k letu PRESNE podľa návodu. Model neupravujte, v opačnom
prípade automaticky stráca záruka svoju platnosť.
Model prevádzkujte opatrne a ohľaduplne, dôsledne sa riaďte pokynmi v tomto návode.
Pred každým letom sa uistite, že model je v prvotriednom stave, dbajte, aby všetky časti pra-
covali správne, a model nebol poškodený.
S modelom lietajte na vhodnej ploche bez prekážok, stromov, elektrických vedení apod.
Vyhľadajte bezpečné miesto, mimo cesty a verejné komunikácie, dbajte na bezpečnosť pri-
zerajúcich
