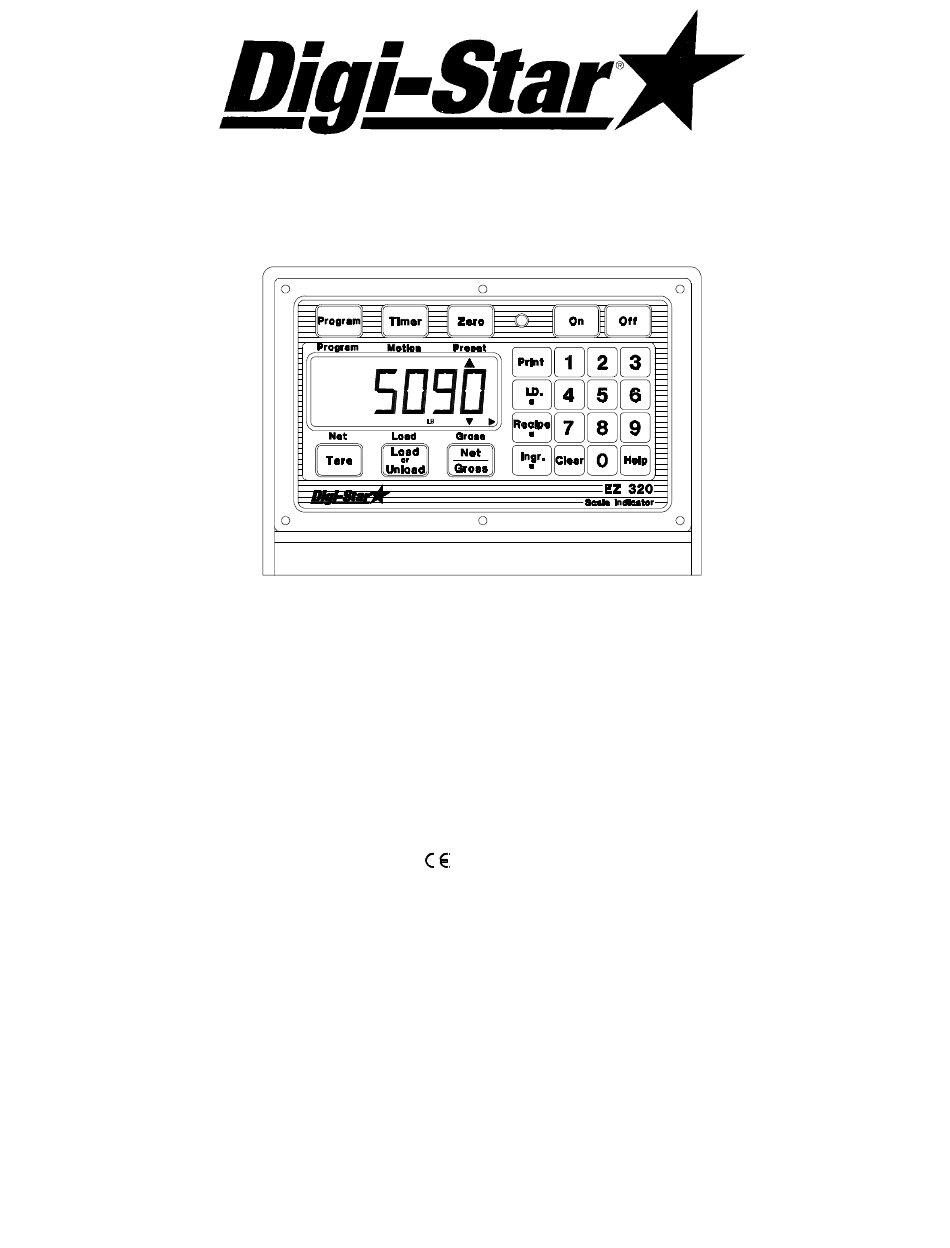

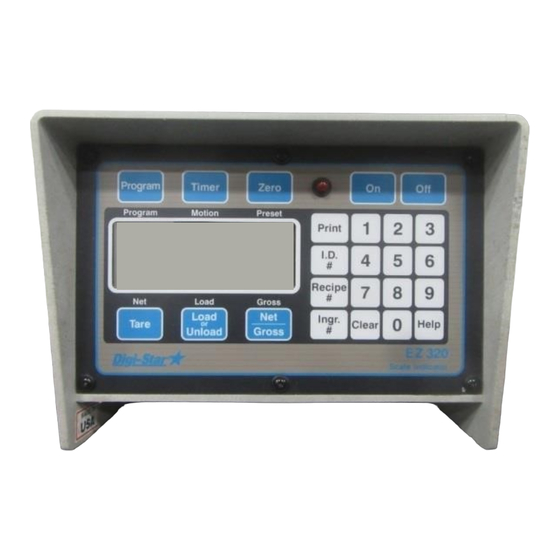

The "EZ 320" Electronic Scale Indicator
Operation & Installation Manual
FEATURES: The "EZ 320" Model has enhanced features such as:
- Scrolling Help Messages for EZ recipe programming & operation.
- Up to 81 different batching recipes.
- Three recipe programming modes - Percent of total, Pounds per animal, or Pounds
per Ingredient.
- Ingredients can be entered in any order.
- Large 1 inch alpha-numeric display for greater readability.
- Front Panel Calibration without simulator or weights.
- Fiber-optic backlighting for extremely long life.
- Optional European Compliance (
OPERATING SPECIFICATIONS:
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . 0.1% with System Accuracy depending on load cells used
Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20 to 140 degrees F
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10½ - 16 VDC
F3287 Rev. B 9/96
mark) for use in the European Community
DIGI-STAR
790 WEST ROCKWELL AVENUE
FORT ATKINSON, WISCONSIN 53538
PHONE (920) 563-1400
TECHNICAL SERVICE (920) 563-9700
© 1992-96 DIGI-STAR
Printed in U.S.A.
