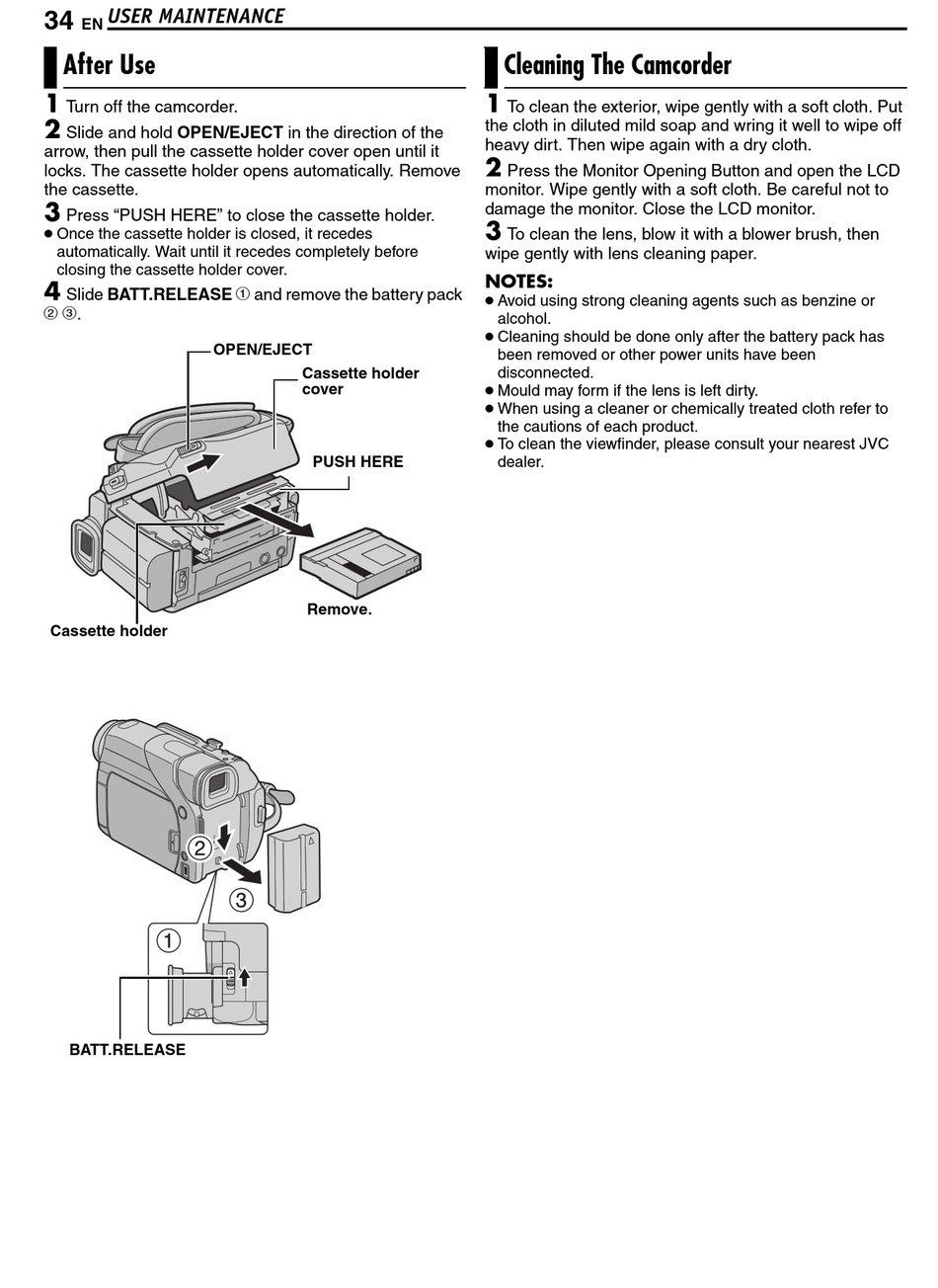

USER MAINTENANCE

34
EN
After Use
1
Turn off the camcorder.
2
Slide and hold OPEN/EJECT in the direction of the
arrow, then pull the cassette holder cover open until it
locks. The cassette holder opens automatically. Remove
the cassette.
3
Press "PUSH HERE" to close the cassette holder.
● Once the cassette holder is closed, it recedes
automatically. Wait until it recedes completely before
closing the cassette holder cover.
4
Slide BATT.RELEASE 1 and remove the battery pack
2 3.
OPEN/EJECT
Cassette holder
BATT.RELEASE
Cassette holder
cover
PUSH HERE
Remove.
Cleaning The Camcorder
1
To clean the exterior, wipe gently with a soft cloth. Put
the cloth in diluted mild soap and wring it well to wipe off
heavy dirt. Then wipe again with a dry cloth.
2
Press the Monitor Opening Button and open the LCD
monitor. Wipe gently with a soft cloth. Be careful not to
damage the monitor. Close the LCD monitor.
3
To clean the lens, blow it with a blower brush, then
wipe gently with lens cleaning paper.
NOTES:
● Avoid using strong cleaning agents such as benzine or
alcohol.
● Cleaning should be done only after the battery pack has
been removed or other power units have been
disconnected.
● Mould may form if the lens is left dirty.
● When using a cleaner or chemically treated cloth refer to
the cautions of each product.
● To clean the viewfinder, please consult your nearest JVC
dealer.
