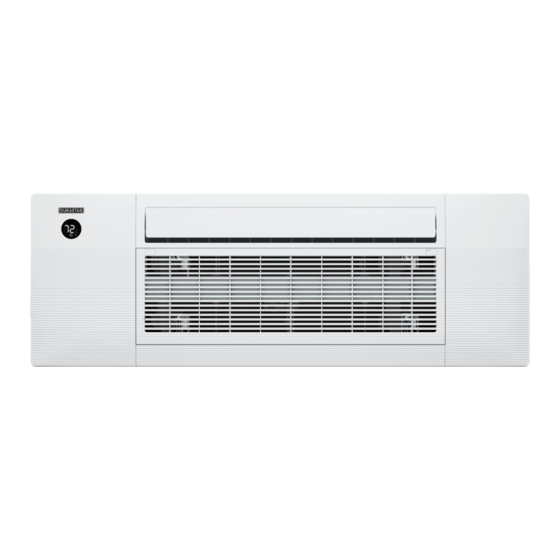

One-way cassette indoor unit

Hide thumbs Also See for DRAL06F1A:

Installation manual (36 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

OWNER'S MANUAL

ONE-WAY CASSETTE INDOOR UNIT

SPLIT-STYLE AIR CONDITIONER

DRAL06F1A, DRAL09F1A. DRAL12F1A, DRAL18F1A

Model Number:

Serial Number:

Purchase Date:

Installing Contractor Company Name:

TIP

Capture relevant information about your Durastar mini-split equipment before it is

installed and write it above for future reference.

FPO

DURASTAR.COM

Table of Contents

Need help?

Do you have a question about the DRAL06F1A and is the answer not in the manual?

Questions and answers

Summary of Contents for DURASTAR DRAL06F1A

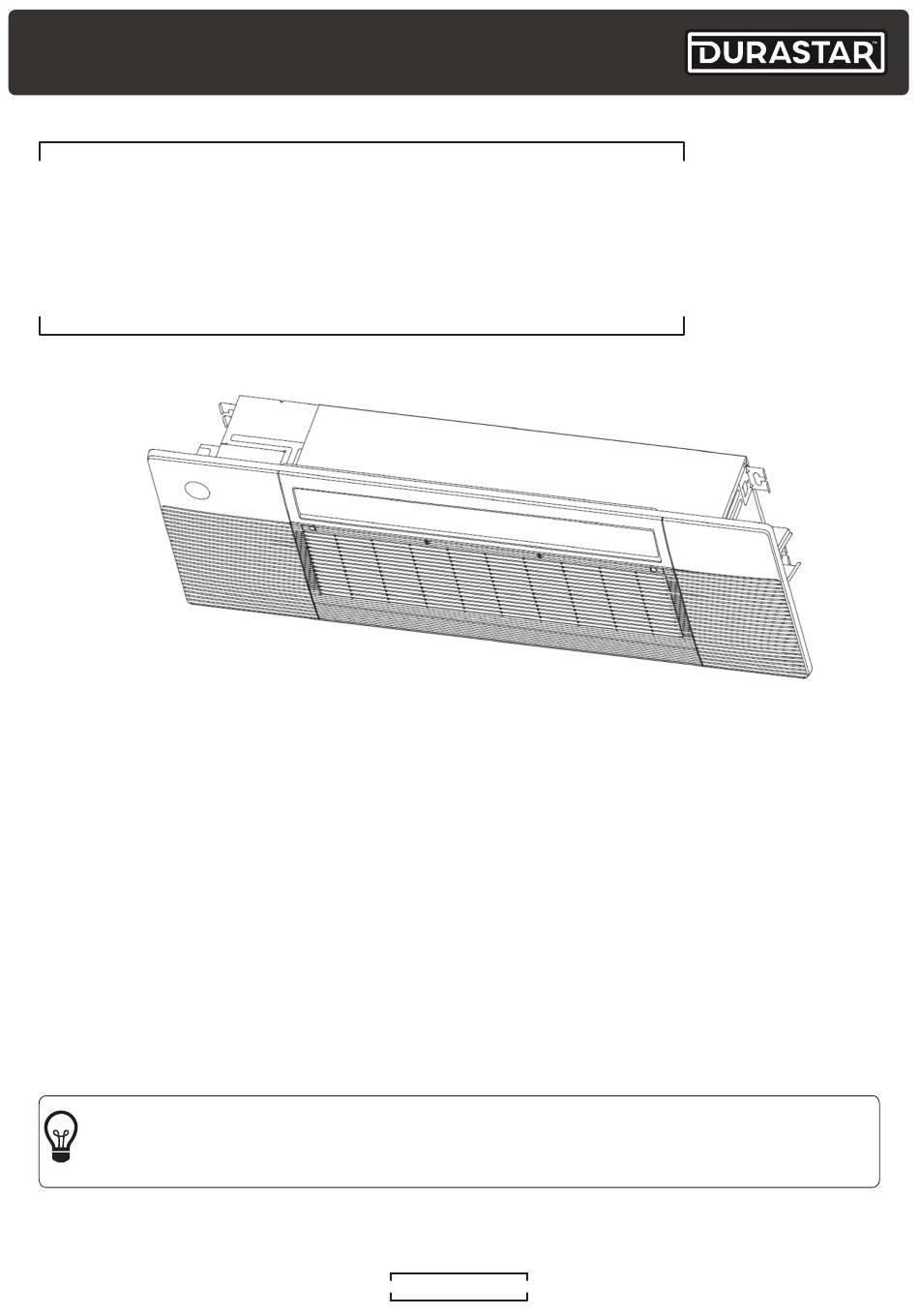

Page 1 ONE-WAY CASSETTE INDOOR UNIT SPLIT-STYLE AIR CONDITIONER DRAL06F1A, DRAL09F1A. DRAL12F1A, DRAL18F1A Model Number: Serial Number: Purchase Date: Installing Contractor Company Name: Capture relevant information about your Durastar mini-split equipment before it is installed and write it above for future reference. DURASTAR.COM...
Page 2: Table Of Contents
REMOTE CONTROL ............................10 REMOTE CONTROL SCREEN INDICATORS ..................11 OPERATING MODES ............................12 ADVANCED BUTTONS AND FEATURES ..................13 LOUVERED AIR FLOW ..........................17 LED DISPLAY INDICATORS........................18 MANUAL OPERATION (USE WITHOUT REMOTE) ..............18 CARE AND MAINTENANCE ........................19 TROUBLESHOOTING ..........................22 WARRANTY ..............................26 DURASTAR.COM...
Page 3: Introduction
• Read the troubleshooting section of this manual as it will help you diagnose and solve common issues. • Visit us on the web at www.durastar.com to download product guides and up-to-date information. • If you need warranty service, our friendly customer service representatives are available via email at questions@durastar.com or by telephone at 1-888-320-0706.
Page 4: Important Safety Precautions
Do not wash the air conditioner with water as this could cause an electric shock. • Disconnect the power supply by turning it off at the circuit breaker when cleaning the air conditioner. Otherwise, you could risk electric shock. DURASTAR.COM...
Page 5 • The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board. DURASTAR.COM...
Page 6 Do not climb onto or place objects on top of the outdoor unit. • Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high. DURASTAR.COM...
Page 7: Parts Identification
Air Intake Grille Air Filter Air Filter Air Flow Louver Air Vane Display Panel Display Panel OUTDOOR UNIT Signal Cable, Air Inlets Refrigerant Pipes, and Drain Hose Wiring Terminal Valve Cover Air Outlet NOTE Outdoor units will vary in appearance. DURASTAR.COM...
Page 8: Included Accessories
AAA Battery Cardboard Template Water Receiver Remote Control Holder Screw ST8*50 Remote Control Holder Mounting Screw Screw M4*22 Drain Pipe Adaptor Screw ST4.8*12 Copper Nut Screw ST3.9*10 Drain Joint Screw ST3.9*16 Drain Joint Seal Cable Tie Panel Rubber ring DURASTAR.COM...
Page 9: Operating Temperatures
Regularly inspect and clean air filters. NOTE Your Durastar air conditioner's outdoor unit is equipped with a base pan heater, allowing it to continue to operate at freezing temperatures as low as -22°F (-30°C). When outdoor air temperatures are at or below 32°F (0°C), we strongly recommend keeping the unit plugged in at all times to ensure smooth ongoing performance.
Page 10: Remote Control
13. HUMIDITY Button Press to increase humidity during DRY operation in 5% increments. The humidity setting takes the place of the temperature setting, when in DRY mode. 14. LED Button Press to turn on and off the indoor unit's display screen. DURASTAR.COM...
Page 11: Remote Control Screen Indicators
Fan speed setting range: Note: AUTO -100% Not all the models can display Not available for Humidity setting range: the fan speed values between this unit 35% - 85% AUTO-100%. This display is blank when operating in FAN mode. DURASTAR.COM...
Page 12: Operating Modes
2. Set desired humidity 3. Turn on air conditioner MODE MODE NOTE The FAN speed cannot be adjusted in AUTO or DRY Mode. NOTE Press and hold the UP and DOWN buttons simultaneously for 3 seconds to switch between °F and °C. DURASTAR.COM...
Page 13: Advanced Buttons And Features
25% or 50%. Press the ECO/GEAR button to turn off this feature. NOTE The overall energy consumption of the unit is affected by many factors and this feature's energy reduction level setting will not result in directly proportional money savings on your energy bill. DURASTAR.COM...
Page 14 CLEAN function. You can use CLEAN as often as you like. The heat necessary to dry the coil at the end of the cleaning process may cause the room temperature to rise. This feature is not available in multiple zone configurations. DURASTAR.COM...
Page 15 If the current time is 1:00 PM and the TIMER ON setting is adjusted to 2.5 hours, the auto-on time sequence will turn the air conditioner on 2.5 hours later at 3:30 PM. Setting the TIMER OFF auto- off sequence to 5.0 hours will turn off the air conditioner 5 hours later at 6:00 PM. DURASTAR.COM...
Page 16 The AUTO-RESTART feature is enabled when power is interrupted to the unit. After power is restored, the unit will automatically return to its prior settings before power was lost. No buttons need to be pressed to set this feature - it is automatic. DURASTAR.COM...
Page 17: Louvered Air Flow
30 seconds, then restart the unit. This will reset the louver. CAUTION Do not put your fingers in or near the blower and suction side of the unit. The high-speed fan inside the unit may cause injury. Louver DURASTAR.COM...
Page 18: Led Display Indicators
See Manual Operation section. POWER Displays when the unit is ON. PRE-DEF Displays when the unit is preheating the air or defrosting. TIMER Displays when the TIMER feature is active. ALARM Displays when there is an alarm. DURASTAR.COM...
Page 19: Manual Operation (Use Without Remote)
Make sure the drain hose is set up according to the instructions. Failure to do so could cause leakage and result in personal property damage, fire, and electrical shock. • Make sure that all wires are connected properly. Failure to connect wires according to instructions can result in electrical shock or fire. DURASTAR.COM...
Page 20 To clean the air filter, do the following: 1. Press the circular indentation on the front of the unit to open the screw covers. 2. Remove the two (2) screws. 3. Hold open the grille and remove the air filter. Screw Cover Air Filter DURASTAR.COM...
Page 21 After long periods of non-use, or before periods of frequent use, do the following: • Inspect for damaged wires • Clean all filters. • Check for leaks. • Replace batteries. • Make sure nothing is blocking the air inlets and outlets. DURASTAR.COM...
Page 22: Troubleshooting
The indoor unit makes A rushing air sound may occur when the louver resets its position. noises A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts. DURASTAR.COM...
Page 23 • Press ON/OFF button on remote control to restart operation. NOTE If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number. DURASTAR.COM...
Page 24 10 minutes. The problem continue may resolve itself. flashing or If not, disconnect the power, then connect it again. Turn the unit on. error code If the problem persists, disconnect the power and contact your nearest appears customer service center. DURASTAR.COM...
Page 25 Wait three minutes after restarting the been activated unit Timer is activated Turn timer off NOTE If your problem persists after performing the checks and diagnostics above, or the error code remains, turn off your unit immediately and contact an authorized service center. DURASTAR.COM...
Page 26: Warranty
For a period of ten (10) years from the date of installation, if any parts prove defective due to improper workmanship and/or material, Durastar with replace any defective part without charge for the part. Replacement parts carry the balance of the original 10-year parts warranty.
Page 27 Support, please locate your model number, serial number, and proof of purchase. These items will be required to complete any warranty service. A Durastar authorized representative will verify warranty eligibility and determine appropriate service options. Service will be provided during normal business days and hours.
