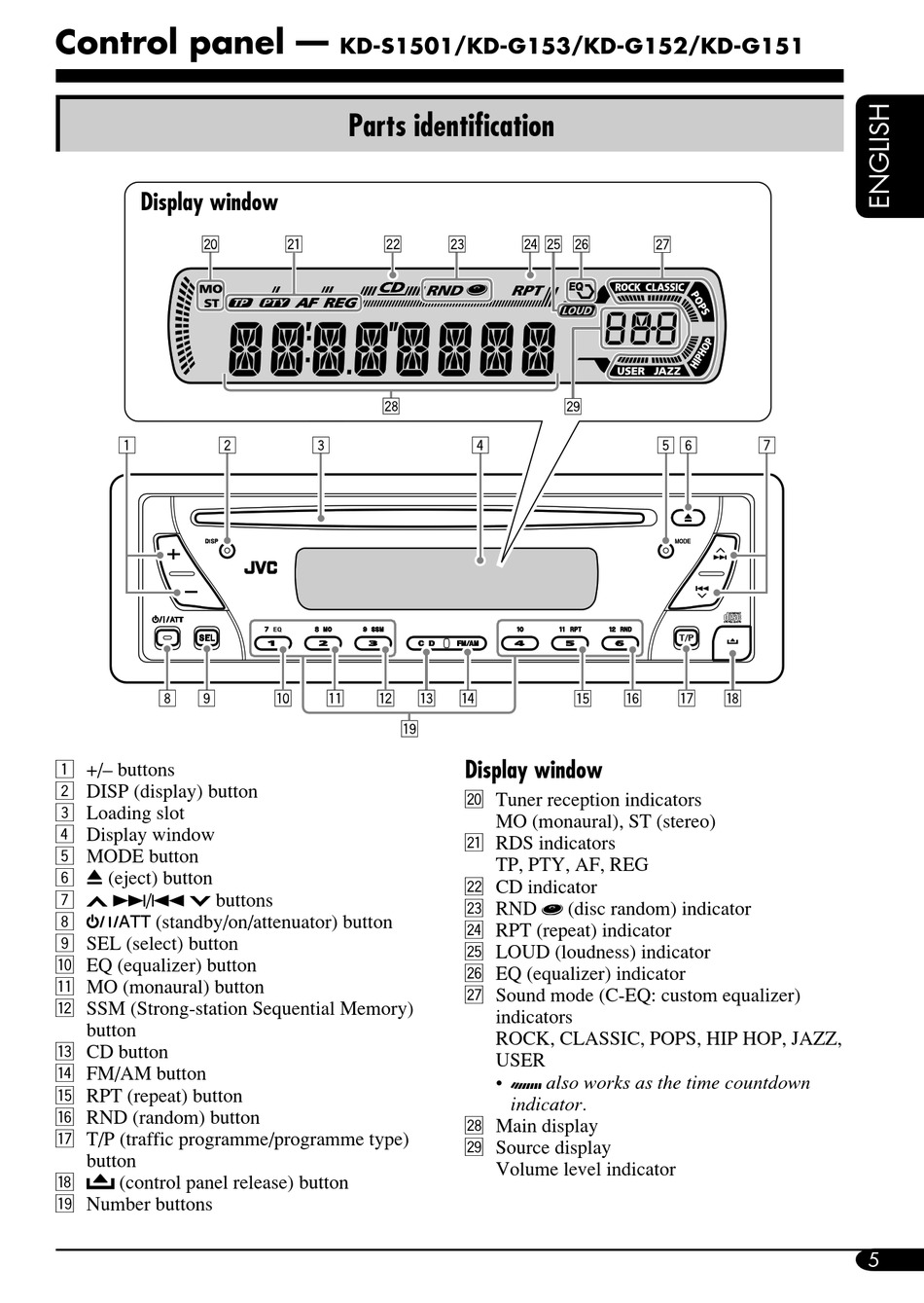

Control panel —
Display window
1 +/– buttons
2 DISP (display) button
3 Loading slot
4 Display window
5 MODE button
6 0 (eject) button
¢/4
7
buttons
8
(standby/on/attenuator) button
9 SEL (select) button
p EQ (equalizer) button
q MO (monaural) button
w SSM (Strong-station Sequential Memory)
button
e CD button
r FM/AM button
t RPT (repeat) button
y RND (random) button
u T/P (traffic programme/programme type)
button
i
(control panel release) button
o Number buttons
KD-S1501/KD-G153/KD-G152/KD-G151

Parts identification

Display window
; Tuner reception indicators
MO (monaural), ST (stereo)
a RDS indicators
TP, PTY, AF, REG
s CD indicator
d RND
f RPT (repeat) indicator
g LOUD (loudness) indicator
h EQ (equalizer) indicator
j Sound mode (C-EQ: custom equalizer)
indicators
ROCK, CLASSIC, POPS, HIP HOP, JAZZ,
USER
•
indicator.
k Main display
l Source display
Volume level indicator
(disc random) indicator
also works as the time countdown
5
