TECHNICAL DATA
Power Supply: 120VAC / 60Hz
Frequency: 434.15 MHz
Transmitter range: 20 m indoor/200 m outdoor
Protection: IP55
Dimensions: 133x35x25 mm

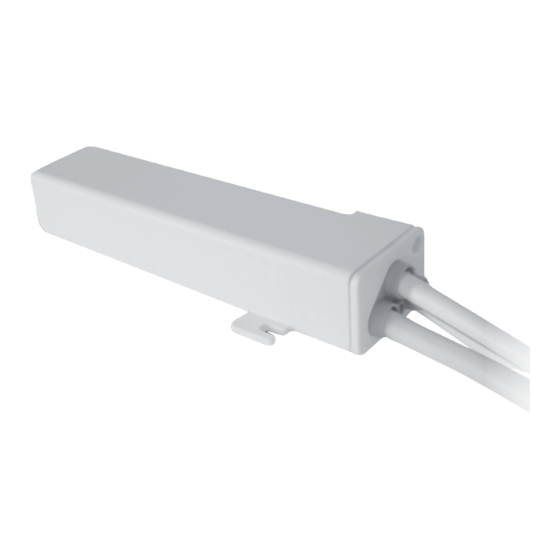

QCZ09U control unit for shutters and awnings is provided with a radio receiver (434.15 MHz) and a
facility for a pushbutton and a wind sensor. It is in a water resistant box with an internal antenna.
The receiver can record up to 31 different codes to identify as many transmitters.
The shutter/awning is controlled by a transmitter and/or an external standard switch (normally open).
You can also install a wind sensor GAPOSA (option) which closes the awning automatically in case of
strong wind.
Max. distance between wind sensor and QCZ09U is 20 m.
CAUTION: Please don't use these transmitters in areas with risks of radio disturbs over the norm
(i.e. airports or radio repeaters). These transmitters may also be disturbed by telecommunication
and/or transceiver systems with the same frequency.
ELECTRICAL CONNECTION (Fig. 1)
Check that the power supply corresponds to the label data. Use the 3-pole cable for the net power
supply, the 4-pole cable to connect the motor and the 2-pole cable for the pushbutton connection.
WARNING! Never remove the fixing screw (A) from the cover of the output wires.
For more protection when installed outdoor, we recommend installation in vertical with cables exit
facing downwards.

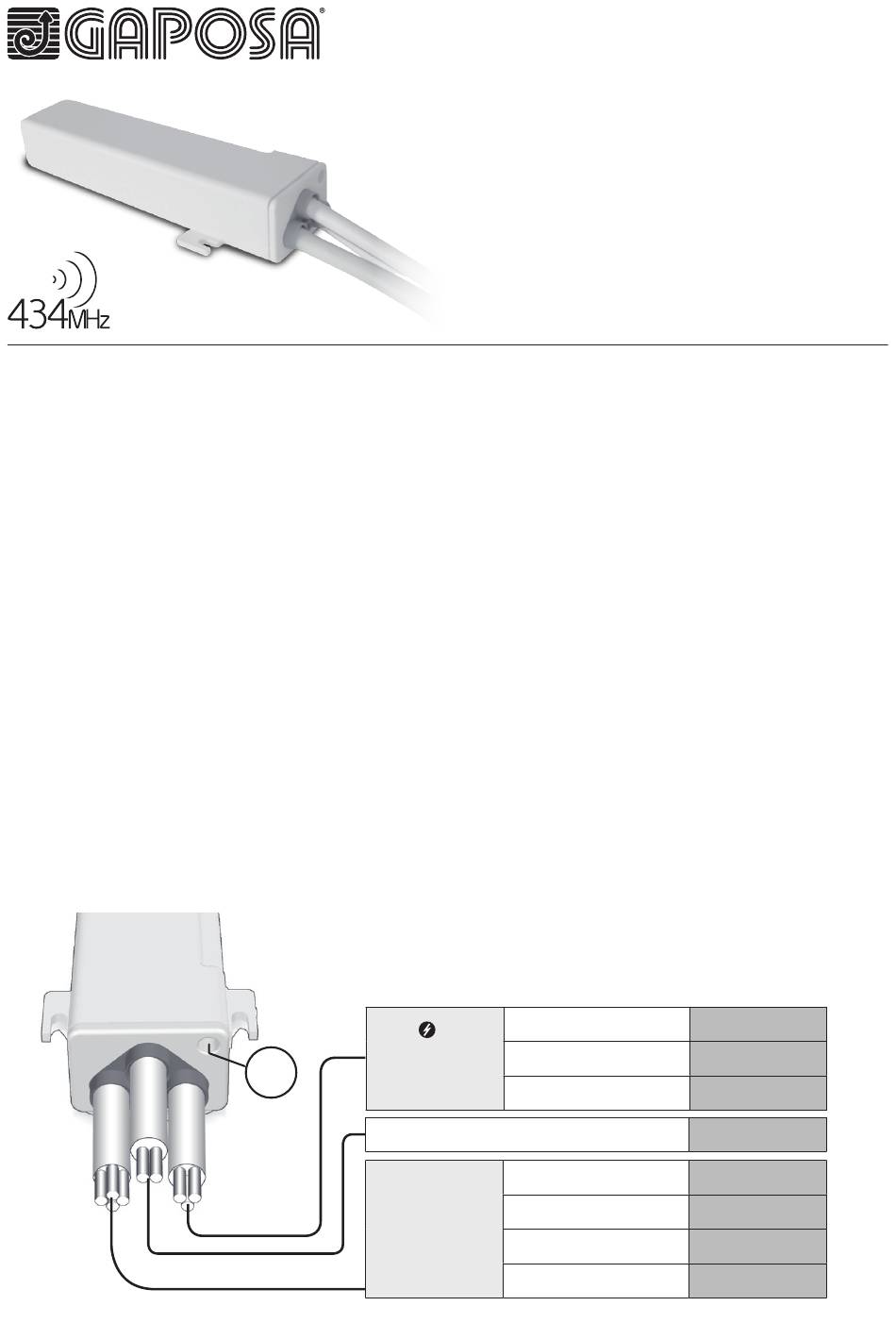

Fig. 1 ELECTRICAL CONNECTION
120V~ / 60Hz
A
POWER SUPPLY
Switch button
MOTOR CABLE
GAPOSA srl
via Ete, 90 - 63900 Fermo - Italy
T. +39.0734.22071 - F. +39.0734.226389
info@gaposa.com - www.gaposa.com
QCZ09U
120V~ / 60Hz
Remote control unit for shutters
and awnings with integrated receiver
Cuadro de mando para persianas
y toldos con receptor radio integrado
Ground
Phase
Neutral
Direction of rotation 1
Common
Direction of rotation 2
Ground
QCZ09UK1_ML_0717
(.K1)
Green
Black
White
White / Black
Red
White
Black
Green
