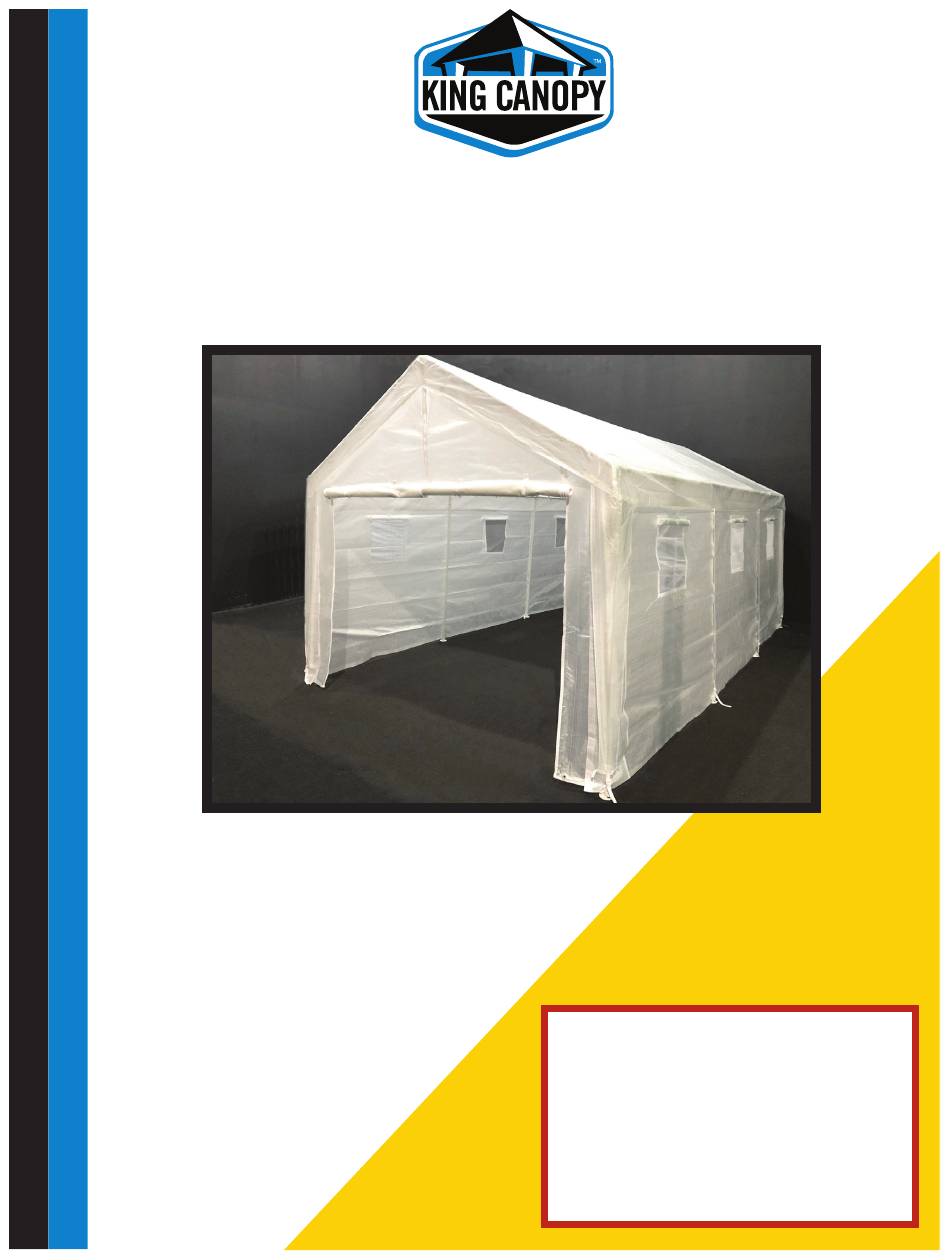

Hercules
10ft8in Wide x 20ft Deep x 6ft8in Side Height /
With 8 Legs, Cover, Side Wall kit with Windows, Elastic Ball Straps &
Foot Pads
Distributed By:
PIC America, LTD.
8009 Purfoy Road • Fuquay-Varina, NC 27526
1-800-800-6296 • www.kingcanopy.com
Greenhouse 10ft X 20ft
™
9ft9in Center Height
King Canopy Item #: HCGH1020
WARNING:
Keep all flame and heat sources
away from this tent fabric. Meets
the flammability requirements of
CPAI-84 Sec 6 and NFPA 701. It is not
fire proof. The fabric will burn if left in
continuous contact with any flame source.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KING CANOPY Hercules HCGH1020
Summary of Contents for KING CANOPY Hercules HCGH1020
- Page 1 Greenhouse 10ft X 20ft ™ 10ft8in Wide x 20ft Deep x 6ft8in Side Height / 9ft9in Center Height King Canopy Item #: HCGH1020 With 8 Legs, Cover, Side Wall kit with Windows, Elastic Ball Straps & Foot Pads WARNING: Keep all flame and heat sources away from this tent fabric.
-
Page 2: Parts List
PARTS LIST 6X6-2PC 17 pc 78” Pipe 5X8-2PC 8 pc 68” Pipe 3W2PC 6 pc 3-way Connectors 4W2PC 6 pc 4-way Connectors BALLW 125 pc Elastic Ball Straps FOOT2PC 8 pc Foot Pads T81020SWW-BS-GH 2 pc Side Walls with Screen Windows T81020EWZ-GH 1 pc Front Wall with Zippers... -
Page 3: Frame Assembly
FRAME ASSEMBLY Step 1 Separate all pieces according to size and shape and arrange per the illustration shown below. Please note: • The 68in pipes are used to form the roof rafters • The 78in pipes are used to form the roof perimeter and for the legs 78’’... -
Page 4: Cover Assembly
COVER ASSEMBLY Step 1 should be located at each of the 4 corners of the frame. Step 2 Begin attaching the cover with the elastic ball straps by inserting the elastic cord of the ball strap under- neath the cover and through the grommet. Then pull cord taut until ball stops. Wrap the cord around the Inside View Outside View •... - Page 5 WALLS AND LEGS ASSEMBLY Step 1 Unfold each of the walls. • The front wall features 3 zippers, one on each side and one in the center. • The rear wall is solid woth no zippers. • The side walls of the unit feature 3 windows each Step 2 Find the hook &...
- Page 6 INSTALLING THE LEG SKIRTS Step 1 After the legs have been connected to the roof using the 3- and 4-way connectors and your canopy has been securely anchored, attach the leg skirts using elastic ball straps and the grommets at the top of the unit. (Make sure that the end walls are underneath the flared leg covers to minimize rain and other elements from entering inside the canopy unit.) Step 2...
- Page 7 ANCHORING YOUR UNIT This canopy is designed for use as a temporary structure. After assembly, the canopy MUST BE securely anchored to the ground to prevent damage from winds. Your canopy will act like a kite in the wind if not properly and securely anchored to the ground.
- Page 8 King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and we are in no way responsible for any damage caused by the canopy or to the canopy. We suggest you contact your insurance carrier just as you would for any other outside structure.
-
Page 9: Product Information
Improper Anchoring, Strong Winds, Rain Snow, or Ice King Canopy/PIC America, LTD. does not guarantee these canopies under strong weather conditions. These canopies are designed to protect against damages caused by sun, rain, tree sap, birds, etc. They are not designed to hold roof loads that accompany snow, ice or heavy rains.
