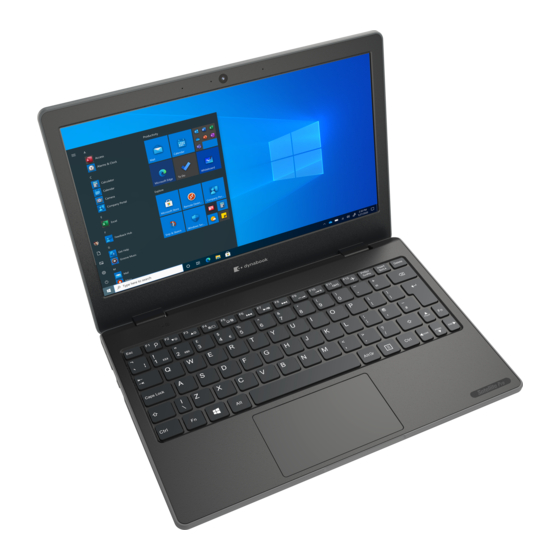

dynabook SATELLITE PRO E10-S User Manual
  1. Manuals
  2. Brands
  3. dynabook Manuals
  4. Laptop
  5. Satellite Pro E10-S
  6. User manual

dynabook SATELLITE PRO E10-S User Manual

Hide thumbs Also See for SATELLITE PRO E10-S:
Table of Contents

Advertisement

Quick Links

User's Manual
SATELLITE PRO E10-S
dynabook E10-S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATELLITE PRO E10-S and is the answer not in the manual?

Questions and answers

Related Manuals for dynabook SATELLITE PRO E10-S

Summary of Contents for dynabook SATELLITE PRO E10-S

  • Page 1 User's Manual SATELLITE PRO E10-S dynabook E10-S...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Legal, Regulatory, and Safety Copyright, Disclaimer and Trademarks ..........1-1 Regulatory Information ................. 1-2 Video Standard Notice ................ 1-10 OpenSSL Toolkit License Issues ............1-10 FreeType License Issues ..............1-13 ENERGY STAR® Program ..............1-16 Disposing of the computer and the computer's battery ....
  • Page 3 Chapter 7 Appendix Specifications ..................7-1 AC Power Cord and Connectors ............7-2 Information for Wireless Devices ............7-3 Accessibility ..................7-14 Ease of Access for Dynabook notebook ........... 7-14 Legal Footnotes ................... 7-17 Glossary ....................7-19 Index User's Manual...

  • Page 4: Chapter 1 Legal, Regulatory, And Safety

    Copyright, Disclaimer and Trademarks Copyright © 2021 Dynabook Inc. All Rights Reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Dynabook Inc. No patent liability is assumed, with respect to the use of the information contained herein.

  • Page 5: Regulatory Information

    Only peripherals complying with the FCC class B limits can be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by Dynabook is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s Universal Serial Bus (USB 3.2 Gen1) port, USB Type-...
  • Page 6 This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Contact Address: Dynabook Americas, Inc. 5241 California Avenue, Suite 100 Irvine, California, USA, 92617 Telephone: (949) 583-3000 This information is only applicable for the countries/regions where it is required.
  • Page 7 EMC (Electromagnetic Compatibility) standards. However, Dynabook cannot guarantee that this product still observes these EMC standards if options or cables not produced by Dynabook are connected or implemented. In this case the persons who have connected/implemented those options/cables have to provide assurance that the system (PC plus options/cables) still fulfils the required standards.
  • Page 8 Note that Canadian Department of Communications (DOC) regulations provide, that changes or modifications not expressly approved by Dynabook could void your authority to operate this equipment. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
  • Page 9 Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
  • Page 10 Disposal of products The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste.
  • Page 11 Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018. Dynabook will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.
  • Page 12 Dynabook meets all requirements of Turkish regulation 28300 “Restriction of the use of certain hazardous substances in electrical and electronic equipment”.

  • Page 13: Video Standard Notice

    These symbols might not stick depending on the country and region where you purchased. Video Standard Notice THIS PRODUCT IS LICENSED UNDER THE AVC, THE VC-1 AND MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (I) ENCODING VIDEO IN COMPLIANCE WITH THE ABOVE STANDARDS ("VIDEO") AND/OR (II) DECODING AVC, VC-1 AND MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND...
  • Page 14 The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL"...
  • Page 15 Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

  • Page 16: Freetype License Issues

    FreeType License Issues The FreeType Project LICENSE ---------------------------- 2006-Jan-27 Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg Introduction ============ The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project.
  • Page 17 ============ 0. Definitions -------------- Throughout this license, the terms `package', `FreeType Project', and `FreeType archive' refer to the set of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType Project', be they named as alpha, beta or final release. `You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's source code as well as linking it to form a `program' or `executable'.
  • Page 18 Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though this isn't mandatory.

  • Page 19: Energy Star® Program

    If the model you purchased is compliant, it uses the ENERGY STAR logo and the following information applies. Dynabook is a partner in the ENERGY STAR Program and has designed this computer to meet the latest ENERGY STAR guidelines for energy efficiency. Your computer...

  • Page 20: General Precautions

    General Precautions Your computer is designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer. Be certain to read the following general precautions and to note the cautions included in the text of the manual.
  • Page 21 Stress injury Carefully read the Instruction Manual for Safety and Comfort. It contains information on the prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use. It also includes information on work space design, posture, and lighting that can help reduce physical stress.

  • Page 22: Safety Icons

    Moving the computer While the computer is designed for flexible day-to-day usage, you should exercise a few simple precautions when moving it in order to help ensure trouble-free operation. Make sure all disk/disc activity has ended before moving the computer. Turn off (shut down) the computer.
  • Page 23 Indicates a potentially hazardous situation, which could result in death or serious injury, if you do not follow instructions. A caution informs you that improper use of equipment or failure to follow instructions might cause data loss, equipment damage, or might result in minor or moderate injury.

  • Page 24: Chapter 2 Getting Started

    This chapter provides an equipment checklist, and basic information to start using your computer. If you use an operating system that was not pre-installed by Dynabook, some of the features described in this manual might not function properly. You might not have all the software mentioned in this manual depending on the model you purchased.

  • Page 25: Using Your Computer For The First Time

    Double-click Tap the Touch Pad or click the left Touch Pad control button twice. Left-click the mouse twice. Start The word "Start" refers to the " " button in the lower-left corner of the screen. Using your computer for the first time Be sure to read the enclosed Instruction Manual for Safety and Comfort for information on the safe and proper use of this computer.
  • Page 26 Always use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor might cause fire or damage to the computer, possibly resulting in serious injury.
  • Page 27 Figure 2-2 Connecting the power cord to the AC adaptor (3-pin plug) Either a 2-pin or 3-pin adaptor/cord is included with the computer depending on the model. Connect the DC output plug of the AC adaptor to the DC IN 19V jack on your computer.
  • Page 28 Figure 2-4 Opening the display panel 1. Display panel Product appearance depends on the model you purchased. Open and close the display panel with reasonable care. Opening it vigorously or slamming it shut might damage the computer. Be careful not to open the display panel too far as this might put stress on the display panel’s hinges and cause damage.

  • Page 29: Getting To Know Windows

    Volume cannot be adjusted during Windows Setup. Do not touch the display screen while turning on the computer. Open the display panel. Press the power button. Figure 2-5 Turning on the power 1. Power button Product appearance depends on the model you purchased. Initial setup The Windows Startup Screen is the first screen displayed when you turn on the power.
  • Page 30 You can pin your favorite apps to the Start menu as tiles in grid-like pattern, and also group them. Tiles show you dynamic information from apps without having to open them. Windows taskbar By default, the bottom of the desktop is Windows taskbar. You can see all of your currently running apps on the Windows taskbar.

  • Page 31: Turning Off The Power

    Windows Store Although many apps are pre-installed in your computer, you can also download many others from the Windows Store. You can search for and browse thousands of apps, all grouped into easy- to-find categories there. Windows Hello Windows Hello is a more personal and secure way to sign in to your Windows system, apps, and services using fingerprint or a PIN.
  • Page 32 Never turn off the power, disconnect an external storage device, or remove storage media during data read/write. Failure to do so can cause data loss. Click Start -> (Power) and then select Shut down. Turn off any peripheral devices connected to your computer. Do not turn the computer or peripheral devices back on immediately.
  • Page 33 When the AC adaptor is connected, the computer will go into Sleep Mode according to the settings in the Power Options (to access it, click Start -> Windows System -> Control Panel -> System and Security -> Power Options.) If the computer enters Sleep Mode while a network application is active, the application might not be restored when the computer is next turned on and the system returns from Sleep Mode.
  • Page 34 feature does not save the status of any peripheral devices connected to the computer. Save your data. While entering Hibernation Mode, the computer saves the contents of memory to the internal storage drive. However, for safety sake, it is best to save your data manually. Data will be lost if you disconnect the AC adaptor before saving is completed.

  • Page 35: System Recovery

    Restoring the pre-installed software from the Recovery Partition (Provided with some models) If you choose dynabook Maintenance Utility to erase the internal storage drive, all data including the operating system and recovery partition will be deleted. In that case, you cannot create recovery media or restore the pre- installed software from the recovery partition.
  • Page 36 Follow the on-screen instructions to finish creating the Recovery Media. dynabook Recovery Wizard option in dynabook Maintenance Utility will not exist if you restore the computer from the recovery media you created by recovery drive creating option in Windows system.
  • Page 37 Restoring the pre-installed software from your created Recovery Media If the pre-installed files are damaged, you are able to use the Recovery Media you have created to restore the computer to the state it was in when you originally received it. To perform this restoration, do the following: Make sure that the AC adaptor is connected during the restoring process.
  • Page 38 (Power) and then select Restart. Hold down 0 (zero) key and then release this key just after the computer is powered on. Select Troubleshoot -> dynabook Maintenance Utility -> dynabook Recovery Wizard. Follow the on-screen instructions to finish the recovery.

  • Page 39: Chapter 3 The Grand Tour

    Chapter 3 The Grand Tour This chapter identifies the various components of the computer. It is recommended that you become familiar with each before you operate the computer. Legal Footnote (Non-applicable Icons) For more information regarding Non-applicable Icons, refer to the Legal Footnotes section.
  • Page 40 Note that you must use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook. Use of an incompatible AC adaptor might cause fire or damage to the computer, possibly resulting in serious injury.

  • Page 41: Right Side

    Before removing a USB device from the USB port or USB Type-C™ port of your computer, click the Safely Remove Hardware and Eject Media icon on the Windows Taskbar, and then select the USB device that you want to remove. Keep foreign metal objects, such as screws, staples, and paper clips, out of the USB port or the USB Type-C™...

  • Page 42: Underside

    Universal Serial Bus One type-A Universal Serial Bus port, which (USB 3.2 Gen1) port complies to the USB 3.2 standard, is provided on the right side of the computer. USB 3.2 port is compliant with USB 3.2 standard and backward compatible with USB 2.0 devices. Note that it is not possible to confirm the operation of all functions of all USB devices that are available.

  • Page 43: Front With The Display Open

    Figure 3-4 The underside of the computer 1. Stereo speakers Product appearance depends on the model you purchased. Stereo speakers The speakers emit sound generated by your software as well as audio alarms, such as low battery condition, generated by the system. Front with the display open This section shows the computer with the display panel open.
  • Page 44 Web Camera Web Camera is a device that allows you to record video or take photographs with your computer. You can use it for video chatting or video conferences using a communication tool. Web Camera LED The Web Camera LED glows when the Web Camera is operating.

  • Page 45: Internal Hardware Components

    The actual specifications might vary depending on the model you purchased. The processor type varies depending on model. To check which type of processor is included in your model, click Start -> dynabook Support Utility -> System Information. Legal Footnote (CPU) For more information regarding CPU, refer to the Legal Footnotes section.

  • Page 46: Power Condition Descriptions

    Internal Storage Drive The capacity of the internal storage drive varies depending on the model. Note that part of the internal storage drive overall capacity is reserved as administration space. Your computer is equipped with a "Solid-State Drive (SSD)". In this manual, the word "internal storage drive"...
  • Page 47 DC IN/Battery indicator Check the DC IN/Battery indicator to determine the status of the battery pack and the power status with the AC adaptor connected. The following indicator conditions should be noted: Flashing Amber The battery charge might be low. Connect the AC adaptor to recharge the battery.

  • Page 48: Chapter 4 Operating Basics

    Chapter 4 Operating Basics This chapter describes the basic operations of your computer, and highlights the precautions that must be taken when using it. Using the Touch Pad The Touch Pad on the palm rest might support the following gestures: Tap once on the Touch Pad to activate an item, such as an app.

  • Page 49: The Keyboard

    Three-Finger Scroll Place three fingers down and slide them vertically or horizontally from anywhere on the Touch Pad. Slide towards left/right: switches between your open apps. Slide your fingers slowly across the Touch Pad to flip through them all. Slide up: views all your open apps in task view. Slide down: shows the desktop.
  • Page 50 Figure 4-1 CAPS LOCK indicator 1. CAPS LOCK indicator Product appearance depends on the model you purchased. CAPS LOCK This indicator glows white when letter keys are locked into their uppercase format. Function Keys The function keys (F1 ~ F12) are the 12 keys at the top of your keyboard. You can configure the function keys’...

  • Page 51: Using The Fingerprint Sensor

    Special Standard F1- Function function mode F12 mode FN + F7 Plays or pauses media playback. FN + F8 Moves media forward. FN + F9 Decreases the playback volume of the computer. FN + F10 Increases the playback volume of the computer.
  • Page 52 Figure 4-2 Using the Fingerprint Sensor 1. Fingerprint sensor Fingerprint cannot be used in models that do not have a fingerprint function. Total fingerprints which can be registered are 10 pcs per account. Points to note about the Fingerprint Sensor Be aware of the following considerations when using the fingerprint sensor.

  • Page 53: Battery

    Avoid the following finger conditions for enrollment or recognition as they might result in fingerprint enrollment errors or a drop in the fingerprint recognition success rate: Soaked or swollen finger, for example as might occur after taking a bath Injured finger Wet finger Soiled or oily finger Extremely dry skin condition on finger...
  • Page 54 Care and use of the battery pack This section provides the important safety precautions in order to handle your battery pack properly. Refer to the enclosed Instruction Manual for Safety and Comfort for detailed precautions and handling instructions. Charge the battery pack only in an ambient temperature from 5 through 35 degrees Celsius.
  • Page 55 Note that charging time will vary depending on the ambient temperature, the computer's internal temperature, and how the computer is being used. For example, whether the display is set to shut off automatically when idle, whether you make heavy use of external devices powered by the computer, or if the computer's internal storage drive is being accessed frequently by an application.
  • Page 56 Wait several seconds to monitor the remaining operating time because the computer needs time to check the remaining capacity of the battery pack and then calculate the remaining operating time, based on this together with the current power consumption. Be aware that the actual remaining operating time might differ slightly from the calculated time.

  • Page 57: Memory Media

    Be aware that the battery pack exhausted time is affected if there are any external devices connected. Extending battery life To maximize the life of your battery pack, do the following at least once a month: Turn off the computer's power. Disconnect the AC adaptor and turn on the computer's power.
  • Page 58 Points to note about the memory media card microSD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music Initiative), which is a technology adopted to prevent unlawful copy or playback of digital music. For this reason, you cannot copy or play back protected material on another computer or other device, and you cannot reproduce any copyrighted material except for your personal enjoyment.
  • Page 59 For more details on using memory cards, see manuals accompanying the cards. Inserting memory media The following instructions apply to all types of supported media devices. To insert memory media, do the following: Turn the memory media so that the contacts (metal areas) face down. Insert the memory media into the memory media slot on your computer.

  • Page 60: Hdmi™ Out Port

    Select the memory media that you want to remove. Push the memory media until you hear a click to partially release it. Grasp the media and remove it. If you remove the memory media or turn off the power while the computer is accessing the memory media, you might lose data or damage the media.

  • Page 61: Lan

    Do not plug/unplug an HDMI™ device under the following conditions: The system is starting up. The system is shutting down. When you unplug the HDMI™ cable and replug it, wait at least 5 seconds before you replug the HDMI™ cable again. Settings for display video on HDMI™...
  • Page 62 If you are using Fast Ethernet LAN (100 megabits per second, 100BASE- TX), be sure to connect with a CAT5 cable or higher. You cannot use a CAT3 cable. If you are using Ethernet LAN (10 megabits per second, 10BASE-T), you can connect with a CAT3 or higher cable.

  • Page 63: Wireless Display

    Wireless display Your computer might support wireless display, a wireless technology which ® utilizes Wi-Fi to allow the computer to be wirelessly connected to external displays including TVs as extended screens. With wireless display, documents, streamed/local media contents or other online contents can be shared wirelessly with others.

  • Page 64: Optional Accessories

    Not all the accessories are available in your region. Contact your reseller or dynabook dealer for more information. Sound System and Video mode This section describes some of the audio control functions.
  • Page 65 Select Microphone Array or External Microphone, and click Properties. On the Levels tab, move the Microphone Array or External Microphone slider to increase or decrease the microphone volume level. If you feel the microphone volume level is inadequate while using an external microphone, move the Microphone Boost slider to a higher level.
  • Page 66 When an external headphone or microphone is plugged in, you can turn on/off the multi-stream function for playback or recording under Playback Device or Recording Device in this tab. To use multi-stream function for playback/recording, do the following: Select Make internal and external output devices playback two different audio streams simultaneously, or Separate all input jacks as independent input devices.

  • Page 67: Chapter 5 Utilities And Advanced Usage

    Chapter 5 Utilities and Advanced Usage This chapter describes the utilities and special features of this computer, and the advanced usage of some utilities. Utilities and Applications This section describes the pre-installed utilities that come with the computer and details how to start them. For further information on their operation, refer to online manual, help files, or README.TXT file (if applicable) of each utility.
  • Page 68 Support Utility dynabook Support Utility allows your computer to automatically search for alerts from Dynabook that are specific to your computer system and its programs. On the initial Internet connection, your computer will send some limited system information to Dynabook periodically.

  • Page 69: Special Features

    Special features The following features are either unique to dynabook computers or are advanced features which make the computer more convenient to use. Access each function using the following procedures.
  • Page 70 System automatic This feature automatically shuts down the system Sleep/Hibernation into either Sleep Mode or Hibernation Mode when there is no input or hardware access for a Mode specified time. This can be specified in the Power Options. Power on password Two levels of password security, administrator and user, are available to prevent unauthorized access to your computer.
  • Page 71 USB Wakeup function This function restores the computer from Sleep Mode depending on the external devices connected to the USB ports. For example, if a mouse or USB keyboard is connected to a USB port, clicking the mouse button or pressing the keyboard will wake up the computer.

  • Page 72: Troubleshooting

    Chapter 6 Troubleshooting Dynabook has designed this computer for durability, however, should problems occur you are able to use the procedures detailed in this chapter to help determine the cause. You should become familiar with this chapter as knowing what might go wrong can help prevent problems from occurring in the first place.
  • Page 73 Check all cables to ensure that they are correctly and firmly attached to the computer - loose cables can cause signal errors. Inspect all connecting cables for loose wires and all connectors for loose pins. Check that your disc media is correctly loaded Always try to make detailed notes of your observations and keep them in a permanent error log - this helps you to describe your problems to Technical Support.
  • Page 74 Hardware If you cannot find a software problem, you should then check the setup and configuration of your hardware. First run through the items in the preliminary checklist as described previously, then, if you still cannot correct the problem, try to identify the source.

  • Page 75: Hardware And System Checklist

    Verify that the computer is on by looking at the Power indicator. If the indicator is glowing, the computer is on. Also, try turning the computer off and then on. If you are using an AC adaptor, verify that the computer is receiving power from the external power source by looking at the DC IN/Battery indicator.
  • Page 76 Overheating power down If the processor's temperature reaches an unacceptably high level with either setting, the computer automatically shuts down to prevent any damage. In this instance, all unsaved data in memory is lost. Problem Procedure Computer shuts Leave the computer off until it reaches room down automatically.
  • Page 77 The RTC battery should be replaced only by your dealer or by a Dynabook service representative, and then set the date/time in the dynabook Setup Utility by using the following steps: Launch the BIOS setup utility.
  • Page 78 Problem Procedure Output to screen is Refer to your software documentation to ensure garbled that it is not remapping the keyboard in any way (remapping involves changing or reassigning the function of each key). If you are still unable to use the keyboard, you should contact Technical Support.
  • Page 79 Problem Procedure Slow performance The files on the internal storage drive might be fragmented. In this instance you should run the disk defragmentation utility to check the condition of your files and the internal storage drive. Refer to the operating system's documentation or online Help File for further information on operating and using the defragmentation utility.
  • Page 80 Problem Procedure Mouse pointer does In this instance, the system might be busy. Try not respond to moving the mouse again after waiting a short pointing device while. operation Double-tapping In this instance, you should initially try changing (Touch Pad) does the double-click speed setting within the Mouse not work Control utility.
  • Page 81 Problem Procedure Double-clicking does In this instance, you should initially try changing not work the double-click speed setting within the Mouse Control utility. To access this utility, click Start -> Windows System -> Control Panel -> Hardware and Sound -> Mouse. Within the Mouse Properties window, click the Buttons tab.
  • Page 82 Sound system In addition to the information in this section, also refer to the documentation supplied with your audio device. Problem Procedure No sound is heard Press the function keys to increase or decrease volume. Check the software volume settings. Check to see if Mute is turned to Off.
  • Page 83 Problem Procedure No display Try adjusting the contrast and brightness controls on the external monitor. Press the function key in order to change the display priority and ensure that it is not set for the internal display only. Check to see if the external monitor is connected. When the external monitor is set as the primary display device in extended desktop mode, it does not display when the computer wakes up from...

  • Page 84: Technical Support

    Problem Procedure Wake-up on LAN Make sure the AC adaptor is connected. The does not work Wake-up on LAN function consumes power even when the system is off. If problems persist, consult your LAN administrator. Wireless LAN Problem Procedure Cannot access Make sure that the wireless communication Wireless LAN function of the computer is on.
  • Page 85 If a problem occurs when you are running software applications, consult the software documentation for troubleshooting suggestions and consider calling the software company's technical support department for assistance. Consult the reseller or dealer from where you purchased your computer and/or software - they are your best resource for current information and support.

  • Page 86: Appendix Specifications

    Chapter 7 Appendix Specifications This section summarizes the technical specifications of the computer. Physical Dimensions The physical dimensions vary depending on the model you purchased. Size Approximately 283.8 (w) x 197.5 (d) x 19.9 (h) millimeters (not including parts that extend beyond the main body) Environmental Requirements Conditions Ambient temperature...

  • Page 87: Ac Power Cord And Connectors

    AC Power Cord and Connectors The AC input plug of the power cord must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Wire size: Minimum 0.75 mm...

  • Page 88: Information For Wireless Devices

    United Kingdom, South Africa, Middle-East UL approved BS approved Australia Europe, Africa, South Africa, Middle-East AS approved Approved by the appropriate agency Canada China CSA approved CCC approved State of Israel Africa Approved by the appropriate SII approved agency Switzerland Italy Approved by the appropriate Approved by the appropriate...
  • Page 89 Because wireless products operate within the guidelines found in radio frequency safety standards and recommendations, Dynabook believes wireless products are safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
  • Page 90 If this occurs, the outsider might illegally access your system, eavesdrop, or cause the loss or destruction of stored data. Dynabook is not liable for the loss of data due to eavesdropping or illegal access through the wireless LAN and the damage thereof. Card Specifications Compatibility IEEE 802.11 Standard for Wireless LANs...
  • Page 91 Country/region where the product was purchased Type of product Wireless communication is often subject to local radio regulations. Although Wireless LAN wireless networking products have been designed for operation in the license-free 2.4 GHz and 5 GHz band, local radio regulations might impose a number of limitations to the use of wireless communication equipment.
  • Page 92 Worldwide operation ® The Bluetooth radio transmitter and receiver operate in the 2.4 GHz band, which is license-free and compatible with radio systems in most countries in the world. Radio links You can easily establish links between two or more devices, with these links being maintained even if the devices are not within a line-of-sight of each other.
  • Page 93 Russian Limited Using SRD (Short Range Device) with Federation: implementation FHSS (Frequency-Hopping Spread Spectrum) modulation. Maximum 2.5mW (4dBm) EIRP (Equivalent Isotropically Radiated Power) is permitted to use. Maximum 100mW (20dBm) EIRP is permitted to use with the following conditions: Permitted to use SRD for outdoor applications without restriction on installation height only for purposes of gathering telemetry...
  • Page 94 Using SRD with DSSS (Direct Sequence Spread Spectrum) and other than FHSS wideband modulation. Maximum EIRP density is 2mW/ MHz. Maximum100mW (20dBm) EIRP is permitted to use. Maximum EIRP density is 20mW/ MHz. Maximum 100mW (20dBm) EIRP is permitted to use with the following condition: It is permitted to use SRD for outdoor applications only for...
  • Page 95 Maximum Power Output (2400 - 2483.5 MHz) IEEE802.11 b/ Maximum 100mW (20dBm) EIRP g/n/ax mode / Bluetooth (2400 - 2483.5 MHz) BLE Maximum 10mW (10dBm) EIRP (5150 - 5725 MHz) IEEE802.11 a/n/ Maximum 200mW (23dBm) EIRP ac/ax mode The low band 5.15 - 5.35 GHz is for indoor use only.
  • Page 96 To remain in conformance with European spectrum usage laws for Wireless LAN operation, the above 2.4 GHz and 5 GHz channel limitations apply for outdoor usage. The user should use the wireless LAN utility to check the current channel of operation. If operation is occurring outside of the allowable frequencies for outdoor use, as listed above, the user must contact the applicable national spectrum regulator to request a license for outdoor operation.
  • Page 97 In the usual operating configuration, the distance between the antenna and the user should not be less than 20 cm. Please refer to the computer user’s manual for the details regarding antenna location. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population;...
  • Page 98 Using this equipment in Japan In Japan, the frequency bandwidth of 2,400 MHz to 2,483.5 MHz for second generation low-power data communication systems such as this equipment overlaps that of mobile object identification systems (premises radio station and specified low-power radio station). 1.

  • Page 99: Accessibility

    Accessibility options provided by Windows 10 operating system are accessible through Ease of Access features of Windows settings. It allows you customise your Dynabook notebook the way you want to use it. To see the available features in one of the following ways: Go to Start and select (Settings).
  • Page 100 Colour Filters: Makes photos and colours easier to see by applying a colour filter to your screen. Toggle Turn on colour filters to enable or disable this feature. Then, select a colour filter from the menu and see which one best suits you. High contrast: This can be turned on using the toggle under Turn on high contrast.
  • Page 101 Others All ports used for input or output device connections are industry standards and can be used to connect to any industry standard compatible third party devices. Power On/Off: User can choose to have their notebook go to sleep mode to avoid having to manually power off or click on Start and then select (Power) >...

  • Page 102: Legal Footnotes

    Video mode section for more information. Utilities and Advanced Usage: Your computer comes with pre- installed utilities such as dynabook Support Utility, BIOS setup utility (including System Password, etc), and dynabook Maintenance Utility. Refer to Utilities and Advanced Usage section for more information.
  • Page 103 Published battery life numbers are achieved on select models and configurations tested by Dynabook at the time of publication. Recharge time varies depending on usage. Battery might not charge while computer is consuming full power.

  • Page 104: Glossary

    Internal Storage Drive Capacity 1 Gigabyte (GB) means 10 = 1,000,000,000 bytes using powers of 10. The computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2 = 1,073,741,824 bytes, and therefore shows less storage capacity.
  • Page 105 Abbreviations Alternating Current AMT: ® Intel Active Management Technology ASCII: American Standard Code for Information Interchange BIOS: Basic Input/output System BD-ROM: Blu-ray Disc™ Read-only Memory bps: bits per second Compact Disc CD-ROM: Compact Disc Read-only Memory CD-RW: Compact Disc-rewritable CMOS: Complementary Metal-oxide Semiconductor CPU: Central Processing Unit...
  • Page 106 IEEE: Institute of Electrical and Electronics Engineers I/O: Input/Output IRQ: interrupt request ISP: Internet Service Provider kilobyte LAN: Local Area Network LCD: Liquid Crystal Display LED: Light Emitting Diode megabyte MBps: megabytes per second MMC: MultiMediaCard OCR: Optical Character Recognition (Reader) Personal Computer PCI: Peripheral Component Interconnect...

  • Page 107: Index

    Index problems 6-11 AC adaptor additional 4-17 connecting 2-2 Graphics Processing Unit 3-8 DC IN 19V jack 3-2 Hard disk drive automatic power off 5-3 Battery extending life 4-10 monitoring capacity 4-8 real time clock 3-8, 4-6 save mode 5-4 Keyboard function keys 4-3 Bluetooth®...
  • Page 108 Memory media slot 4-10 microSD/SDHC/SDXC Card note 4-11 Recovery hard disk drive 2-14 Recovery Media 2-14 Moving the computer 1-19 SD/SDHC/SDXC Card Password formatting 4-11 power on 5-4 Security lock 4-16 Power Hibernation Mode 2-10 Sleep Mode panel on/off 5-4 setting 2-9 Shut Down mode 2-8 System automatic 5-4...
  • Page 109 Instruction Manual for Safety and Comfort...
  • Page 110 Table of Contents Introduction ..................4 Safe Use of Product, Components and Accessories ............5 Power ....................5 Communication..................12 Main Unit .....................15 Systems/Peripherals................22 Computer User Comfort Recommendations .......27 Good Working Posture ................27 Viewing Recommendations ..............28 Using the product with an external keyboard, mouse or monitor ..28 Typing style..................29 Taking breaks and varying tasks............29 Mobile computing tips ................30...
  • Page 111 © 2020 Dynabook Inc. All Rights Reserved. Any references in this Guide to “TOSHIBA” shall mean Dynabook Inc. and/ or its affiliates. The product system you purchased may include Recordable and/or ReWritable optical media drive(s) and associated software, among the most advanced data storage technologies available.

  • Page 112: Introduction

    Introduction All of the Safety Instructions contained in this Manual must be read carefully and must be fully understood before you attempt to use your product, in order to avoid potential hazards that could cause bodily injury, property damage, or damage the product. Not all components or functions introduced in this Manual will be provided with your product.

  • Page 113: Safe Use Of Product, Components And Accessories

    Power Safe Use of Product, Components and Accessories Power WARNING Handling of the battery Never attempt to dispose of a battery by burning or by throwing it into a ■ fire, and never allow exposure to a heating apparatus (e.g., microwave oven).
  • Page 114 Power WARNING Never allow a battery to become wet. A wet battery will overheat or ■ ignite causing rupture or fire, possibly resulting in death or serious injury. Never store a battery in an area of high humidity. This could cause a fire ■...
  • Page 115 Power WARNING Battery warning indicators Always immediately turn the power off and disconnect the power cable/ ■ cord plug from the plug socket and stop using the battery if you observe any of the following conditions: Offensive or unusual odor ■...
  • Page 116 Power WARNING Do not disassemble, modify, tamper with or repair your product Do not attempt to disassemble, modify, tamper with or repair product ■ (including AC adaptor). Disassembly, modification, tampering or repairing your product could cause fire or electric shock, possibly resulting in serious injury.
  • Page 117 Power WARNING Attaching the power cable/cord Always confirm that the power plug (and extension cable plug if used) ■ has been fully inserted into the socket, to ensure a secure electrical connection. Failure to do so may result in a fire or electric shock, possibly resulting in serious injury.
  • Page 118 Power WARNING Only use approved power cables/cords Always use or purchase power cables/cords that comply with the legal ■ voltage and frequency specifications and requirements in the country of use. Failure to do so could result in a fire or electric shock, possibly resulting in serious injury.
  • Page 119 Power NOTE Handling of the battery Never attempt to install batteries in reverse polarity. For more ■ information on batteries, please refer to your product User's Manual. Storing your product If you do not intend to use your product for a long period of time, ■...

  • Page 120: Communication

    Communication Communication WARNING Turn Wi-Fi , Bluetooth and Wireless WAN Functionalities off ® ™ for Cardiac Pacemakers Turn Wi-Fi, Bluetooth and Wireless WAN Functionalities off when near ■ a person who may have a cardiac pacemaker implant or other medical electric device.
  • Page 121 Communication Turn Wi-Fi or Bluetooth or Wireless WAN Functionalities off in aircraft Turn off the Wi-Fi or Bluetooth or Wireless WAN functionality in aircraft or ■ in places that generate or can generate radio interference. Radio waves can potentially affect them, causing an accident due to malfunction. Check if a car has adequate electromagnetic compatibility when using your product in a car When using your product in a car, check with the automobile dealer if...
  • Page 122 Communication Ensuring Wireless Network Security A wireless LAN can greatly enhance the flexibility of your LAN ■ configuration and operations. You can exchange data between products and other devices on the LAN without the restrictions inherent in cabling. Toshiba strongly recommends that you take appropriate steps to ensure that the proper security is in place whenever you use a wireless connection to protect your privacy and guard against identity and/or data theft.

  • Page 123: Main Unit

    Main Unit Main Unit WARNING Turning off your product where electronic devices are regulated or controlled When you have to turn off your product aboard an aircraft or in places ■ where electronic devices are regulated or controlled, always completely shut down your product.
  • Page 124 Main Unit WARNING Choking hazards Never leave small parts such as covers, small batteries, small memory ■ cards, caps and screws within the reach of infants or small children. Swallowing a small part may cause choking and suffocation resulting in death or serious injury.
  • Page 125 Main Unit WARNING Do not use liquid cleaners or aerosol cleaners Always turn off the power and unplug the product from the electrical ■ outlet before cleaning. The injected combustible gas produced by these types of cleaners may remain inside of your product. The electrostatic spark from the motor or contact point of switch may ignite the gas residue, which could result in an explosion, fire, or burn injury.
  • Page 126 Main Unit CAUTION Avoid placing your product on unstable surfaces Never place your product on a shaky table, uneven, tilted surface or ■ other unstable location. your product may fall, causing damage to your product or possibly injury. Depending on the direction and/or angle of tilt of your product, your product could automatically shut down to avoid overheating.
  • Page 127 Main Unit CAUTION Never place your product in a dusty location Do not expose your product to dusty environments. If dust gets inside ■ your product, it could cause a system failure, malfunction or loss of data. If dust contaminates your product, do not turn on the power. Take it to an authorized Toshiba service provider before you use it.
  • Page 128 Main Unit CAUTION Never place or drop heavy objects onto your product Never place a heavy object on your product and be careful not to drop a ■ heavy object onto your product. It could damage your product or cause system failure.
  • Page 129 Main Unit NOTE Product installation environment Always provide sufficient space around your product to ensure ■ adequate ventilation. Never cover or block the air vents. ■ Use your product at temperatures and humidity levels within the ■ recommended environmental ranges. These ranges may vary depending on the specific product model - please refer to your product documentation or Toshiba website for details.

  • Page 130: Systems/Peripherals

    Systems/Peripherals Systems/Peripherals DANGER Do not disassemble or repair your optical drive The product may contain a Optical Disk Drive (ODD), such as a CD- ■ ROM, CDR/W, DVD, Blu-ray Disc™ drive or similar which have built-in laser device. To prevent any risk of exposure to laser radiation, do not disable or open any ODD assembly for any reason.
  • Page 131 Systems/Peripherals CAUTION Connecting peripheral devices Always turn the power off before connecting a peripheral device that is ■ not approved for Hot Insertion. An electrical shock or system failure may result if the peripheral device is connected while the power is turned on.
  • Page 132 Systems/Peripherals CAUTION Replacing the memory module Turn off the power and disconnect the AC adaptor when installing or ■ replacing a memory module. If you use your product for an extended period of time, the memory ■ modules and the circuits located close to the memory modules will become hot.
  • Page 133 Systems/Peripherals CAUTION Periodic back up of stored data It is a good idea to periodically back up the internal hard disk or other ■ main storage device to external media. General storage media is not durable or stable over long periods of time and under certain conditions may result in data loss.
  • Page 134 Systems/Peripherals NOTE Anti-virus software Use a virus-check program and make sure it is updated regularly. ■ Use AC power when playing video of DVD/Blu-ray™ When playing video of DVD/Blu-ray™, always connect the AC adaptor ■ to a power plug socket or power source to ensure maximum performance.

  • Page 135: Computer User Comfort Recommendations

    Good Working Posture Computer User Comfort Recommendations Good Working Posture Adjust your chair height: your feet should be flat on the floor and the ■ bottom of your thighs should be evenly supported by the seat. If your feet cannot reach the floor, use a foot rest. Avoid pressure points behind the knee or under the thigh.

  • Page 136: Viewing Recommendations

    Viewing Recommendations Rest your eyes periodically by focusing on objects that are farther away. ■ Viewing Recommendations Some individuals may experience health-related complications when ■ exposed to certain images or flashing lights (for example when playing videos or games). Discontinue use and consult a physician if you experience any health-related complications.

  • Page 137: Typing Style

    Typing style / Taking breaks and varying tasks Typing style The top of the monitor should be at or slightly below eye level. A ■ monitor that is too high or too low can cause awkward head and neck postures and may lead to discomfort in the neck muscles. If you use bifocals you may need to lower the monitor.

  • Page 138: Mobile Computing Tips

    Mobile computing tips Mobile computing tips / Transporting the product / Seeking additional help Mobile computing tips When using the product at airports, on airplanes or trains, or at ■ meetings, make sure that you take the time to consider the points just mentioned.

  • Page 139: Check List

    Check list Check list Is your chair comfortable - does it support your back and arms well? ❏ Are your feet flat on the ground? ❏ Is there adequate space under your desk for your legs? ❏ Are the keyboard and mouse at elbow level? ❏...

Table of Contents
