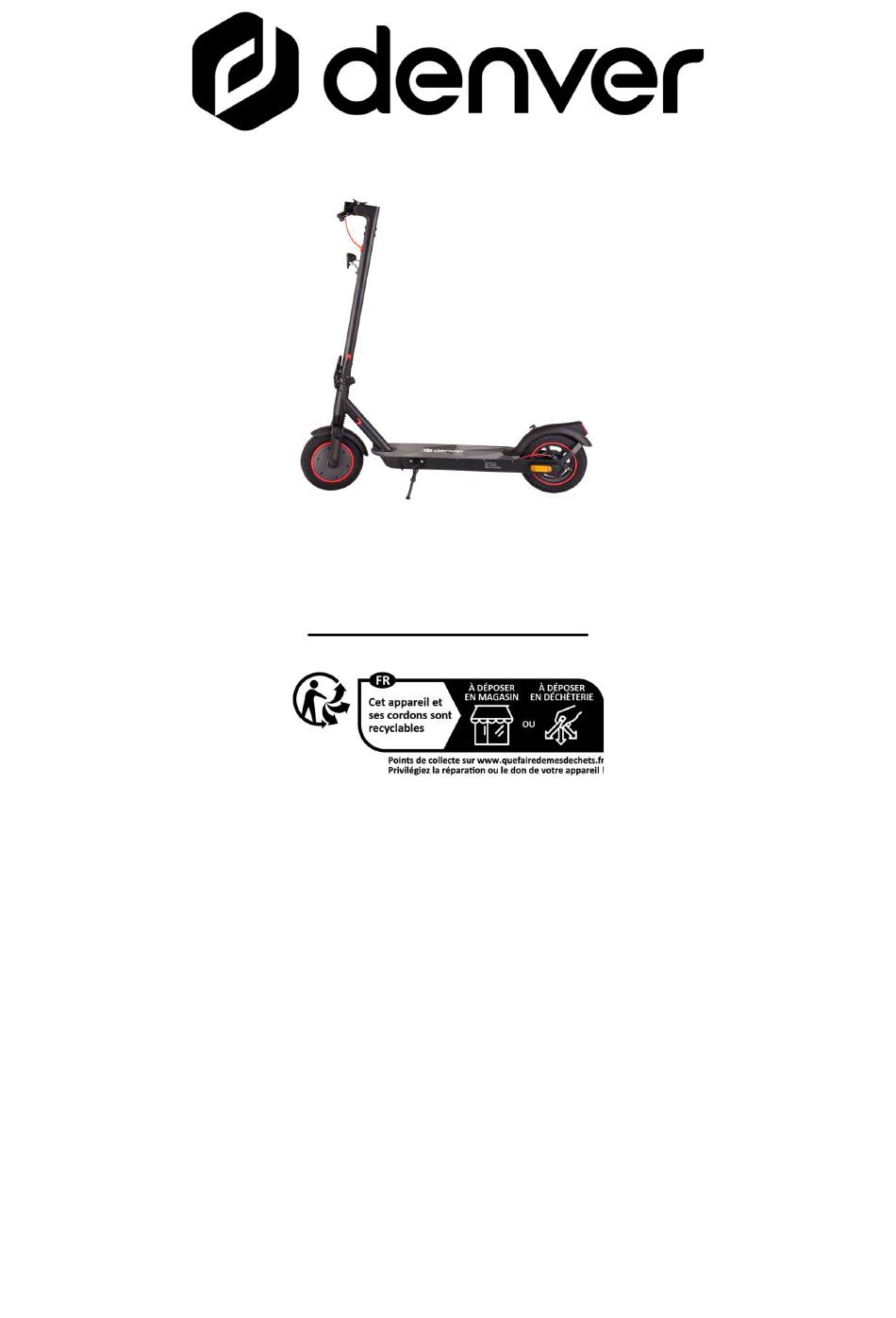

Original manual
SEL-10820F
facebook.com/denver.eu
December/2022
IMPORTANT! Read carefully and keep for future reference.
Before operating this vehicle, read all the instructions for safe assembly and
operations. User's manual can guide you through the functions and usage of Electric
scooter. Before using this Electric scooter, familiarize yourself with how to operate, so
that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the
appliance. This appliance contains batteries that are not replaceable.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-10820F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver SEL-10820F

Summary of Contents for Denver SEL-10820F

  • Page 1 Original manual SEL-10820F facebook.com/denver.eu December/2022 IMPORTANT! Read carefully and keep for future reference. Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.

  • Page 2: Table Of Contents

    Table of Contents 1. Important information before use ....................3 2. Product overview ......................4 3. Unfolding and folding the scooter .................. 6 4. Assembling the device ....................7 5. Charging the scooter ...................... 8 6. Intended Use ........................8 7.

  • Page 3: Important Information Before Use

    1. Important information before use We urge owners of this Scooter to charged and store it in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged.

  • Page 4: Product Overview

    2. Product overview 1. Front light and reflector 2. Folding mechanism 3. Front suspension 4. Bell 5. Display 6. Dual electric brake / Disc brake 7. Throttle 8. Charging port 9. Foldable stand 10. Rear wheel /Disc brake 11. Rear light / Reflector...
  • Page 5 Accessories: Power charger Screws for mounting front steer (4 pcs) T-shaped Allen key for mounting the screws.

  • Page 6: Unfolding And Folding The Scooter

    3. Unfolding and folding the scooter Unfolding the scooter Place the electric scooter on its wheels like below. Unlock the hook on the handlebar. 1） 2) Pull up the handle in a gentle way. Raise the handle slowly. Close the lock lever located on the lower part of the handlebar support tube. 3) The electric scooter is unfolded as soon as you hear the rod clicks into place.

  • Page 7: Assembling The Device

    4. Assembling the device Before using the scooter, it is necessary to install the handlebar on the frame of the main vehicle. 1). Insert the handlebar into the vehicle frame. After matching the holes in the handlebar with those of the frame, insert the screws and tighten them well.

  • Page 8: Charging The Scooter

    5. Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Please make sure only to use the original power adapter when charging. Charging port 6. Intended Use The Electric scooter is to be used by a person aged at least 14 with a maximum weight of 100 kg.

  • Page 9: Safety Instruction

    7. Safety Instruction We recommend always wearing helmet and protective gear like elbow, knee, hand and wrist protectors to ensure your personal safety. Also make sure you have read the user manual carefully, to ensure you know how to ride it in a safe and fun way.

  • Page 10: Maintenance

    Avoid applying too much force or stepping on the rear fender permanently. This may cause the fender to loosen or damage the spring holding the fender. This is not covered by the warranty. Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften the rubber and it will no longer have the same grip on the road as usual.
  • Page 11 ● Bearings, Screws, Brakes and Wheels ● Storage and Cleaning Your electric scooter will require some maintenance so please read and familiarize yourself with this guide. Battery maintenance All batteries have a life cycle, and performance will decrease over time, however, here are some advice to maximize the life span of the battery.
  • Page 12 Please make sure to charge the battery before it is completely out of power, to avoid damaging the battery cells. (Damaged battery caused by wrong handling is not covered by the warranty) It is forbidden to disassemble battery package. This is only to be handled by official service repair centers and professionals.
  • Page 13 handle assembly and safety instruction. Please read operation guide and warnings of correct techniques for use and braking ● Always wear shoes. ● We highly recommend to always wear helmet/pads for your own protection. ● Self-locking nuts and other self- locking fixings may lose their effectiveness. ●...

  • Page 14: Operational Control

    9. Operational control For better operation, please read the instructions carefully. 9.1 Control and display 1. Lights front and back ON symbol. 2. Battery level 3. Power ON / OFF button. 4. Speedometer 5. Gear mode 6. Pedestrian mode 9.2 Button and speed transfer Press and hold “Power”...
  • Page 15 9.3 Brakes The scooter is built with a one brake lever with dual brakes. Electronic brake and Disc brake. Breaking techniques: When needing to brake, we recommend doing it this way. First press and hold the brake lever. This will deactivate throttle / speed and activate electronic brake. Keep pressing and holding it and disc brake will activate.

  • Page 16: Specification

    Max Speed: 25 km/h Weight: 12.9kg Year Of manufacture: 2022 Max Vehicle Payload: 100kg Battery: 48V/7.5Ah Power Consumption: ≤ 450W Always charge the electric scooter with the supplied power adapter: FY-5461500 DENVER A/S Omega 5A Soeften DK-8382 Hinnerup Denmark www.denver.eu...

  • Page 17: Warnings

    11. Warnings Risks of riding WARNING First, learn safe riding before you ride the Electric scooter fast. Failure to observe, loss of control, falls, and violations of the rules can cause injuries. Speed and range depend on the rider's weight, terrain, temperature, and riding style. Wear a helmet and protective clothing when riding the Electric scooter.
  • Page 18 13.2 Weight restriction Reason for the weight restriction: Ensuring the rider's safety ● Avoiding damage due to overload. ● Maximum Vehicle Payload : 100kg. WARNING Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off.
  • Page 19 People with limited sense of balance are not allowed to ride the Electric scooter. ● Avoid riding the Electric scooter under the influence of alcohol or other substances. ● Do not carry any objects while riding. ● Make sure you have a clear vision in front of you to ride the Electric scooter safely. ●...
  • Page 20 The charging process takes up to 6 hours. Do not charge the battery for more than 6 ● hours. After 6 hours, disconnect the charger from the device and the power supply. The product must not be charged over extended periods. Overcharge reduces the battery service life.
  • Page 21 IMPORTANT! Read carefully and keep for future reference. Any load attached to the handlebar will affect the stability of the vehicle. Accessories and any additional items which are not approved by the manufacturer shall not be used. WARNING As with any mechanical component, a vehicle is subject to high stresses and wear. The various materials and components may react differently to wear or fatigue.
  • Page 22 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
  • Page 23 The engine in the front wheel will this way help to activate the charging function and it will charge normally. (Fully charge takes 6 hours if using this way) Please enter: www.denver.eu to obtain the electronic version of the manual.
  • Page 24 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-10820F Product type: Electric scooter Year of manufacturing: 2022 • Note: ONLY use the supplied charger labelled FY-5461500 with the following output voltage to charge this Electric scooter: 54.6V –...
  • Page 25 Torben Balmer Position: Company: DENVER A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark Date: 20 March 2023 DENVER A/S | Omega 5A | 8382 Hinnerup | Denmark Phone: +45 86 22 61 00 | E-Mail: contact@denver.eu | Web: www.denver.eu VAT.NO: DK18831678...
