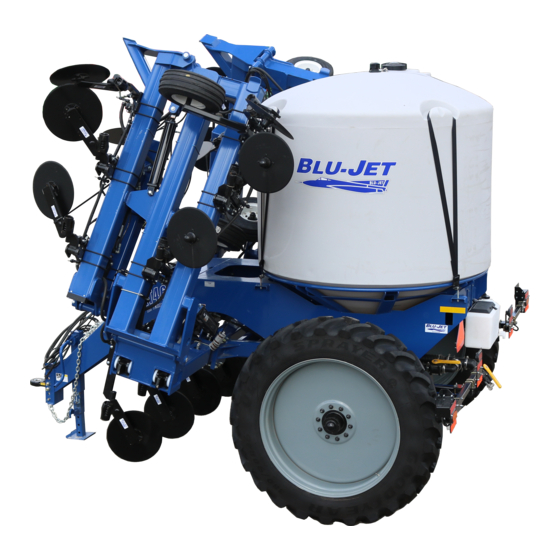

Unverferth BLU-JET AT4615 Manual

All terrain injection liquid applicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All Terrain
Injection
Liquid Applicator
AT4615
Beginning with Serial Number A66640100
Part No. 45006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLU-JET AT4615 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unverferth BLU-JET AT4615

Summary of Contents for Unverferth BLU-JET AT4615

  • Page 1 All Terrain Injection Liquid Applicator AT4615 Beginning with Serial Number A66640100 Part No. 45006...
  • Page 2 The information, specifications, and illustrations in the manual are based on the information avail- able at the time it was written. Due to continuing improvements in the design and manufacture of Unverferth products, all specifications and information contained herein are subject to change without notice.
  • Page 3 • Machine name • Model • Serial number All products manufactured by Unverferth are warranted to be free from material and workmanship defects for one full year from time of consumer delivery. Your local dealer will gladly assist you with any warranty questions.

  • Page 4: Table Of Contents

    — Introduction AT4615 TABLE OF CONTENTS Foreword ............................... 2 Pre-Operation Checklist ..........................2 SECTION I Safety General Hazard Information ........................1-2 Safety Decals .............................1-3 Following Safety Instructions ........................1-5 Before Servicing ............................1-5 Before Operating ............................1-6 During Operation ............................1-6 Before Transporting ............................1-7 During Transport ............................1-7 Pressurized Oil ............................1-8 Chemical Hazards ............................1-8 Clean Water Tank ............................1-9...
  • Page 5 — Introduction AT4615 TABLE OF CONTENTS SECTION III Operation Preparing Tractor ............................3-2 Preparing Applicator ...........................3-2 Hardware .............................3-2 Pivot Pins ............................3-2 Hitch ..............................3-2 Hydraulic System ..........................3-2 Tires/Wheels ............................3-3 Lubrication ............................3-3 Leveling Machine ............................3-3 Hitching to the Tractor ..........................3-4 Drawbar Hitching ..........................3-4 Transport Chain ..........................3-5 Hydraulic Connections .........................3-6 Applicator Solution Pump Hydraulics - For Units with Centrifugal Pump Option .....3-7...
  • Page 6 — Introduction AT4615 TABLE OF CONTENTS SECTION IV Maintenance Applicator Maintenance ..........................4-2 Seasonal Storage ............................4-2 Purging A Hydraulic System ........................4-3 Lubrication ..............................4-4 Filters .................................4-6 Primary Filter ............................4-6 Secondary Filter ..........................4-6 Winterizing ..............................4-7 High-Pressure Coulter Injection System Nozzle Calibration Worksheet ............4-8 Schematics ...............................4-10 Wheel, Hub and Spindle Disassembly and Assembly ................4-15 Wheels and Tires .............................4-17...
  • Page 7 — Introduction AT4615 TABLE OF CONTENTS SECTION V Parts AT4615 Main Frame ..........................5-2 Hitch, Transport Chain, Manual Holder and Jack Components ..............5-4 Decals ................................5-6 Clean Water Tank Components .........................5-8 Wheel/Axle, 120” Single, 380/90R46 ......................5-9 Hub and Spindle Components .........................5-10 Double Tube Toolbar - Center Section & Gull Wing Components ............5-12 Single Tube Toolbar - Center Section &...
  • Page 8 — Introduction AT4615 TABLE OF CONTENTS SECTION V Parts (continued) Single & Double Pump Drive Components .....................5-68 Pump Drive Package (JPKG00181) ......................5-70 40 Tooth Sprocket & Roller Chain Components ..................5-72 50 Tooth Sprocket & Roller Chain Components ..................5-73 Bottom Filling Plumbing Components ......................5-74 ACE 205 Variable Rate Pump .........................5-76 Ball Valve Components ..........................5-79 Manifold Components ..........................5-80...

  • Page 9: Section I

    — Safety AT4615 SECTION I Safety General Hazard Information ........................1-2 Safety Decals .............................1-3 Following Safety Instructions ........................1-5 Before Servicing ............................1-5 Before Operating ............................1-6 During Operation ............................1-6 Before Transporting ............................1-7 During Transport ............................1-7 Pressurized Oil ............................1-8 Chemical Hazards ............................1-8 Clean Water Tank ............................1-9 Preparing for Emergencies ........................1-10 Wearing Protective Equipment .........................1-10...

  • Page 10: Safety

    It is true that the designer, the manufacturer, and the safety engineer can help; and they will help, but their combined efforts can be wiped out by a single careless act of the operator. It is said that, “the best kind of a safety device is a careful operator.” We, at Unverferth Mfg.

  • Page 11: Safety Decals

    — Safety AT4615 Safety Decals • REPLACE LOST, DAMAGED, PAINTED, OR UNREADABLE DECALS IMMEDIATELY. IF PARTS THAT HAVE DECALS ARE REPLACED, ALSO MAKE SURE TO INSTALL NEW DECALS. THESE DECALS INFORM AND REMIND THE OPERATOR WITH OPERATIONAL INFORMATION AND SAFETY MESSAGES. JAP2497 9501197 95839...
  • Page 12 — Safety AT4615 Safety Decals (continued) 9008714 - Rear SIS Decal, 20MPH 9008720 - Rear SIS Decal, 30KPH TA510514 SMV Emblem 9003127 - Reflector “AMBER” 97337 - On 9003126 - Reflector “RED” Bottom Of Wings 9003125 - Decal, Fluorescent, Red-Orange JAP2472 CAUTION To Avoid Pump Damage Do Not...

  • Page 13: Following Safety Instructions

    — Safety AT4615 Following Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufacturer.

  • Page 14: Before Operating

    — Safety AT4615 Before Operating • Do not stand between towing vehicle and implement during hitching. • Always make certain everyone and everything is clear of the machine before beginning operation. • Verify that all safety shields are in place and properly secured. •...

  • Page 15: Before Transporting

    — Safety AT4615 Before Transporting • Secure transport chains to towing vehicle before transporting. DO NOT transport without chains. • Install transport locks before transporting. • Check for proper function of all available transport lights. Make sure that all reflectors are clean and in place on machine.

  • Page 16: Pressurized Oil

    — Safety AT4615 Pressurized Oil • Relieve the hydraulic system of all pressure before adjusting or servicing. See hydraulic power unit manual for procedure to relieve pressure. • High-pressure fluids can penetrate the skin and cause serious injury or death. Use cardboard or wood to detect leaks in the hydraulic system.

  • Page 17: Clean Water Tank

    — Safety AT4615 Clean Water Tank • A clean water tank is provided as standard equipment. It is equipped with a spigot for general washing and a hose for emergency eye washing. • Always keep clean water in tank. Water in clean water tank is not suitable for human consumption.

  • Page 18: Preparing For Emergencies

    — Safety AT4615 Preparing for Emergencies • Keep a first aid kit and properly rated fire extinguisher nearby. • Keep emergency numbers for fire, rescue, and poison control personnel near the phone. • A clean water tank is provided as standard equipment. It is equipped with a spigot for general washing and a hose for emergency eye washing.

  • Page 19: Set Up

    — Set Up AT4615 SECTION II Set Up General Set Up Information ........................2-2 Unloading Applicator from Shipping Trailer ....................2-3 Tongue Assembly to Main Frame Assembly ..................2-3 Main Frame Transportation Wheels ......................2-6 Pump Drive ..............................2-7 Coulter Assembly ............................2-8 Gauge Wheel Assembly ..........................2-8 Transport Lighting Assembly ........................2-8 Pump Set Up - For Units with Centrifugal Pump ..................2-9 Setting the Pump Pressure (non-PWM Pump) ...................2-9...

  • Page 20: General Setup Information

    — Set Up AT4615 General Setup Information For your safety, and the safety of others, use proper tools and equipment and always use safe working procedures. Refer to these instructions before starting any work on your machine. For ease of assembly, install all hardware loosely until assembly is complete and then tighten according to “Torque Chart”...

  • Page 21: Unloading Applicator From Shipping Trailer

    — Set Up AT4615 Unloading Applicator from Shipping Trailer Tongue Assembly to Main Frame Assembly Remove the twelve 3/4”-10UNC x 2” capscrews, grade 8 (91299-145), twelve 3/4”-10UNC lock nuts (97025), four 3/4”-10UNC x 5 11/16” U-bolts, grade 5 (JBP3352), eight 3/4” USS flat washers (9405-106), and eight 3/4”-10UNC hex nuts (9394-016) from the tongue assembly.
  • Page 22 — Set Up AT4615 Unloading Applicator from Shipping Trailer (continued) 3. Route hydraulic hoses through the tongue assembly. FIG. 2-2 4. Attach the bulkhead plate to the tongue assembly with three 3/8”-16UNC x 1” capscrews (9390-055), 3/8” lock washers (9404-021), and 3/8”-16UNC hex nuts (9394- 006).
  • Page 23 — Set Up AT4615 Unloading Applicator from Shipping Trailer (continued) Refer to “Hitching to the Tractor” in OPERATION section. Attach Applicator to the tractor. Check all hoses and cylinders for signs of leakage. Hoses should not be kinked, twisted or rubbing against sharp edges. Re-route or repair hoses as necessary. Refer to SAFETY section for additional information on safe repair and inspection of hydraulic components.

  • Page 24: Main Frame Transportation Wheels

    — Set Up AT4615 Main Frame Transportation Wheels Unit should be parked on a firm, level surface, wings unfolded and unit lowered onto the transport stops. Make sure the towing vehicle’s parking brake is on, the engine shut-off and the ignition key removed. Using a safe lifting device and support stands rated at a minimum of 8,000 lbs., raise and support one side of the main frame assembly.

  • Page 25: Pump Drive

    — Set Up AT4615 Pump Drive 1. Lower the toolbar to working position. 1/2”-13UNC x 4 1/2” 2. Using a safe lifting device rated at a Capscrews (9390-112) & minimum of 150 lbs., support the pump 1/2”-13UNC Lock Nuts (9800) drive wheel and axle.

  • Page 26: Coulter Assembly

    See federal regulation 49 CFR 562; available at www.govinfo.gov for US federal law requirements. See your Unverferth dealer for additional brackets, reflectors, or lights to meet your requirements. NOTE: Consult “Overhead Layouts” for light kit placement. SMV Emblem Before the applicator is used the reflective surface of the SMV must face rearward.

  • Page 27: Pump Set Up - For Units With Centrifugal Pump

    — Set Up AT4615 Pump Set Up — For Units With Centrifugal Pump For set up of a non-PWM pump, refer to your rate controller manual for details. For specific details related to your product pump, please refer to your pump manual. •...

  • Page 28: Rate Orifice Installation

    — Set Up AT4615 Rate Orifice Installation 1. Consult “Row Spacing Rate Chart” in MAINTENANCE section for orifice size. Remove nozzle nut and insert orifice. 3. Travel a few feet and check blade depth. Adjust gauge wheels or coulters to achieve the 4”...

  • Page 29: Overhead Layouts

    — Set Up AT4615 Overhead Layout — 15 Row 30” Spacing (15 Row 30”) Gull Wing 2-11...
  • Page 30 — Set Up AT4615 Overhead Layout — 17 Row 30” Row Spacing (17 Row 30”) Gull Wing 2-12...
  • Page 31 — Set Up AT4615 Overhead Layout — 23 Row 30” Row Spacing (23R30) Gull Wing NOTE: Set light brackets at 160” when optional folding coulters are installed. 2-13...
  • Page 32 — Set Up AT4615 Overhead Layout — 25 Row 20” Row Spacing (25R20) Gull Wing 2-14...
  • Page 33 — Set Up AT4615 Overhead Layout — 25 Row 30” Row Spacing (25R30) Gull Wing NOTE: Set light brackets at 160” when optional folding coulters are installed. 2-15...
  • Page 34 — Set Up AT4615 Overhead Layout — 27 Row 18” Row Spacing (27R18) Gull Wing 2-16...
  • Page 35 — Set Up AT4615 Overhead Layout — 33 Row 15” Row Spacing (33R15) (Small Grain) 2-17...
  • Page 36 — Set Up AT4615 Overhead Layout — 35 Row 20” Row Spacing (35R20) Gull Wing 2-18...
  • Page 37 — Operation AT4615 SECTION III Operation Preparing Tractor ............................3-2 Preparing Applicator ...........................3-2 Hardware .............................3-2 Pivot Pins ............................3-2 Hitch ..............................3-2 Hydraulic System ..........................3-2 Tires/Wheels ............................3-3 Lubrication ............................3-3 Leveling Machine ............................3-3 Hitching to the Tractor ..........................3-4 Drawbar Hitching ..........................3-4 Transport Chain ..........................3-5 Hydraulic Connections .........................3-6 Applicator Solution Pump Hydraulics - For Units with Centrifugal Pump Option .....3-7 Electrical Connection ..........................3-7...

  • Page 38: Preparing Tractor

    — Operation AT4615 Preparing Tractor Before operating applicator, read the tractor operator’s manual and gain an understanding of its safe methods of operation. Check the tractor brakes and transport lights. Make sure they are in proper working order. Check the tractor hydraulic oil reservoir and add oil if needed. Verify that the tractor is adequately ballasted for drawbar operation at the anticipated draft and vertical tongue load.

  • Page 39: Tires/Wheels

    — Operation AT4615 Preparing Applicator (continued) Tires/Wheels Check tire pressures and maintain at recommended values listed in the MAINTENANCE section. • IMPROPERLY TORQUED WHEEL NUTS/BOLTS CAN CAUSE A LOSS OF IMPLEMENT CONTROL AND MACHINE DAMAGE. WHEEL NUTS/BOLTS MUST BE CHECKED REGU- LARLY.

  • Page 40: Hitching To The Tractor

    — Operation AT4615 Hitching to the Tractor Drawbar Hitching • CRUSHING CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT STAND BETWEEN TOW- ING VEHICLE AND IMPLEMENT WHEN HITCHING. ALWAYS ENGAGE PARKING BRAKE AND STOP ENGINE BEFORE INSERTING HITCH PINS OR SECURING LATCHES. Connect the hitch to the tractor drawbar.

  • Page 41: Transport Chain

    — Operation AT4615 Hitching to the Tractor (continued) Transport Chain Always use a transport chain when connecting the implement directly to a tractor. Make sure Transport chain connection shown for illustration purposes only. Refer to the intermediate chain support is in use. tractor manufacturer for proper attachment.

  • Page 42: Hydraulic Connections

    — Operation AT4615 Hitching to the Tractor (continued) Hydraulic Connections • RELIEVE THE HYDRAULIC SYSTEM OF ALL PRESSURE BEFORE ADJUSTING OR SERVICING. SEE THE HYDRAULIC POWER UNIT OPERATOR’S MANUAL FOR PROPER PROCEDURES. HYDRAULIC SYSTEM MUST BE PURGED OF AIR BEFORE OPERATING TO PREVENT •...

  • Page 43: Applicator Solution Pump Hydraulics - For Units With Centrifugal Pump Option

    — Operation AT4615 Hitching to the Tractor (continued) Applicator Solution Pump Hydraulics - For Units with Centrifugal Pump Option • The applicator pump is hydraulically driven, and needs to be configured correctly to match the type of hydraulic system on the tractor (closed center, open center, load-sensing, etc.). Failure to configure the pump correctly may permanently damage the pump through over-speeding and over-pressurizing.

  • Page 44: Jack Usage

    — Operation AT4615 Jack Usage Parked Position Lower drop leg to contact the ground. Crank jack leg downward to completely remove the FIG. 3-7 hitch weight from tractor drawbar. (FIG. 3-7) Transport Position After tractor connection is established, raise jack leg to highest position to maximize ground FIG.

  • Page 45: Transporting

    — Operation AT4615 Transporting Drawbar Connection • THIS IMPLEMENT IS NOT EQUIPPED WITH BRAKES. ENSURE THAT THE TOWING VE- HICLE HAS ADEQUATE WEIGHT AND BRAKING CAPACITY TO TOW THIS IMPLEMENT. • IMMEDIATELY PRIOR TO ROAD TRANSPORT, RUN THE FULL FOLD SEQUENCE FOR PROPER SYSTEM PRESSURES AND TO AVOID INADVERTENT MOVEMENT.

  • Page 46: Bottom Fill Valve Operation

    — Operation AT4615 Bottom Fill Valve Operation 1. Screen should be checked and cleaned FIG. 3-10 periodically. See MAINTENANCE section for location and procedure for cleaning filters. 2. To fill tank, remove the cap and attach hose Closed to quick fill coupler. Turn pump inlet valve to closed (Fig.

  • Page 47: Unfolding Toolbar

    — Operation AT4615 Unfolding Toolbar • ELECTROCUTION WILL CAUSE SERIOUS INJURY OR DEATH. PERFORM BOOM UN- FOLDING AND FOLDING OPERATIONS ONLY IN AREAS WITH ADEQUATE HEIGHT, WIDTH AND LENGTH CLEARANCE. IN PARTICULAR, BE MINDFUL OF LOCATION OF OVERHEAD POWER LINES. •...
  • Page 48 — Operation AT4615 Unfolding Toolbar (continued) Unfold the secondary wing cylinders. Secondary wings swung out. SECONDARY WING CYLINDER FIG. 3-16 If applicable, unfold the third wing cylinders. FIG. 3-17 THIRD WING CYLINDER • When running in the field the primary wing cylinders must be in float. 3-12...

  • Page 49: Adjusting Toolbar Flex

    — Operation AT4615 Unfolding Toolbar (continued) Secondary and third wing cylinders must have pressure applied during field operation when optional folding coulters are used. NOTE: The secondary and third wings hydraulics should be in the center/closed position if regular coulters are used, but should be in active down pressure (not float) when swivel coulters are used.

  • Page 50: Depth Adjustment

    — Operation AT4615 Depth Adjustment Full raise toolbar. FIG. 3-20 Depth Collar Storage 2. Remove the depth collars from the storage bracket. 3. Use 4 1/4”depth collars as a starting depth. Toolbar Lift Cylinder Attach depth collars to the toolbar lift cylinders.

  • Page 51: Folding Toolbar

    — Operation AT4615 Folding Toolbar • ELECTROCUTION WILL CAUSE SERIOUS INJURY OR DEATH. PERFORM BOOM UN- FOLDING AND FOLDING OPERATIONS ONLY IN AREAS WITH ADEQUATE HEIGHT, WIDTH AND LENGTH CLEARANCE. IN PARTICULAR, BE MINDFUL OF LOCATION OF OVERHEAD POWER LINES. •...
  • Page 52 — Operation AT4615 Folding Toolbar If applicable, fold the third wing cylinders. FIG. 3-26 THIRD WING CYLINDER Fold the secondary wing cylinders. Secondary wings swing forward. FIG. 3-27 SECONDARY WING CYLINDER FIG. 3-18 3-16...
  • Page 53 — Operation AT4615 Folding Toolbar (continued) 6. Fold the primary wing cylinders. One side will fold up and then the other. FIG. 3-28 FIG. 3-29 3-17...
  • Page 54 — Operation AT4615 Notes 3-18...
  • Page 55 — Maintenance AT4615 Section IV Maintenance Applicator Maintenance ..........................4-2 Seasonal Storage ............................4-2 Purging A Hydraulic System ........................4-3 Lubrication ..............................4-4 Filters .................................4-6 Primary Filter ............................4-6 Secondary Filter ..........................4-6 Winterizing ..............................4-7 High-Pressure Coulter Injection System Nozzle Calibration Worksheet ............4-8 Schematics ...............................4-10 Wheel, Hub and Spindle Disassembly and Assembly ................4-15 Wheels and Tires .............................4-17 Wheel Nut Torque Requirements ......................4-17 Tire Pressure ............................4-18...

  • Page 56: Applicator Maintenance

    — Maintenance AT4615 Applicator Maintenance • ELECTROCUTION WILL CAUSE SERIOUS INJURY OR DEATH. THE APPLICATOR IS NOT INSULATED. KEEP AWAY FROM ALL ELECTRI- CAL LINES AND DEVICES. ELECTROCUTION CAN OCCUR WITHOUT DIRECT CONTACT. • TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH. BE SURE MACHINE IS SECURELY BLOCKED.

  • Page 57: Purging A Hydraulic System

    — Maintenance AT4615 Applicator Maintenance (continued) Coat exposed cylinder piston rods with rust preventative material if applicable. Inspect machine for parts that may need to be replaced so they may be ordered in the off season. Lubricate machine at all points outlined. FIG.

  • Page 58: Lubrication

    — Maintenance AT4615 Lubrication Secondary Primary Wing Wing Third Wing Toolbar Arm Hinge Lubrication Coulter Assembly...
  • Page 59 — Maintenance AT4615 Lubrication (continued) To keep your applicator in top operating condition and to assure its proper performance and reliability for a long period of time, periodic inspection and lubrication is a must. Use EP-2 lubricant at the locations described in the chart. The lubrication locations and recommended schedule are as follows: ITEM DESCRIPTION...

  • Page 60: Filters

    — Maintenance AT4615 Filters This applicator uses a filter to help ensure proper operation. This filter will need to be cleaned periodically during use and prior to applicator storage. • ALWAYS WEAR PERSONAL PROTECTIVE EQUIPMENT WHEN WORKING WITH OR NEAR CHEMICALS.

  • Page 61: Winterizing

    — Maintenance AT4615 Winterizing • ALWAYS WEAR PERSONAL PROTECTIVE EQUIPMENT WHEN WORKING WITH OR NEAR CHEMICALS. THIS EQUIPMENT INCLUDES, BUT IS NOT LIMITED TO: PROTECTIVE EYE WEAR, GLOVES, SHOES, SOCKS, LONG-SLEEVED SHIRT, AND LONG PANTS. AD- DITIONAL PROTECTION MAY BE REQUIRED FOR MANY TYPES OF CHEMICALS. •...

  • Page 62: High-Pressure Coulter Injection System Nozzle Calibration Worksheet

    — Maintenance AT4615 High-Pressure Coulter Injection System Nozzle Calibration Worksheet Calibration of these systems involves two separate sets of calculations. The first being a procedure of setting rate and the second being a procedure of obtaining system pressure. FIRST: These systems utilize a positive-displacement, ground-driven, piston pump to establish the GPA (gallon per acre) rate.
  • Page 63 — Maintenance AT4615 High-Pressure Coulter Injection System Nozzle Calibration Worksheet Step 5: Swath width is the number of rows being applied (Example: A 15 row 30” machine will cover 16 rows.) times the spacing between the rows. Rows x Spacing = Swath width 16 rows x 30”...

  • Page 64: Schematics

    — Maintenance AT4615 Schematics Main Electrical Harness 10’ - 5 Wire, 7 Pin & Dust Cap (Part #JAP3142) Light Electrical Harness 17’ - 5 Wire (Part #JAP3197) 4-10...
  • Page 65 — Maintenance AT4615 Schematics — ACE 205 Variable Rate Pump Wire Harness (9503472) 4-11...
  • Page 66 — Maintenance AT4615 Schematics — Controller Wire Harness (9503471) Schematics — Wire Harness (9503387) 4-12...
  • Page 67 — Maintenance AT4615 Schematics — ISOBUS Controller ECU Wire Harness (9008095) 4-13...
  • Page 68 — Maintenance AT4615 Schematics — Foot Switch Wire Harness (9503390) Schematics — 450 Controller, Console Wire Harness (9007549) 4-14...

  • Page 69: Wheel, Hub And Spindle Disassembly And Assembly

    — Maintenance AT4615 Wheel, Hub and Spindle Disassembly and Assembly • TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH. BE SURE MACHINE IS SECURELY BLOCKED. • FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER THE MACHINE AT ANY TIME WHILE BEING HOISTED.
  • Page 70 — Maintenance AT4615 Wheel, Hub and Spindle Disassembly and Assembly (continued) Inspect the spindle and replace if necessary. If spindle does not need to be replaced, skip to Step 6; otherwise continue with Step 5. Remove the bolt and lock nut that retain the spindle to the axle. Using a lifting device rated for 150 lbs., remove the old spindle.

  • Page 71: Wheels And Tires

    — Maintenance AT4615 Wheels and Tires Wheel Nut Torque Requirements • IMPROPERLY TORQUED WHEEL NUTS/BOLTS CAN CAUSE A LOSS OF IMPLEMENT CONTROL AND MACHINE DAMAGE. TORQUE WHEEL NUTS/BOLTS TO VALUES IN TABLE. CHECK TORQUE BEFORE USE, AFTER ONE HOUR OF UNLOADED USE OR AFTER FIRST LOAD, AND EACH LOAD UNTIL WHEEL NUTS/BOLTS MAINTAIN TORQUE VALUE.

  • Page 72: Tire Pressure

    — Maintenance AT4615 Tire Pressure for Blu-Jet NH3 Applicators Load Index / Ply Wheels and Tires (continued) Tire Size Rating Tire Make Part # Max PSI Carlisle 99136 20.5x8.0B10 F-Ply Tire Pressure 99311 11L15 I-1 F-Ply Firestone 9502097 VF385/65R22.5 I-1 163D The following is to be used as a general guide for tire inflation and figures can vary depending 9502085...

  • Page 73: Complete Torque Chart

    — Maintenance AT4615 Complete Torque Chart Capscrews - Grade 5 NOTE: • Grade 5 capscrews can be identified by three radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end.

  • Page 74: Grade 8

    — Maintenance AT4615 Complete Torque Chart Capscrews - Grade 8 NOTE: • Grade 8 capscrews can be identified by six radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end.

  • Page 75: Hydraulic Fittings

    — Maintenance AT4615 Hydraulic Fittings – Torque and Installation SAE Flare Connection (J. I. C.) 1. Tighten nut with finger until it bottoms the seat. 2. Using a wrench, rotate nut to tighten. Turn nut 1/3 turn to apply proper torque. SAE Straight Thread O-Ring Seal 1.
  • Page 76 — Maintenance AT4615 Manifold Layout — 23 Row Unit with Ground Drive Pump CP2519 1” TA806275 1” Dia. BRANCH HOSE Branch Hose TA806250 3/4” Dia. TA806275 1” Dia. CP2572 1-1/4” TA806300 1 1/4” Dia. Manifold Hose Branch Hose MAIN LINE Main Hose 4-22...
  • Page 77 — Maintenance AT4615 Manifold Layout — 25 Row Unit with Ground Drive Pump TA806250 3/4” Dia. Manifold Hose TA806275 1” Dia. Branch Hose TA806250 3/4” Dia. Manifold Hose TA806275 1” Dia. TA806300 1 1/4” Dia. Main Hose Branch Hose 4-23...
  • Page 78 — Maintenance AT4615 Notes 4-24...
  • Page 79 — Parts AT4615 Parts SECTION V — AT4615 Main Frame ..............................5-2 Hitch, Transport Chain, Manual Holder and Jack Components ................... 5-4 Decals................................... 5-6 Clean Water Tank Components ............................ 5-8 Wheel/Axle, 120” Single, 380/90R46 ........................... 5-9 Hub and Spindle Components ........................... 5-10 Double Tube Toolbar - Center Section &...

  • Page 80: At4615 Main Frame

    — Parts AT4615 AT4615 Main Frame Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 81 — Parts AT4615 AT4615 Main Frame Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JAAM2844 Cart Assembly with Tank & Lift Arm JAM3648 Tank Main Frame Weldment, Cone Bottom Tank 91268 Split Tension Bushing, 1 1/4” OD x 1” ID x 1”...

  • Page 82: Hitch, Transport Chain, Manual Holder And Jack Components

    — Parts AT4615 Hitch, Transport Chain, Manual Holder and Jack Components Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 83 — Parts AT4615 Hitch, Transport Chain, Manual Holder and Jack Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JAAM2423 Transport Chain Kit Includes Items 2-5 9003265 Transport Chain 30,400# JBM3498 Bushing 97575 Decal, CAUTION (Transport Chain) 93950 Hitch Pin, 1"...

  • Page 84: Decals

    — Parts AT4615 Decals Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 85 — Parts AT4615 Decals Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION JAP2582 Decal, AT4615 JAP2575 Decal, Blu-Jet “By Unverferth” JAP2215 Decal, BLU-JET By Unverferth 95839 Decal, WARNING (Pinch Point) JAP2497 Decal, CAUTION (Primary Wing Fold Hydraulics Must Be In Float Position...”...

  • Page 86: Clean Water Tank Components

    — Parts AT4615 Clean Water Tank Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JAM4421 Tank Mounting Bracket JAP2137 Clean Fresh Water Tank 9394-006 Hex Nut, 3/8”-16UNC 9404-021 Lock Washer, 3/8” 9390-057 Capscrew, 3/8”-16UNC x 1 1/2” G5 9390-030 Capscrew, 5/16”-18UNC x 1”...

  • Page 87: Wheel/Axle, 120" Single, 380/90R46

    — Parts AT4615 Wheel/Axle, 120” Single, 380/90R46 Please visit www.unverferth.com/parts/ for the most current parts listing. NOTE: Valve Stems to the outside ITEM PART NUMBER DESCRIPTION NOTES J44100115 Wheel & Axle Assembly -120” Single Includes Items 1-6 111277SM Wheel & Tire Assembly TLVF380/90R46 R-1 (Silver Mist)

  • Page 88: Hub And Spindle Components

    — Parts AT4615 Hub and Spindle Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-10...
  • Page 89 — Parts AT4615 Hub and Spindle Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 92463 Bearing Cone #460, 1.750” Bore 9391-059 Cotter Pin 1/4” Dia. x 2” 92471 Spindle Washer 3 1/4” OD x 1.300” ID x 3/16”...

  • Page 90: Double Tube Toolbar - Center Section & Gull Wing Components

    — Parts AT4615 Double Tube Toolbar - Center Section & Gull Wing Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM 23 ROW/30” – 57.5’ TOOLBAR 25 ROW/20” – 42.5’ TOOLBAR 25 ROW/30” – 62.5’ TOOLBAR 35 ROW/20” – 58.33’ TOOLBAR...

  • Page 91: Single Tube Toolbar - Center Section & Gull Wing Components

    — Parts AT4615 Single Tube Toolbar - Center Section & Gull Wing Components Please visit www.unverferth.com/parts/ for the most current parts listing. 15 ROW/30” – 37.5’ TOOLBAR 17 ROW/30” – 42.5’ TOOLBAR 27 ROW/18” – 40.5’ TOOLBAR 33 ROW/15” – 41.25’ TOOLBAR...

  • Page 92: Primary Wing Components (Double Tube Toolbar)

    — Parts AT4615 Primary Wing Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 23 ROW/30” – 57.5’ TOOLBAR 25 ROW/20” – 42.5’ TOOLBAR 25 ROW/30” – 62.5’ TOOLBAR 35 ROW/20” – 58.33’ TOOLBAR 5-14...
  • Page 93 — Parts AT4615 Primary Wing Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9390-061 Capscrew, 3/8”-16UNC x 2 1/2” G5 9390-124 Capscrew, 5/8”-11UNC x 2” G5 9390-130 Capscrew, 5/8”-11UNC x 3 1/2” G5 9394-014 Hex Nut, 5/8”-11UNC...

  • Page 94: Primary Wing Components (Single Tube Toolbar)

    — Parts AT4615 Primary Wing Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 15 ROW/30” – 37.5’ TOOLBAR 17 ROW/30” – 42.5’ TOOLBAR 27 ROW/18” – 40.5’ TOOLBAR 33 ROW/15” – 41.25’ TOOLBAR 5-16...
  • Page 95 — Parts AT4615 Primary Wing Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9390-061 Capscrew, 3/8”-16UNC x 2 1/2” G5 9390-124 Capscrew, 5/8”-11UNC x 2” G5 9390-130 Capscrew, 5/8”-11UNC x 3 1/2” G5 9394-014 Hex Nut, 5/8”-11UNC...

  • Page 96: Secondary Wing Components (Double Tube Toolbar)

    — Parts AT4615 Secondary Wing Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 23 ROW/30” – 57.5’ TOOLBAR 25 ROW/20” – 42.5’ TOOLBAR 25 ROW/30” – 62.5’ TOOLBAR 35 ROW/20” – 58.33’ TOOLBAR 5-18...
  • Page 97 — Parts AT4615 Secondary Wing Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 91192 Retaining Ring 1” 9390-059 Capscrew, 3/8”-16UNC x 2” G5 9390-061 Capscrew, 3/8”-16UNC x 2 1/2” G5 9390-130 Capscrew, 5/8”-11UNC x 3 1/2”...

  • Page 98: Secondary Wing Components (Single Tube Toolbar)

    — Parts AT4615 Secondary Wing Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 15 ROW/30” – 37.5’ TOOLBAR 17 ROW/30” – 42.5’ TOOLBAR 27 ROW/18” – 40.5’ TOOLBAR 33 ROW/15” – 41.25’ TOOLBAR 5-20...
  • Page 99 — Parts AT4615 Secondary Wing Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 91192 Retaining Ring 1” 9390-061 Capscrew, 3/8”-16UNC x 2 1/2” G5 9390-130 Capscrew, 5/8”-11UNC x 3 1/2” G5 9398-012 Elastic Lock Nut, 3/8”-16UNC...

  • Page 100: Third Wing Components (Double Tube Toolbar)

    — Parts AT4615 Third Wing Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 23 ROW/30” – 57.5’ TOOLBAR 25 ROW/30” – 62.5’ TOOLBAR 35 ROW/20” – 58.33’ TOOLBAR 5-22...
  • Page 101 — Parts AT4615 Third Wing Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 91192 Retaining Ring 1” 9390-059 Capscrew, 3/8”-16UNC x 2” G5 9390-061 Capscrew, 3/8”-16UNC x 2 1/2” G5 9390-130 Capscrew, 5/8”-11UNC x 3 1/2”...

  • Page 102: Wing Extension Components (Single Tube Toolbar)

    — Parts AT4615 Wing Extension Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 17 ROW/30” – 42.5’ TOOLBAR JAAM2642 27 ROW/18” – 40.5’ TOOLBAR 33 ROW/15” – 41.25’ TOOLBAR ITEM PART NUMBER DESCRIPTION NOTES JAAM2642 Wing Extension Kit, 30”...

  • Page 103: Coulter Offset Mounting Bracket, 10" X 4" (Jaam2180)

    — Parts AT4615 Coulter Offset Mounting Bracket, 10” x 4” (JAAM2180) Please visit www.unverferth.com/parts/ for the most current parts listing. 27 ROW/18” – 40.5’ TOOLBAR 33 ROW/15” – 41.25’ TOOLBAR 35 ROW/20” - 58.33’ TOOLBAR JAAM2180 ITEM PART NUMBER DESCRIPTION...

  • Page 104: Coulter Offset Mounting Bracket, 15" X 4" (Jaam2721)

    — Parts AT4615 Coulter Offset Mounting Bracket, 15” x 4” (JAAM2721) Please visit www.unverferth.com/parts/ for the most current parts listing. 23 ROW/30” – 57.5’ TOOLBAR ITEM PART NUMBER DESCRIPTION NOTES JAAM2721 Coulter Offset Mounting Bracket Includes Items 1-4 JAM3640 Coulter Mounting Bracket Weldment 9390-101 Capscrew, 1/2”-13UNC x 1 1/2”...

  • Page 105: Coulter 45° Angled Mounting Bracket (Jaam2436)

    — Parts AT4615 Coulter 45° Angled Mounting Bracket (JAAM2436) Please visit www.unverferth.com/parts/ for the most current parts listing. 25 ROW/20” – 42.5’ TOOLBAR JAAM2436 35 ROW/20” – 58.33’ TOOLBAR ITEM PART NUMBER DESCRIPTION NOTES JAAM2436 Coulter 45° Angled Mounting Bracket Assembly...

  • Page 106: Coulter Flatback Centered Mounting Bracket (Jaam2821)

    — Parts AT4615 Coulter Flatback Centered Mounting Bracket (JAAM2821) Please visit www.unverferth.com/parts/ for the most current parts listing. 15 ROW/30” - 37.5’ TOOLBAR JAAM2821 17 ROW/30” - 42.5’ TOOLBAR 23 ROW/30” - 57.5’ TOOLBAR 25 ROW/20” – 42.5’ TOOLBAR 25 ROW/30” - 62.5’ TOOLBAR 27 ROW/18”...

  • Page 107: Coulter Flatback Centered Mounting Bracket (Jaam2646)

    — Parts AT4615 Coulter Flatback Centered Mounting Bracket (JAAM2646) Please visit www.unverferth.com/parts/ for the most current parts listing. 15 ROW/30” - 37.5’ TOOLBAR JAAM2646 17 ROW/30” - 42.5’ TOOLBAR 23 ROW/30” - 57.5’ TOOLBAR 25 ROW/20” – 42.5’ TOOLBAR 25 ROW/30” - 62.5’ TOOLBAR 33 ROW/15”...

  • Page 108: Coulter Flatback Offset Mounting Bracket (Jaam2822)

    — Parts AT4615 Coulter Flatback Offset Mounting Bracket (JAAM2822) Please visit www.unverferth.com/parts/ for the most current parts listing. 23 ROW/30” - 57.5’ TOOLBAR JAAM2822 25 ROW/20” – 42.5’ TOOLBAR 25 ROW/30” - 62.5’ TOOLBAR 27 ROW/18” - 40.5’ TOOLBAR 33 ROW/15” - 41.25’ TOOLBAR 35 ROW/20”...

  • Page 109: Offset Mounting Bracket, 45" X 4" (Jaam2737)

    — Parts AT4615 Offset Mounting Bracket, 45” x 4” (JAAM2737) Please visit www.unverferth.com/parts/ for the most current parts listing. 25 ROW/30” - 62.5’ TOOLBAR ITEM PART NUMBER DESCRIPTION NOTES JAM3671 Offset Mounting Bracket Weldment 9390-101 Capscrew, 1/2”-13UNC x 1 1/2” G5 9800 Lock Nut, 1/2”-13UNC...

  • Page 110: Offset Mounting Bracket, 25" X 4" (Jaam2739)

    — Parts AT4615 Offset Mounting Bracket, 25” x 4” (JAAM2739) Please visit www.unverferth.com/parts/ for the most current parts listing. 35 ROW/20” - 58.33’ TOOLBAR ITEM PART NUMBER DESCRIPTION NOTES JAM3675 Offset Mounting Bracket Weldment 9390-101 Capscrew, 1/2”-13UNC x 1 1/2” G5 9800 Lock Nut, 1/2”-13UNC...

  • Page 111: Bolt-On Coulter Bar Assembly (Jaam2908)

    — Parts AT4615 Bolt-On Coulter Bar Assembly (JAAM2908) Please visit www.unverferth.com/parts/ for the most current parts listing. 27 ROW/18” - 40.5’ TOOLBAR ITEM PART NUMBER DESCRIPTION NOTES JAAM2908 Bolt-On Coulter Bar Assembly 9390-450 Capscrew, 3/4”-10UNC x 10” G5 9802 Lock Nut, 3/4”-10UNC...

  • Page 112: Gauge Wheel Legs Rh/Lh Pair, Vertical Pin Adjust

    — Parts AT4615 Gauge Wheel Legs RH/LH Pair, Vertical Pin Adjust Please visit www.unverferth.com/parts/ for the most current parts listing. 5-34...
  • Page 113 — Parts AT4615 Gauge Wheel Legs RH/LH Pair, Vertical Pin Adjust Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES Includes Items JAM3585 Gauge Wheel Leg LH Assembly 2A, 3-13 Includes Items JAM3586 Gauge Wheel Leg RH Assembly...

  • Page 114: Super 1200 Coulter Assembly Components (Jaam2730)

    — Parts AT4615 Super 1200 Coulter Assembly Components (JAAM2730) Please visit www.unverferth.com/parts/ for the most current parts listing. HUB & KNEE CASTING, HD D X 1-3/4" ID, 10GA, PLTD 5/16 REF PART ITEM DESCRIPTION NOTES NUMBER THIS DRAWING IS PROPERTY OF MAT'L 981.

  • Page 115: Coulter Arm, Hub & Knee Components (Jam2799)

    — Parts AT4615 Coulter Arm, Hub & Knee Components (JAM2799) Please visit www.unverferth.com/parts/ for the most current parts listing. See Hub Assembly ITEM PART NUMBER DESCRIPTION NOTES JAM2799 Coulter Arm Assembly With Hub & Knee Casting, HD JAM2743B Casting, Coulter Knee, HD, Machined With Bushings JAP2274 Bushing, 1 17/32”...

  • Page 116: Hub Assembly, 4-Bolt Components (Jap2707)

    — Parts AT4615 Hub Assembly, 4-Bolt Components (JAP2707) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JAP2707 Hub Assembly, 4 Bolt 90024 Hub Cap, 1610 JAP2706-1 Hub W/ Cups, 4 Bolt, 5” BC, 3.62” Pilot, W/Zerk Hole...

  • Page 117: Coulter Blade (Jap2840)

    — Parts AT4615 Coulter Blade (JAP2840) Please visit www.unverferth.com/parts/ for the most current parts listing.  0 in [ 508.0 mm] 696 in [  93.9 mm] DETAIL B ITEM PART NUMBER DESCRIPTION NOTES JAP2840 Coulter Blade 20” Dia. Smooth 0.412 in [10.5 mm]...

  • Page 118: Narrow Fold Transport Coulter Option (43468) (Double Tube Toolbar)

    — Parts AT4615 Narrow Fold Transport Coulter Option (43468) (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 23 ROW/30” – 57.5’ TOOLBAR 25 ROW/30” – 62.5’ TOOLBAR 5-40...
  • Page 119 — Parts AT4615 Narrow Fold Transport Coulter Option (43468) (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 43468 Narrow Fold Transport Coulter Option (4 Pair) Includes Items 2, 4-8, 10, 12, 15-21 JAAM2111 90°...

  • Page 120: Narrow Fold Transport Coulter Option (43679) (Single Tube Toolbar)

    — Parts AT4615 Narrow Fold Transport Coulter Option (43679) (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 15 ROW/30” – 37.5’ TOOLBAR 17 ROW/30” – 42.5’ TOOLBAR LEFT-HAND FROM THE REAR 5-42...
  • Page 121 — Parts AT4615 Narrow Fold Transport Coulter Option (43679) (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 43679 Narrow Fold Transport Coulter Option (2 Pair) Includes Items 2, 4-8, 10, 12, 15-20 JAAM2111 90°...

  • Page 122: Jetstream Coulter Knife Assembly Components (Jaam3356)

    — Parts AT4615 Jetstream Coulter Knife Assembly Components (JAAM3356) Please visit www.unverferth.com/parts/ for the most current parts listing. Orifice Plate Location Washer part of nozzle cap 5-44...
  • Page 123 — Parts AT4615 Jetstream Coulter Knife Assembly Components (JAAM3356) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JAAM3356 Coulter Knife Assembly, W/Knife, Tee-Jet Check Includes Items 1-17 JAM3324 Adapter Plate, Coulter Knife 67923 Liquid Fertlizer Knife 3/8” Extra Thin...

  • Page 124: Jetstream Liquid Assembly Components Tee-Jet Check (Jaam3353); Low Rate (Jaam3355)

    — Parts AT4615 Jetstream Liquid Assembly Components Tee-Jet Check (JAAM3353); Low Rate (JAAM3355) Please visit www.unverferth.com/parts/ for the most current parts listing. Orifice Plate Location Washer part of nozzle cap 5-46...
  • Page 125 — Parts AT4615 Jetstream Liquid Assembly Components Tee-Jet Check (JAAM3353); Low Rate (JAAM3355) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JAAM3353 Jetstream Liquid Assembly Tee-Jet Check, 1 Row Includes Items 2-24 & 30-31...

  • Page 126: Lighting Components - For 15, 20, & 30" Spacing

    — Parts AT4615 Lighting Components — For 15”, 20”, & 30” Spacing Please visit www.unverferth.com/parts/ for the most current parts listing. 15 ROW/30” - 37.5’ TOOLBAR 17 ROW/30” - 42.5’ TOOLBAR 23 ROW/30” - 57.5’ TOOLBAR 25 ROW/20” – 42.5’ TOOLBAR 25 ROW/30”...
  • Page 127 — Parts AT4615 Lighting Components — For 15”, 20”, & 30” Spacing Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NOTES NUMBER J41000050 Lighting Kit Includes Items 1-29 97182 Grommet for Panel Light 902217 Light/RED LED, 10 Diode, 3 Prong Panel Mount...

  • Page 128: Lighting Components - For 18" Spacing

    — Parts AT4615 Lighting Components — For 18” Spacing Please visit www.unverferth.com/parts/ for the most current parts listing. 27 ROW/18” - 40.5’ TOOLBAR 5-50...
  • Page 129 — Parts AT4615 Lighting Components — For 18” Spacing Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NOTES NUMBER J41000049 Lighting Kit Includes Items 1-29 97182 Grommet for Panel Light 902217 Light/RED LED, 10 Diode, 3 Prong Panel Mount...

  • Page 130: Hitch Hydraulic Components (Double Tube Toolbar)

    — Parts AT4615 Hitch Hydraulic Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. To Relief Valve 5-52...
  • Page 131 — Parts AT4615 Hitch Hydraulic Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JDP3993 Hydraulic Check Valve w/Manual Release JAP2481 Decal, Transport Lock JAM3691 Utility Plate JAM3690 Bulkhead Plate 96589 Chain, 3/16”...

  • Page 132: Hitch Hydraulic Components (Single Tube Toolbar)

    — Parts AT4615 Hitch Hydraulic Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-54...
  • Page 133 — Parts AT4615 Hitch Hydraulic Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9005789 Bulkhead Union, 7/8-14 JIC Male x 7/8-14 JIC Male 91383 Male Tip Coupling, 3/4”-16 92927 Adapter, 9/16-18 JIC Male x 3/4-16 O-Ring Male 9390-031 Capscrew, 5/16”-18UNC x 1 1/4”...

  • Page 134: Double Tube Toolbar Gull Wing & Relief Valve Hydraulic Components

    — Parts AT4615 Double Tube Toolbar Gull Wing & Relief Valve Hydraulic Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-56...
  • Page 135 — Parts AT4615 Double Tube Toolbar Gull Wing & Relief Valve Hydraulic Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 901102 Reducer Adapter 7/8-14 JIC Female x 9/16-18 JIC Male 92927 Adapter, 9/16-18 JIC Male x 3/4-16 O-Ring Male 9390-009 Capscrew, 1/4"-20UNC x 2"...

  • Page 136: Single Tube Toolbar Gull Wing & Relief Valve Hydraulic Components

    — Parts AT4615 Single Tube Toolbar Gull Wing & Relief Valve Hydraulic Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-58...
  • Page 137 — Parts AT4615 Single Tube Toolbar Gull Wing & Relief Valve Hydraulic Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 901102 Reducer Adapter 7/8-14 JIC Female x 9/16-18 JIC Male 92927 Adapter, 9/16-18 JIC Male x 3/4-16 O-Ring Male 9390-009 Capscrew, 1/4"-20UNC x 2"...

  • Page 138: Primary Wing Hydraulic Components (Double Tube Toolbar)

    — Parts AT4615 Primary Wing Hydraulic Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 9002274 Tee 9/16-18 JIC Male x 9/16-18 JIC Male x 3/4-16 O-Ring Male 9874 90° Elbow, 9/16-18 JIC Male x 3/4-16 O-Ring Male...

  • Page 139: Primary Wing Hydraulic Components (Single Tube Toolbar)

    — Parts AT4615 Primary Wing Hydraulic Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 9002274 Tee 9/16-18 JIC Male x 9/16-18 JIC Male x 3/4-16 O-Ring Male 9874 90° Elbow, 9/16-18 JIC Male x 3/4-16 O-Ring Male...

  • Page 140: Toolbar Lift Hydraulic Components (Double Tube Toolbar)

    — Parts AT4615 Toolbar Lift Hydraulic Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-62...
  • Page 141 — Parts AT4615 Toolbar Lift Hydraulic Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 9394-006 Hex Nut, 3/8”-16UNC 9404-021 Lock Washer, 3/8” JDP4490 Cylinder 4” x 8” 95407 Seal Kit for 4” x 8” Cylinder JBP3497 Clevis Pin, 1”...
  • Page 142 — Parts AT4615 Toolbar Lift Hydraulic Components (Gull Wing Center Section w/Single Tube Frame) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 9928 Lock Nut/Top, 3/8”-16UNC 9404-021 Lock Washer, 3/8” JDP4656 Cylinder 3” x 8”...

  • Page 143: Secondary Wing Hydraulic Components (Double Tube Toolbar)

    — Parts AT4615 Secondary Wing Hydraulic Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 9874 90° Elbow, 9/16-18 JIC Male x 3/4-16 O-Ring Male 9875 Tee, 9/16-18 JIC Male x 9/16-18 JIC Male x 9/16-18 JIC Male JDP4492 Cylinder 3”...

  • Page 144: Secondary Wing Hydraulic Components (Single Tube Toolbar)

    — Parts AT4615 Secondary Wing Hydraulic Components (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 9874 90° Elbow, 9/16-18 JIC Male x 3/4-16 O-Ring Male 9875 Tee, 9/16-18 JIC Male x 9/16-18 JIC Male x 9/16-18 JIC Male JDP4492 Cylinder 3”...

  • Page 145: Third Wing Hydraulic Components (Double Tube Toolbar)

    — Parts AT4615 Third Wing Hydraulic Components (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION 9874 90° Elbow, 9/16-18 JIC Male x 3/4-16 O-Ring Male 9875 Tee, 9/16-18 JIC Male x 9/16-18 JIC Male x 9/16-18 JIC Male JDP4492 Cylinder 3”...

  • Page 146: Single & Double Pump Drive Components

    Single & Double Pump Drive Components 10/14/2020 NGP-9055 CDS John Blue | Cast Iron Piston Pump - 2" NPT x 2" NPT Please visit www.unverferth.com/parts/ for the most current parts listing. Home Cast Iron Piston Pump - 2" NPT Inlet x 2" NPT Outlet Cast Iron Piston Pump - 2"...
  • Page 147 — Parts AT4615 Single & Double Pump Drive Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JCP2568 Single Piston Pump, NGP-7055 (34.2 GPM Max) 9503890 Single Piston Pump, NGP-7055-S-BLK (34.2 GPM Max) Stainless Steel JCP2569 Double Piston Pump, NGP-9055 (68.4 GPM Max)

  • Page 148: Pump Drive Package (Jpkg00181)

    — Parts AT4615 Pump Drive Package (JPKG00181) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM 5-70...
  • Page 149 — Parts AT4615 Pump Drive Package (JPKG00181) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 91829 Wheel Bolt, 1/2”-20UNF x 1 5/8” G5 9390-055 Capscrew, 3/8”-16UNC x 1” G5 9390-063 Capscrew, 3/8”-16UNC x 3” G5 9390-103 Capscrew, 1/2”-13UNC x 2”...

  • Page 150: 40 Tooth Sprocket & Roller Chain Components

    — Parts AT4615 40 Tooth Sprocket & Roller Chain Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JAP2784 Roller Chain #50 (Single) 101 Links (Stainless Steel) JAP2112 Connecting Link #50 (Stainless Steel) JAP2113...
  • Page 151 — Parts AT4615 50 Tooth Sprocket & Roller Chain Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES JAP2112 Connecting Link #50 (Stainless Steel) JAP2113 Offset Link #50 (Stainless Steel) JAP2369 Sprocket Weldment with Hub, 1 1/2” Bore, 3/8” Keyway, Model 5050...

  • Page 152: Bottom Filling Plumbing Components

    — Parts AT4615 Bottom Fill Plumbing Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-74...
  • Page 153 — Parts AT4615 Bottom Fill Plumbing Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9003735 Cable Tie 11” 9005533 90° Elbow, 3” Flange x 3” Hose Barb 9007455 Reducer Coupler, 3” Flange x 2” FP Flange 9008246 Steel Clamp, 1 1/4”...

  • Page 154: Ace 205 Variable Rate Pump

    — Parts AT4615 ACE 205 Variable Rate Pump Please visit www.unverferth.com/parts/ for the most current parts listing. 5-76...
  • Page 155 — Parts AT4615 ACE 205 Variable Rate Pump Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NOTES NUMBER 402255 Strainer, 2” Flanged Line Includes Items 1A-1F 403257 Strainer Head TA869070 Screen, 50 Mesh TA867486 Gasket, EPDM...
  • Page 156 — Parts AT4615 ACE 205 Variable Rate Pump (continued) Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NOTES NUMBER JBP3356 U-Bolt, 1/2”-13UNC x 8 1/4”, 7 9/16” C/C G5 JCP1999 Pigtail Gauge Protector JCP2085 90° Elbow, 1/2”-14 NPT Male x 1/4” Hose Barb JCP2575 Gauge 4”...

  • Page 157: Ball Valve Components

    — Parts AT4615 Ball Valve Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9503464 Ball Valve Flanged Single 490 Series TA854833 Ball Valve Flanged 450 BEC (3-Section) Includes Items 3-9 TA854835 Ball Valve Flanged 450 BEC (5-Section)

  • Page 158: Manifold Components

    — Parts AT4615 Manifold Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-80...
  • Page 159 — Parts AT4615 Manifold Components Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NUMBER TA814863 Hose Barb 1”, 3/4-14 ANS Blunt Start Taper Pipe 9003735 Cable Tie 11” 23 25 25 27 33 37 9008246 Steel Clamp, 1 1/4” Dia. x 3/4”...

  • Page 160: Manifold Components - Gauge & Mounting Components

    — Parts AT4615 Manifold Components — Gauge & Mounting Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-82...
  • Page 161 — Parts AT4615 Manifold Components — Gauge & Mounting Components Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NUMBER TA806250 Hose, 3/4” Dia. x 12” EPDM 45 47.5 75 53 80 53 53 80 TA800912 Hose Clamp 13/16” - 1 1/2” (SS) 62 58 66 58 70 86 Hose Barb Tee 3/8”...
  • Page 162 — Parts AT4615 Manifold Layout — Drive Pump, Fittings & Hoses (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-84...
  • Page 163 — Parts AT4615 Manifold Layout — Drive Pump, Fittings & Hoses (Double Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION TA800916 Hose Clamp 1” - 2” (SS) TA806300 Hose 1 1/4” Dia. x ” EPDM TA814753 Plug, 1 1/4”-11 1/2 NPTF Male...
  • Page 164 — Parts AT4615 Manifold Layout — Drive Pump, Fittings & Hoses (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-86...
  • Page 165 — Parts AT4615 Manifold Layout — Drive Pump, Fittings & Hoses (Single Tube Toolbar) Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NUMBER TA814966 90° Elbow, 1”-11 1/2 NPTF Male x 1” Hose Shank JCP2249 Nipple 1-11 1/2 NPT Male x 2 (Close) Tee, 1”-11 1/2 NPTF Female x 1”-11 1/2 NPTF Female...

  • Page 166: Manifold Layout - 23 Row Coulter Assembly Fittings And Hoses

    — Parts AT4615 Manifold Layout — 23 Row Coulter Assembly Fittings and Hoses Please visit www.unverferth.com/parts/ for the most current parts listing. 5-88...
  • Page 167 — Parts AT4615 Manifold Layout — 23 Row Coulter Assembly Fittings and Hoses Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NUMBER TA814863 Hose Barb 1”, 3/4-14 ANS Blunt Start Taper Pipe 9008246 Steel Clamp, 1 1/4” Dia. x 3/4”...

  • Page 168: Manifold Layout - 25 Row Coulter Assembly Fittings And Hoses

    — Parts AT4615 Manifold Layout — 25 Row Coulter Assembly Fittings and Hoses Please visit www.unverferth.com/parts/ for the most current parts listing. 5-90...
  • Page 169 — Parts AT4615 Manifold Layout — 25 Row Coulter Assembly Fittings and Hoses Please visit www.unverferth.com/parts/ for the most current parts listing. PART ITEM DESCRIPTION NUMBER JAM3628 Mounting Bracket Strip 9008246 Steel Clamp, 1 1/4” Dia. x 3/4” 900901-006 Hex Nut, 3/8”-16UNC (SS) 900903-021 Lock Washer, 3/8”...

  • Page 170: Controller Components

    — Parts AT4615 Controller Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-92...
  • Page 171 — Parts AT4615 Controller Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NUMBER DESCRIPTION NOTES 9503471 Wire Harness 30 Ft. 16-Pin Console to 47-Pin Connector Less Rate Controller 9000106 Cable Tie 7 1/2” 9007549 Console Harness (450 Controller) 9503471 Wire Harness 30 Ft.
  • Page 172 L:\MANUALS\BLU-JET\45006\\NOVEMBER 2020-0//DECEMBER 2021-1...

Table of Contents
