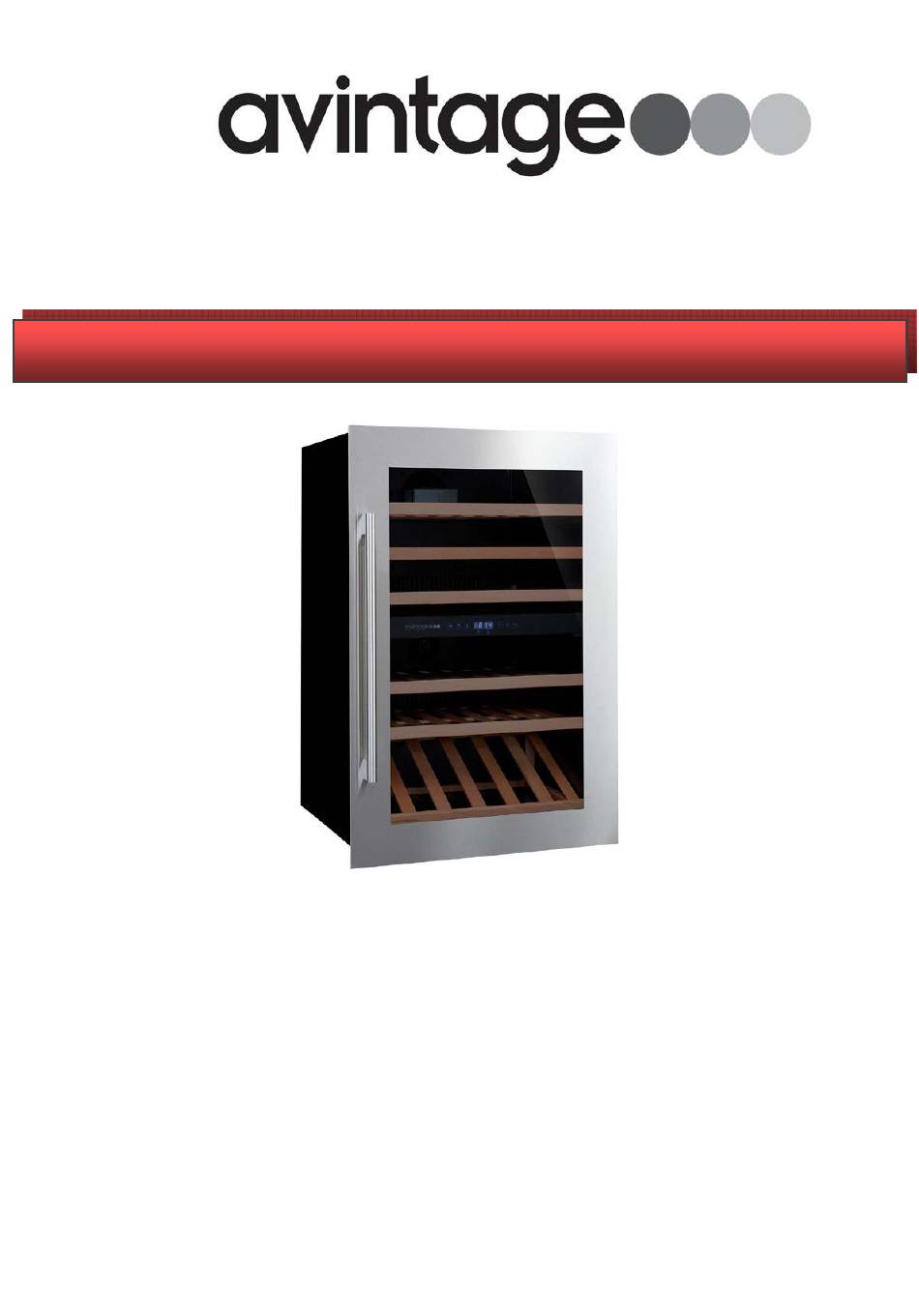

- Page 1 Heating cellar can be integrated into a column Instruction for Use...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS For your own safety and for the proper utilisation of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. - Page 3 CAUTION — Keep the ventilation openings well open and ensure that air can • circulate, especially if the appliance is recessed into a wall. CAUTION — Do not damage the refrigerating circuit. • CAUTION — Do not use electrical appliances inside the compartment, unless •...
- Page 4 Ensure that the appliance is always electrically earthed. • If the wall socket is loose, do not connect the cable, as there is a risk of electric • shock or fire. Do not use the appliance if the interior lighting cover is not installed. •...
-
Page 5: Power Saving
Caution! Cleaning and servicing Before carrying out servicing, switch off the power supply and disconnect the • appliance. When cleaning the appliance, do not use metal objects, steam systems, volatile • fluids, organic solvents or abrasive substances. Do not use sharp or pointed objects to remove ice. Use a plastic scraper. •... -
Page 6: Troubleshooting
•To ensure that the appliance operates properly, clean the condenser regularly (see “Routine servicing of your appliance”). • Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service. Trouble shooting Any electrical work should be carried out by a qualified and skilled •... - Page 7 R600a Safety regulation Warning: Keep ventilation openings in the appliance enclosure or in the structure clear of obstruction. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Warning: Do not damage the refrigerant circuit. Refrigerating units operating on Isobutane (R600a) may not be placed in an area with sources of ignition (e.g.
-
Page 8: Features Of Your Wine Cooler
FEATURES OF YOUR WINE COOLER MODEL 45 cm 1 ZONE Digital control panel Handle Shelves Door Condensor Cabinet Leveling legs MODEL 60 cm 2 ZONES Door Handle Digital control panel Shelves Condensor Cabinet Leveling legs MODEL 88 cm 2 ZONES Door Handle Digital control panel... - Page 9 MODEL 122cm 2 ZONES Door Handle Digital control panel Shelves Condensor Cabinet Leveling legs Removable presentation shelf MODEL 122cm 3 ZONES Door Digital control panel Handle Digital control panel Shelves Removable presentation shelf Condensor Cabinet Leveling legs...
-
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler Remove all exterior and interior packing. Before connecting the Wine Cooler to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system caused by handling during transportation. Clean the interior surface with lukewarm water using a soft cloth. - Page 12 Model 122 cm Model 88 cm Model 60 cm Model 45 cm...
-
Page 13: Installing The Handle
Attention Store wine in sealed bottles. Do not overload the cabinet. Do not open the door unless necessary. Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation. Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors forming. -
Page 14: Operating Yourwine Cooler
Remove the glass door by unscrewing the eight lock screws 3 and 4. Be careful to hold the glass door firmly after removing the screws and place it on a padded surface to avoid the risk of damage. Unscrew and transfer the door supporter 2 to the opposite side. Rotate the glass door 180°... -
Page 15: Setting The Temperature Control
SETTING THE TEMPERATURE CONTROL • You can set the temperature as required by pressing the « UP » or « DOWN » button. When you press the two buttons for the fist time, the LED readout will show the original temperature set previously (the temperature preset at the factory is 12°C/54°F). - Page 16 Touch the UP and DOWN mark once of each compartment to set the desired temperature. • The temperature will increase 1°C or 1ºF if you touch the UP mark once, or the temperature will decrease 1°C or 1ºF if you touch the DOWN mark once.
- Page 17 • To view the “set” temperature in either zone at any time, touch the UP or DOWN mark, the “set” temperature will temporarily “flash” in the LED display for 5 seconds.
-
Page 18: Temperature Display
TEMPERATURE DISPLAY During normal operation, the temperature display on the control panel shows the temperature inside the appliance. The temperature display will flash if: - A different temperature is being set, - The temperature in the zone deviates by more than 5°C from the set temperature. The temperature display flashing ensures that the temperature cannot rise or fall un-noticed and impair the wine. -
Page 19: Care And Maintenance
MODES SABBATH MODE Sabbath mode is available for the observance of certain religious holidays. This mode turns off the displays, interior light and audible alarms and prevents them from turning on again. Normal cooling operations will still take place. To initiate Sabbath mode, press the POWER and LIGHT keys at the same time for at least 5 seconds. - Page 20 In fact, one could store more bottles by stacking a single type of bottle and without shelves. But a “varied” cabinet is made up of a large variety of bottles and the “practical” side of the daily use of a cabinet limits the number of bottles stored. Most probably, a few less bottles will be stored than the indicated amount.
-
Page 21: Energy Saving Tips
STORING THE CABINET If the cabinet is going to be unused for a short period of time. Leave the control panel with the normal settings. In case of prolonged un-use Remove the bottles from the cabinet Unplug the cabinet Clean both the inside and the outside of the cabinet Leave the door open to avoid condensation, odours and mold. -
Page 22: Problems With Your Wine Cooler
ENVIRONMENT This product complies with EU WEEE Directive 2002/96/EC. The crossed-out waste bin symbol on this appliance means that, at the end of its life, the appliance should be recycled separately from other domestic waste. It should therefore be disposed of at a selective collection centre for electrical and/or electronic appliances or, if you are buying an equivalent product, by the retailer of the new product. -
Page 23: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Not plugged in. The appliance is turned off. Wine Cooler does not operate. The circuit breaker tripped or a blown fuse. Check the temperature control setting. External environment may require a higher setting. The door is opened too often. The door is not closed completely. - Page 24 APPENDIX 1 Model Brand: AVINTAGE Reference: AV24XI-1 Domestic refrigeration appliance category: 2 Supply 220-240 V, 50 Hz Dimensions (L x D x H cm) 59X60.8X45.5 Weight (kg) Energy efficiency class Energy consumption 190 kWh per year calculated on the basis of Annual energy consumption (AEC) results obtained over 24 hours in standardised test conditions.
- Page 25 APPENDIX 2 Model Brand: AVINTAGE Reference: AV45XDZI-1/AV46CDZI-1 Domestic refrigeration appliance category: 2 Supply 220-240 V, 50 Hz Dimensions (L x D x H cm) 59X60.8X88.5 Weight (kg) Energy efficiency class Energy consumption 195 kWh per year calculated on the basis of Annual energy consumption (AEC) results obtained over 24 hours in standardised test conditions.
- Page 26 APPENDIX 3 Model Brand: AVINTAGE Reference: AV60CDZ Domestic refrigeration appliance category: 2 Supply 220-240 V, 50 Hz Dimensions (L x D x H cm) 59 x 60.8 x 59.5 Weight (kg) Energy efficiency class Energy consumption 142 kWh per year calculated on the basis of Annual energy consumption (AEC) results obtained over 24 hours in standardised test conditions.
- Page 27 APPENDIX 4 Model Brand: AVINTAGE Reference: AV79XDZI-1/AV80CDZI-1 Domestic refrigeration appliance category: 2 Supply 220-240 V, 50 Hz Dimensions (L x D x H cm) 59X60.8X123.4 Weight (kg) Energy efficiency class Energy consumption 263 kWh per year calculated on the basis of Annual energy consumption (AEC) results obtained over 24 hours in standardised test conditions.
- Page 28 APPENDIX 5 Model Brand: AVINTAGE Reference: AV93X3ZI-1 Domestic refrigeration appliance category: 2 Supply 220-240 V, 50 Hz Dimensions (L x D x H cm) 59X60.8X123.4 Weight (kg) Energy efficiency class Energy consumption 347 kWh per year calculated on the basis of Annual energy consumption (AEC) results obtained over 24 hours in standardised test conditions.
