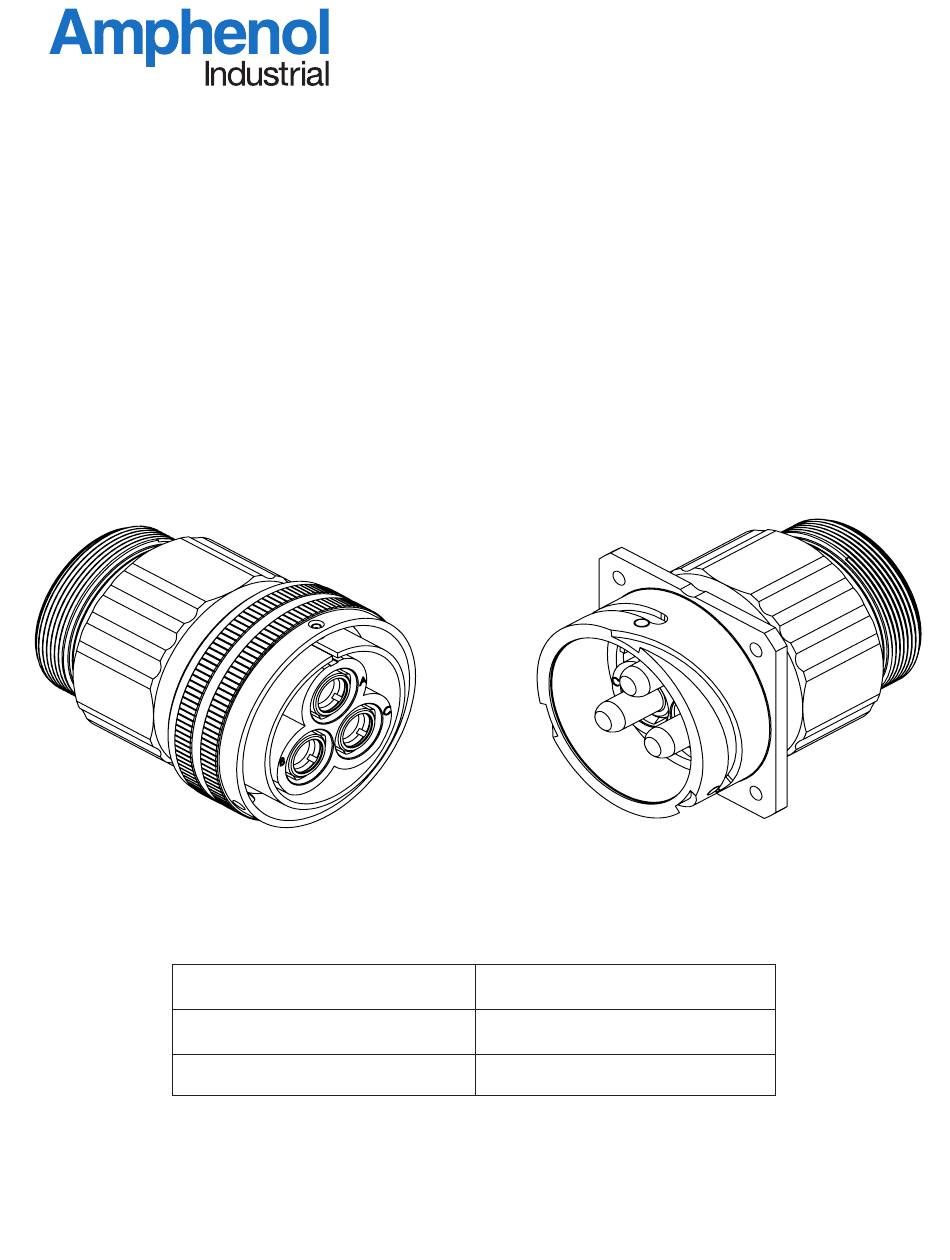

CABLE ASSEMBLY WORK
INSTRUCTION GTC-E
Writer
Product Series
Date
UNLESS OTHERWISE SPECIFIED
LINEAR DIMENSIONS ARE IN INCHES
TOLERANCES:
.XXXX =
.XXX =
.XX =
.X =
ANGLES =
Bruce Lee
EGT Series
11/9/2021
PREPARED BY:
LEAD/PRODUCT ENGINEER:
ENGINEERING MANAGER:
.0005
.010
PRODUCT GROUP:
.03
AIPG DIVISION:
.1
2
APPROVALS
MATERIAL SPEC
AI-16
DAT
1800/
C&I
AIO
PROCESS SPEC
Advertisement
Table of Contents
Related Manuals for Amphenol EGT Series
Summary of Contents for Amphenol EGT Series
- Page 1 AI-16 CABLE ASSEMBLY WORK INSTRUCTION GTC-E Writer Bruce Lee Product Series EGT Series Date 11/9/2021 UNLESS OTHERWISE SPECIFIED APPROVALS PREPARED BY: LINEAR DIMENSIONS ARE IN INCHES LEAD/PRODUCT ENGINEER: TOLERANCES: 1800/ ENGINEERING MANAGER: .XXXX = .0005 .XXX = .010 C&I PRODUCT GROUP: .XX =...
- Page 2 Contents Product Component................-1- 1) EGT06R36-4S..................-1- 2) EGT030R6-4P..................-2- Product Assembly..................-3- 1) Preparation before assembly...............-3- 2) Stripping cable and Crimp Contacts...........-3- 3) Assembly Connector................-4- Apendix....................-5- Appendix 1: Recommend Crimp Tool..........-5- Appendix 2: Recommend Installation Torque........-5- Appendix 3: Extraction Tool..............-5- 1. Product Components Revision History..................-5- 1) EGT06R36-4S...
- Page 3 Item Description Washer, Sealing Plug Assembly Washer, Flat Washer, Waved Coupling Nut Socket Contact Grommet Sleeve Adapter 2) EGT030R36-4P...
- Page 4 Item Description Receptacle Assembly Pin Contact Grommet Sleeve Adapter 2. Product Assembly 1) Preparation before assembly First pass the cable through the adapter, sleeve and grommet Grommet Adapter 封线体 直管 Cable 线缆 Sleeve 套筒...
- Page 5 2) Strip Cable and Crimp the Contacts Cut and strip the wire as shown in Figure 2 to expose the cable conductor. When cutting the cable, make sure the cut surface is 90° flush and the wire is not damaged. Next insert the wire into the contact well.
- Page 6 Appendix Appendix 1: Recommend Crimp Tool Crimp Tool Positioner/Die Set Locator Pico 400BH31 Pico 41431A-0N Pin 4042-1 Socket 4042 Appendix 2: Recommend Installation Torque The recommended installation torque for the part in the red box as shown in the Figure is 160~170 Lbs. (The Plug connector is the same as the Receptacle Connector) Appendix 3: Extraction Tool Part Number: CE-EXTRACT-00 3.
