INTRODUCTION
Install an HLO-1050 Linkage Kit for a KMC
Conquest Airflow Measurement System (AFMS)
on units with vertical-axis damper blades. The
linkages transfer the damper motion to a surface
with a horizontal axis, on which the AFMS
controller's inclinometer can then be mounted.
Mount the kit's damper blade crankarm on a
damper blade or on a jackshaft using the included
jackshaft coupler and V-bolt. If unable to mount
the kit's axle mount shaft to the damper frame, use
a
VTD-0903
right-angle bracket (sold separately).
See the KMC Conquest AFMS Installation Guide
— found on any
AFMS
controller's product page —
for installation of other AFMS components.

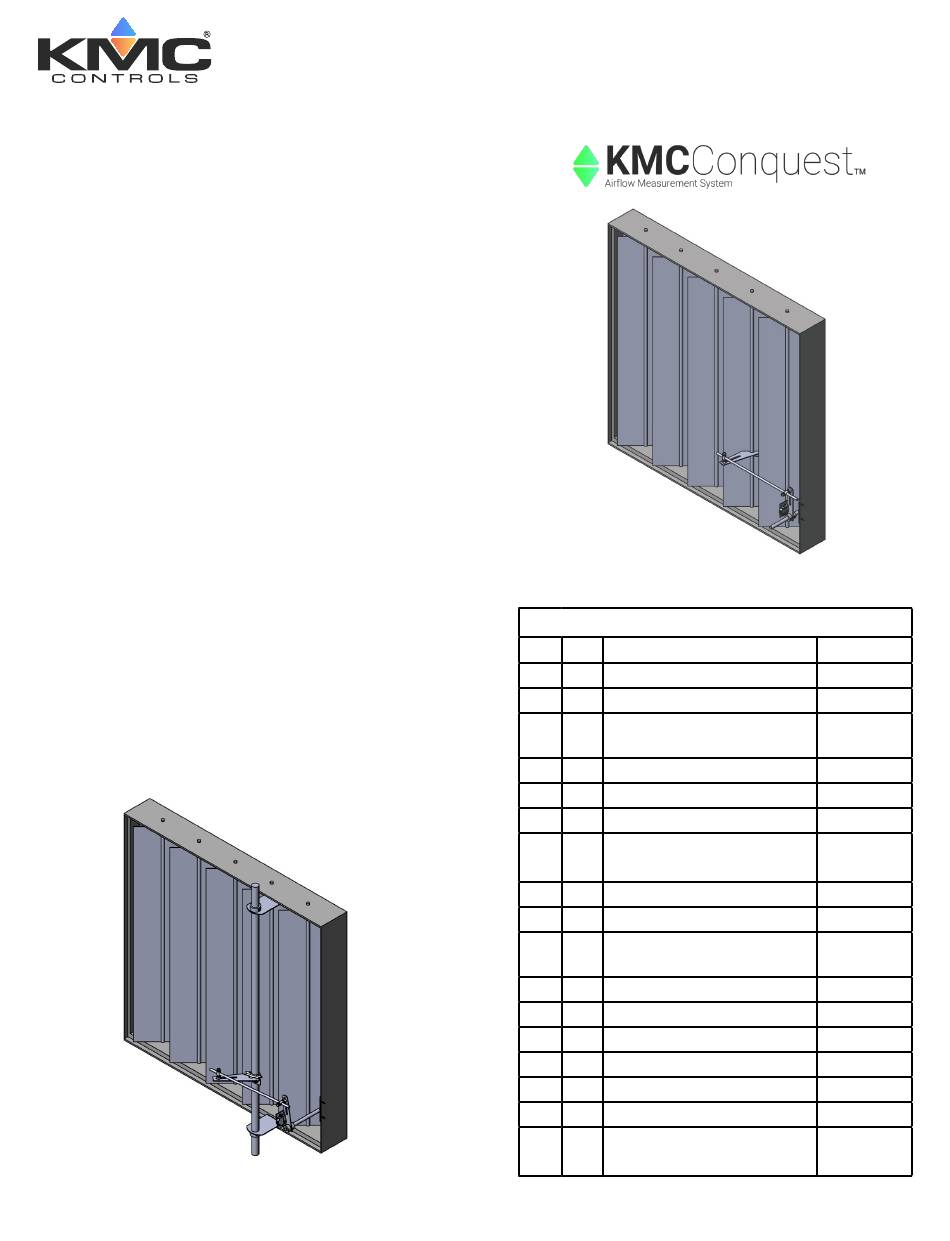

HLO-1050 jackshaft installation
KMC Controls, 19476 Industrial Drive, New Paris, IN 46553
HLO-1050 Linkage Kit
HLO-1050 damper blade installation
LINKAGE KIT CONTENTS
Det. Qty.
1
1
crankarm; damper blade, 6"
2
2
screw; ¼"-28 x ¾" hex head
3
2
screw; ¼"-28 x 1-¼" hex
head
4
2
¼"-28 hex lock nut
5
2
ball joint, ¼"-20 VTD-0804
6
1
drive shaft; 5/16 dia. x 16"
7
1
axle mount shaft;
inclinometer
8
2
#10-32 x ¾" TEK screw
9
1
crankarm; inclinometer
10
4
screw, 8-32 x ½" Phillips pan
head
11
4
#8-32 hex nut, locking
12
2
shaft retainer assembly
13
1
bearing; thrust washer ½" ID 705-503-21
14
1
bearing; flanged ½" ID
15
1
jackshaft coupler
16
1
V-bolt; 1"
17
1
spacer;
.256 ID x .591 OD x .591
/
877.444.5622
/
Fax: 574.831.5252
Installation Guide
Description
Part #
705-304-22
705-101-21
705-101-22
705-104-21
002-322-01
705-307-20
705-315-20
705-102-20
705-304-21
705-101-20
705-104-20
713-001-02
705-503-20
031-001-05
031-001-02
705-303-20
/
www.kmccontrols.com
