Step 4)
Click the Screen Configuration menu button.
Result: Screen Configuration opens. The pop-up opens (see Figure 72):

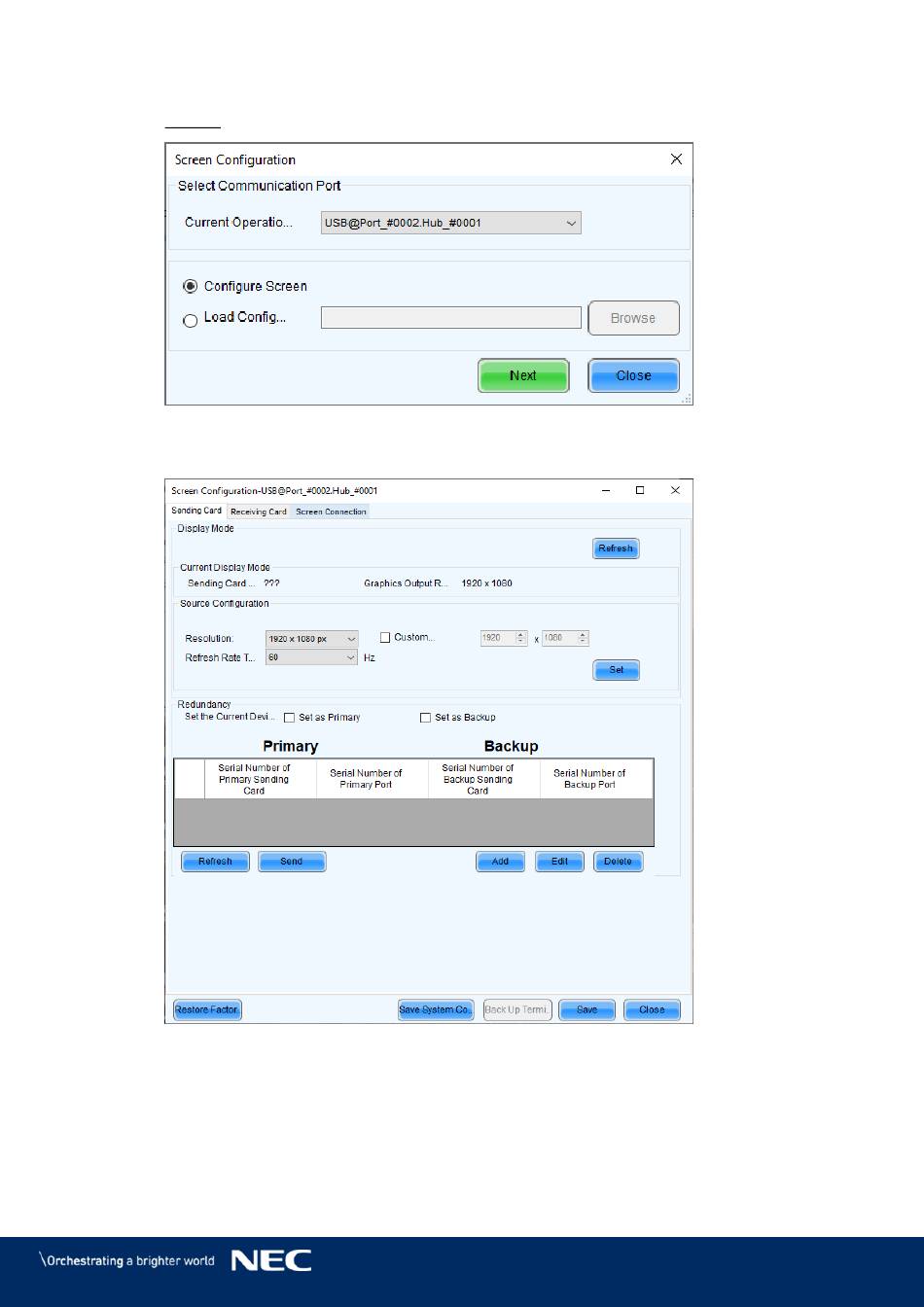

Figure 72: Pop-Up Configurating the Screen Connection
Step 5)
Click the Next button. The screen refreshes (see Figure 73).
Figure 73: Start Screen Configuration – Register Sending Card (Default View)
57
