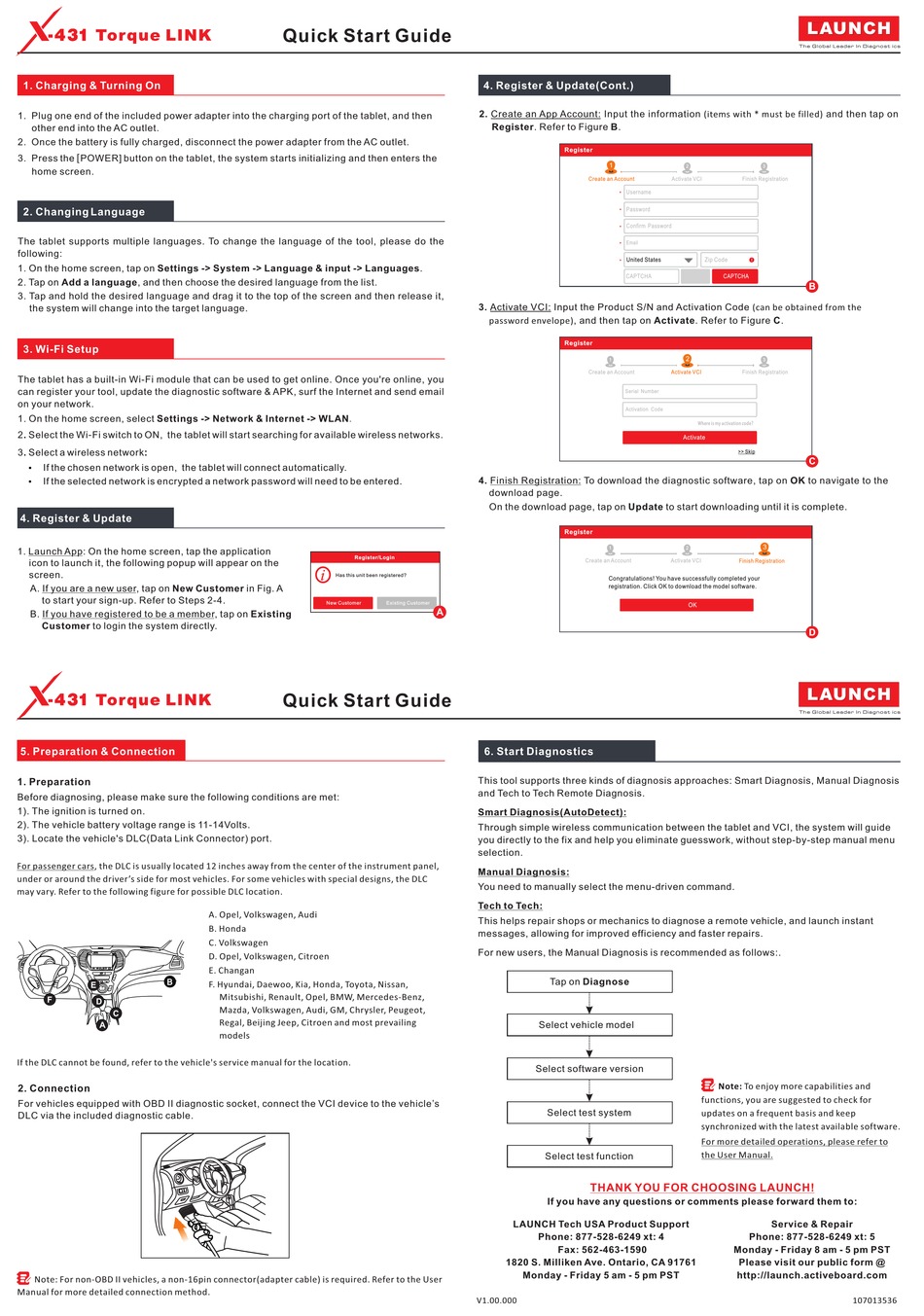

Charging & Turning On; Changing Language; Wi-Fi Setup; Register & Update - Launch X-431 Torque LINK Quick Start Manual

1. Charging & Turning On
1. Plug one end of the included power adapter into the charging port of the tablet, and then
other end into the AC outlet.
2. Once the battery is fully charged, disconnect the power adapter from the AC outlet.
3. Press
the
[POWER]
button on the tablet, the system starts initializing and then enters the
home screen.
2. Changing Language


The tablet supports multiple languages. To change the language of the tool, please do the
following:
1. On the home screen, tap on Settings -> System -> Language & input -> Languages.
2. Tap on Add a language, and then choose the desired language from the list.
3. Tap and hold the desired language and drag it to the top of the screen and then release it,
the system will change into the target language.

3. Wi-Fi Setup

The tablet has a built-in Wi-Fi module that can be used to get online. Once you're online, you
can register your tool, update the diagnostic software & APK, surf the Internet and send email
on your network.
1. On the home screen, select Settings -> Network & Internet -> WLAN.
2.
Select
the
Wi-Fi
switch
to
ON,
the tablet
will
start
searching
for
available
wireless
networks.
3.
Select
a
wireless
network:
If
the
chosen
network
is
open,
the tablet
will
connect
automatically.
Ÿ
If
the
selected
network
is
encrypted
a
network
password
will
need
to
be
entered.
Ÿ
4. Register & Update
1. Launch App: On the home screen, tap the application
icon to launch it, the following popup will appear on the
screen.
A. If you are a new user, tap on New Customer in Fig. A
to start your sign-up. Refer to Steps 2-4.
B. If you have registered to be a member, tap on Existing
Customer to login the system directly.
5. Preparation & Connection
1. Preparation
Before diagnosing, please make sure the following conditions are met:
1). The ignition is turned on.
2). The vehicle battery voltage range is 11-14Volts.
3). Locate the vehicle's DLC(Data Link Connector) port.
For passenger cars, the DLC is usually located 12 inches away from the center of the instrument panel,
under or around the driver's side for most vehicles. For some vehicles with special designs, the DLC
may vary. Refer to the following figure for possible DLC location.
If the DLC cannot be found, refer to the vehicle's service manual for the location.
2. Connection
For vehicles equipped with OBD II diagnostic socket, connect the VCI device to the vehicle's
DLC via the included diagnostic cable.
Note: For non-OBD II vehicles, a non-16pin connector(adapter cable) is required. Refer to the User
Manual for more detailed connection method.
Quick Start Guide
Register/Login
Has this unit been registered?
New Customer
Quick Start Guide
A. Opel, Volkswagen, Audi
B. Honda
C. Volkswagen
D. Opel, Volkswagen, Citroen
E. Changan
F. Hyundai, Daewoo, Kia, Honda, Toyota, Nissan,
Mitsubishi, Renault, Opel, BMW, Mercedes-Benz,
Mazda, Volkswagen, Audi, GM, Chrysler, Peugeot,
Regal, Beijing Jeep, Citroen and most prevailing
models
4. Register & Update(Cont.)
2. Create an App Account: Input the information (items with * must be filled) and then tap on
Register. Refer to Figure B.
3. Activate VCI: Input the Product S/N and Activation Code (can be obtained from the
password envelope), and then tap on Activate. Refer to Figure C.
4. Finish Registration: To download the diagnostic software, tap on OK to navigate to the
download page.
On the download page, tap on Update to start downloading until it is complete.
Existing Customer
A

6. Start Diagnostics

This tool supports three kinds of diagnosis approaches: Smart Diagnosis, Manual Diagnosis
and Tech to Tech Remote Diagnosis.
Smart Diagnosis(AutoDetect):
Through simple wireless communication between the tablet and VCI, the system will guide
you directly to the fix and help you eliminate guesswork, without step-by-step manual menu
selection.

Manual Diagnosis:

You need to manually select the menu-driven command.

Tech to Tech:

This helps repair shops or mechanics to diagnose a remote vehicle, and launch instant
messages, allowing for improved efficiency and faster repairs.
For new users, the Manual Diagnosis is recommended as follows:.
Tap on Diagnose
Select vehicle model
Select software version
Select test system
Select test function
If you have any questions or comments please forward them to:
LAUNCH Tech USA Product Support
Phone: 877-528-6249 xt: 4
Fax: 562-463-1590
1820 S. Milliken Ave. Ontario, CA 91761
Monday - Friday 5 am - 5 pm PST
V1.00.000
Register
1
2
Create an Account Activate VCI
Username
*
Password
*
Confirm Password
*
Email
*
United States Zip Code
*
CAPTCHA CAPTCHA
Register
2
1
Create an Account Activate VCI
Serial Number
Activation Code
Where
is
my
activation
code?
Activate
>> Skip
Register
1 2
Create an Account Activate VCI
Congratulations! You have successfully completed your
registration. Click OK to download the model software.
OK
Note: To enjoy more capabilities and
functions, you are suggested to check for
updates on a frequent basis and keep
synchronized with the latest available software.
For more detailed operations, please refer to
the User Manual.
THANK YOU FOR CHOOSING LAUNCH!
Monday - Friday 8 am - 5 pm PST
Please visit our public form @
http://launch.activeboard.com
LAUNCH
3
Finish Registration
B
3
Finish Registration
C
3
Finish Registration
D
LAUNCH
Service & Repair
Phone: 877-528-6249 xt: 5
