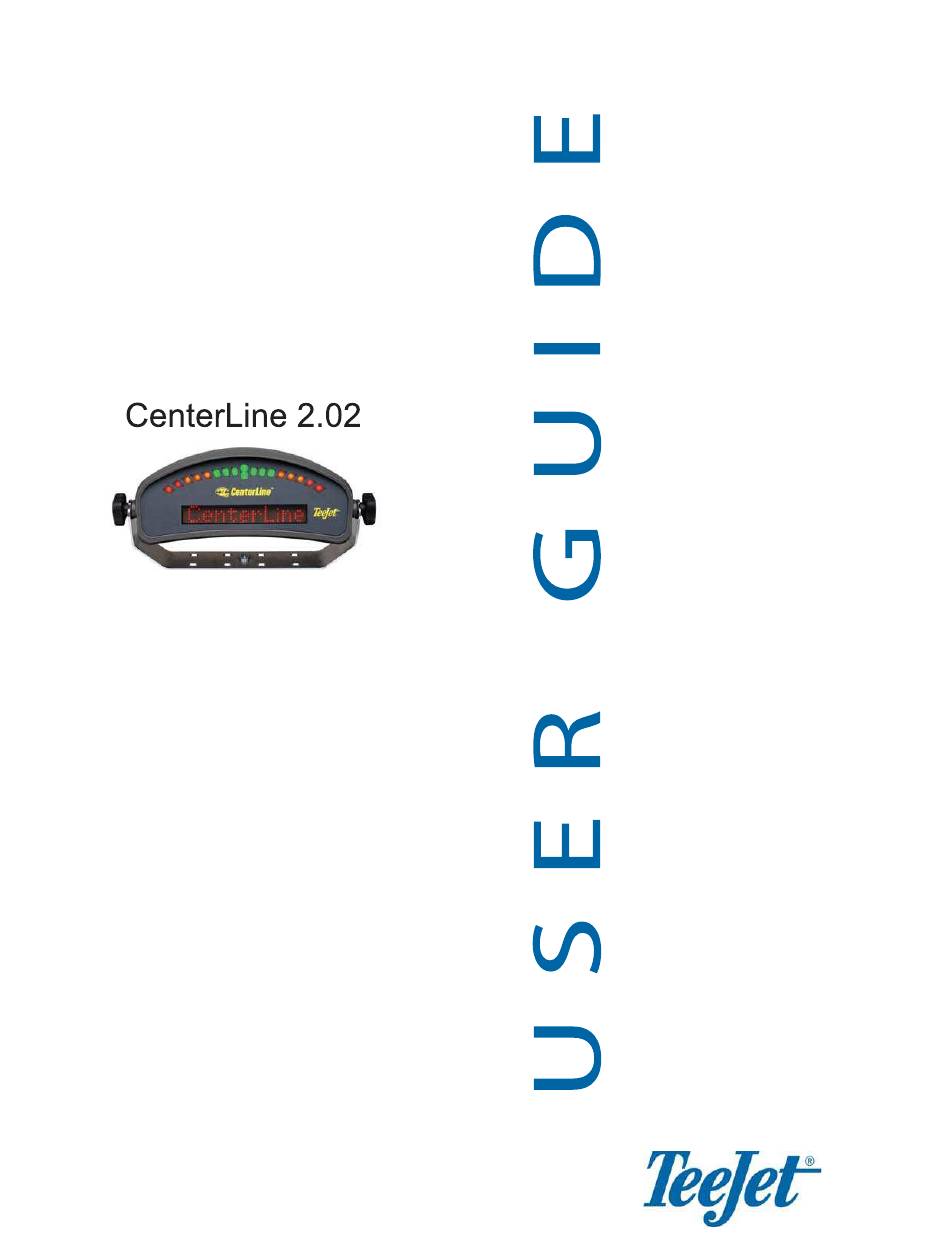

TeeJet CenterLine 2.02 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CenterLine 2.02 and is the answer not in the manual?

Questions and answers

Related Manuals for TeeJet CenterLine 2.02

Summary of Contents for TeeJet CenterLine 2.02

  • Page 2 Software Version 2.02 Copyrights © 2007 TeeJet Technologies Inc. All rights reserved. No part of this document or the computer programs described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies, Inc.

  • Page 3: Table Of Contents

    EXITING OPERATION ..........43 CenterLine 2.02...

  • Page 5: Chapter 1 - Introduction

    Most of the figures in this guide are menu items that are displayed in the text window of the lightbar. This text represents either a menu item, such as <GUIDANCE>, or a list item, such as <METRIC>. CenterLine 2.02 98-05054 R6...
  • Page 6 The lightbar text window can display a single line of text up to ten characters in length. Figure 1-1 illustrates an example of a single text line that would be displayed on the lightbar. Figure 1-1: Example of Lightbar Text Display Start Figures with multiple menu items are depicted with menu items above and below, and with submenu items located to the right of the text item currently in view.

  • Page 7: Wireless Remote Control

    Enter button is used to enter menus and sub-menus and accepts the appropriate entry. The Escape (ESC) button acts as a cancel button. Figure 1-4: Wireless Remote Control Return to Point button Up Arrow button Down Arrow button Enter button Menu/Escape button Brighter/Dimmer contrast buttons CenterLine 2.02 98-05054 R6...

  • Page 8: Lightbar

    QS7CL7850094 QS7CL7850107 TR19JN96.008 Changes or modifications to the product, not expressly approved by TeeJet Technologies, Inc. could void the user’s authority as granted under Part 15 of the FCC Rules to operate the equipment. 4 Chapter 1 - Introduction...

  • Page 9: Chapter 2 - Setup

    The lightbar will display the current software version. The lightbar will display <START>. <START> will remain visible on the lightbar until the Enter button is pressed to begin oper- ation or the Arrow buttons are pressed to select a menu option. CenterLine 2.02 98-05054 R6...
  • Page 10 Figure 2-1: CenterLine Without DGPS Receiver Lightbar 78-50112 A GPS data cable is Wireless Remote required but not pro- 78-50107 vided in the kit. Adapter Cable CenterLine Power Cable 15’ / 5 m 12’ / 4 m 45-05324 45-05338 5 Amp Boom Sense +12V when GPS Data Cable booms are ON...

  • Page 11: Centerline Setup

    <GUIDANCE> appears on the lightbar. Press the Enter button. If the first menu item displayed is <SWATH MAN>, Swath Manager 5 has been detected on the sys- tem and needs to be configured. Refer to CHAPTER 2 - SWATH MANAGER for additional informa- tion. CenterLine 2.02 98-05054 R6...
  • Page 12 Figure 2-4: Guidance Setup Flow Guidance Width Ahead Antenna Status Alarm GPS Type 1 Hz MSG Next To Start Table 2-1: Guidance Default Settings Setting Default Value Change at Initial Startup Width 30.0 feet/10 meters Required Ahead 1.5 seconds Optional Antenna - Direction None Recommended...
  • Page 13 Arrow buttons to select 0%, 50%, or 100% and press the Enter button to accept the setting. Enter button Figure 2-6: % Overlap Settings % Overlap 100% Figure 2-7: % Overlap Illustration CenterLine 2.02 98-05054 R6...
  • Page 14 Sections Enter the number of sections that are active in the system. Use the Arrow buttons to scroll to the appropriate number (1 - 5) and press the Enter button to accept the setting. Figure 2-8: Number of Sections Sections Arrow buttons Width Enter the width in feet / meters for boom section 1 by using the Arrow buttons to scroll through the...
  • Page 15 Enter button. Scroll through the direction list using the Arrow buttons until the desired direction is dis- played in the text window. Press the Enter button to save the setting and return to the Guidance setup menu. CenterLine 2.02 98-05054 R6...
  • Page 16 Figure 2-14: Establishing Direction to Swath Back Direction Forward Table 2-3: Swath Settings Setting Description Back GPS receiver is behind the swath or delivery point on the vehicle along the center line. Forward GPS receiver is in front of the swath or delivery point on the vehicle along the center line. Antenna - Distance The Distance setting defines the distance from the GPS antenna to the swath or delivery location (refer to Figure 2-16).
  • Page 17 Enter button. Options are either ON or OFF. Use the Arrow buttons to choose the appropriate option and press the Enter button to save the settings and return to the Guid- ance setup menu. CenterLine 2.02 98-05054 R6...
  • Page 18 Figure 2-19: Alarm Selection Alarm Table 2-5: Alarm Settings Setting Description No applied area detection. Applied area detection. Alarm will sound. GPS Type Arrow buttons GPS Type indicates to the CenterLine system if the GPS receiver is differentially corrected. To adjust the GPS Type, navigate to <GUIDANCE>, use the Arrow buttons until <GPS TYPE>...

  • Page 19: Lightbar

    Drive Sensitivity <SPACING> • Display Mode <MODE> • Messages <TEXT 1> and <TEXT 2> • Steer Bar <STEER BAR> Figure 2-22: Lightbar Setup Flow Lightbar Spacing Mode Text 1 Text 2 Steer Bar Next To Start CenterLine 2.02 98-05054 R6...
  • Page 20 Table 2-8: Lightbar Menu Settings Setting Default Value Change at Startup Spacing 1.5 feet Optional Mode Swath Optional Text 1 X-Track Error Optional Text 2 Applied Area Optional Steer Bar Optional Spacing The Spacing setting allows the selection of the distance that a single light on the lightbar LED repre- sents.
  • Page 21 Press the Enter button to save the setting and advance to the <TEXT 2> menu item. Figure 2-25: Selecting Text 1 Message Enter button Text 1 X-Track Swath# Speed Area Course CenterLine 2.02 98-05054 R6...
  • Page 22 Table 2-10: Text 1 Settings Message Description X-Track Displays the error (in distance) between the current guideline and the vehicle position. Swath # Displays the current guideline number. Ground Speed Displays the vehicle ground speed. Area Applied Displays the amount of area covered, sprayed, or spread in acres or hectares. Course on Ground, displays the vehicle heading in degrees.

  • Page 23: System Setup

    System Setup System Setup allows for the selection of settings that affect the entire CenterLine product. There are two settings that impact CenterLine: • Unit • Language Figure 2-28: System Setup System Unit Language Next To Start CenterLine 2.02 98-05054 R6...
  • Page 24 Table 2-13: System Settings Setting Default Value Change Upon Startup Unit Optional Language English Optional Unit System units allow the selection of either U.S. or Metric units of measurement. To change the sys- tem units, navigate to <SYSTEM> and press the Enter button. Use the Arrow buttons to navigate to <UNIT>...
  • Page 25 Figure 2-30: Language Options Language English Swedish Danish Dutch German French Italian Portuguese Spanish Polish Russian CenterLine 2.02 98-05054 R6...
  • Page 26 Figure 2-31: CenterLine Setup Flow Diagram Start Setup Guidance Swath Man %Overlap Tools Width 30.0 (default) Sections Ahead 1.5 (default) Width 1-5 100% Antenna Direction Delay Forward Only available when Swath Back Next Manager 5 is connected Distance 0.0 (default) To Start Height 9.8 (default)

  • Page 27: Tools

    Only appears if an e-Dif GPS receiver is detected by the CenterLine system. Displays current position information. Demo Activates a simulated CenterLine session. Next Advances to the next Setup menu item. To Start Returns the operator to the main menu. CenterLine 2.02 98-05054 R6...

  • Page 28: Receiver

    Receiver The Receiver diagnostic test displays the attached GPS receiver’s current configuration and status. The information is displayed in the text window of the lightbar. To begin the receiver check, navigate to <TOOLS> and press the Enter button. Use the Arrow buttons to select <RECEIVER> and press the Enter button.

  • Page 29: E-Dif Info

    The Next selection saves the setup information and returns the operator to the starting point on the CenterLine menu. To Start The To Start selection saves the setup information and returns the operator to the starting point on the CenterLine menu. CenterLine 2.02 98-05054 R6...
  • Page 30 26 Chapter 2 - Setup...

  • Page 31: Chapter 3 - Operation

    <NEW?> is selected, and retained when <RESUME?> is selected. Only information for a single guideline is stored. While in Headland Guid- ance, Points A and B can be marked for Straight-Line and Curved AB Guidance. CenterLine 2.02 98-05054 R6...

  • Page 32: Apply On/Off

    Note: Apply On/Off does Apply On/Off not turn the appli- cation on and off. It simply notifies If no SM5 is being used and the <GUIDANCE><STATUS> setting is set to OFF, the Apply On/Off CenterLine information must be provided to the CenterLine system manually. To toggle the Apply On/Off status, system scroll through the menu options using the Arrow buttons until <APPLY ON>...
  • Page 33 “applied” area. If a bounded area has already been determined, the <VIEW> menu item will be available. Pressing the Enter button at the <VIEW> option will display the current bounded area value. Figure 3-4: Area Determination Flow View 78.6 Ac Boundary Right Close Left CenterLine 2.02 98-05054 R6...

  • Page 34: Return To Point

    Return To Point CenterLine allows the operator to mark a point of reference in the field in which to return at a later time. Typically the Return to Point feature is used to mark a location when stopping guidance and starting in the same location and direction at a later date and time.

  • Page 35: Reference Guideline

    Guidance. If a reference guideline was not established during Headland Guidance, the operator must mark Points A and B at this time. The light will display <MARK A>, indicating that no reference guideline exists. Figure 3-6: Example of Headland Guidance Switching to Straight-Line Guidance CenterLine 2.02 98-05054 R6...

  • Page 36: Headland Guidance Lightbar Graphics

    Figure 3-7: Example of Completed Field Headland Guidance Lightbar Graphics CenterLine’s Headland Guidance uses a lightbar text display graphic that aids the operator when navigating parallel to a curved swath. The X-Track LED functionality that is used during Straight-Line and Curved AB mode is also used during Headland Guidance. A projected swath path graphic is displayed in the text display area of the lightbar.

  • Page 37: Straight-Line Guidance

    The CenterLine software detects which guideline is the closest to the center line of the vehicle and provides guidance information with respect to that line. As the vehicle travels across the field, new guidelines parallel to the reference guideline are established based on the swath width value entered during guidance setup. CenterLine 2.02 98-05054 R6...

  • Page 38: Curved Ab Guidance

    Figure 3-11: Example of Straight-Line Guidance When navigating a turn at the end of the field, the lightbar will display the distance to the next swath. Figure 3-12: Example of CenterLine Turn Curved AB Guidance Curved AB Guidance works similarly to Straight-Line Guidance except it provides vehicle guidance along curved lines based on a curved reference line.

  • Page 39: Applied Area Detection

    Figure 3-14 illustrates how previously applied area detection is implemented. As the vehicle enters an applied area, the lightbar will display <APPLIED>, even if application is turned off. When the vehi- cle exits the applied area, <APPLIED> will no longer be displayed on the lightbar. CenterLine 2.02 98-05054 R6...

  • Page 40: Neighboring Swath Detection

    Figure 3-14: Applied Area Detection Neighboring Swath Detection Applied area detection also notifies the operator when the vehicle crossed into a previously applied neighboring swath. Figure 3-15 illustrates an example on an applied area overlap. The vehicle can overlap up to 25% of the swath width without notification. Once the edge of the vehicle overlaps the neighboring swath by 25% or more, the lightbar will display <APPLIED>.
  • Page 41 Metric. Course on Ground (COG). A user-defined lightbar message indicating the vehicle’s heading in degrees 0 to 359. The exam- ple to the left indicates the vehicle’s course on the ground is due South (180 degrees). CenterLine 2.02 98-05054 R6...
  • Page 42 Lightbar Description Area Applied. A user-defined lightbar message indicating the current amount of area applied in acres. The system units are set to US. Area Applied. A user-defined lightbar message indicating the current amount of area applied in hectares. The system units are set to Metric.

  • Page 43: Swath Manager 5

    TER 3 - AREA DETERMINATION for additional information. Installation Cable 45-05462 and 45-05463 Connect between controller and main harnesses Cable 45-05467 Use T-Taps supplied with harness to tap into the signal wire between the switchbox or existing switches and boom shutoff valves. CenterLine 2.02 98-05054 R6...
  • Page 44 Cable SM5 to CenterLine Cable SM5 to CenterLine 45-05461 45-05461 Not used Not used SM5 Controller Harness SM5 Controller Harness TeeJet - 45-05462 TeeJet - 45-05462 Raven - 45-05463 Raven - 45-05463 Swath Manager 5 Swath Manager 5 78-08065 78-08065...

  • Page 45: Tilt Compensation Module

    Blue - blinks two times per second when the unit is powered and running • Green - steady ON when tilt correction is enabled; otherwise OFF • Yellow - Blinks one time per second when valid GPS location data is being received (NMEA-0183 GGA) CenterLine 2.02 98-05054 R6...

  • Page 46: Tilt Compensation Module Installation

    Figure 3-20: Tilt Compensation Module Tilt Compensation Module Installation • Mount the Tilt Compensation module as close to the center of the vehicle side as possible. • Mount the module on a plain parallel to the GPS antenna so that both the antenna and the sensor tilt the same degree.

  • Page 47: Exiting Operation

    <EXIT?> is displayed on the lightbar and press the Enter button. Operation will cease and the display will return to the main menu. Menu/Esc button Figure 3-22: Exit Display Arrow buttons Enter button CenterLine 2.02 98-05054 R6...
