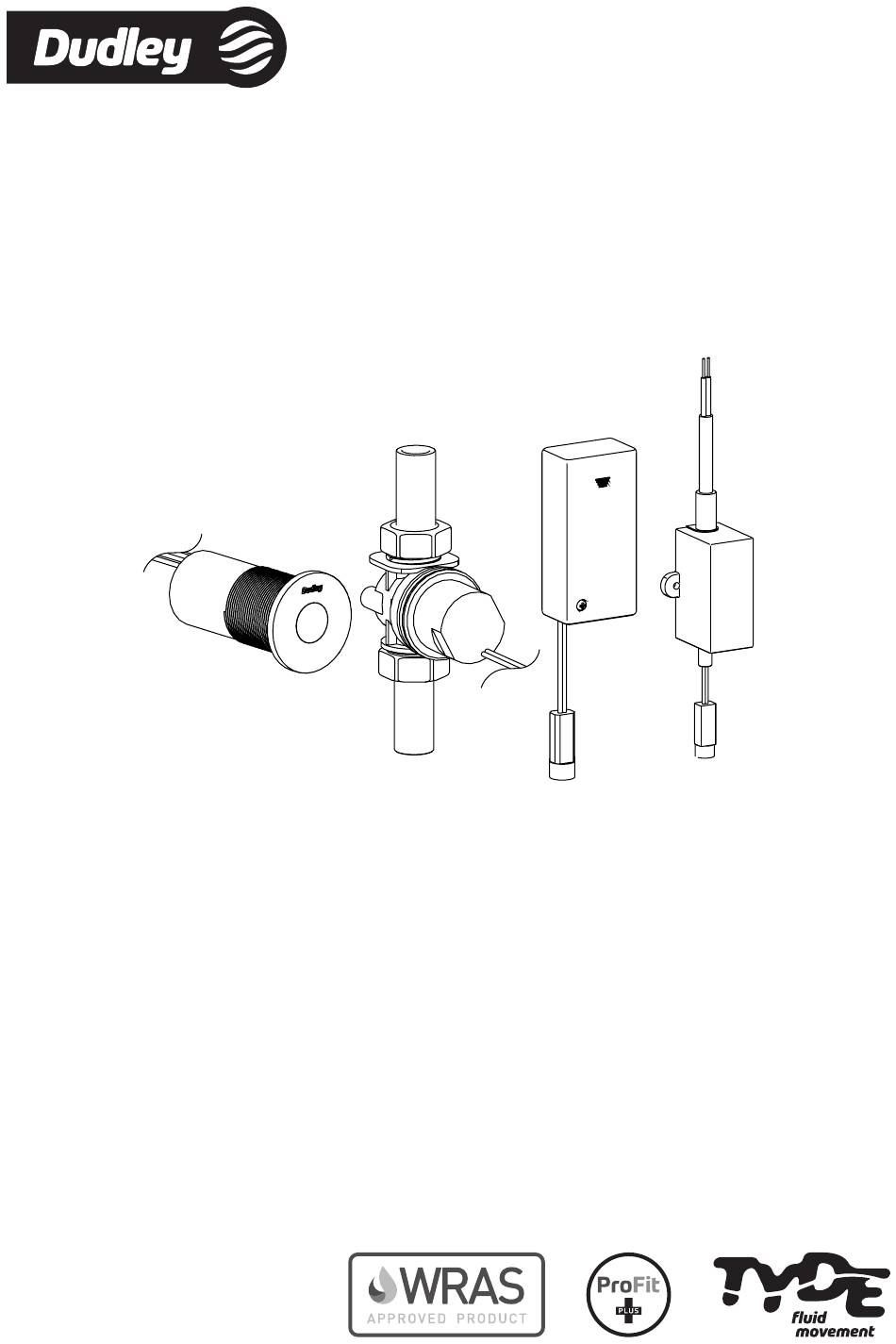

- Page 1 ELECTROFLO URINAL SENSOR INSTALLATION GUIDE...
- Page 2 IMPORTANT NOTES DO NOT install the system facing a mirror or any other electronic system H E I G H operated by infared sensors. . 5 m 1 . 2 - 1 To prevent reflection problems, it is reccomended to keep a minimum distance of 1500mm between the sensor and any other objects.
- Page 3 FLOW CAT. 5 BACKFLOW PREVENTION DEVICE...
- Page 4 B A T T E R M A I N S PEEL...
- Page 5 REMOTE CONTROL (Purchased Separately) Detection RANGE. If necessary press the button and use the +/- keys to adjust range between 300-800mm. DELAY IN TIME is DELAY OUT TIME the time between is the flow time sensor detection after sensor and water flow. detection.
- Page 6 CHANGING BATTERY CLEANING FILTER TURN OFF RINSE TURN ON...
- Page 7 TROUBLE SHOOTING Problem Cause Solution 1) Battery Powered version only. Blue sensor LED will blink at a Replace battery within 2 weeks. constant rate when the user stands within sensor range. 2) Incorrect sensor range. See 4. REMOTE CONTROL Ensure connectors are fully inserted until white o-ring is 3) Connectors not fully inserted.
- Page 8 TYDE A Thomas Dudley Business 295 Birmingham New Road t +44 (0)121 557 5411 Dudley, West Midlands f +44 (0)121 557 5345 United Kingdom e info@tyde.co.uk w www.thomasdudley.co.uk/tyde DY1 4SJ © 2023 TYDE_11572 Iss E...
