Summary of Contents for Proton ArtNet-DMX 8Port Node

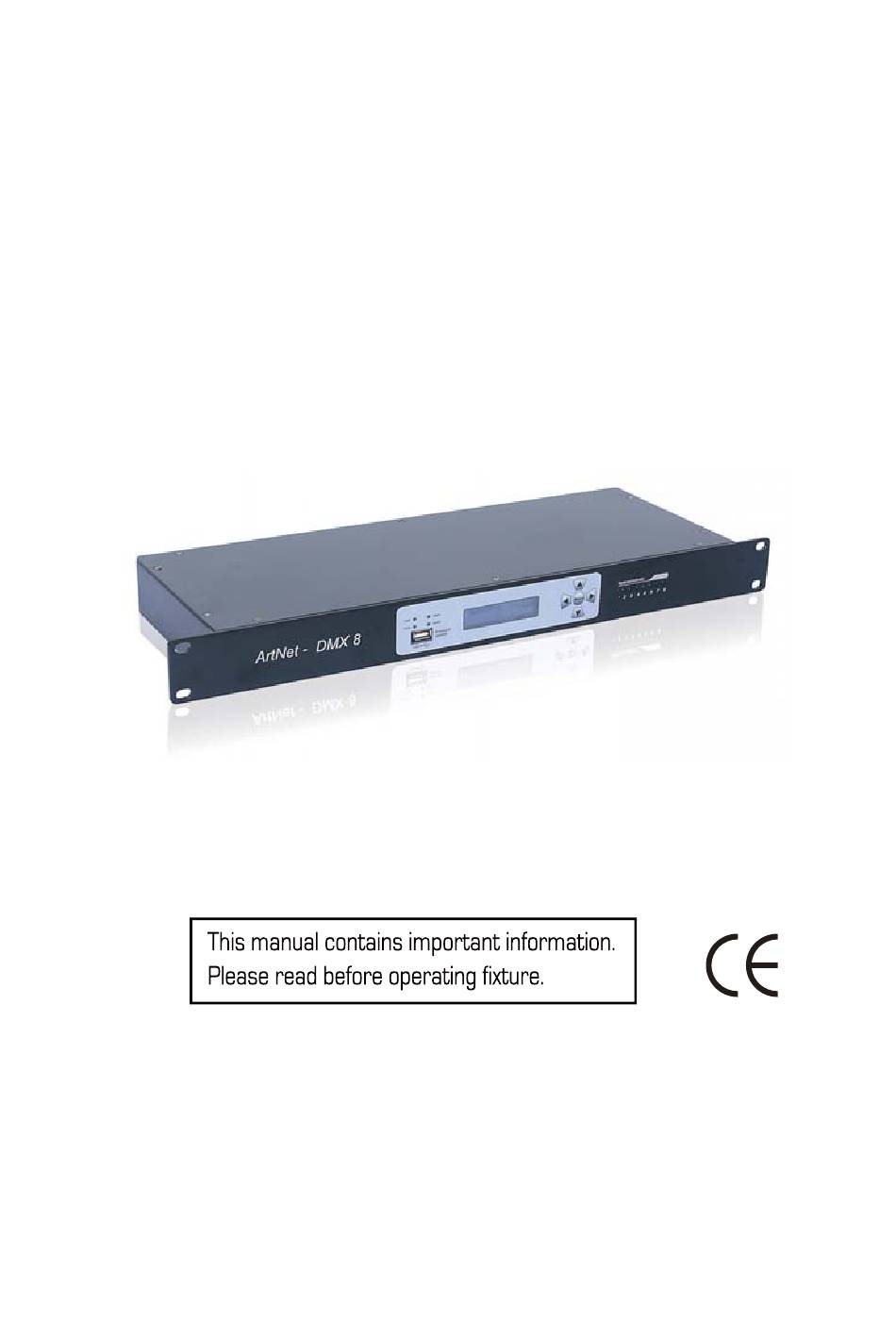

- Page 1 ArtNet-DMX 8Port Node Version: 2.1 User Manual...
- Page 2 INTRODUCTION The ARTNET-DMX 8Port Node is a reliable and versatile ArtNet-to-DMX adapter designed to expand DMX networks. It allows conversion of Ethernet data into 8 universes of DMX signal. Additionally, it can be used as a DMX Splitter with 2 inputs to 8 DMX signal outputs. It is intended for control of all kinds of lighting products such as conventionals, moving lights, LEDs, video and media via DMX signal.
- Page 3 Features ▪ Supports ArtNet (V4) and DMX ▪ 8 Universal DMX ports ▪ 1 x RJ45 TCP/IP 10/100M Ethernet connector ▪ Artnet to DMX signal conversion ▪ 2 inputs to 8 outputs DMX Splitter function ▪ LED indicator for each output ▪...
- Page 4 Signal Connection The unit receives signal though 2 DMX In ports and one of 2 Neutrik® etherCON® ports. It sends signal out through 8 DMX Out ports and the other Neutrik® etherCON® port. Connection Diagram The unit can be used as ArtNet to DMX, DMX splitter function, and both ArtNet-DMX and DMX splitter simultaneously.
- Page 5 OPERATING INSTRUCTIONS Menu Buttons The setup of menu is operated by 5 buttons as described belows. When navigating the menu: to scroll 1st level menu or back to higher level. to increase value. to decrease value. to move right. to move left. Menu Button Menu Map Menu...
- Page 6 ArtNet to DMX When the unit is used as an ArtNet to DMX converter, Art-Net universes must be assigned to DMX output ports, and the Net, Subnet, IP address settings must be configured. To configure Net and Subnet setting, do the followings: 1) Use button to select System Setup...
- Page 7 Indicators On the front panel there are indicators described as below. Indicator Behavior Meaning LINK Solid Ethernet IN is connected to ArtNet source DATA Blinks Unit receives ArtNet signal DMX 1 Solid DMX IN-1 is connected to DMX source DMX 2 Solid DMX IN-2 is connected to DMX source Signal Out...
