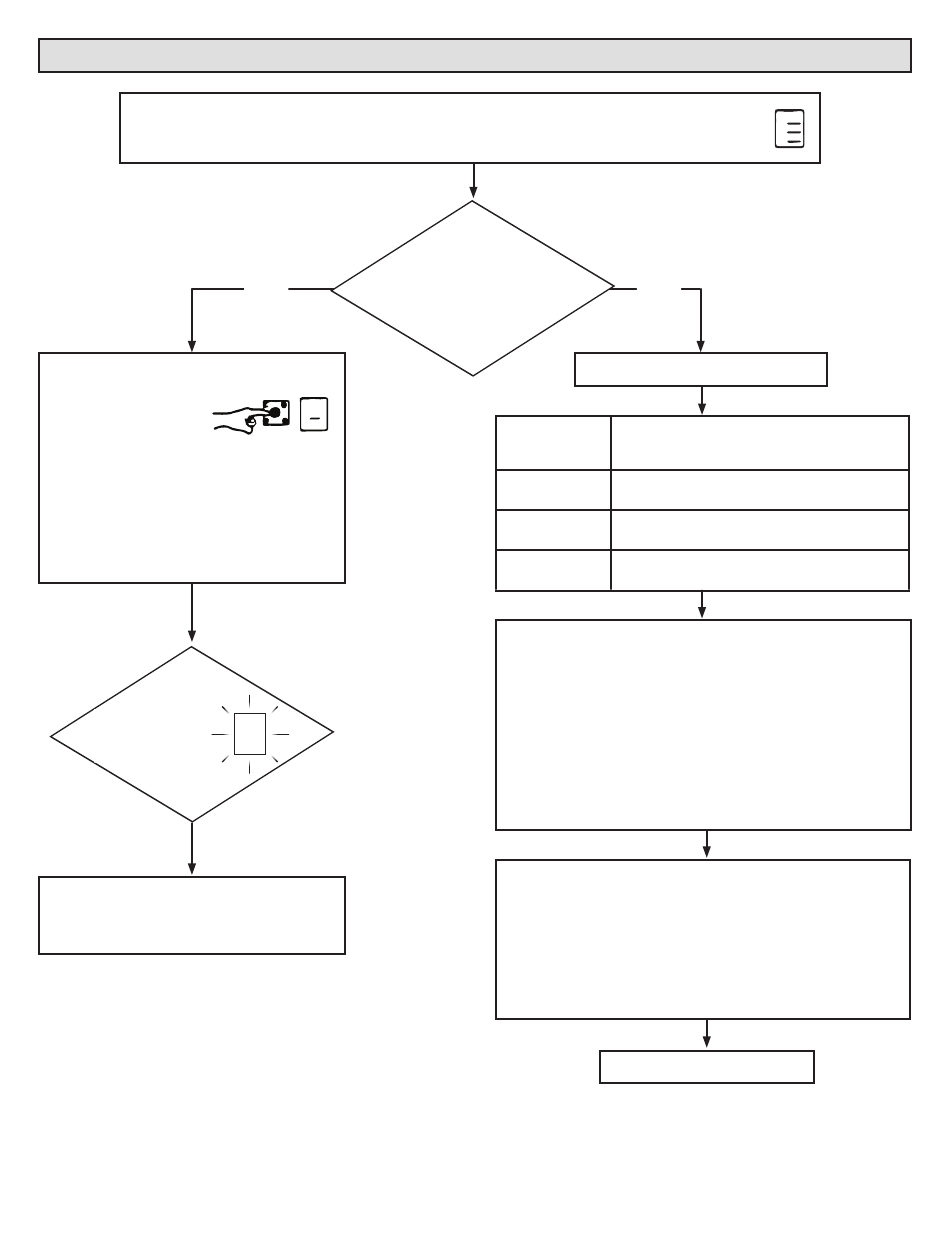

Program Unit Capacity Size Modes

Power-Up - Number displayed represents by integrated control unit size code (furnace
model and capacity). If three horizontal bars are displayed followed by continuous E203,
furnace control does not recognize unit size code. Configure per the following:
To enter Program
Unit Capacity/
Size: Push and
hold button next
to 7-segment LED
display until solid
P
" " symbol appears. Release button.
IMPORTANT: Field replacement controls
may need to be manually configured to
validate furnace unit size code.
P
Solid starts
blinking on
7-segment LED.
Push and hold button. Integrated control
will display unit size code number for
each furnace model for three seconds.
Furnace control
in IDLE mode (No
Yes Heating, cooling,
or indoor fan
operation)
P
Turn room thermostat to OFF.
UNIT SIZE
CODE
A
C
E
When the correct unit size code is displayed, release
button. Selected code will flash for 10-second period.
During that period, press and hold button for 5 seconds.
Integrated control will store code in memory and will
automatically exit Program Unit Capacity/Size mode and
reset. (If second period expires or button is held less
than 5 seconds, control will automatically exit Program
Unit Capacity/Size mode and go into IDLE mode without
storing unit size code. If this happens, programming
function must be repeated.)
Verify that the selected unit size code is correct and
stored in non-volatile memory by cycling the 24 volt
power to the furnace control. (At 24 volt power-up of
the furnace control, the 7-segment LED will display a
unit size code. If three horizontal bars display, the board
does not recognize the unit size code. The programming
function must be repeated.)
Page 42
No
FURNACE MODEL
NF80X060V3A
NF80X080V4B
NF80X100V5C
FINISHED
