Haier GE NF80XV Series Service Manual page 26

Test 1
Remove 5-pin plug from control
Check ohms reading across terminals 1and 5
Ohm value should be between 39 - 70.
Meter
(set to ohms)
Test 2
Seperate the 2-pin jack plug near the manifold
and check resistance of the ignitor. If the reading
is correct, then then there is a problem with the
wiring between the jack plug and control. If the
reading is not correct the issue is the ignitor.
Meter
(set to ohms)
Test 3
Insert meter probes into the terminals 1 and 5. (Use small
diameter probes in order to not damage plug). Check
voltage during 20 second warm up period. Voltage should
read 120 volts + 10%. If voltage is above these values,
check for correct supply voltage to furnace.
(set to AC volts)

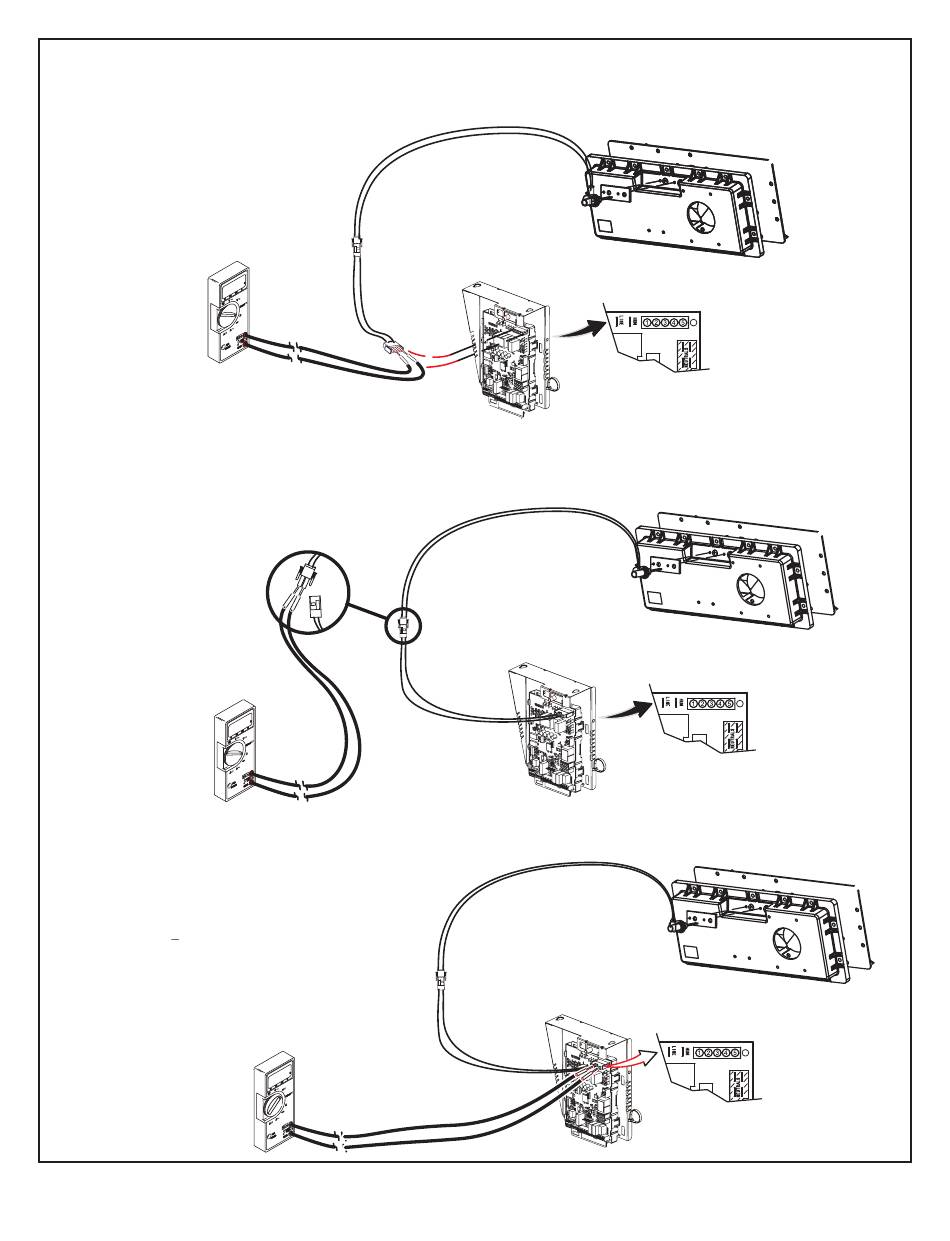

Ignitor Check Out
(exploded view for clarity)
Meter
Figure 14.
Page 26
Integrated control detail
Integrated control detail
Integrated control detail
31-5000734 Rev. 0
