MKS DLC32 User Manual
This document is the basic hardware and firmware description of MKS DLC32,
which is convenient for beginners or users who are not familiar with MKS DLC32.
If your question is deeper, or the documentation doesn't mention it.
Please don't worry, you can contact us through Amazon information or email
(support@makerbase.com.cn),
we will try our best to help you solve the problem.
This document is divided into 3 parts
MKS DLC32 Hardware Interface
MKS DLC32 update firmware
Q&A of MKS DLC32
1
Advertisement
Related Manuals for MKS DLC32
Summary of Contents for MKS DLC32
- Page 1 MKS DLC32 User Manual This document is the basic hardware and firmware description of MKS DLC32, which is convenient for beginners or users who are not familiar with MKS DLC32. If your question is deeper, or the documentation doesn't mention it.

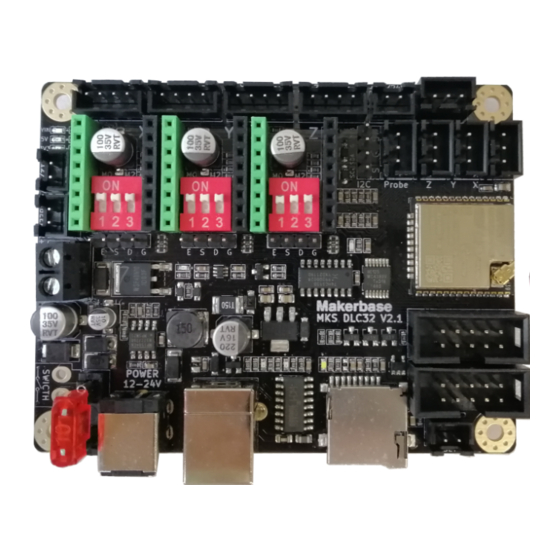

- Page 2 MKS DLC32 Hardware Interface Wiring ：...
- Page 3 After you receive the motherboard, first check whether the appearance of the motherboard is complete. Then you can connect according to the interface marked in the picture according to the wiring of your Machine. POWER PART External switch. （ If need use, please remove the fuse ） Fuse.
- Page 4 MOTOR PART Pluggable drive interface. （ Such as A4988, TMC2209, etc. ） DIP switch (adjusting drive microstepping) External drive interface (Expand high current drive) EN-STEP(PUL)-DIR=GND LASER/CNC PART LASER-3PIN-TTL V:LASER power supply (Vlaser=Vin, 12-24V) G:GND S:TTL ( Default 1KHZ, Range 1-10KHZ, 0-5V)
- Page 5 LASER-2PIN/CNC G:GND S:PWM (PWM signal, 0-12V OR 0-24V) NOTE: If the laser/cnc directly loaded by the motherboard, it is recommended that the current should not exceed 2A If more power is required, it is recommended to supply additional power to the load LCD PART...
- Page 6 3. Any wiring or adjustment operation, please do it when the power is off. If you need information such as the schematic diagram of MKS DLC32, you can download it from this website ：...
-
Page 7: Software Installation
MKS DLC32 update firmware 1.Download DLC32 FIRMWARE You can go to our MKS github to download ： https://github.com/makerbase-mks/MKS-DLC32/tree/main/firmware Download firmware. Download according to the current motherboard situation and machine situation. Screen Type (TS35/TS24) Function type (laser/CNC) Machine mechanism distinction (normal/coroxy), Motherboard hardware version (1.0/2.0). - Page 8 If the DLC32 is connected to the PC for the first time, the USB driver file CH340 needs to be installed to be recognized by the PC.
-
Page 9: Firmware Update Process
The motherboard needs to be connected to 12-24v for power supply when connecting USB to PC. If the 12-24v power supply is not connected, the motherboard will not recognize it. As shown in the figure below, after the connection, the com is correctly identified. 3.Firmware Update Process Select MKS DLC32 download tool... - Page 10 Select firmware file and parameters SPI SPEED, FLASH SIZE, BAUDRATE parameters are consistent with the picture settings. COM: Select according to the allocation of the motherboard in the device manager FILE: Select the required firmware (bin) downloaded from github After the above parameters are set, click "start" and wait for the firmware update to complete.
- Page 11 MKS DLC32 control mode MKS DLC32 can be controlled in these ways 1. TS24/TS35. Direct control from the screen 2. PC Host computer software control...
- Page 12 The APP can be downloaded directly from the Google App Store. The usage method is similar to the web control, and the connection is made by entering the IP of the DLC32 motherboard.(The mobile phone and the DLC32 motherboard must be on the same...
- Page 13 Just select the correct firmware and re-update to restore. Q3:Why can't the web control or app control connect to the motherboard? A3:Check whether the DLC32 and the PC (or mobile phone) are on the same network. Only the same network can control Q4:How to use air assist A4:PINs (SCL) and (gnd) on the motherboard can be used for air assist.
