OPERATING
MANUEL
Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error.
Products in this manual are available only for information purpose and they may be changed without notice.
Models :
( Conductivity Type Pump Control)
(Switch Type Pump Control)
(4 Independent Relays)
Important Notes:
Used Symbols :
Please read this manual carefully before installation of the
from failure to comply with the warnings in this manual.
In the event that
There is not any fuse and circuit breaker on the instrument; they should have been added to the system by the user.
This manual should be stored in an easily accessible place for subsequent use.
The manufacturer's liability cannot exceed the purchase price of the device according to the law.
Do not make any modification on the instrument and do not try to repair it. Reparation should be made by authorized service staff.
Do not operate the system before making assembly in compliance with the assembly chart related to the instrument.
Products which do not contain label and serial number are considered to be excluded from the warranty scope.
The instrument's useful life, determined and announced by the ministry, is 10 years.
Table of Contents :
SK-R
Model :

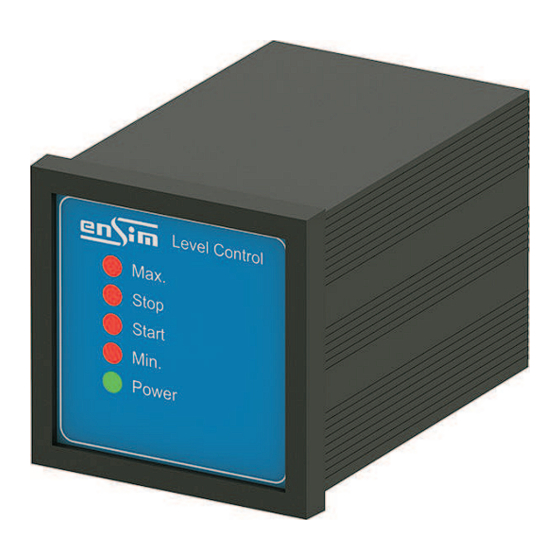

LEVEL CONTROL DEVICE
is broken, take measures in order to prevent accidents and losses which can occur in its system.
. User is responsible for accidents and losses arising
Model: 42-2022-002
Advertisement
Table of Contents
Summary of Contents for ENSIM SENSORS SK-R
- Page 1 Model: 42-2022-002 OPERATING SK-R Model : MANUEL LEVEL CONTROL DEVICE Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error. Products in this manual are available only for information purpose and they may be changed without notice.
- Page 2 220 VAC (50 Hz) Power consumption Max 2.8 VAC Input Contact or electrod information from levelconditions 4 pc. 5 Amp. Independent Relay SK-R 2 pc. 5 Amp. Start-Stop Relay SK-Pi SK-Ps Output 2 pc. 5 Amp. Min. Max. Relay Date memory for outputs. Protected against power cut or arrive, continues to work from stapped point.
- Page 3 This operating manual has been prepared for qualified technical personnel. Please consider below notes for avoiding hazardous cases around operator and it’s environment. Only users that authorized in work safety and whom also have read the manual should setup this equipment. Work safety , accident avoid regulations and national/local setup standards must be meet.
- Page 4 Please pay attention to the following points for the smooth operation of your level control relay. To receive relay output from level switches (SK-R) POWER INPUT RELAY Load 4 RELAY Level 4 Load 3 RELAY Model: SK-R Load 2 RELAY Max.230Vac 2.8VA...
- Page 5 To receive relay output from conductivity probes (SK-R) POWER INPUT RELAY Load 4 RELAY Load 3 RELAY Model: SK-R Load 2 RELAY Max.230Vac 2.8VA Load 1 OUTPUT...
- Page 6 (SK-Pi) Emptying Circuit POWER INPUT RELAY PUMP Control (NC) Emptying PUMP Model: SK-Pi Control (NO) Ma x .230Vac 2.8VA RELAY OUTPUT Tank A Alarm (SK-Ps) Emptying Circuit POWER INPUT Level 4 Model: SK-P s Ma x .230Vac 2.8VA OUTPUT Level 3 Level 2 Emptying Level 1...
- Page 7 (SK-Pi) Filling Circuit POWER INPUT RELAY PUMP Filling Control (NC) PUMP Model: SK-P i Control (NO) Ma x .230Vac 2.8VA RELAY OUTPUT Tank A Alarm (SK-Ps) Filling Circuit POWER INPUT Model: SK-P s Filling Ma x .230Vac 2.8VA OUTPUT Tank A Alarm Alarm...
- Page 8 Breakdown Probable cause Failure detection \ Correction The device light does not turn on -Instability in the supply circuit has thrown the fuse of the device. -Please check it supply clemens. -Output is Non-contact. The contact does not output -Please check it output clemens. -Input is Non-contact.
