Summary of Contents for Metrohm OMNIS 2.1006.00X0

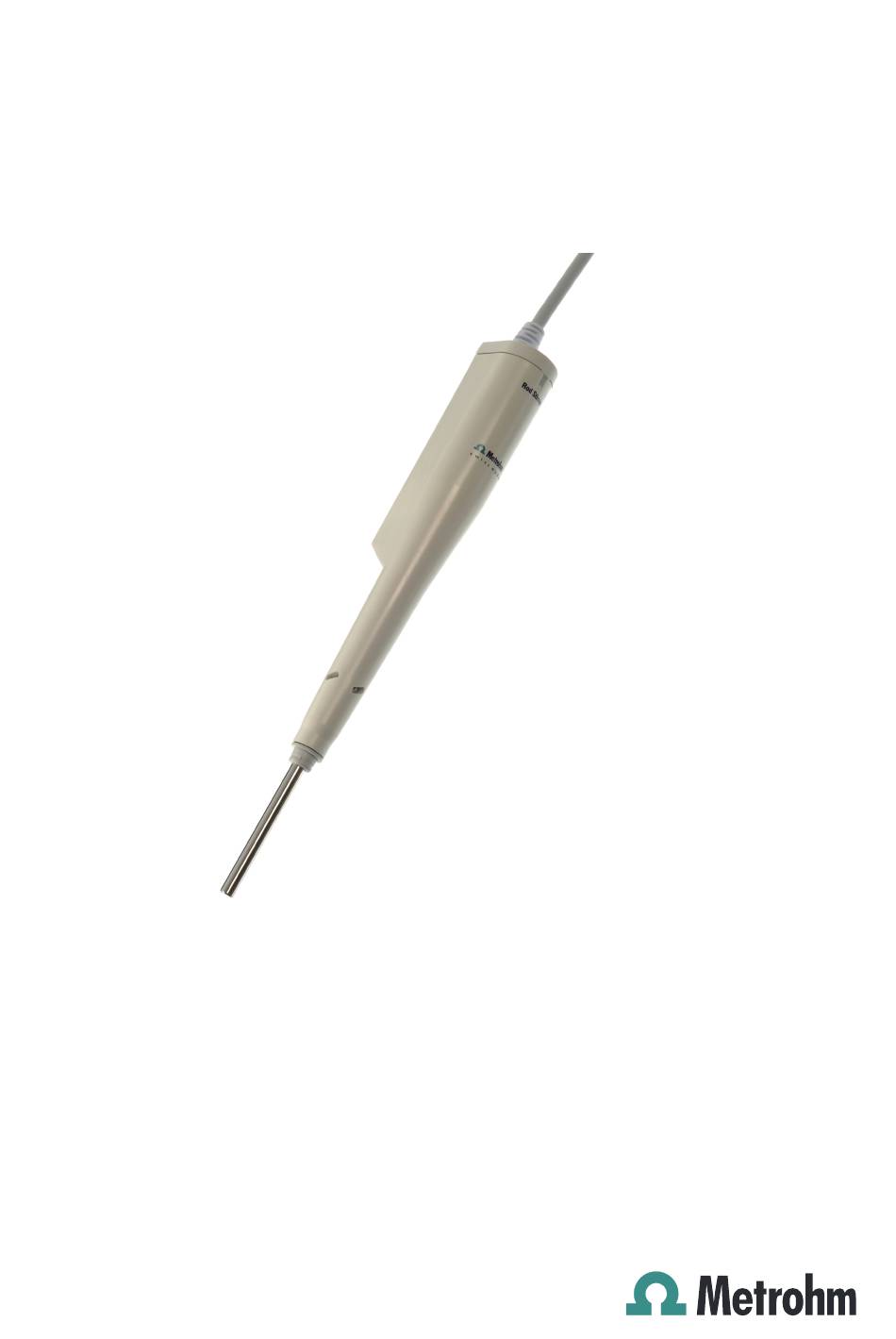

- Page 1 OMNIS Rod Stirrer 2.1006.00X0 Product manual 8.1006.8002EN / 2021-07-23...
- Page 3 Metrohm AG Ionenstrasse CH-9100 Herisau Switzerland +41 71 353 85 85 info@metrohm.com www.metrohm.com OMNIS Rod Stirrer 2.1006.00X0 Product manual 8.1006.8002EN / 2021-07-23...
- Page 4 Disclaimer Deficiencies arising from circumstances that are not the responsibility of Metrohm, such as improper storage or improper use, etc., are expressly excluded from the warranty. Unauthorized modifications to the product (e.g. conversions or attachments) exclude any liability on the part of the manufacturer for resulting damage and its consequences.
-
Page 5: Table Of Contents
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents Table of contents 1 Overview OMNIS Rod Stirrer – Product description ......1 OMNIS Rod Stirrer – Product versions ........ 1 Symbols and conventions ............ 2 Further information .............. 3 Accessories ................3 2 Safety Intended use ................. 4 Responsibility of the operator .......... - Page 6 Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 6 Operation and control OMNIS Rod Stirrer – Operation ......... 18 Switching the OMNIS Rod Stirrer on and off ....18 Setting the stirring rate of the OMNIS Rod Stirrer ..19 7 Maintenance Maintenance ............... 20 OMNIS Rod Stirrer –...
-
Page 7: Overview

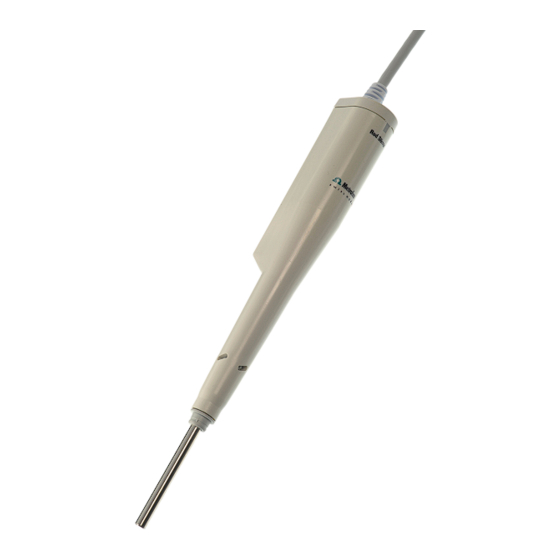

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview 1 Overview OMNIS Rod Stirrer – Product description The OMNIS Rod Stirrer is a rod stirrer with which you can stir liquids at various speed levels and in different directions (clockwise/counterclock- wise). Various stirring propellers are available for the OMNIS Rod Stirrer, depend- ing on the sample beaker size and the solution quantity. -
Page 8: Symbols And Conventions
The article number and serial number for identifying the product can be found on the type plate: (01) = Article number in accordance (21) = Serial number with GS1 standard (240) = Metrohm article number Certification Certification Technical specifications Symbols and conventions... -
Page 9: Further Information
Accessories Up-to-date information on the scope of delivery and on optional accesso- ries can be found on the Metrohm website. Download this information as follows: Downloading the accessories list 1 Go to https://www.metrohm.com. -
Page 10: Safety
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Safety Intended use Metrohm products are used for the analysis and handling of chemicals. Usage therefore requires the user to have basic knowledge and experience in handling chemicals. Knowledge regarding the application of fire preven- tion measures prescribed for laboratories is also mandatory. -
Page 11: Requirements For Operating Personnel
Always have maintenance work and repairs on electrical components ￭ carried out by a regional Metrohm service representative. Disconnect the product from the energy supply immediately if at least ￭ one of the following cases occurs: –... -
Page 12: Danger From Highly Flammable Substances
Dispose of chemically contaminated materials (e.g. cleaning material) in ￭ accordance with regulations. Proceed as follows in case of a return shipment to Metrohm AG or a ￭ regional Metrohm representative: – Decontaminate the product or product component. -
Page 13: Danger During Transport Of The Product
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety 2.4.5 Danger during transport of the product Chemical or biological substances may be spilled during the transport of the product. Parts of the product may fall down or may be damaged. There is a risk of injury from chemical or biological substances and pieces of broken glass. -
Page 14: Meaning Of Warning Signs
Meaning of warning signs ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Warning messages differ in design (color and warning sign) depending on the hazard level: DANGER Type and source of danger Consequences when not observing the notice: An irreversible injury that may result in death is very probable. Measures to avoid the danger ￭... - Page 15 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety Warning sign Meaning Warning of sharp object Warning of hot surface Warning of biological hazard Warning of toxic materials Warning of flammable materials Warning of corrosive substances Warning of optical radiation Warning of laser beams Depending on the intended use of the product, the corresponding warn- ing sign stickers must be placed on the product.
-
Page 16: Functional Description
OMNIS Rod Stirrer – Overview ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Functional description OMNIS Rod Stirrer – Overview Figure 1 Rod stirrer Metal rod Status display For fastening the stirring propeller. LED. Multi-colored. Cable with plug For connecting to a control instrument. OMNIS Rod Stirrer – Indicators Figure 2 OMNIS Rod Stirrer –... -
Page 17: System - Signals
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Functional description System – Signals System components with status indicators show their operating status with colors and/or flashing patterns. The meaning of the colors and flash- ing patterns is explained in the following table. Visual signal Meaning LED lights up yellow. System start or initialization LED flashes yellow (slowly). -
Page 18: Delivery And Packaging
Delivery ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 4 Delivery and packaging Delivery Inspect the delivery immediately upon receipt: Check the delivery against the delivery note to ensure completeness. ￭ Check the product for damage. ￭ If the delivery is incomplete or damaged, contact your regional Met- ￭... -
Page 19: Installation
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Installation 5 Installation OMNIS Rod Stirrer – Mounting to the electrode holder Accessories: Stirring propeller (6.01900.0X0) ￭ Proceed as follows: Inserting the rod stirrer Insert the rod stirrer without the stirring propel- ler from above into the center opening of the electrode holder. - Page 20 OMNIS Rod Stirrer – Mounting to the electrode holder ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Guiding the cable to the rear of the instrument Guide the cable under the bar and through into the instrument. Guide the cable out of the instrument through the slot at the rear on the right. Threading the cable into the cable guide First, thread the cable into the lateral cable guide.
-
Page 21: Omnis Rod Stirrer - Adjusting The Stirring Propeller Height
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Installation OMNIS Rod Stirrer – Adjusting the stirring propeller height Some of the stirring propellers of the rod stirrer have a length-adjustable shaft. A length-adjustable stirring propeller can be recognized by the marking at the end of the shaft. The length can be adjusted in stages from 86 mm to 102 mm. - Page 22 OMNIS Rod Stirrer – Adjusting the stirring propeller height ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Firmly hold the top part of the stirring pro- ￭ peller (with the corrugation). Rotate the shaft counterclockwise until the ￭ marking points to the position with the two arrows. Pull the shaft downwards.
- Page 23 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Installation Rotate the shaft clockwise until the marking points to the position with the dot. The length setting has engaged. Plug the stirring propeller back into the rod stir- rer. ￭￭￭￭￭￭￭￭...
-
Page 24: Operation And Control
OMNIS Rod Stirrer – Operation ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 6 Operation and control OMNIS Rod Stirrer – Operation NOTICE Instrument operation The instrument is operated using the commands of the OMNIS Soft- ware. Additional information can be found in the online help. In addition to operation through the OMNIS Software, the rod stirrer can also be operated by using the magnetic stirrer buttons. -
Page 25: Setting The Stirring Rate Of The Omnis Rod Stirrer
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Operation and control Setting the stirring rate of the OMNIS Rod Stirrer The stirring rate of the OMNIS Rod Stirrer can be adjusted two different ways: Using the Manual control in the OMNIS Software ￭ Using the buttons of an OMNIS magnetic stirrer, for which the prereq- ￭... -
Page 26: Maintenance
Metrohm recommends having the products maintained by specialist ￭ personnel of Metrohm AG as part of an annual service. Shorter mainte- nance intervals may be necessary if you frequently work with caustic and corrosive chemicals. -
Page 27: Omnis Rod Stirrer - Replacing The Stirring Propeller
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Maintenance Cleaning the rod stirrer CAUTION Instrument damage through inward seepage of liquid Property damage to the instrument or malfunction through the inward seepage of liquids (e.g. when cleaning). The instrument is not resistant to splash water. Water can seep into the interior during cleaning and cause damage (e.g. -
Page 28: Troubleshooting
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 8 Troubleshooting Messages on malfunctions and errors are displayed in the control software or in the embedded software (e.g. on the display of an instrument) and contain the following information: Descriptions of causes of malfunctions (e.g. jammed drive) ￭ Descriptions of problems with the control (e.g. -
Page 29: Disposal
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Disposal 9 Disposal Properly dispose of chemicals and of the product to reduce negative effects on the environment and public health. Local authorities, waste dis- posal companies or dealers provide more detailed information on disposal. Observe the WEEE EU directive (WEEE = Waste Electrical and Electronic Equipment) for the proper disposal of waste electronic equipment within the European Union. -
Page 30: Technical Specifications
Ambient conditions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 10 Technical specifications 10.1 Ambient conditions Nominal function range +5 to +45 °C max. 80% relative humidity, non- condensing Storage +5 to +45 °C 10.2 OMNIS Rod Stirrer – Energy supply Nominal voltage 24 VDC 10.3 OMNIS Rod Stirrer – Dimensions Measurements Width 29 mm... -
Page 31: Omnis Rod Stirrer - Housing
IP degree of protection IP 40 10.5 OMNIS Rod Stirrer – Connectors specifications Energy supply via MDL Socket round plug Metrohm Device Link 10.6 Display specifications Status display multi-colored 10.7 OMNIS Rod Stirrer – Stirrer specifications Adjustment range for rotational...
