Version: 2019.04.01
All the rights to this manual are reserved, especially reproduction, publication and translation rights. No portion of this manual
may be reproduced by no means (photocopy, microfilm or other methods) without previous written authorization from
ECLERIS. Neither can it be reproduced, multiplied or published through any electronic data processing form.
The information contained in this manual may be modified or broaden without previous notification, without it representing any
responsibility to ECLERIS.
EUSA GLOBAL
11801 NW 100th Rd
Suite 17
Medley, FL 33178, U.S.A.
Phone: +1 786 483 749
USER MANUAL

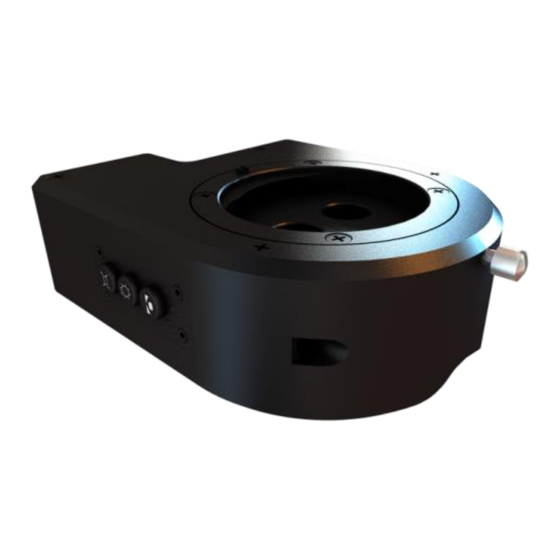

PROCAM HD 2D
HD 2D SPLITTER
ABOUT THIS MANUAL
Year: 2019
Language: English
CMC Medical Devices & Drugs S.L.
C/ Horacio Lengo Nº18, CP29006,
Málaga, Spain
Ph. +34951214054
Email: info@cmcmedicaldevices.com
Advertisement
Table of Contents
Related Manuals for Ecleris PROCAM HD 2D
Summary of Contents for Ecleris PROCAM HD 2D
- Page 1 (photocopy, microfilm or other methods) without previous written authorization from ECLERIS. Neither can it be reproduced, multiplied or published through any electronic data processing form. The information contained in this manual may be modified or broaden without previous notification, without it representing any responsibility to ECLERIS.
-
Page 2: Table Of Contents
USER MANUAL – PROCAM HD 2D CONTENT SYMBOLS ..........................3 SECURITY WARNINGS ......................3 INTRODUCTION ........................4 INTENDED USE ........................4 INTENDED USER ........................ 5 DESCRIPTION ........................5 COMPONENTS ........................5 INSTALLATION........................6 FUNCTIONS ..........................7 5.1. WINDOWS FUNCTION ......................7 5.1.1. -
Page 3: Symbols
White balance function. 2. SECURITY WARNINGS It is important to read this manual carefully before using the device ECLERIS will not be held responsible for damage that can occur to the equipment due to not following the instructions or not observing the following criteria: ... -
Page 4: Introduction
HD Splitter and the other equipment to minimize these effects. Do not open the equipment. Maintenance and repairs must be done by ECLERIS or an authorized company. ECLERIS will not be responsible for the consequences of repairs or maintenance carried out by non-authorized personal. -
Page 5: Intended User
USER MANUAL – PROCAM HD 2D 3.2 INTENDED USER Any health professional or technician who has basic knowledge on how to operate a stereoscopic microscope. 3.3 DESCRIPTION The device is designed to capture the direct image of a microscope / colposcope with binocular stereoscopic vision, these images are processed in the beam splitter where you can select different levels of Gain / Brightness, Windows and perform White Balance. -
Page 6: Installation
USER MANUAL – PROCAM HD 2D 4. INSTALLATION The connection and revision of the equipment must be carried out by technical personnel with knowledge of the electrical installation from where the equipment will be powered. Follow the next steps to install the system: 1) Carefully unpack the equipment. -
Page 7: Functions
USER MANUAL – PROCAM HD 2D Perform White Balance if it is the first time you use the system. You do not need to repeat this procedure each time you turn on the device since the system stores the last white balance calibration performed in memory. -
Page 8: Invert The Image
USER MANUAL – PROCAM HD 2D this impacts on the brightness of the image since only the central part of the image is taken to compensate the level of illumination. By selecting the appropriate Windows level the image will be displayed with the appropriate brightness level. -
Page 9: Maintenance
USER MANUAL – PROCAM HD 2D the White Balance procedure must be performed each time the light source to be used with the equipment is changed. To get the White Balance, focus on a completely white and illuminated image with light intensity at maximum power and press the White Balance button for approximately 3 seconds. -
Page 10: Troubleshooting
USER MANUAL – PROCAM HD 2D 22 – 122 ºF Storage and transport conditions 10 - 95 % relative humidity 500 - 1060 hPa Weight 1.7 Lb (device without power supply or accessories) 0.6 Lb (power supply) Dimensions 3.8 in x 5.2 in x 2 in This system is not designed to be used in the presence of inflammable anesthetic gases mixture with air, oxygen, nitrous oxide, or ambient with high oxygen content. -
Page 11: Technical Service
WARRANTY ECLERIS declares that the PROCAM HD Splitter has passed our Quality Control and no defects have been found in its manufacture, therefore guarantees proper working order under adequate conditions that are indicated in this manual. The guarantee is for the term of one (1) year starting on the purchase date.
