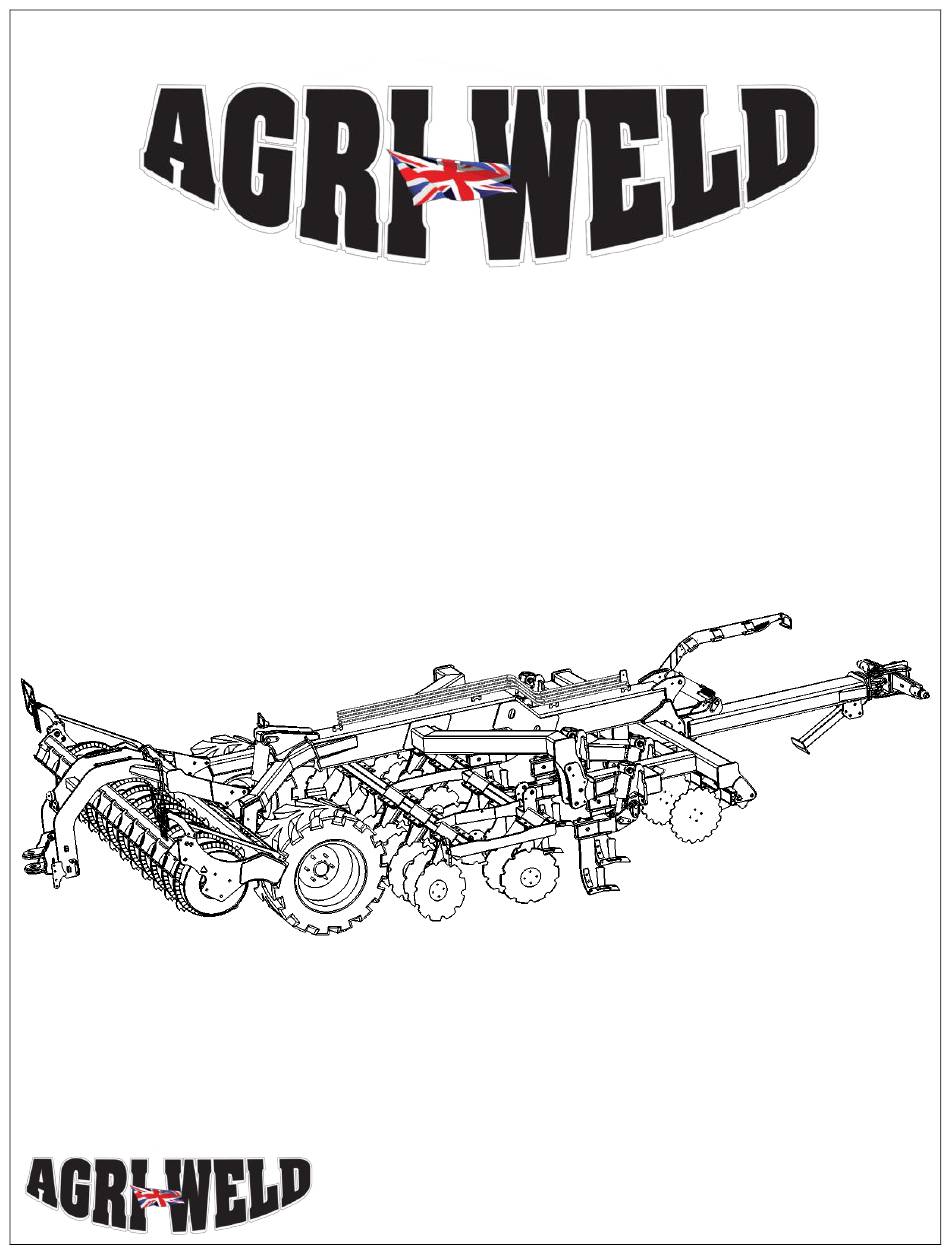

  • Page 1 OPERATOR MANUAL 3M Multi Till 5T...

  • Page 2: Table Of Contents

    Contents Page 4 User Information, Qualification & Training Page 5 Think Safety Page 6 Rules Of Conduct for General Operation Page 7 Attachment and Adjustment Page 8 Order of Operation Page 9 3M Dimensions & Weight Page 10 Replacing Snap Bar & Hook-On Shear Leg Assembly Page 11 Wearing Parts Page 12...
  • Page 3 Page 39 CE Declaration Page 40 Your notes...
  • Page 4 It is very important to be careful when new equipment is going to be used for the first time. Incorrect mounting of equipment and operational errors can lead to expensive repair work and operational losses. Your warranty with Agriweld is not valid if the instructions in this operating manual are not followed correctly. QUALIFICATION AND TRAINING •...
  • Page 5 *Experienced persons are classed as those individuals who have been trained, have current knowledge and skills or have participated in the use of the type of activity and equipment for several years. SAFETY INSTRUCTION Read the instruction manual and follow the instructions given. Take care when hitching up or unhitching the machine to and from the tractor via the linkage It is forbidden to allow any persons to sit or ride on the implement at any time...

  • Page 6: Rules Of Conduct For General Operation

    1. No responsibility will be accepted for possible dangers arising from operations complying with the designated use. 2. Agriweld shall not be liable for any damage to agricultural produce and other items, which occurs as a result of normal operating, adjustments errors, failure by any means or incorrect usage.

  • Page 7: Attachment And Adjustment

    ATTACHMENT AND ADJUSTMENT Attach the Multi Till 5T Subsoiler to the tractor using the rear linkage. It is important to the function of the Multi Till 5T to ensure that the machine is running level to allow optimum level of soil disturbance and to prolong the lifespan of the wearing parts. To do this please adjust the frame up or down in the horizontal axis to ensure the main frame is running parallel to the ground.

  • Page 8: Order Of Operation

    Order of operation ATTENTION – Due to the nature of the Multi Till a strict order of operation must be adhered to. Failure to follow the order of operation may result in damage to the machine. In the field 1. Lower the drawbar 2.

  • Page 9: Dimensions & Weight

    3M Dimensions and weight WEIGHT: 4200Kgs...
  • Page 10 SNAP BAR REPLACEMENT (if relevant) SAFETY FIRST: When replacing the snap bar after shearing, ensure the legs Snap Bar are raised just out of work sufficiently so that the leg falls back into position to allow the snap bar to be removed/replaced. The tractor should be stationary and the engine turned off to ensure the operator is safe to perform the adjustments required.

  • Page 11: Wearing Parts

    The wearing parts used on the implement can vary according to the required use although as standard the Multi-Till is fitted with a low disturbance one- piece MDT ‘Low Disturbance’ style point. Parts can be obtained through Agriweld Ltd directly or through your local dealer.

  • Page 12: Replacing The Points

    REPLACING THE POINTS Only personnel with the appropriate experience* should perform these changes. It is only permitted to replace the points on solid ground for e.g. Cement/tarmac, to avoid the risk of sinking and potential injuries whilst performing the changes. The implement must be raised on the tractor linkage and the tractor engine turned off.
  • Page 13 The valve fitted to the hydraulic cylinders (folding) locks the wings in position and will not move until oil pressure is supplied again. If the wings appear to be sagging or uneven, Agriweld can supply adjustment stars to level the machine.
  • Page 14 AUTO RESET (Applicable to auto-reset models only) The auto reset pressure is set around 50 bar for dispatch. You will need to adjust this setting to your own conditions. If the legs trip too easily or constantly, the pressure can be increased.
  • Page 15 AUTO RESET SYSTEM – Break back adjustment continued (if applicable) Top cap Pressure Lock Nut gauge 1. Remove topmost valve cap – 17mm spanner required 2. Slacken lock nut – 17mm spanner required 3. Run the hydraulic service on tractor 4.
  • Page 16 Auto Reset Leg & Socket Components (if relevant)
  • Page 17 Item Quantity Per Part Number Description Number Assembly 705/100 Hydraulic Ram Upper Socket AR_HOSL_002 Assembly Lower Socket AR_HOSL_001 Assembly Low Disturbance AR_HOSL_LEG Low Disturbance GLS_POINT Point 30x40x40_OB Oillite Bush M24_NY_NUT M30 Nylon Nut M24_Washer M30 Washer M24_BOLT_80 M24 x 80mm Bolt M30_Washer M30 Washer Z325074KR...
  • Page 18 M12_50mm_Bolt M12 x 50mm Bolt M12_40mm_Bolt M12 x 40mm Bolt M12_Washer M12 Washer M12_Ny_Nut M12 Nylock Nut...
  • Page 19 HYDRAULIC FOLDING DIAGRAM (Hydraulic folding models only) Fold Unfold 4 way diverter 50/50 flow divider Feed Feed HYDRAULIC FOLDING PROCEDURE (Hydraulic folding models only) UNLOCKING is required prior to unfolding. Unlock the tap on each hydraulic ram. Thereafter, use the hydraulic service to unfold the wings. LOCKING, once the wings are fully folded ensure the locking taps are fully in the locked position.

  • Page 20: Hydraulic Packer Depth Adjustment

    HYDRAULIC PACKER DEPTH ADJUSTMENT DEPTH ADJUSTMENT: The depth of the packer can be easily adjusted by adding or removing spacers. Maximum depth is achieved when all spacers are used. Adding spacers will increase the working depth. To add or remove spacers you MUST fully lift the packer.

  • Page 21: Main Assembly

    Main Assembly Packer Double Disc Frame Transport Wheels Hook on shear legs Parking (Auto Reset) Disc Bar Stand 706/2 Hydraulic Ram (Optional Seeder Bracketing) 520/50/17 Tyres Toolbar Clevis Scrapers Mount (Optional)

  • Page 22: Electric Light Assembly

    Electric light assembly 5 (inside junction box) Item Number Part number Description Quantity per machine 6003 Plug Junction Box LT595 LH Light inc indicator LT596 RH Light inc indicator Strip connector Strip connector 1...

  • Page 23: Parallelogram Adjustment & Assembly

    Parallelogram adjustment and assembly Double Disc Frame in work position: Double Disc Frame in Transport Position: DISC ADJUSTMENT: The depth of the double discs can be adjusted by adding or removing spacers. Adding spacers will reduce the depth and vice versa. We recommend running with at least two yellow spacers as supplied and only remove these if you find the discs are not running at the depth you would like.

  • Page 24: Double Disc Frame Assembly

    Double Disc Frame Assembly M16 x 55 M16 Washers bolts M16 Nylock Nuts M12 x 35 fine threaded bolts BAA-0004 470 OD Bearing Concave Disc...

  • Page 25: Gathering Disc Assembly

    Gathering Disc Assembly M12 x 105 Bolt M20 Washer M20 Nut M20 X 105 Bolt M12 x 40 bolts M12 Nylock nuts Agri Hub 460 OD Flat Disc...

  • Page 26: Packer Attachment

    Packer Attachment The Packer attachment via TMSF50 bearings x2 (See next page – No 4)
  • Page 27 Packer Assembly...
  • Page 28 Item number Part number Description Quantity per machine AW_M16x60_CS Countersunk M16 x 60 AW_M16_W M16 Washer AW_M16_NL M16 Nylock TMSF50 Packer bearing AW_PK_ST_AX Packer roller stub axle AW_M16x60 M16 x 50 bolts AW_M16x60 M16 spring washers...
  • Page 29 SCRAPER ASSEMBLY Item number Part number Description Quantity per machine M12X120UB M12 U bolt 6M_MinDis_2020_0699 Scraper M12 washer M12 Washer M12 Nut M12 Nut M12X35 CHS M12 cup head square...

  • Page 30: Stabilising Leg Assembly

    (Zinc plated stand) STABILISING LEG ASSEMBLY Item Part number Description Quantity number machine AW_MINDISSS_Stand Stands Z319127KR Kramp 19mm x 127mm Kramp LP11Z 11mm Linch pin M20x140 M20 x 140 Bolt, Washers and Nyloc nut. The stabilising leg is for use when the implement is not attached to the tractor. Before disconnecting the implement from the tractor, lift the rear linkage to provide clearance for the stand.
  • Page 31 IMPORTANT MAINTENANCE & SAFETY Regular maintenance is a prerequisite for good operational reliability. The following safety advice is to be observed before starting any maintenance, cleaning or repair work. Trained personnel may only execute maintenance activities. Inform operating personnel before beginning special operations and maintenance work! Delegate a supervisor! If necessary, ensure that the maintenance area is adequately secured.
  • Page 32 Always retighten any threaded connections that have been unscrewed during maintenance and repairs. Any safety devices removed for setting-up, maintenance or repair purposes must be refitted and checked immediately upon completion of the maintenance and repair work and prior to operation. Replace wearing points before they are too worn and damage occurs to the leg.
  • Page 33 ROAD TRANSPORT REGULATIONS In accordance with The Road Vehicles Order 2003 No. 1998 Part 3 SPECIAL TYPES FOR AGRICULTURE The Department of Transport required the maximum width of an agricultural machine to be 2.55m or less. Under special circumstances, agricultural machines wider than 2.55m are permitted to use public roads.
  • Page 37 PRODUCT DECALS Part number Description Quantity Sticker machine RHINO_AGRI_01 160x110mm Rhino cultivation oval Green_GB_logo 87X55mm Green made in AW_AGWVS Agriweld vertical sticker AW_OM_S Read operator manual sticker...

  • Page 38: Warranty

    WARRANTY Your Agriweld Multi Till 5T Subsoiler is covered for a period of 12 months from the date of dispatch (which is recorded on our files) against faulty components and/or bad workmanship. Our welders are coded to ISO 9606-1 and our welding procedures are approved in accordance with ISO 15614-1 to manufacture your equipment.
  • Page 39 CE DECLARATION OF CONFORMITY The equipment which accompanies this declaration is in conformity with EU Directive(s):- 2006/42/EC Machinery Directive Manufacturer Name: Agriweld Ltd Manufacturer Address: Main Street Garton-on-the-Wolds Driffield East Yorkshire YO25 3ET 3M rigid Multi Till 5T Product: 4200kgs...
  • Page 40 YOUR NOTES...
