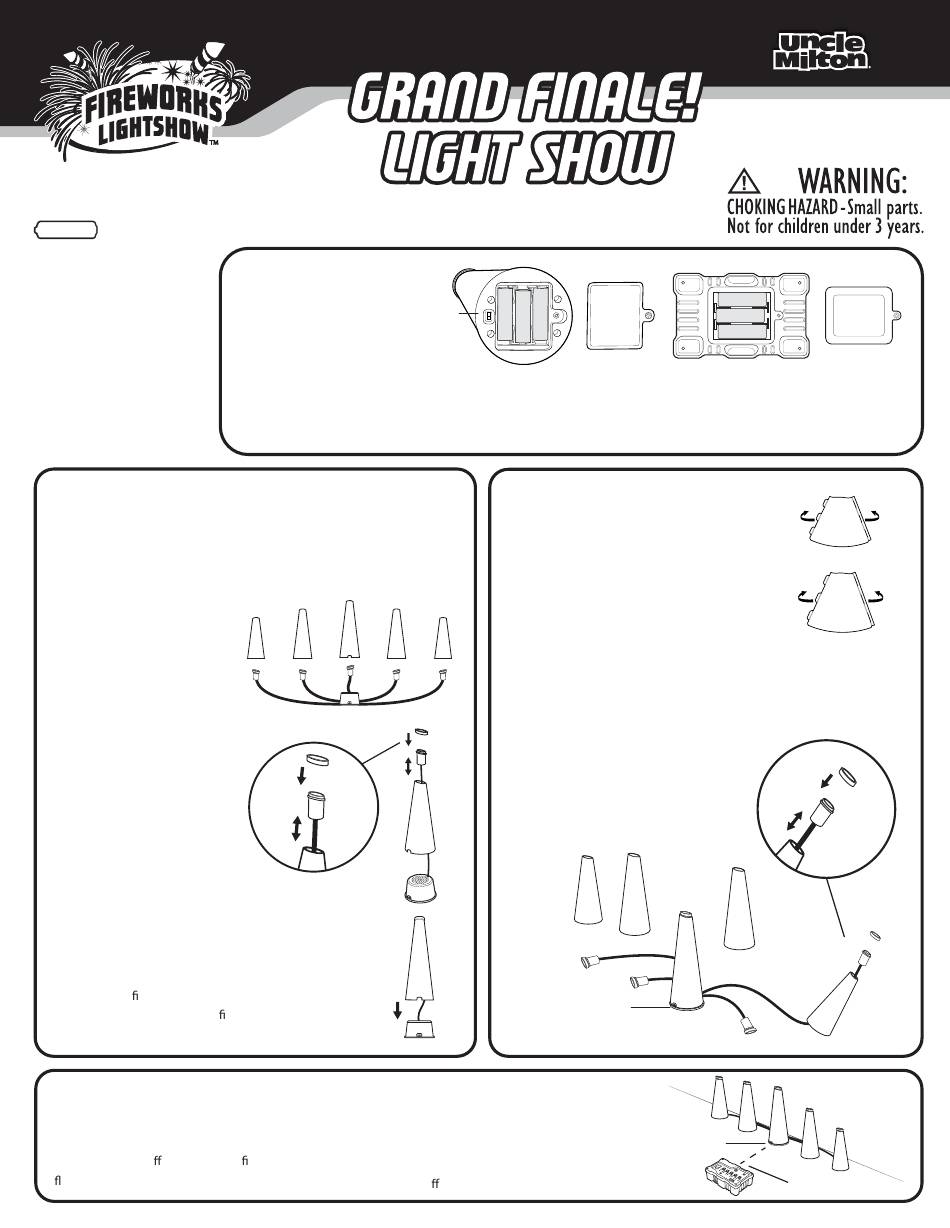

Uncle Milton FIREWORKS LIGHTSHOW GRAND FINALE Installation Instructions

x6 Batteries not included
AA/LR6
Requires 6 x 1.5V AA/LR6
batteries
Parts included:
- 1 Master Controller
- 1 Large Firework Cone
(with LED/wire connectors)
- 2 Medium Firework Cones
- 2 Small Firework Cones
- 5 Cap Rings

Assembly

IMPORTANT: Prior to assembly, determine where you want to
set up the Grand Finale. For best experience, use in a
completely darkened room and project onto a white wall at a
distance of 1 to 3 inches from the wall.
1. Position the wire
connectors with LED
modules that come out of
the Center Battery Module
as shown. Note molded
numbers 1-5 on each LED
module match printed
numbers 1-5 at the top of
each cone. Make sure the
Center Battery Module is for
the center large cone.
2. Attach the Center LED
Module to the large cone.
First, insert the LED module
and wire through the large
cone as shown. Then, snap a Cap Ring on top of the
LED module. Allow each LED module to lower back
into its cone and gently position the Cap Ring onto
the top of the cone.
3. Align and t the large cone onto the Center Battery
Module and gently press t together as shown.

SET UP

1. Slide the switch on the underside of the Large
Cone to the "ON" position.
2. For best light e ect, place the ve Cones on the
oor as shown at 1 to 3 inches from a white wall.
GRAND FINALE!
LIGHT SHOW

Battery Installation

Tool required - Small
ON/OFF
Phillips head screwdriver
Requires 6 "AA" alkaline
batteries (not included).
1. Using a Phillips head screwdriver, remove the battery covers of the Large Cone and Master Controller as shown.
2. Insert 3 "AA" batteries as indicated in both battery compartments and replace covers.
3
2 4
1
3. Switch the Master Controller to "LIVE"
mode and test the light projection of the
cones by pressing each launch button.
Adjust cones as needed for the best
projection e ect.
4. Assemble the Small and Medium Cones as
shown inserting the tabs into the
corresponding slots. Further secure tabs
with clear tape if desired.
5. Attach the LED modules to the small
5
and medium Firework cones. For each
LED module, insert the wire through
the corresponding cone as shown.
Then, snap a Cap Ring on top of the
LED module. Allow each of the LED
modules to lower back into its cone
and gently position the Cap Ring
onto the top of the cone. Repeat
this step for the other small and
medium cones.
Remote Receiver
TM
Remote Receiver
Remote Transmitter
6+
2451
2462
Small (x2)
