MiLOCKS BLEKL, CKL, DKL, TKL, QKL, XKL, ZWL - Keypad Entry Deadbolt Lock Manual

REQUIRED TOOLS

(NOT INCLUDED)

DISCLAIMER

• Carefully read instructions in their entirety before installing.
• Always use proper safety measures during the install of this product.
• Always have traditional keys on hand in case of electronic failure.
• Only use brand new, popular brand, alkaline non rechargable AA batteries.
• Remove batteries from product when storing for extended periods of time.
• Back Module (B) needs to be protected from weather.

PACKAGE CONTENTS

PARTS LIST

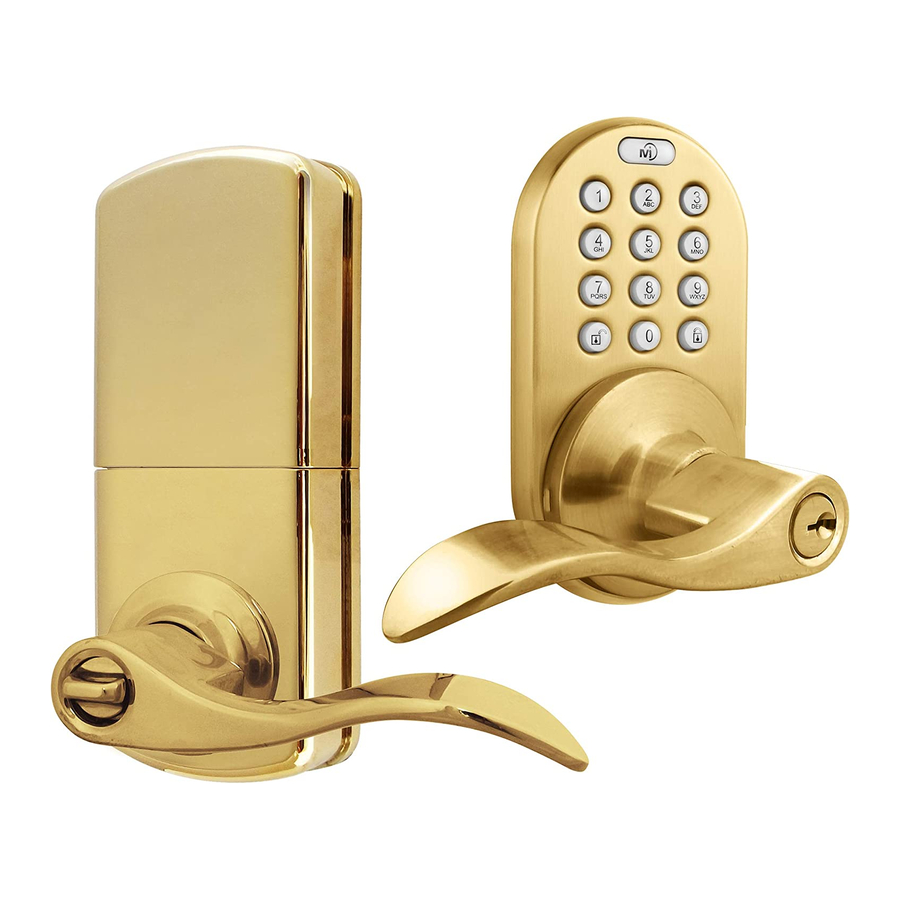

1. Front Module
2. Back Module
3. Strike Plate
4. Mounting Plate
5. Extendable Latch
6. Screws
   F1. Mounting Plate Screws
   F2. Back Module Screws
   F3. Strike Plate/Latch Screws
7. Traditional Keys
8. Lockpin Key
9. RF Remote (QF & XF Model Only)

** Illustrations may not be exact representation of product

PRODUCT REGISTRATION

Although we hope you never have to deal with a warranty claim during the use of our product, you should submit a product registra on to validate the warranty. This keeps it on record with us so you don't have to save a receipt or record of any kind. Just give us a call and we will take care of you.
REGISTER YOUR PRODUCT AT: www.milocks.com/product-registration/

• Do NOT use rechargable batteries (Li-On, nickel blends, rechargable alkaline).
• Do NOT use non-rechargable zinc blend batteries.
• Do NOT mix old and new batteries.
• Do NOT puncture or damage batteries. Electrolyte leakage from the batteries is corrosive and can cause serious harm to the eyes or skin. If swallowed, the electrolyte can be toxic.
• Do not dispose of batteries in fire as they may explode. Please follow your local battery disposal procedure.

Ignoring disclaimer or warnings may cause electrical issues to your MiLocks item. Issues may include: Overheating, leakage, discharge, voltage fluctuations, failed engagement of internal mechanism and bodily harm. MiProducts Corp is not liable for product failures or health issues due to product or battery negligence and/or misuse.

Adjusting Latch

Parts: E

For doors with bore holes 2 3/8" (60mm) from door edge, shorten latch by:
Pushing Drive Slot in (fig. A)

For doors with bore holes 2 3/4" (70mm) from door edge, extend latch by:
Pulling Drive Slot out (fig. B)

Secure Strike Plate and Latch

Parts: C, E, F3

1. Use Screws (F3) to secure Strike Plate (C) to door frame.
2. Use Screws (F3) to secure Latch (E) To door

(!) Install Latch and Strike Plate in a way where the lip from the plate and the angled slope from the latch meet, retracting the latch as door closes.

Front Module Installation

Parts: A, E

1. Run Drive Bar through the Drive Slot of the Latch (E).
2. Run Connector Wire through bore hole of door.

(!) Be sure drive bar is verticle when inserting into DriveSlot.


(!!) To switch lever orientation, use Lockpin Key(H) to depress lockpin in order to detach and swap levers from front and back module.

** Illustrations may not be exact representation of product. Does not effect installation.

Mounting Plate

Parts: D, F1
On opposite side of door from front module:
(!) The top screw holes on Mounting Plate (D) should be angled away from door surface.

1. Run Drive Bar and Wire Connector through Mounting Plate (D) as shown.
2. Use Screws (F1) to secure Mounting plate and Front Module (A).

Connect Wires

Parts: B

1. Remove Battery Cover from Back Module before continuing:
2. Connect the White Wire Tabs from the Front Module (A) and back Module (B) together.

(!) Before continuing: Drive bar should be oriented vertically and thumbturn should be oriented horizontally.

** Illustrations may not be exact representation of product. Does not effect installation.

Parts: B, F2

1. Insert Drive Bar into Back Module's (B) Thumbturn Slot.
2. Secure with Screws (F2).
3. Install brand new 4x AA batteries
4. Place battery cover back on.

** Illustrations may not be exact representation of product. Does not effect installation.

Know Your Program Controls

** Illustrations may not be exact representation of product. Does not effect programming process.

Programing Panel:

Found under battery cover of back module.
C: Clear
S: Set
On|Off Switch: Has two functions,

1. If Switch is on, toggles Auto Lock; after 5-10 seconds in the unlock position, thumbturn will engage and lock automatically.
2. Switch needs to be OFF during any programming of codes.

Keypad:

Mi Logo Button (Top Button): Enables keypad back lighting.
1-9, 0 Buttons: Used to enter numerical key codes.
Lock Button: Electronically engages latch to lock position.
Unlock Button: Has two functions,

1. Pressing the Unlock button after entering saved Keypad Code to electronically engage latch to unlock position.
2. During programing, the unlock button is used to confirm key codes being set or cleared.

PROGRAM:
Add A Code To Lock

1. Set Switch to OFF
2. Press the S Button.


3. Use keypad to enter a 2-8 digit code


4. Press the Unlock Button to confirm.
   2 beeps: Confirmed
   3 beeps: Try again


5. Refer to Function Test

PROGRAM:
Function Test: If a passcode has not been successfully programmed, the lock will not operate using the keypad. To check if a passcode has been successfully programmed in the memory:

TROUBLESHOOTING

Low Batteries (Most Common Issue)

If the lock produces a set of rapid beeps and/or partially engages latch, you have low batteries. To avoid any difficulties during set up, make sure you are using brand new AA alkaline batteries. Using a battery tester is not recommended. Always have traditional keys on hand.

Driver Bar and/or Thumb-turn Position

In step 3 of the installation, you are instructed to position the driver bar in the vertical position while the deadbolt is retracted. In step 5 of the installation, you are instructed to position the thumb turn according to which side the door latch faces. If these parts are not positioned according to the instructions, you will encounter issues such as the lock only working with the key in the cylinder, a jammed thumb turn, or a key that will not release from the cylinder. The best thing to do is remove the lock from the door and install the lock according to the instructions provided.

Loose Keypad Connection

If not connected securely, the keypad wire harness connection may come loose and cause some of the numbers to operate inconsistently. To confirm your door lock issue is not being cause by a loose keypad connection, press every number on the keypad and confirm every button beeps when pressed.

Unresponsive Keypad Buttons

If some of the numbers are not beeping, remove the back module (part B) and inspect the wires for any pinches or tears. Make sure to check the wires coming from the keypad as well. Disconnect the wire harness and make sure the pins in the male connection are not bent out of alignment. Reconnect your wires and confirm every button on the keypad beeps when pressed. If you are still having keypad issues after following our troubleshooting guide, call us for a replacement under warranty.

WARRANTY

MiProducts Corporation warrants to the original residential user of this product that it will be free from defects in materials and workmanship, under normal use, for 1 year from the date of purchase. User must provide a copy of original purchase receipt. This warranty does not cover abuse or misused products or products used in commercial applications. All mechanical components carry a limited warranty, for a period of 25 years from the date of purchase. The finish of the exterior of this lock carries a limited warranty of the lifetime of the unit against deterioration due to normal weather conditions. This warranty does not apply to locks that have been improperly installed, modified, put to a use other than designed, or subjected to acts of God (such as floods, lightning, earthquakes, etc.) This warranty is limited to repairing or replacing of this lock only at MiProducts Corporation's sole discretion. MiProducts Corporation will NOT be liable for the cost of installing, removing, nor reinstalling this product, nor direct, indirect, or consequential damages to persons or property resulting from the use of this product. This warranty only covers the cost of replacement parts, it does not cover shipping & handling fees.

PLEASE CONTACT OUR TECHNICAL SUPPORT IF:

• NEED ASSISTANCE INSTALLING OR PROGRAMMING YOUR LOCK
• LOCK IS NOT WORKING PROPERLY AFTER TROUBLESHOOTING
• OR NEED TO FILE A WARRANTY CLAIM

1-800-355-0157
Mon-Fri 9:00am to 5:00pm PST (English & Spanish)
ALTERNATIVELY, FILE WARRANTY CLAIMS AT: www.milocks.com/warranty
