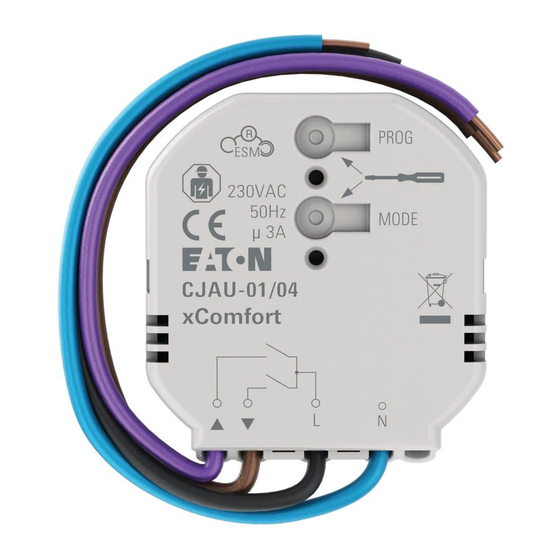

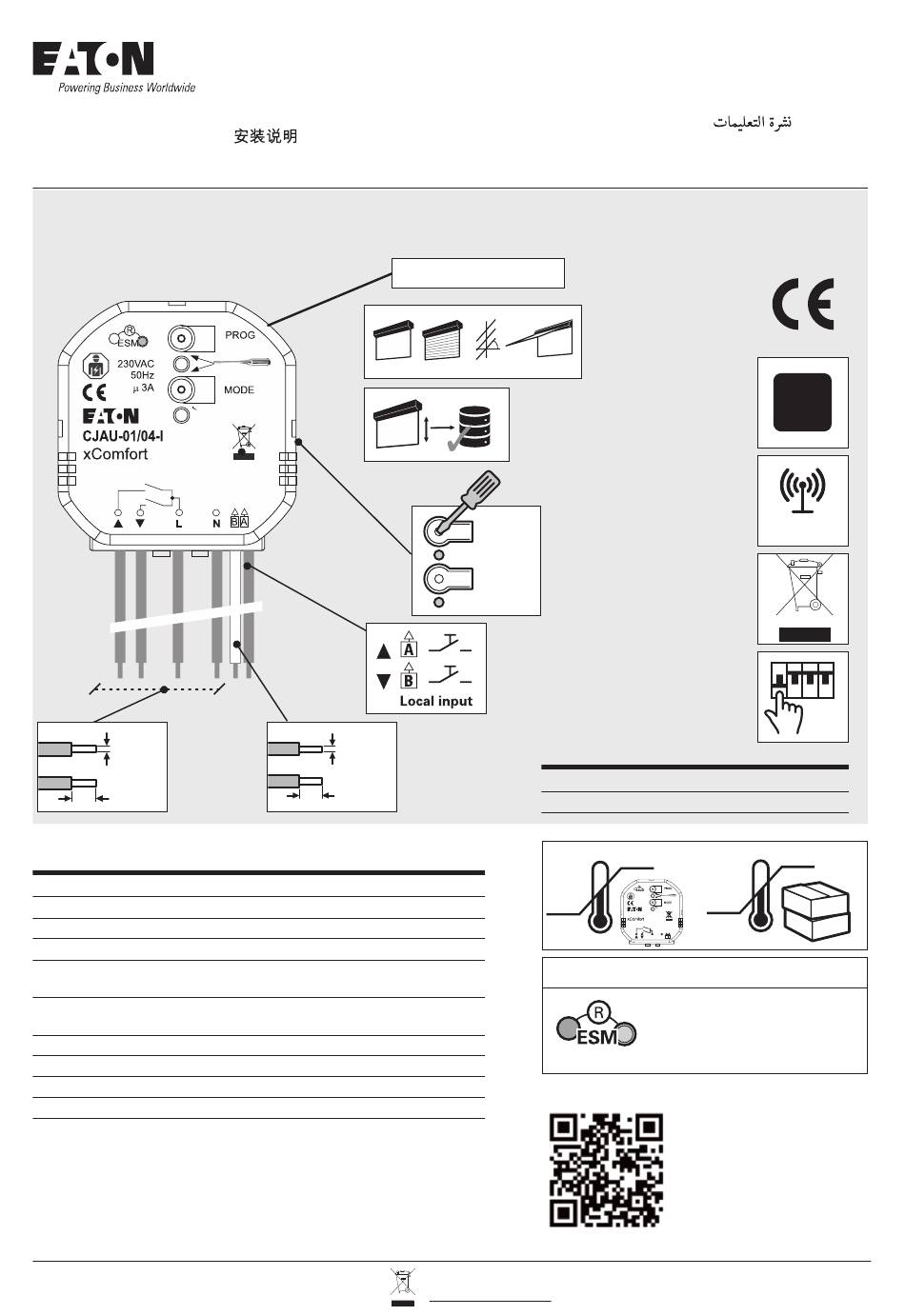

Eaton CJAU-01/04 Series Instruction Leaflet

Shutters/Blinds Actuator
CJAU-01/04..
1.5 mm
2
10 mm
Technical Data / Technische gegevens / Tekniske data /
Technische Daten / Technická data
Power supply
Load
Power standby
Local input
Input contact
resistance In to L
Voltage difference
IN to L
Protection
Dimensions
RF
Max RF power
1
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria
© 2022 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation
Instruction Leaflet Montagevejledning
Montageanweisung Οδηγίες εγκατάστασης
Notice d'installation Instruções de montagem
Instrucciones de montaje Monteringsanvisning
Istruzioni per il montaggio Asennusohje
Návod k montáži
Paigaldusjuhend
Инструкция по монтажу
Szerelési utasítás
Montagehandleiding
Slim 18 mm design
0.75 mm²
10 mm²
230 VAC +10% -15%, 50 Hz
3 A, L/R
< 200 mW (Typical)
230 VAC (Max. 265 V)
< 10 kΩ reliably ON
> 50 kΩ reliably OFF
< 1 V reliably ON
> 3 V reliably OFF
Overload, Over-temperature
49.5 x 45.5 x 18 mm (H x W x D)
868,3MHz (xComfort compatible)
25mW (ERP)
Montāžas instrukcija
Montavimo instrukcija
Instrukcja montażu
Navodila za montažo
Návod na montáž
Монтажни инструкции
Instrucţiuni de montaj
Upute za montažu
°
%
Program
Mode
Actuator
CJAU-01/04
CJAU-01/04-I
-5°C
MA_shutter_actuator_CJAU-01/04.indd/01.2023c/IL019287ZU/136211216
www.eaton.com/recycling
Kullanma Talimatı
Инструкција за монтажу
Intruksjonsblad
Монтажна інструкція
IP20
868.3 MHz
Type
With local input
+70°C
+55°C*
230VAC
50Hz
3A
CJAU-01/04-I
-25°C
B A
L L N N
MRF
Version 2.78
RM Version: 41a
SHC-RF Version: 2.00
ECI-RF Version: 2.00
USB-RF Version: 2.00
xComfort Bridge Version: 3.10
www.eaton.com/xcomfort
All Rights Reserved / Printed in Austria
OFF
