Summary of Contents for AV Access 4KEX70-RX

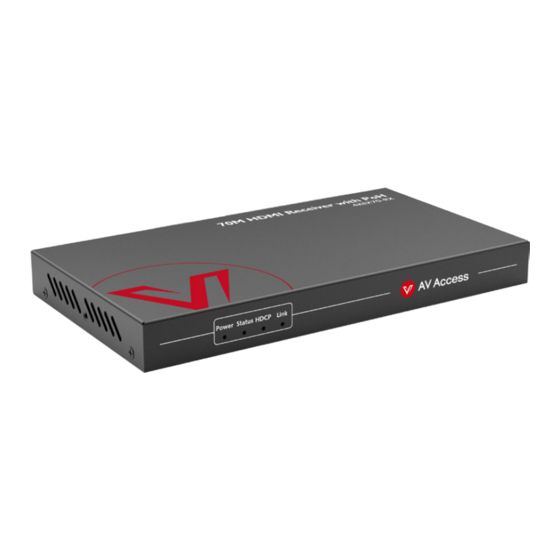

- Page 1 4KEX70-RX 70M HDMI Receiver with PoH User Manual...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
- Page 3 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in ...
-
Page 4: Table Of Contents
Table of Contents Overview ....................... 2 Package Contents ........................4 Front Panel ..........................5 Rear Panel ..........................6 Installation Instructions ..................7 Specification ......................9 Warranty ......................12 www.avaccess.com... -
Page 5: Overview
Overview Overview 4KEX70-RX is a receiver for HDMI extenders which can be used with any standard HDBaseT transmitter to extend HDMI signals up to 70 meters / 230ft (1080p) and 40 meters / 131ft (4K@30Hz) over a single Cat6a/7 cable. - Page 6 Overview Supports bi-directional IR control for sources or displays Fully compliant with HDMI 1.4 HDCP 2.2 compliant Supports RS232 ports for firmware upgrading or serial communication Highly reliable, energy-efficient external universal power supply included, providing worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs Cable termination follows IEEE-568B standards...
-
Page 7: Package Contents
Overview Package Contents Before you start the installation of the product, please check the package contents: 1 x 4KEX70-RX 1 x Power Supply (DC 12 V 1.5A) 1 x Phoenix Male Connector (3.5 mm, 3 pins) 1 x IR Emitter ... -
Page 8: Front Panel
Overview Front Panel Name Description ON: The receiver is powered on. Power LED OFF: The receiver is powered off. Flashing Slowly: Status LED The receiver is working properly. OFF: The receiver is not working properly. ON: HDCP video is being transmitted. Flashing Quickly: Non-HDCP video is being HDCP LED transmitted. -
Page 9: Rear Panel
Overview Rear Panel No. Name Description 12V DC power input, threaded port for standard or DC 12V locking connection Connects to HDBT OUT port of transmitter HDBT In Receiving IR signal Note: The IR receiver enabled angle and distance: IR In Enabled 0°... -
Page 10: Installation Instructions
Installation Instructions Installation Instructions Using quality HDMI cables, connect an HDMI source (such as Blu-ray, games console, satellite/cable TV, media server etc.) to HDMI IN of the Transmitter. Connect a good quality Cat5e cable between the HDBT OUT of the Transmitter to the HDBT In of the Receiver. Connect the HDMI display device (LED/LCD display or projector) to the HDMI Out of the Receiver. - Page 11 Installation Instructions www.avaccess.com...
-
Page 12: Specification
Specification Specification Video Input 1 x HDBT Input Signal Type HDBT VESA: 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, Input Resolution 1920x1200@60Hz; Support SMPTE: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P@24/25/30/50/60Hz, 1080I@50/60Hz, 720P@50/60Hz, 576P@50Hz, 480P@60Hz Input Video Level 0.5-1.2 V p-p Input DDC Signal 5V p-p Maximum Pixel Clock... - Page 13 Specification 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz; SMPTE: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P@24/25/30/50/60Hz, 1080I@50/60Hz, 720P@50/60Hz, 576P@50Hz, 480P@60Hz Video Impedance 100 Ω General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV(Air-gap discharge)/...
- Page 14 Specification Cable Specifications: Note: AV Access recommends use of straight-through Category cables wired to T568B standard. Cable Type Range Supported Video Cat6a/7 70m/230ft 1080p@60Hz, 36bit 40m/131ft 1080p@60Hz, 48bit 1080p@60Hz 3D 4K@30Hz Cat5e/6 60m/197ft 1080p@60Hz, 36bit 35m/115ft 1080p@60Hz, 48bit 1080p@60Hz 3D 4K@30Hz www.avaccess.com...
-
Page 15: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 16 AV Access Technology Limited V1.0.1...
