Making British gardens great

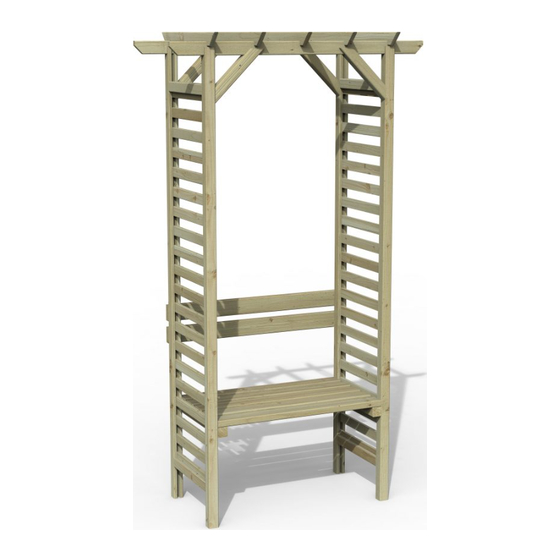

SLATTED PALMA ARBOUR
INSTRUCTIONS
We recommend using the following tools (not supplied):
Tape Measure
It is vital that you build your new arbour on a level ground in your desired location.
FIXING PACK CONTAINS:
FIXING PACK CODE: PALMAAFP
5x70mm Screws
QTY: 8
PLEASE KEEP PLASTIC BAGS AND SMALL PARTS AWAY FROM CHILDREN
CHECK AND TIGHTEN ALL THE FIXINGS APPLIED TO THIS PRODUCT ON A REGULAR BASIS.
IMPORTANT
Assembly requires 2+
adults.
THE ROOF OF THIS ARBOUR IS NOT A LOAD BEARING STRUCTURE
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
EU Authorised Representative: Authorised Representative Service, 77 Camden Street Lower Dublin, D02 XE80, Ireland
Pozidrive
Drill & 2-3mm
Screwdriver
Drill Bits
Hammer
4x50mm Screws
QTY: 18
REMINDER
Always pre-drill before
screwing.
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
ISSUE: 0122
Ladder
Spirit Level
3.5x30mm Screws
QTY: 16
Advertisement
Table of Contents
Related Manuals for Forest SLATTED PALMA ARBOUR
Summary of Contents for Forest SLATTED PALMA ARBOUR
- Page 1 Visit our website for spare instructions and Call our aftersales team on more information 0333 321 3142 www.forestgarden.co.uk Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB EU Authorised Representative: Authorised Representative Service, 77 Camden Street Lower Dublin, D02 XE80, Ireland...
- Page 2 SCREWS SIDE PANELS LONG RAFTER Lay out your Long Rafters on the floor and turn your Position and secure the Side Panels to the Long Side Panels upside down to slot in place. Position the Rafters as shown above. Use the measurement above Side Panels using the measurement provided.
- Page 3 SCREWS BACK REST BATTEN Position the Back Rest Battens using the measurements Secure the Back Rest Battens to the Side Panel posts provided as a guide onto the Side Panels. Feel free to as shown above. alter the measurements based on your preference. SCREWS SCREWS SHORT RAFTER...
- Page 4 (e.g. painted), the manufacturer cannot be held liable for any resulting damage. The components provided may be heavy. Please lift with caution and with a minimum of 2 people Slatted Palma Arbour (PALMAA) Label...
