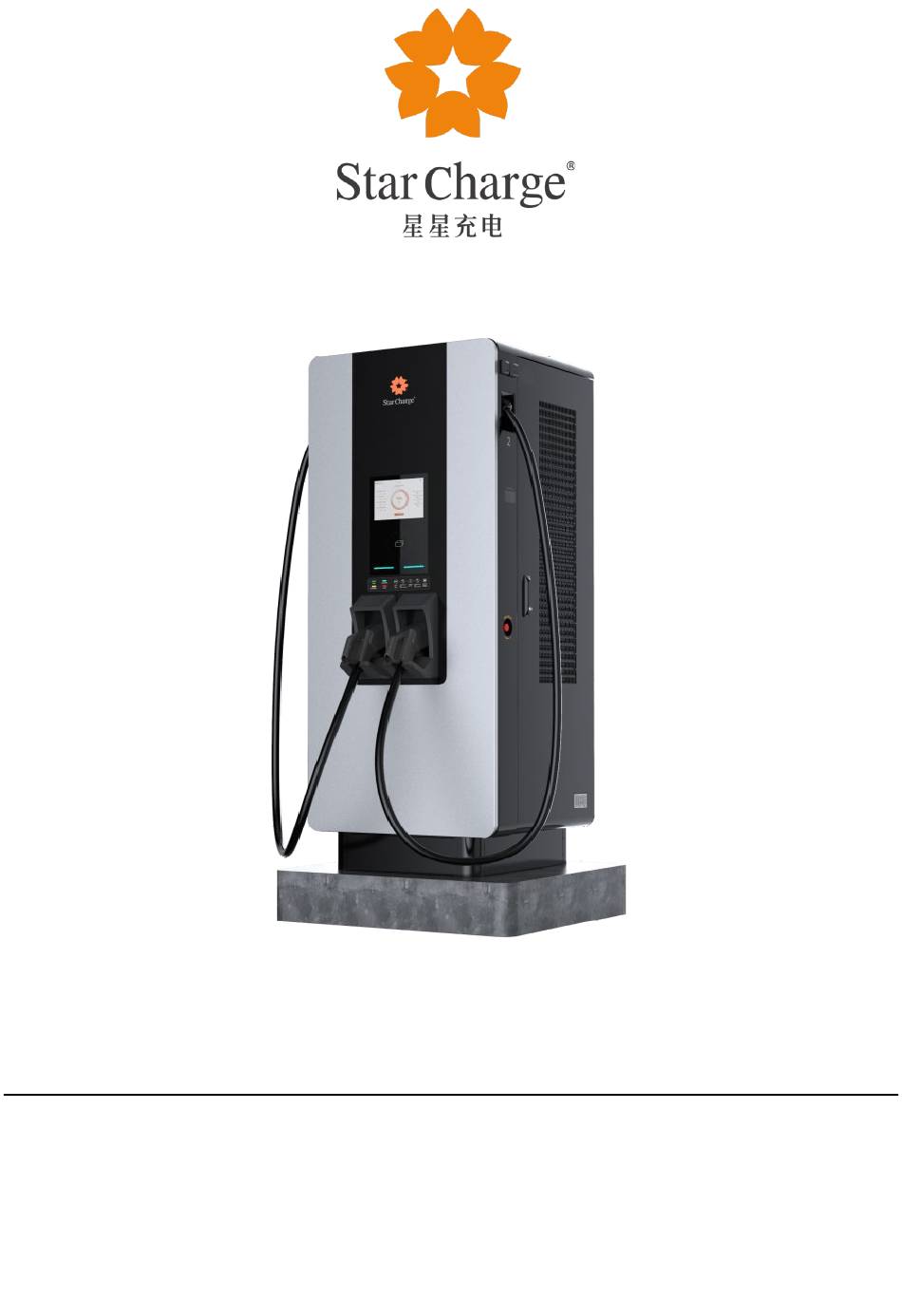

- Page 1 Electric Vehicle Supply Equipment（EVSE） Titan 180 Premium Instruction Manual Version No / File No：Ver.1.0/DCY0391TYYHEN Wanbang Digital Energy Co., Ltd.
- Page 2 Company address: No.39 Longhui Road, Wujin District, Changzhou, Jiangsu, China Customer service: 400 828 0768 Website: http://www.starcharge.com Wanbang Digital Energy Co., Ltd. reserves all rights This document is an integral part of Electric Vehicle Supply Equipment and is copyrighted. Any use outside the strict limits of copyright law is prohibited without written consent.
-
Page 3: Table Of Contents
Content 1 Important information ..........................4 1.1 Safety tips ............................4 1.2 Manual use ............................4 1.3 About this Manual ..........................5 2 product description ............................ 6 2.1 Apparent parameter ........................... 6 2.2 Specification ............................7 2.3 LED status indicator ..........................8 3 Operation Instruction .......................... -
Page 4: Important Information
1 Important information 1.1 Safety tips Symbols Meaning ‘Warning’, which indicates a hazard； Pay attention to personal injuries or death caused by operation steps, practice or incorrect implementation. The operation after the ‘warning’ sign can only be performed when the conditions are fully understood and satisfied. -
Page 5: About This Manual
Although this manual describes the relevant safety instructions, it is important to pay attention to the safety regulations and accident prevention regulations when the charging equipment is used. 1.3 About this Manual This manual applies to the Titan 180 Premium This manual is for the following people ：... -
Page 6: Product Description

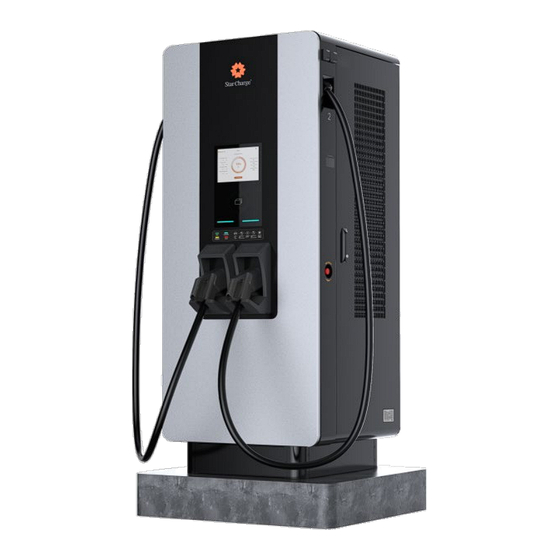

2 Product description 2.1 Apparent parameter Figure 2-1 Product diagram [A] —— Touch screen [B] —— Card swiping area for charging [C] —— LED status indicator [D] —— Charging connector slot [E] —— Electric meter [F] ——... -
Page 7: Specification
2.2 Specification Model Star Charge Titan 180 Titan 150 Titan 120 General parameters Product name Premium Premium Premium Product number DH-DC1800SG56 DH-DC1500SG56 DH-DC1200SG56 Rated input 400Vac±10%, 3-Phase, 50/60 Hz, L1+L2+L3+N+PE Power factor 0.99 (Normal load) Total harmonic Input parameters ≤5% (More than half a load) current: ≥94%@full load Efficiency... -
Page 8: Led Status Indicator
Humidity 5%-95%（without condensation） Environment Altitude ≤2000m Ingress IP55/IK10 Protection Cooling way Forced air cooling Size：800 mm×750 mm×2050 mm（Including rings Size (W*D*H) 2100mm） Mechanical 320kg (Non 320kg (Non 320kg (Non module included) module included) module included) Weight 410kg(Module 395kg(Module 380kg(Module included) included) included) Installation... -
Page 9: Operation Instruction
3 Operation Instruction The EVSE operation has two parts, the charging connection operation and the equipment operation. To use the product, the user must connect the EVSE to the vehicle first, and then carry out relevant charging operations through the touch screen interface. - Page 10 Step 2：Start charging by swiping card: Use IC card to place EVSE in the card swiping area to start charging, as shown in Figure 3-2. Click A and B buttons on the far right of the screen to switch to the interface of other charging connectors. Figure 3-2 Charge by card Step 3：During charging, the charging status interface is displayed on the EVSE screen.
- Page 11 Figure 3-5 Stop charging interface Step 5: Charging results are displayed on the EVSE screen after charging is fully charged or stopped, as shown in Figure 3-6. Click A and B buttons on the far right of the screen to switch to the interface of other charging connectors. The left picture is the interface of abnormal or manual stop details, and the right picture is the interface of successful full details.
- Page 12 Figure 3-7 Home page fault interface Step 8：Click the exclamation mark to view the fault information. Please contact the after-sales technical service for repair, as shown in Figure 3-8. Figure 3-8 Fault details interface If the emergency stop button of the equipment is pressed (as shown in FIG. 3-9), please contact after-sales technical service for inspection and maintenance Figure 3-9 Emergency stop fault interface Instruction Manual...
-
Page 13: Scan Qr Code To Charge
Scan QR code to charge 3.2.2 Step 1： On the main interface of EVSE, insert the Charging connector to enter the next step Step 2：Scan QR code to start charging: open "Star Charge" or other mobile phone clients to scan the QR code on the EVSE interface for charging, as shown in Figure 3-10. - Page 14 Step 7：Unplug the charging connector from the vehicle, reposition it in the Charging connector slot. Instruction Manual Wanbang Digital Energy Co., Ltd.
-
Page 15: Trouble Shooting
4 Trouble shooting When the EVSE is abnormal, please troubleshoot according to the following tips. If the fault cannot be eliminated, please contact your local service partner or contact the product manufacturer by referring to the <Customer Service> section. Fault Possible causes and Solutions Power LED is off ... -
Page 16: Routine Maintenance
5 Routine maintenance The following table is the recommended maintenance cycle. According to the environment of the country where the EVSE is located and relevant laws and regulations, the cycle needs to be changed. For details, please refer to the " Titan 180 Premium Maintenance Manual". -
Page 17: Customer Service
Record the model and serial number of the device (the nameplate of the device). 6.2 Contact Information Company address: No.39 Longhui Road, Wujin District, Changzhou, Jiangsu, China Website: http://www.starcharge.com Company E-mail: starcharge@wanbangauto.com Customer service: +86 400 828 0768 Instruction Manual Wanbang Digital Energy Co., Ltd.
