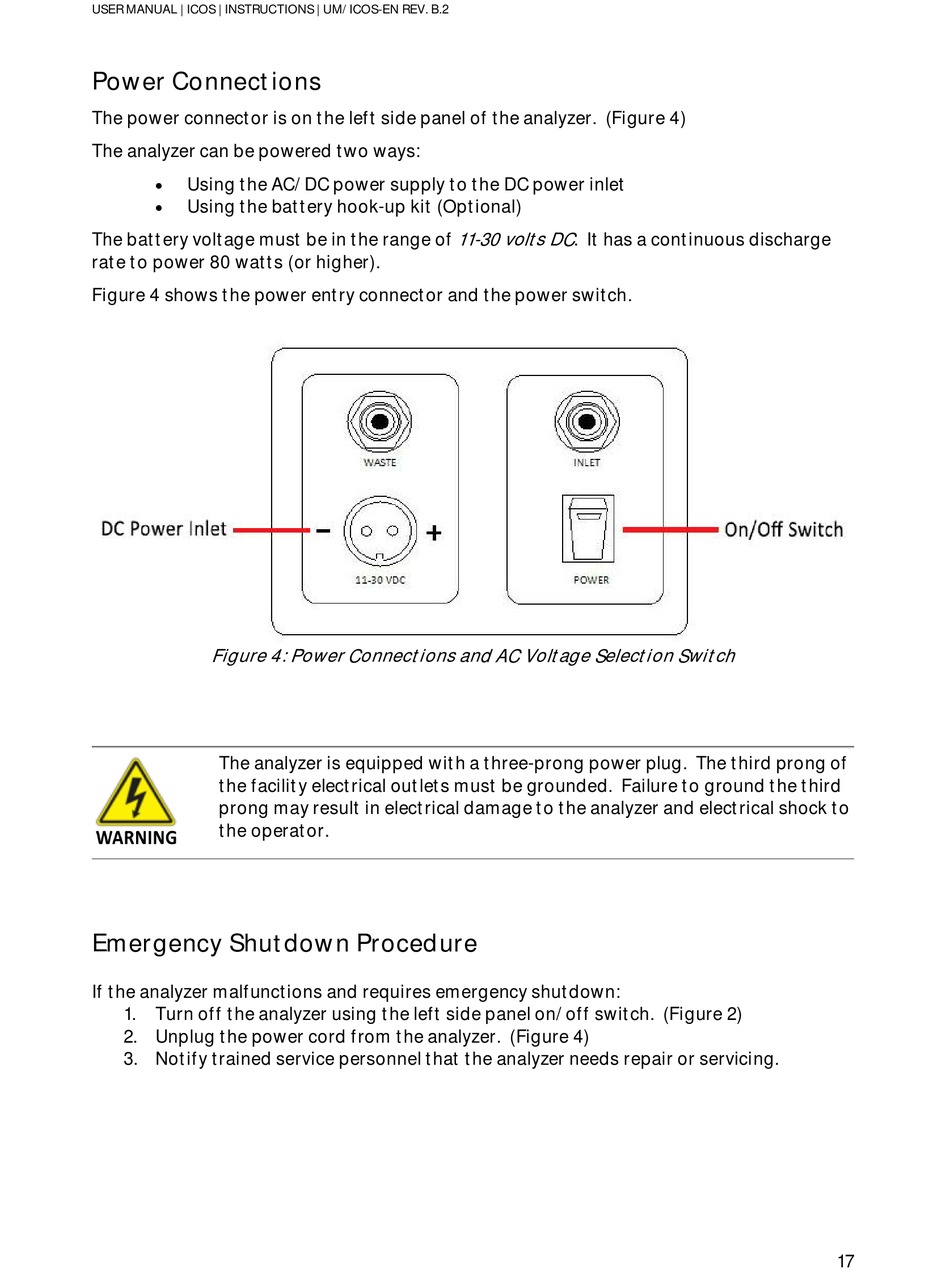

Power Connections

The power connector is on the left side panel of the analyzer. (Figure 4)
The analyzer can be powered two ways:

Using the AC/DC power supply to the DC power inlet

Using the battery hook-up kit (Optional)
The battery voltage must be in the range of
rate to power 80 watts (or higher).
Figure 4 shows the power entry connector and the power switch.
Figure 4: Power Connections and AC Voltage Selection Switch
The analyzer is equipped with a three-prong power plug. The third prong of
the facility electrical outlets must be grounded. Failure to ground the third
prong may result in electrical damage to the analyzer and electrical shock to
the operator.

Emergency Shutdown Procedure

If the analyzer malfunctions and requires emergency shutdown:
1. Turn off the analyzer using the left side panel on/off switch. (Figure 2)
2. Unplug the power cord from the analyzer. (Figure 4)
3. Notify trained service personnel that the analyzer needs repair or servicing.
11-30 volts DC . It has a continuous discharge
17
