FASTFLEX Model YN25, YB25, and YB28
Flexible Sprinkler Hose Assembly
Europe, Middle East, and Africa Only
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp720
Page 1 of 8
General
Description

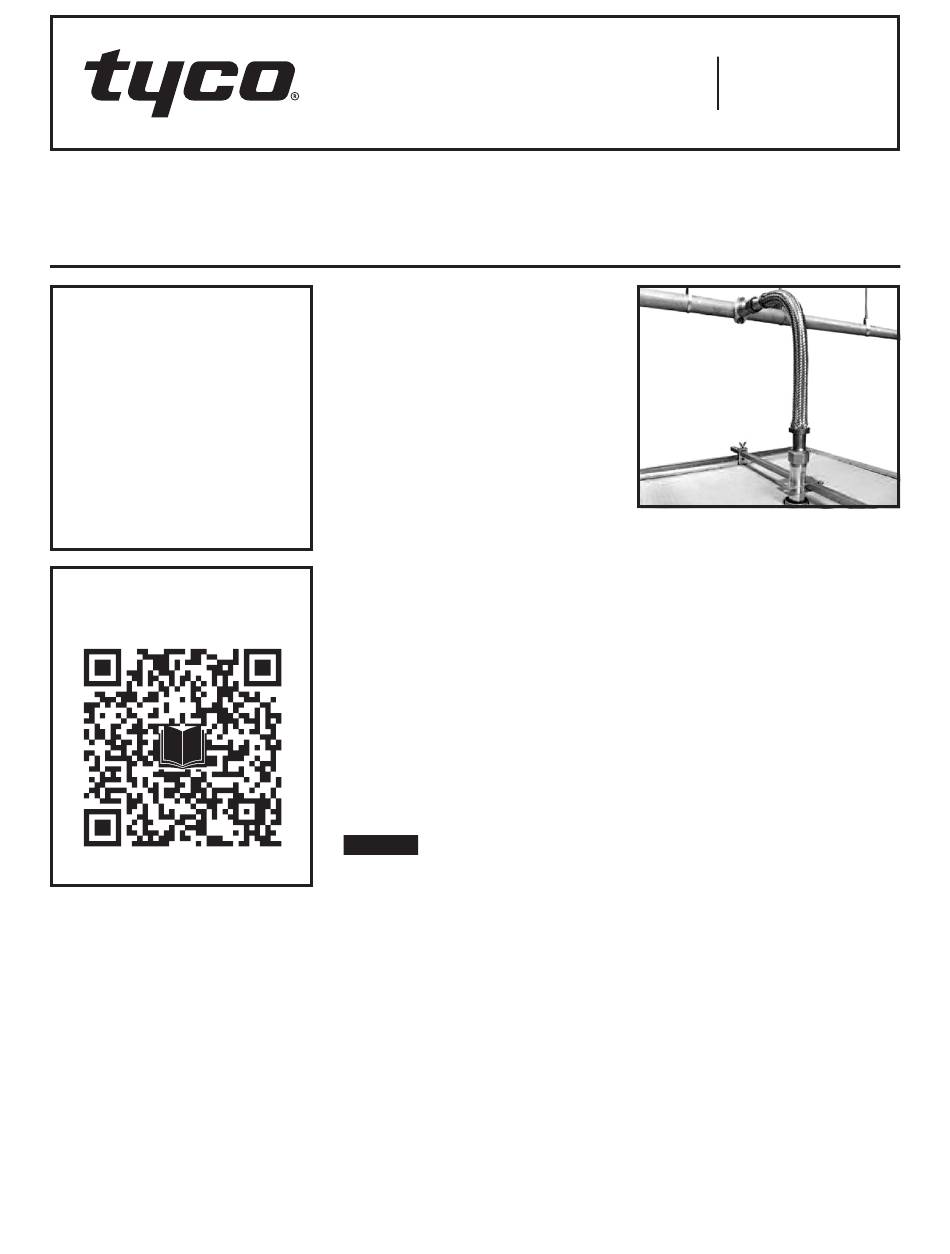

The TYCO FASTFLEX Flexible Sprinkler
Hose is a unique sprinkler drop assem-
bly comprised of a branchline adapter
nipple, stainless steel flexible hose with
two slip nuts, sprinkler reducer, and
lightweight ceiling bracket components
as shown in Figure 1.
The flexible hose can be installed
in false ceilings without cutting and
threading pipes associated with
installing a drop, armover, and elbows.
FASTFLEX makes it possible to test
and charge the system with water
before the ceiling grid is installed.
Once the ceiling grid is in position, the
flexible hose can be reshaped to suit
the final sprinkler location without
draining the system.
The flexible hose is installed quickly
without large and expensive tools. Ideal
projects are offices, schools, libraries,
hospitals, and shopping complexes.
The hose is for use on wet pipe, pre-
action, and dry-pipe systems. The hose
can also be used in conjunction with
ultra-low flow water mist nozzles fol-
lowing the design criteria outlined in
this technical data sheet.
NOTICE
FASTFLEX Flexible Sprinkler Hoses
described herein must be installed
and maintained in compliance with
this document and with the applicable
standards recognized by the Approval
agency, in addition to the standards of
any other authorities having jurisdiction.
Failure to do so may impair the perfor-
mance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
DECEMBER 2022
Worldwide
www.tyco-fire.com
Contacts
Technical
Data
Approvals
UL Listed
FM Approved
VdS Approved
LPCB Approved
CNPP Certified 63.22.221 (See Table A)
CSTB accepted for all models and
assembly lengths
Note: Specific details for laboratory approv-
als are given in Table A, and the approvals
apply to the service conditions indicated in
the applicable Design Criteria sections.
Inlet Connections (See Figure 1)
ISO 7-R 1
ISO 7-R 1 1/4
Outlet Connections (See Figure 2)
ISO 7-Rc 3/8
1/2 inch NPT
3/4 inch NPT
Nominal Assembly Lengths
See Table A
Construction (See Figure 1)
The inlet nipple is mild steel, and
the flexible hose is SS AISI 304. The
connection at each end of the flex-
ible hose utilizes a brass slip nut,
NBR/CR O-ring, and Nylon W6 washer.
The sprinkler reducer is mild steel. The
reducer bracket, bar fixing clamps, and
support bar are pressed steel.
