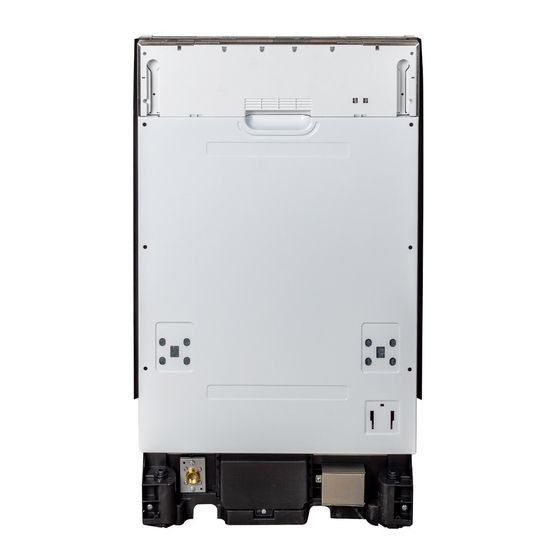

Zline DW7714-18 Manual

Classic dishwasher
Hide thumbs Also See for DW7714-18:

Advertisement

Quick Links

User Manual
CLASSIC DISHWASHER
www.zlinekitchen.com
i

Advertisement

loading
Need help?

Need help?

Do you have a question about the DW7714-18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zline DW7714-18

Summary of Contents for Zline DW7714-18

  • Page 1 User Manual CLASSIC DISHWASHER www.zlinekitchen.com...
  • Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
  • Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS OPERATION MAINTENANCE AND CLEANING TROUBLESHOOTING WARRANTY...

  • Page 5: Important Safety Instructions

    It’s your responsibility to use common sense, caution, and care when installing, maintaining, and operating the dishwasher. ZLINE is not liable for damages resulting from improper use or installation.
  • Page 6 • Do not operate the appliance if it’s damaged, malfunctioning, partially disassembled, or has missing or broken parts. If the unit arrives damaged, contact ZLINE at 1-614-777-5004 for help. BASIC PRECAUTIONS BEFORE USE • Read all instructions and precautions in both this user manual and the provided installation manual before using the dishwasher.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS • Do not tamper with the control panel on the dishwasher. • Do not operate your dishwasher unless all enclosure panels are in the proper place. • Do not touch the heating element during or immediately after any washing, sanitizing, or drying cycle to reduce the risk of injury.

  • Page 8: Operation

    OPERATION ELECTRIC SHOCK HAZARD • As with all equipment using electricity, water, and moving parts, potential hazards exist. To safely operate this appliance, become familiar with its operation and exercise care when using it. • The dishwasher must be properly grounded by a professional technician. Never connect it to an ungrounded outlet.
  • Page 9 20 PSI -145 PSI Inlet Water Temp 120°F - 149°F ZLINE’s exclusive integrated EcoWash technology and EnergySave functionality determine the most environmentally conscious cycle based on the load size and soil level. Each cycle reduces water consumption by up to 30% while...
  • Page 10 OPERATION SPECIFICATIONS FOR MODEL DW7714-18 Capacity Up to 8 place settings Dimensions (W x D x H) 17 5/8” x 22 3/8” x 32 1/2” Power Supply 120VAC, 60 HZ Wash motor: 100W Rated Power Usage Heater: 700W Water Feed Pressure...
  • Page 11 OPERATION SPECIFICATIONS FOR MODEL DW7713-24 Capacity Up to 12 place settings Dimensions (W x D x H) 23 9/16” x 22 3/8” x 32 1/2” Power Supply 120VAC, 60 HZ Wash motor: 100W Rated Power Usage Heater: 700W Water Feed Pressure 20 PSI -145 PSI Inlet Water Temp 120°F - 149°F...
  • Page 12 OPERATION FILTER SYSTEM Your dishwasher has a multiple filter system. In the system, there are three mesh filters. • It can separate soiled water and clean water in different chambers. • The system helps your dishwasher get better performance with less water and less energy.
  • Page 13 OPERATION HOW YOUR DISHWASHER CLEANS • Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. • The dishwasher fills with water covering the filter area. Water is then pumped through the multiple filter system and spray arms.
  • Page 14 OPERATION CONTROL PANEL 1. Start/Pause • Open the door to select the desired cycle and options, touch the Start/Pause button, and close the door within 4 seconds to start the cycle or begin the delay countdown. • To cancel and reset the program during the cycle, open the door and touch Start/Pause for 3 seconds.
  • Page 15 OPERATION 3. Delay • To delay the start of a selected cycle, press the delay start pad until the desired delay time shows in the LED display. You can delay the start for 1 to 24 hours. • To cancel the delay start option before the delay period is over, press the start/ cancel pad for 3-5 seconds.
  • Page 16 (see Troubleshooting, page 20). • If error codes are displayed and troubleshooting measures are unsuccessful, contact ZLINE Customer Service at 1-614-777-5004 for help. We will be able to provide assistance in troubleshooting the problem and/or locate an authorized service technician if needed.
  • Page 17 OPERATION CYCLE CHART PROGRAM DESCRIPTION OF CYCLE WATER (L OR G) CYCLE TIME (MIN) Pre Wash Main Wash (140°F) 19.7 Liters Rinse (149°F) Heavy Rinse with Sanitize 5.2 Gallons (156.2°F) Drying Pre Wash Main Wash (122-131°F) 9.5-18.5 L Rinse (136.4-140°F) Normal 105-135 Rinse with Sanitize...
  • Page 18 OPERATION DISH PREPARATION • Prior to loading the dishwasher, scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously filtered wash system will remove remaining food particles. • Burned-on foods should be loosened before loading. Empty liquids from glasses and cups. •...
  • Page 19 • Load large items such as pans and pots so their open sides face downwards. We recommend loading cups, stemware, and small plates in the upper basket. Model DW7714-18 Model DW7713-24 8 place settings 10 place settings LOADING THE UPPER BASKET •...
  • Page 20 4. Forks 2. Knives 5. Large Spoons 3. Salad Forks 6. Large Forks Model DW7714-18 8 place settings Model DW7713-24 10 place settings Do not let items extend or protrude though the bottom of the basket to avoid blocking the spray arm.
  • Page 21 OPERATION FILLING THE DETERGENT DISPENSER 1. Open the detergent dispenser cap by pushing the detergent dispenser release button. NOTE: The flap should always open at the end of a dishwashing cycle. 2. Add the recommended amount of detergent to the main wash detergent compartment.

  • Page 22: Maintenance And Cleaning

    MAINTENANCE AND CLEANING FILLING THE RINSE AID RESERVOIR • Your dishwasher has been designed to use liquid rinse aid only. • Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction. • Rinse aid improves the drying performance of the dishwasher. Do not add regular detergent to the rinse aid reservoir.
  • Page 23 MAINTENANCE AND CLEANING CLEANING THE EXTERIOR • It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. • Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains.

  • Page 24: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Power supply or power line is Check and connect power supply The dishwasher not connected won’t start Delay start option has been Refer to delay start section in this selected manual Rinse Aid light Display screen shows “LSb”...
  • Page 25 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Inspect detergent dispenser door latch for operation; if using Detergent dispenser Improper operation of the pod or solid detergent, this won’t close detergent cover may prevent the closure of the detergent dispenser door Make sure the dishwasher is connected to hot water;...
  • Page 26 TROUBLESHOOTING CODE ERROR MESSAGE POSSIBLE REASON 1. Check the water supply 2. Check the inlet valve 3. Check the inlet During the water inlet step, 4. Check the flow meter if the flow meter can’t detect 5. Check the pressure switch the water after 4 minutes, 6.
  • Page 27 TROUBLESHOOTING TERM DESCRIPTION LOCATION/APPEARANCE Pressure The pressure switch is a protection device • In the back of the switch that detects water pressure. It prevents dishwasher on the right. the water level from becoming too high. • Red, white, and blue. Flowmeter The flowmeter calculates the amount of •...
  • Page 28 TROUBLESHOOTING E1 Longer Inlet Time Is there any water in the tub? Is the incoming water pressure Is the incoming water turned on? 20 PSI -145 PSI? Is the water supply line installed correctly? Is the drain hose Adjust water pressure Is the water supply Replace the hose.

  • Page 29: Warranty

    WARRANTY COVERAGE ZLINE Kitchen and Bath dishwasher products will be warrantied for one year from the original purchase date for the original purchaser of the product. This warranty covers all parts and labor for necessary repairs if any part of the product proves to be defective in materials or workmanship.
  • Page 30 WARRANTY WHAT IS NOT COVERED 1. Installation or start-up damages or problems caused by improper installation or use. 2. Damage related to unauthorized service or unauthorized parts. 3. Installation in any commercial or non-residential application. 4. Aesthetic damage, scratches, or natural wear caused by normal use. 5.
  • Page 31 For warranty service, please contact our Customer Service team at 1-614- 777-5004 or visit www.zlinekitchen.com/contact to utilize our online Customer Experience Portal. Need to purchase a part or accessory for your ZLINE product? Visit ZLINEparts.com, ZLINE's official parts distribution partner.
  • Page 32 2.0.0 www.zlinekitchen.com 1-614-777-5004 contact@zlinekitchen.com...
