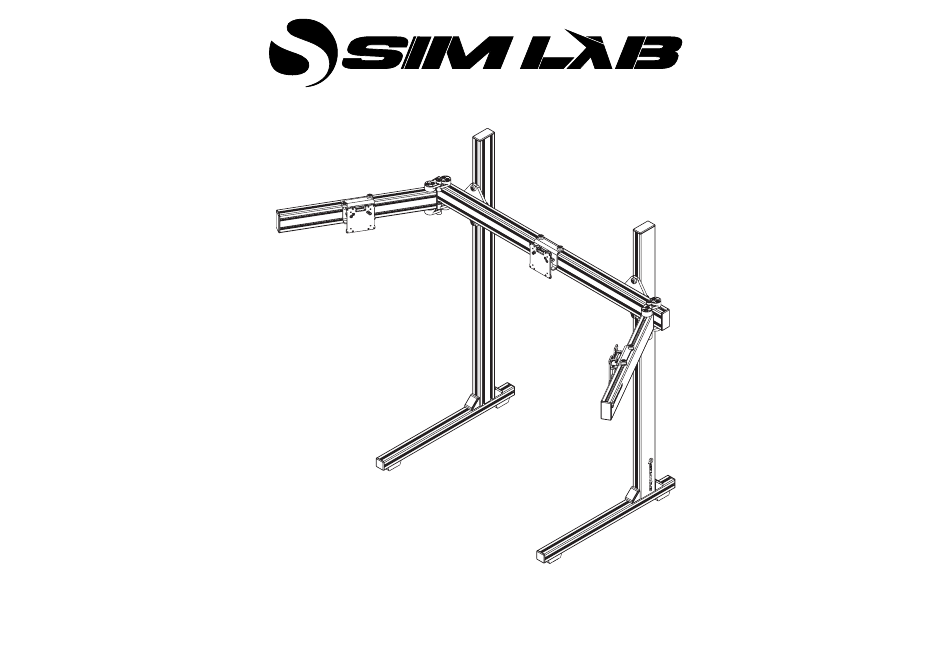

- Page 1 INSTRUCTION MANUAL VARIO™ TRIPLE MONITOR MOUNT 75/100 + 100/200 VERSION 1.0 Last updated: 12-09-2022...
-
Page 2: Before You Start
BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (page 14) and make sure all the parts are delivered. - Page 3 Rubber M8 X 20 Slot-Nut M8 Profile 40X40 End-Cap Foot BUILD 2X 76MM 3” 25MM 1” 3 15...
- Page 4 Corner Washer M8 Profile 80X40 M8 X 16 Slot-Nut M8 End-Cap (LEFT) Bracket BUILD 2X Instructions for the right side (P3) are similar. See page 8 for the orientation of the profile. 4 15...
- Page 5 Washer M8 M8 X 16 BUILD 2X 5 15...
- Page 6 Corner Pivot Profile 80X40 M8 X 25 M8 X 20 Slot-Nut M8 End-Cap Bracket Bracket (B3) (A15) (A21/B5/C17) 8X/8X/2X 6 15...
- Page 7 Pivot Profile 80X40 M8 X 25 Slot-Nut M8 End-Cap (LEFT) Bracket (B5/C17) 4X/2X BUILD 2X Instructions for the right side (P5) are similar. See page 9 for the orientation of the profile. * Mind the orientation of the Slot-Nuts. 7 15...
- Page 8 Cap-Washer M8 X 25 Washer M8 (DIN 988) 8 15...
- Page 9 M8 X 40 Nut M8 Corner Bracket 120° Adjust arm angles to your preference. We included markings in the pivots. Markings are placed in 10° increments. 9 15...
- Page 10 Vario VESA Vario VESA M8 X 40 M5 X 10 Holder Guide Block (Set Screw) BUILD 3X 24MM 1” When part C14 is installed like suggested above, it allows for a neutral position of the monitor. The pitch of the monitor can be adjusted after the monitor has been fitted.
- Page 11 Vario VESA Vario VESA Vario VESA M8 X 40 M5 X 20 M5 X 16 Plate Pin Holder (Set Screw) (Set Screw) BUILD 3X When parts C14 and C15 are installed like above, monitors are easy to install in a neutral position.
- Page 12 M8 X 16 Cap-Washer 12 15...
- Page 13 VESA M6 X 12 13 15...
-
Page 14: Hardware Kit
MONITOR STAND BOX B - Xero-Play triple pivot set PROFILE KIT HARDWARE KIT Part QTY Note Part QTY Note 80X40 Length=1200mm Xero-Play triple pivot adapter set Set of 8. 80X40 3N Length=1200mm Left upright, engraved. Bolt M8 X 40 DIN 912 80X40 3N Length=1200mm Right upright, engraved. - Page 15 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
