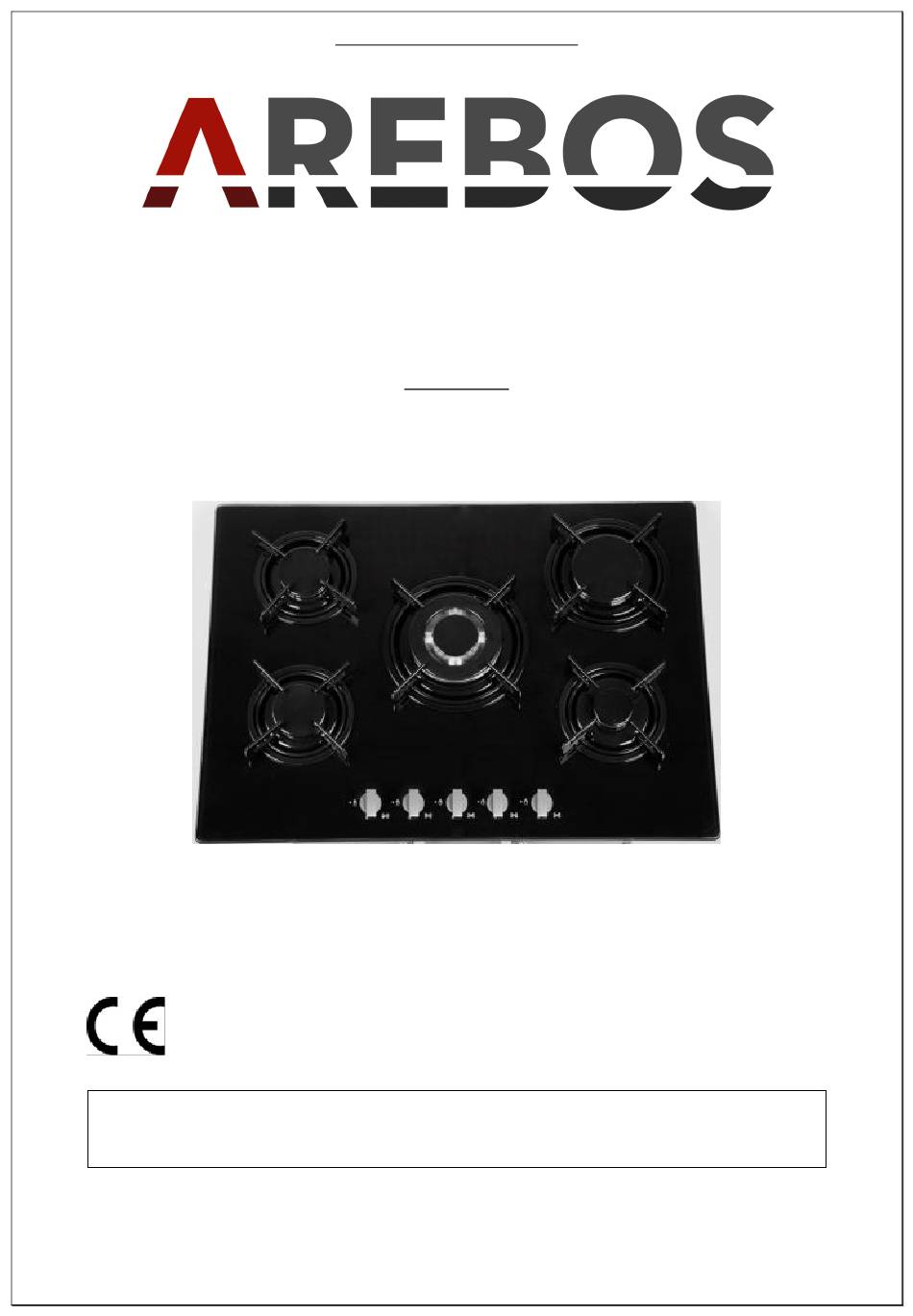

- Page 1 User’s Manual – A S Built-in Gas hob REBO Built-in Gas hob AR-HE-GH70CM User’s Manual Please follow all security measures in this user’s manual to ensure a secure use.
-
Page 2: Safety Instructions
User’s Manual – A S Built-in Gas hob REBO Please read and save these instructions. Read through this user’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. - Page 3 User’s Manual – A S Built-in Gas hob REBO Warning! Flammable material! Warning of electrical voltage! Gas Safety Regulations • It is the law that all gas appliances have to be installed by competent persons in accordance with current edition of the above regulations. It is In your interest and that of safety to ensure compliance with the law.
-
Page 4: Operation

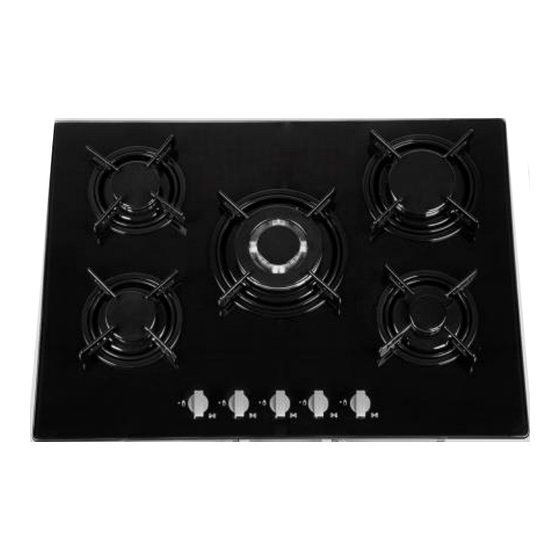

User’s Manual – A S Built-in Gas hob REBO Operation Triple flame gas burner 3800 W Rapid Semirapid burner burner 3000 W 1750 W Semirapid Auxiliary gas burner 1750 W burner 1000 W • Even if you have used a gas hob before, it is important that you read these instructions thoroughly before starting to cook, paying particular attention to the installation and safety instructions. - Page 5 User’s Manual – A S Built-in Gas hob REBO than 20m . LPG models shall not be installed in a room or internal space below ground level, e.g. in a basement. Provision for ventilation • The room containing the cooker should have an air supply. The room must have an opening window or equivalent;...
- Page 6 User’s Manual – A S Built-in Gas hob REBO Fig. 5 Fig. 4 Installation options • Option: When fitting a gas hob above a drawer or standard housing unit, suitable precautions must be taken to prevent contact. The panel underneath the hob must be easily removable to allow for any servicing requirements with the casing of the hob, which becomes very hot during operation.
- Page 7 User’s Manual – A S Built-in Gas hob REBO Gas Connection • The appliance's gas inlet fitting is a 1/2" male threaded conic gas type in accordance with the ISO 7-1 standards. Make the connection using rigid pipe. When making the gas connection, it is important to place the gasket (A) in between the inlet pipe (C) and the elbow (B), to ensure a gas tight seal.
- Page 8 User’s Manual – A S Built-in Gas hob REBO • Fig. 6 Fig. 7 • Injector replacement table User Instruction • To light the hotplate push in the appropriate control knob and turn anti-clockwise to the large flame symbol (Fig. 8). •...
-
Page 9: Technical Specifications
Fig. 9). When the contents of the pan start to boil, turn the knob down to reduced rate position. Always put a lid on the pan. • NOTE: Please do not use cooking vessels that overlap the boundaries of the hob. Technical Specifications Model AR-HE-GH70CM AC220-240 V 50/60Hz Voltage/Frequency Power 11.3 kW Front (left) zone... -
Page 10: Burner Failing To Ignite
User’s Manual – A S Built-in Gas hob REBO BURNER FAILING TO IGNITE? • Check that the power is turned on or that the fuse has not blown. Make sure that the ignitor isn't coated with food spillage. SPARK BUT NO GAS? •... -
Page 11: Disposal Instruction
User’s Manual – A S Built-in Gas hob REBO Disposal instruction Disposal of the packaging • Please make reference to the guidelines and standards for appropriate disposal of the packaging valid in your region. In part, the package may consist of plastic bags - watch this respect, with special care to ensure that this is not out of the reach of children. -
Page 12: Eu Declaration Of Conformity
Authorised representative for the technical documentation: Korhan Canbolat Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
