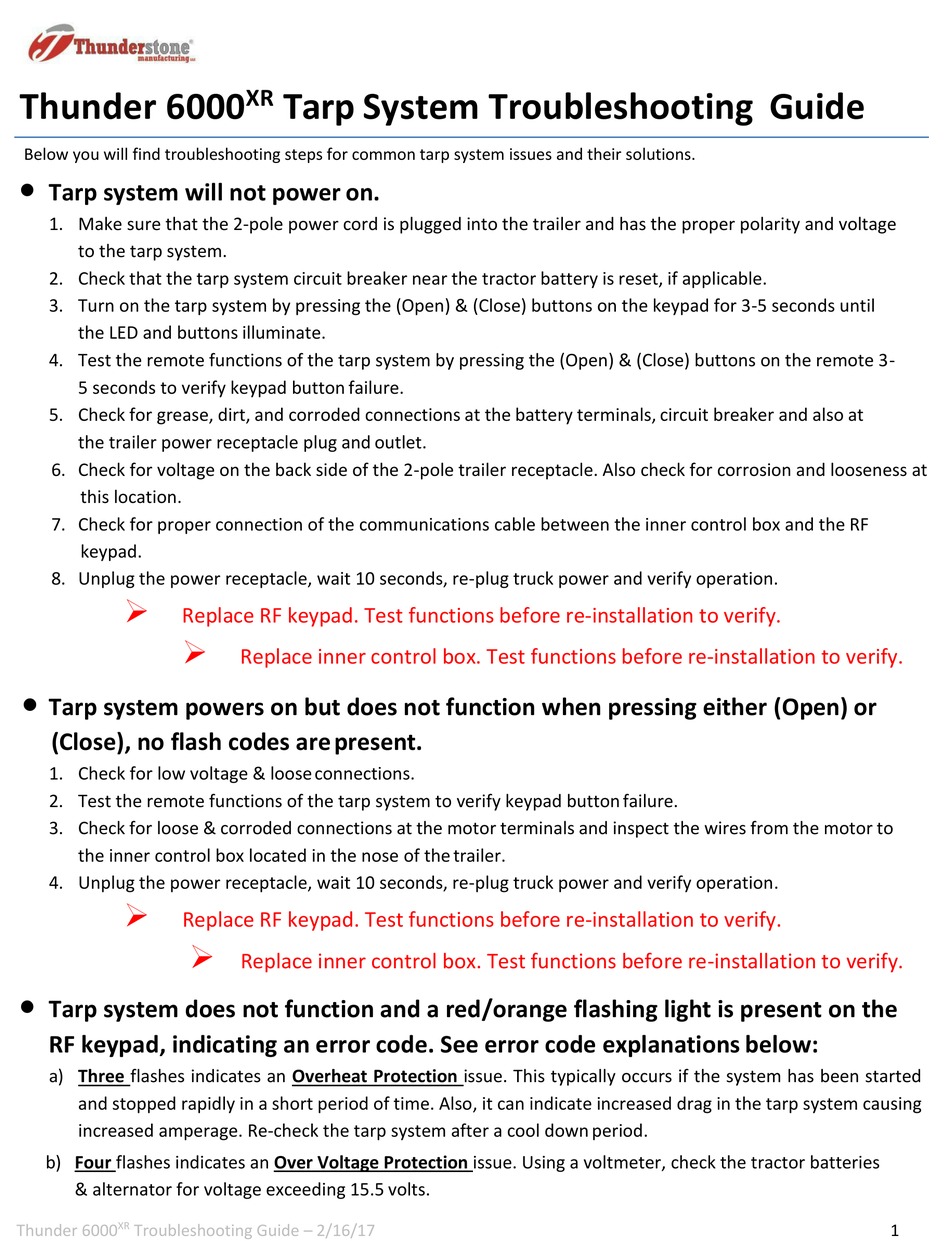

Thunderstone Thunder 6000XR Troubleshooting Manual

Thunder 6000
Below you will find troubleshooting steps for common tarp system issues and their solutions.


Tarp system will not power on.

1. Make sure that the 2-pole power cord is plugged into the trailer and has the proper polarity and voltage
to the tarp system.
2. Check that the tarp system circuit breaker near the tractor battery is reset, if applicable.
3. Turn on the tarp system by pressing the (Open) & (Close) buttons on the keypad for 3-5 seconds until
the LED and buttons illuminate.
4. Test the remote functions of the tarp system by pressing the (Open) & (Close) buttons on the remote 3-
5 seconds to verify keypad button failure.
5. Check for grease, dirt, and corroded connections at the battery terminals, circuit breaker and also at
the trailer power receptacle plug and outlet.
6. Check for voltage on the back side of the 2-pole trailer receptacle. Also check for corrosion and looseness at
this location.
7. Check for proper connection of the communications cable between the inner control box and the RF
keypad.
8. Unplug the power receptacle, wait 10 seconds, re-plug truck power and verify operation.

Replace RF keypad. Test functions before re-installation to verify.

 

Tarp system powers on but does not function when pressing either (Open) or
(Close), no flash codes are present.
1. Check for low voltage & loose connections.
2. Test the remote functions of the tarp system to verify keypad button failure.
3. Check for loose & corroded connections at the motor terminals and inspect the wires from the motor to
the inner control box located in the nose of the trailer.
4. Unplug the power receptacle, wait 10 seconds, re-plug truck power and verify operation.
 
Replace RF keypad. Test functions before re-installation to verify.


Tarp system does not function and a red/orange flashing light is present on the
RF keypad, indicating an error code. See error code explanations below:
a) Three flashes indicates an Overheat Protection issue. This typically occurs if the system has been started
and stopped rapidly in a short period of time. Also, it can indicate increased drag in the tarp system causing
increased amperage. Re-check the tarp system after a cool down period.
b) Four flashes indicates an Over Voltage Protection issue. Using a voltmeter, check the tractor batteries
& alternator for voltage exceeding 15.5 volts.
XR
Thunder 6000 Troubleshooting Guide – 2/16/17
XR
Tarp System Troubleshooting Guide
Replace inner control box. Test functions before re-installation to verify.
Replace inner control box. Test functions before re-installation to verify.
1
