Summary of Contents for Sun Nuclear 549

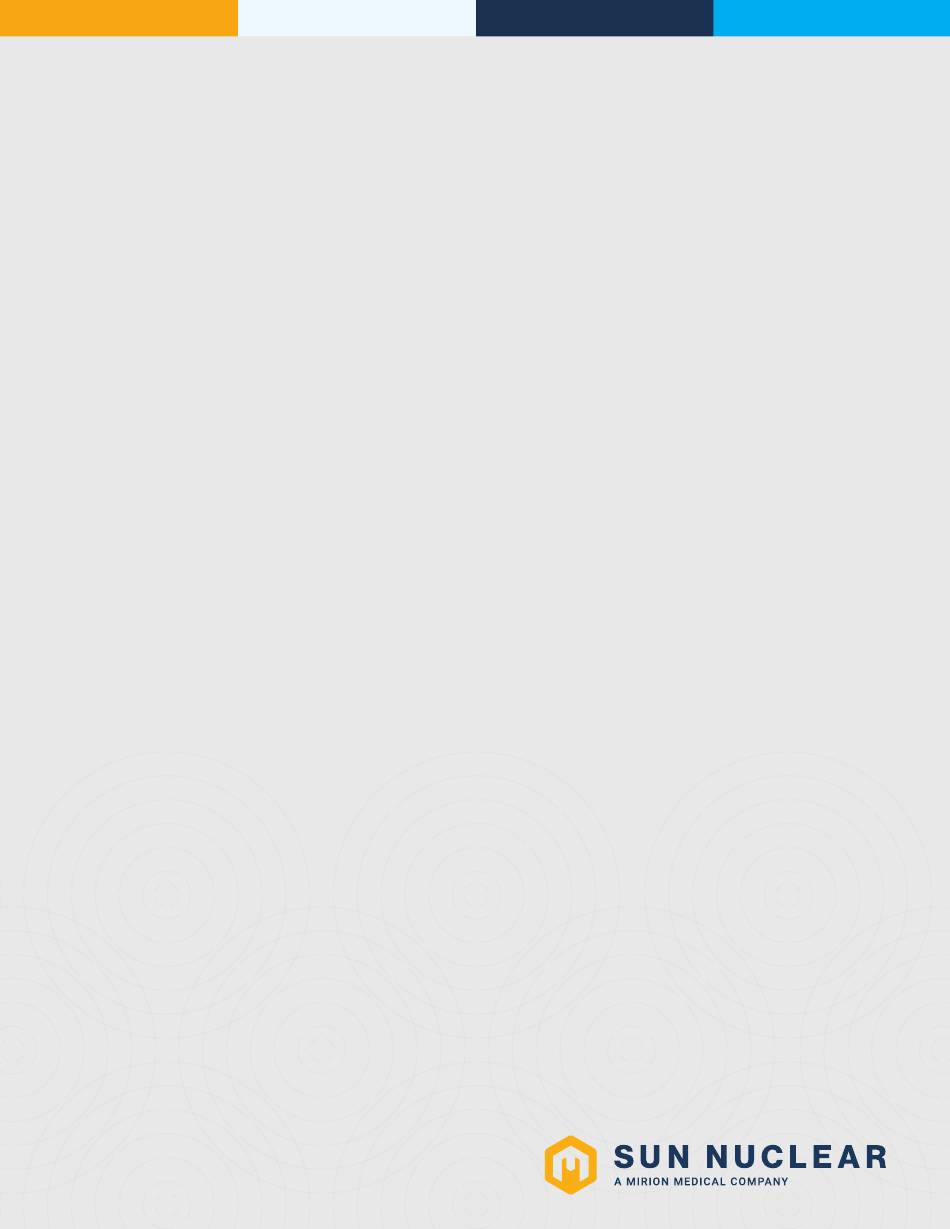

- Page 1 Title General & Small Parts Phantom User Guide Model 549...
- Page 2 General & Small Parts Phantom User Guide © 2014–2023 by Computerized Imaging Reference Systems, Inc. All rights reserved. The information contained in this guide is copyrighted and all rights reserved by CIRS. Copying, duplicating, selling, or otherwise distributing any part of this guide without the prior written con- sent of CIRS is prohibited.
-
Page 3: Table Of Contents
Results ....... . 4 Contacting Sun Nuclear Support ....13 Vertical Measurement Calibration. - Page 4 This page is intentionally left blank. Contents Page iv...
-
Page 5: Section 1. Introduction
Product Description The Model 549 General & Small Parts Phantom is an easy, comprehensive means of evaluating imaging systems with an operating frequency range of 2.25 to 15.0 MHz. The first 6 cm of this model has been designed to accommodate the higher frequencies, whereas the area between 6- 30 cm is reserved for frequencies less than 7.5 MHz. -
Page 6: Tests Performed
Tests Performed The following tests are performed: • Dead Zone or Ring-Down • Vertical Measurement Calibration • Horizontal Measurement Calibration • Focal Zone • Sensitivity/Penetration • Axial & Lateral Resolution • Functional Resolution • Image Uniformity • Gray Scale & Displayed Dynamic Range Introduction Page 2... -
Page 7: Section 2. Setup
Scan the Model 549 General & Small Parts Phantom, while adjusting the controls to produce the best possible image. If the bottom of the phantom is visualized, adjust the depth of penetration until only the lower targets are visualized without artifacts produced from the work surface. -
Page 8: Section 3. Testing Procedures
The system’s dead zone should remain consistent from week to week when using the same instrument settings and the Model 549 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system’s ability to resolve these targets, corrective action should be considered. -
Page 9: Vertical Measurement Calibration
The system’s vertical distances measurements should remain consistent from week to week when using the same instrument settings and the Model 549 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system’s ability to resolve these targets, corrective action should be considered. -
Page 10: Horizontal Measurement Calibration
The system’s horizontal distance measurements should remain consistent from week to week when using the same instrument settings and the Model 549 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system’s ability to resolve these targets, corrective action should be considered. -
Page 11: Axial And Lateral Resolution
Testing Procedure Model 549 provides three scanning surfaces to evaluate axial-lateral resolution at nine given depths. Target locations in the phantom are referenced from the first axial target. The line targets are spaced at 4.0, 3.0, 2.0, 1.0, and 0.05 mm intervals both axially and laterally. -
Page 12: Results
The system’s ability to resolve the array targets at given depths should remain consistent from week to week when using the same instrument settings and the Model 549 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system’s ability to resolve these targets, corrective action should be considered. -
Page 13: Results
The system’s focal zone should remain consistent from week to week when using the same instrument settings and the Model 549 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system’s ability to resolve these targets, corrective action should be considered. -
Page 14: Results
The system’s depth of penetration should remain consistent from week to week when using the same instrument settings and the Model 549 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system’s ability to resolve these targets, corrective action should be considered. -
Page 15: Testing Procedure
The system’s functional resolution and image uniformity should remain consistent from week to week when using the same instrument settings and the Model 549 phantom. Compare the test results obtained from the baseline records. If the current image demonstrates changes in the system’s ability to resolve these targets, or major areas of image nonuniformity are observed,... -
Page 16: Results
Model 549 phantom. Compare the test results obtained from the baseline records.If the current image demonstrates changes in the system’s ability to resolve these targets, corrective action should be considered. -
Page 17: Section 4. Support And Maintenance
Repair The phantoms and the parts provided with the phantoms cannot be repaired by the user. If there are problems with any of the devices, contact Sun Nuclear Support. Cleaning For best results, the phantom should be kept clean at all times. In particular, a buildup of dried coupling gel on the scan surface should be avoided. -
Page 18: Section 5. Specifications
Specifications Target Diagram Figure 5-1. Model 549 Target Diagram Specifications Page 14... -
Page 19: Product Specifications
Product Specifications General Characteristic Specification Overall Dimensions 36.5 x 25.7 x 9.5 cm* Housing Material Wall Thickness 1.0 cm* Scan Surfaces Scan Surface Dimensions 21.0 x 7.0 cm 31.5 x 7.0 cm Weight 7.1 kg (15.5 lb) Tissue-Mimicking Material Characteristic Specification Type Urethane rubber... -
Page 20: Anechoic Target Structures
Axial-Lateral Resolution Group Characteristic Specification Depths (first axial target) • Scan Surface 1 • 2.5, 5.5, 15.0, 21.0 cm • Scan Surface 2 • 7.0 cm • Scan Surface 4 • 13.0, 19.0, 28.5, 31.5 cm Interval Spacing 0.5, 1.0, 2.0, 3.0, 4.0 mm Anechoic Target Structures Group 2, 3, 4 mm Characteristic... -
Page 21: Appendix A: Regulatory Supplement
Appendix A: Regulatory Supplement Sun Nuclear Corporation Symbols The following symbols are used in this guide and in Sun Nuclear Corporation’s product labels. WARNING: This symbol indicates a hazard that could result in major injury or equipment damage. (EN ISO 7010, W001) CAUTION: This symbol indicates a potential hazard that could result in minor injury or equipment damage. -
Page 22: Operator Responsibility
Member State in which the user and/or patient is established. To report any safety or health related issues or concerns regarding the use of Sun Nuclear products, contact Sun Nuclear directly. - Page 24 +1 321 259 6862 sunnuclear.com Sun Nuclear Corporation, 3275 Suntree Boulevard, Melbourne, FL 32940 USA...
