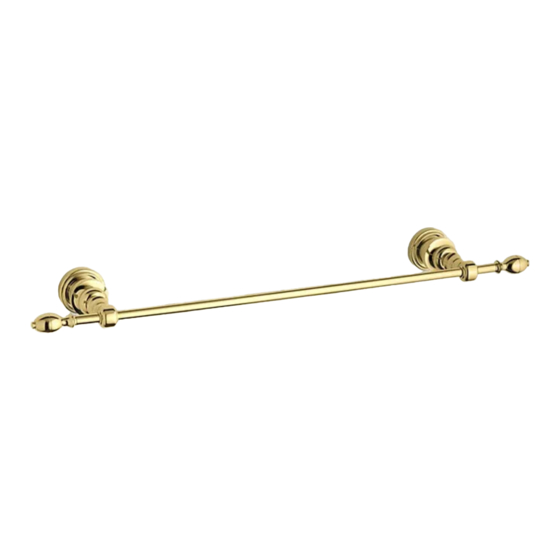

Kohler K-6816 Installation Manual
  1. Manuals
  2. Brands
  3. Kohler Manuals
  4. Bathroom Fixtures
  5. K-6816
  6. Installation manual

Kohler K-6816 Installation Manual

Hide thumbs Also See for K-6816:

Advertisement

Quick Links

Download this manual
Installation Guide
K-6819-GD, K-6820, K-6821,
M product numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
M corresponden a México (Ej.
K-12345M)
Français, page "Français-1"
Español, página "Español-1"
1020822-2-B
Accessories
K-6816, K-6817, K-6818,
K-6824, K-6826, K-6828,
K-6829

Advertisement

loading
Need help?

Need help?

Do you have a question about the K-6816 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kohler K-6816

Summary of Contents for Kohler K-6816

  • Page 1 Installation Guide Accessories K-6816, K-6817, K-6818, K-6819-GD, K-6820, K-6821, K-6824, K-6826, K-6828, K-6829 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page “Français-1” Español, página “Español-1” 1020822-2-B...

  • Page 2: Tools And Materials

    Use a level to ensure that the center lines for the wall plates are vertical where applicable and the post center lines are horizontal where applicable. Kohler Co. reserves the right to make revisions in the design of products without notice, as specified in the Price Book. 1020822-2-B...
  • Page 3 =18" (45.7 cm) 4-1/2" K-6826 =24" (61 cm) (11.4 cm) 2" 2" (5.1 cm) D. 5-1/2" (5.1 cm) D. (14 cm) K-6816=24-5/8" (62.5 cm) K-6826=30-1/2" (77.5 cm) K-6821 4-1/2" 4-1/2" (11.4 cm) (11.4 cm) 5" (12.7 cm) 7" (17.8 cm) 7-3/8"...
  • Page 4 Mark the vertical and horizontal centerlines for each post. Use a level to ensure that all center points are level. For Single-Post Accessories Mark the vertical and horizontal centerlines for the post. Use a level to ensure that all center points are level. 1020822-2-B Kohler Co.
  • Page 5 If your accessory requires multiple posts, verify the center points are level. NOTE: Use a 5/16″ drill bit for horizontal tissue holder installations. Use a 1/2″ drill bit for all other accessory installations. Set the wall plate aside, then drill a hole at each marked location. Kohler Co. 1020822-2-B...
  • Page 6 Place your thumb between the plastic straps. Wiggle the straps side-to-side until they snap off at the wall. Insert the enclosed bolt through the wall plate and tighten until it is flush with the wall. Minimum clearance behind the wall is 1–7/8” (4.8cm). 1020822-2-B Kohler Co.
  • Page 7 Anchors Screw Wall Plate 4. Install the Wall Plate Align the mounting holes on the wall plate with the anchors in the wall. Secure the wall plate to the wall with three screws. Fully tighten the screws. Kohler Co. 1020822-2-B...
  • Page 8 Place the post over the wall plate to ensure the splines are aligned. Repeat as necessary. Gently remove the post and tighten the screws on the wall plate. Place the long sleeve onto the rod, then slide the rod through the hex slots of the post. 1020822-2-B Kohler Co.
  • Page 9 Place the gasket and post onto the escutcheon. The hex slots on the post should be horizontal. Ensure the splines inside the post align with the splines on the wall plate. Secure the post to the wall plate with a screw. Repeat with the other posts. Kohler Co. 1020822-2-B...
  • Page 10 Towel Ring: Slide the center cap onto the post. Place the pin into the hex slot in the post. Carefully spread the towel ring apart and slip the open ends of the ring over the pin. Use care when spreading the towel ring to avoid scratching the post. 1020822-2-B Kohler Co.
  • Page 11 If the posts do not align, repeat the procedure in the “Install the Post” section as necessary. Make sure the sleeves fit into the recesses in the center caps. Slide the remaining short sleeves onto the end of the hex bar and attach the knob. Kohler Co. 1020822-2-B...
  • Page 12 Place the washer over the sleeve. Position the tissue holder assembly onto the assembled escutcheon. Hold the tissue holder assembly in place while turning the escutcheon clockwise until hand tight. Do not overtighten. Adjust the tissue holder assembly in the desired position. 1020822-2-B Kohler Co.
  • Page 13 Wet the end of the glass shelf with a mild soap solution. Carefully slide the shelf into the brackets. Adjust the shelf brackets as necessary to achieve level. Tighten all setscrews. Kohler Co. 1020822-2-B...
  • Page 14 Slide the support bar into the bearing. Place the sleeve over the bracket extension. Screw the bracket onto the support bar. Place the sleeve over the opposite end of the support bar. Screw the end cap with a washer onto the support bar. 1020822-2-B Kohler Co.

  • Page 15: Outils Et Matériels

    Merci d’avoir choisi la compagnie Kohler Nous apprécions votre engagement envers la qualité Kohler. Veuillez prendre s’il vous plaît quelques minutes pour lire ce manuel avant de commencer l’installation. Ne pas hésiter à nous contacter en cas de problème d’installation ou de performance.
  • Page 16 Utiliser un niveau à bulle pour s’assurer que les axes des plaques murales soient verticaux et que les lignes centrales soient horizontales. Kohler Co. se réserve le droit d’apporter toutes modifications sur le design des produits et ceci sans préavis, tel que spécifié dans le catalogue des prix.
  • Page 17 = 18" (45,7 cm) 4-1/2" K-6826 = 24" (61 cm) (11,4 cm) Ø 2" Ø 2" (5,1 cm) 5-1/2" (5,1 cm) (14 cm) K-6816=24-5/8" (62,5 cm) K-6826=30-1/2" (77,5 cm) K-6821 4-1/2" 4-1/2" (11,4 cm) (11,4 cm) 5" (12,7 cm) 7" (17,8 cm) 7-3/8"...
  • Page 18 Utiliser un niveau à bulle pour s’assurer que tous les axes soient nivelés. Pour des accessoires à un seul montant Marquer les lignes centrales verticales et horizontales pour le montant. Utiliser un niveau à bulle pour s’assurer que tous les axes soient nivelés. 1020822-2-B Français-4 Kohler Co.
  • Page 19 REMARQUE : Utiliser une mèche de 5/16″ pour des installations de portes-papier hygiénique horizontaux. Utiliser une mèche de 1/2″ pour toutes autres installations d’accessoires. Mettre la plaque murale de côté, puis percer un trou à chaque emplacement marqué. Kohler Co. Français-5 1020822-2-B...
  • Page 20 Faire glisser le capuchon de plastique le long des sangles jusqu’à ce qu’il soit à égalité avec le mur. Placer le pouce entre les sangles en plastique. Bouger les sangles d’un côté à l’autre pour les casser au mur. 1020822-2-B Français-6 Kohler Co.
