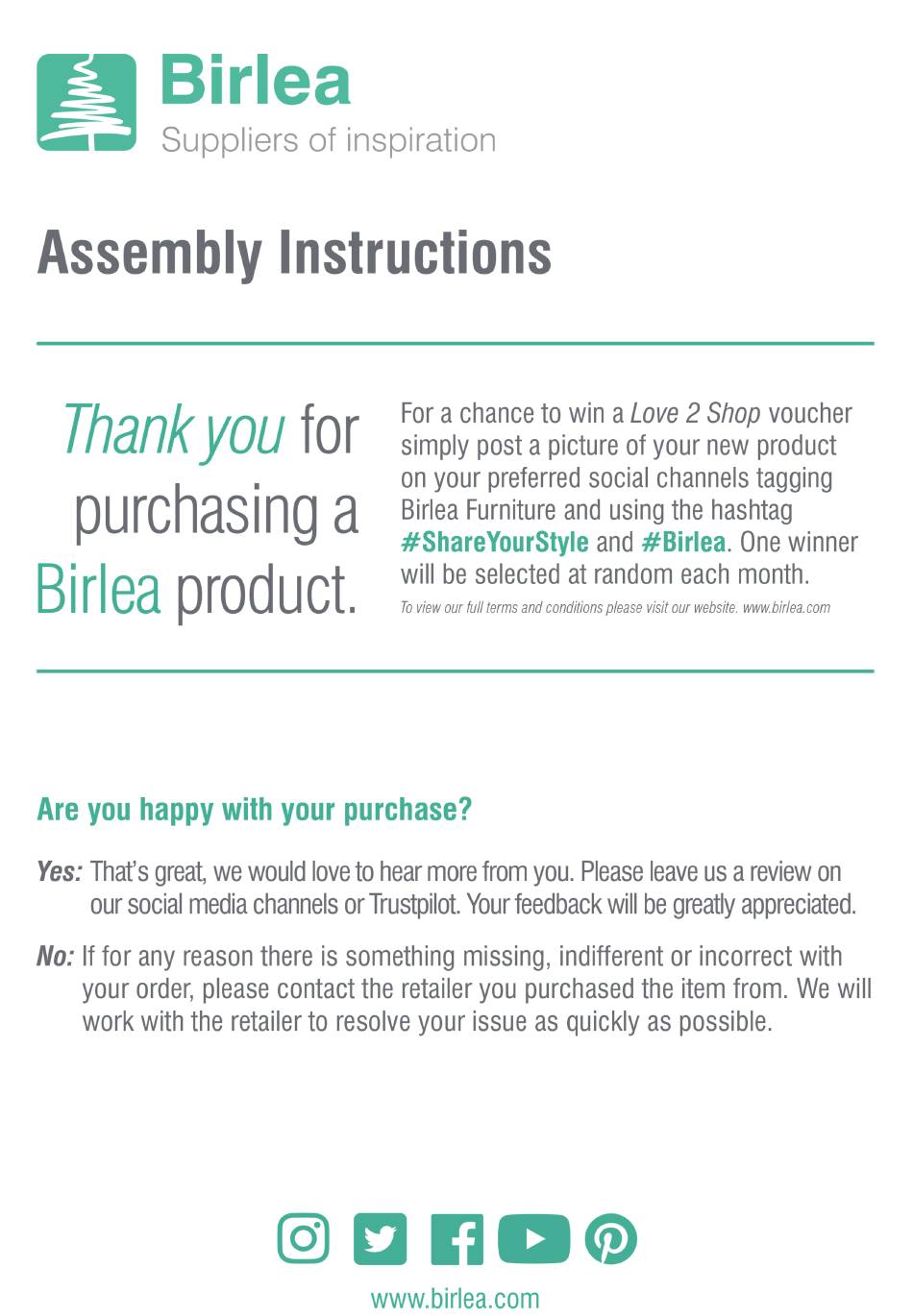

Page 2: Health And Safety

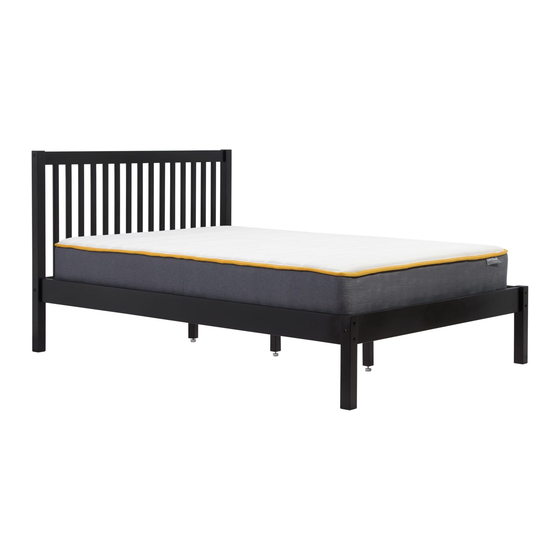

ASSEMBLY INSTRUCTIONS 120/135/150CM NOVA BED IMPORTANT:READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR NOVA BED FRAME. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT jump on this bed frame. DO NOT use this bed frame if any parts are missing, damaged or worn. - Page 3 Vendor:S000409 Parts List Hardware List(found in box2) Part Description Part Description Headboard Left Post M6×100mm Bolt Headboard Right Post Footboard Right Post φ10×30mm Dowel Footboard Left Post Allen Key Side Rail φ4×30mm Screw Headboard Panel 40×40mm Pad Footboard Panel φ7×50mm Screw Slat Support Leg Centre Rail...
- Page 4 Vendor:S000409 Step 2: Insert hardware part C to the footboard panel (7) using a small mallet (not provided). Attach the footboard left post(4) and footboard right post(3) to the footboard panel(7) using hardware parts A,B,andD. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 5 Vendor:S000409 Step 4: Attach support legs(9) and centre rail (10) to the headboard posts using hardware E with screwdriver(not provided) and G with hardware D. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Fix the slats(8)to the side rails(5)using hardware E with screwdriver(not provided).
- Page 6 ● If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. ● Why don't you send us photos of your assembled furniture to info@birlea.com...
