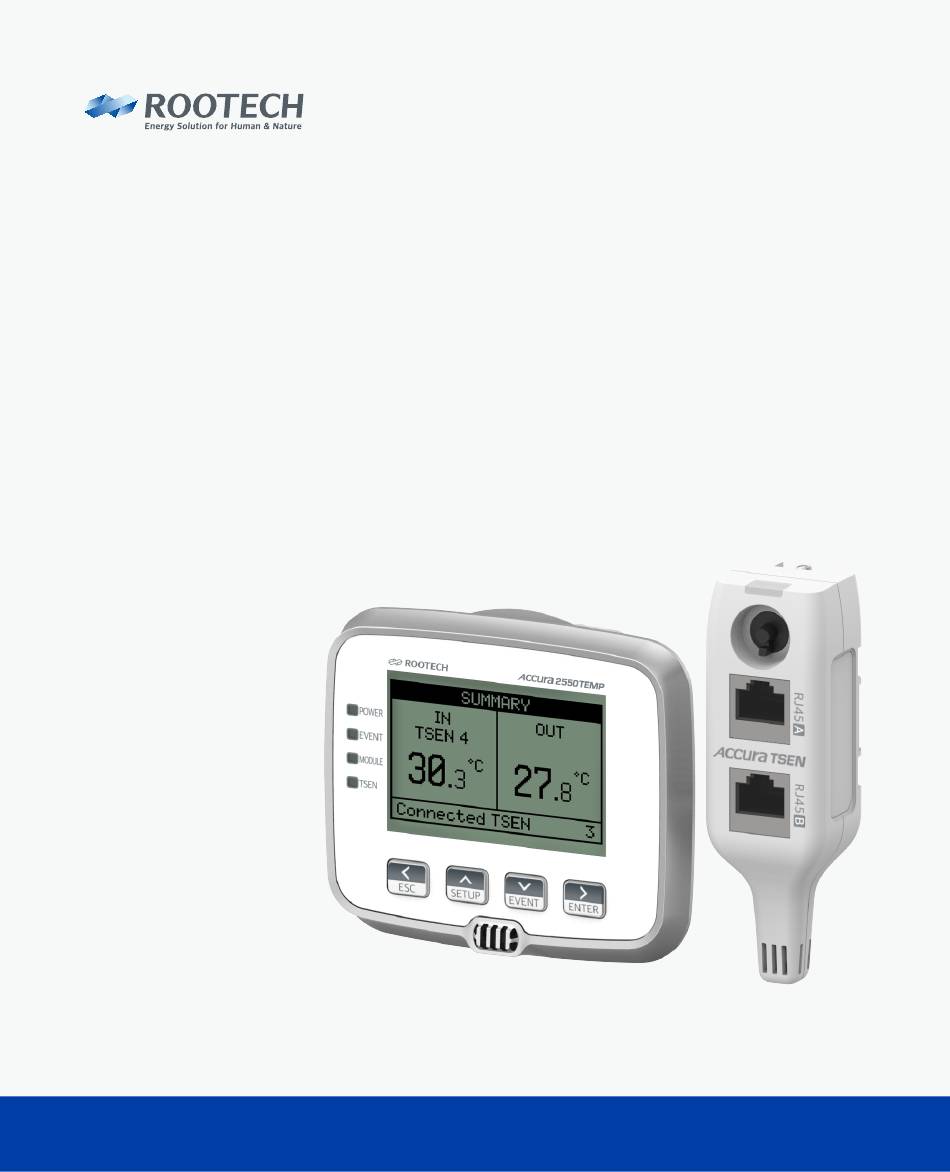

- Page 1 Accura 2550TEMP Quick Setup Guide Accura 2550TEMP Accura TSEN Revision 1.00[English] January 6, 2023 ※ Please refer to the User Guide for details...
- Page 2 Button Operation Long press SET button to enter SETUP mode Button Short Move to the next menu item /Change value press Do not save Long Enter Enter Select /Exit Setup mode Event mode save press Setup mode *Makes menu item changeable(blink)
- Page 3 Setup Menu Select the menu item by short-pressing buttons ※ Refer to the User Guide for details INTERFACE EVENT SETUP DIO SETUP SYSTEM SETUP IN TSEN EVENT* DIGITAL INPUT TEMPERATURE SYSTEM* IN TSEN EVENT DIGITAL OUTPUT LCD BACKLIGHT OUT EVENT* BUZZER DIFF EVET* SETUP EXIT...
- Page 4 IN TSEN EVENT Setup (Disable) Function range (Enable) Setup Threshold range (0.0 - 100.0 ℃) Setup Time Delay range (0 - 10,000 msec)
- Page 5 OUT TSEN EVENT Setup (Disable) Function range (Enable) Setup Threshold range (0.0 - 100.0 ℃) Setup Time Delay range (0 - 10,000 msec)
- Page 6 DIFF EVENT Function Threshold (Disable) Setup range Setup range (1.0 - 100.0 ℃) (Enable)
- Page 7 SYSTEM Module ID Setup range (0 - 39)
- Page 8 Please refer to the User Guide for details...
