Secure Liberty 100 Technical Reference Manual page 63

Title 1: Cumulative import active rate register
Followed by value
Press key 9 to advance to the next display
Title 2: Cumulative export active rate register
Followed by value
Press key 9 to advance to the next display
Title 3: Cumulative import reactive rate register
Followed by value
Press key 9 to advance to the next display
Title 4: Cumulative export reactive rate register
Followed by value
Press key 9 to advance to the next display
BGX501-767-R02
(timeout 2 secs)
(timeout 4 secs)
(timeout 2 secs)
(timeout 4 secs)
(timeout 2 secs)
(timeout 4 secs)
(timeout 2 secs)
(timeout 4 secs)
Liberty 100 Smart Electricity Meter Technical Reference Manual
st

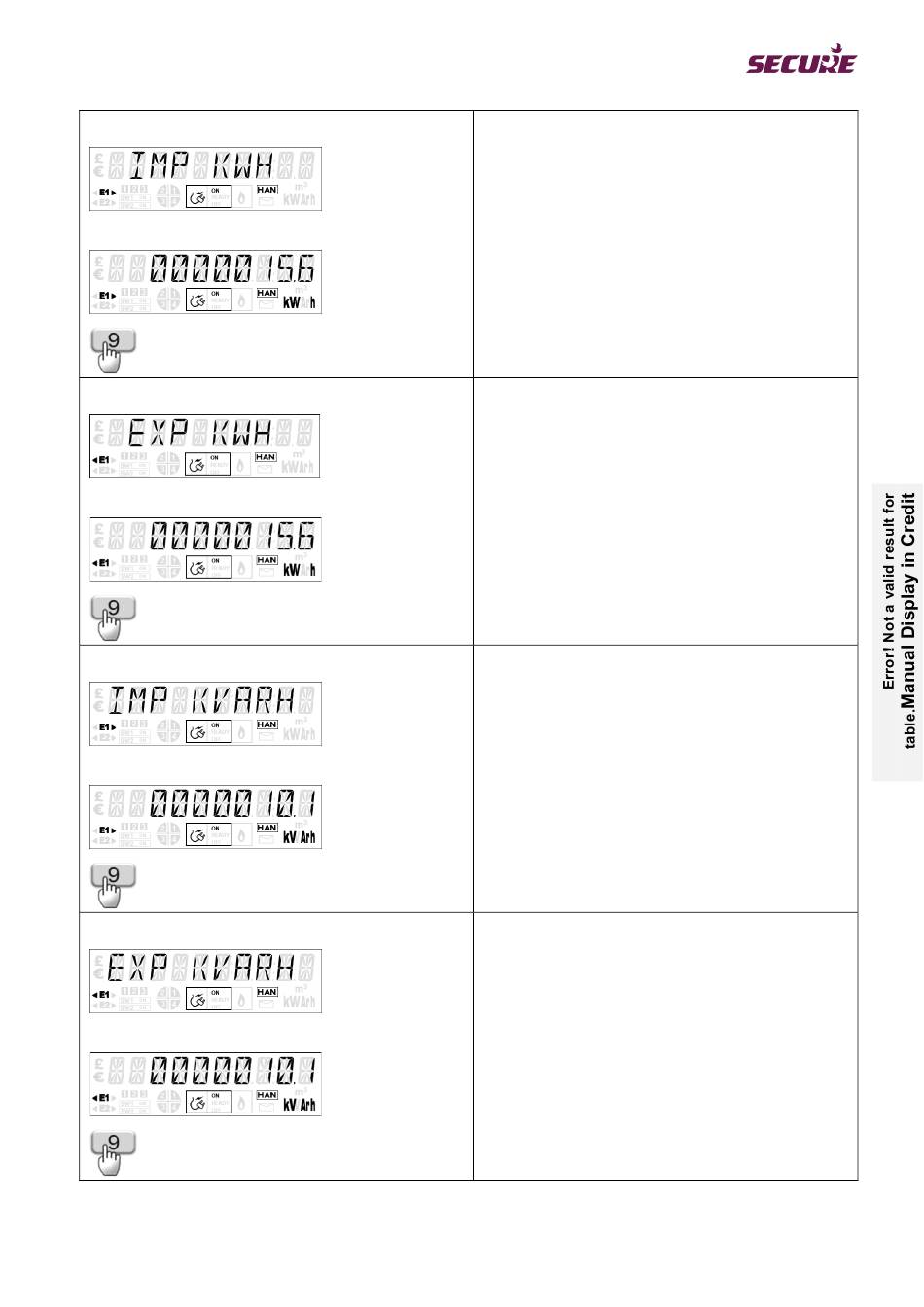

The 1 set of displays associated with key 9
indicating the cumulative energy value recorded in
the import active rate register since manufacture.
The example shows that 15.6 kWh have been
recorded.
nd
The 2 set displays the cumulative energy value
recorded in the export active rate register since
manufacture.
The example shows that 15.6 kWh have been
recorded.
rd
The 3 set displays the cumulative energy value
recorded in the import reactive rate register since
manufacture.
The example shows that 10.1 kVArh have been
recorded.
th
The 4 set displays the cumulative energy value
recorded in the export reactive rate register since
manufacture.
The example shows that 10.1 kVArh have been
recorded.
Page 63 of 116
