Table 11: Key '6' Display In Credit Mode - Secure Liberty 100 Technical Reference Manual

Followed by value
Press key 6 to advance to the next display
Title 5: Current TOU tariff rate register for energy
export
Followed by value
Followed by value
Press key 6 to return to the 1
Press key B to scroll back up the display list.
No key press at the end of this display sequence will
cause the auto-cycle display to resume.
Key 7 and Key 8: No function allocated
For credit mode no functions are allocated to these key. A short press will display 'Not Used' as shown below:
Key 9: Total Import and Export registers
A short press of key '9' will initiate the associated display sequence. After each set of information comprising a
title followed by its data, either a four (4) seconds wait or short press of the key will advance the display to the
next set of information as described below.
Page 62 of 116 Liberty 100 Smart Electricity Meter Technical Reference Manual

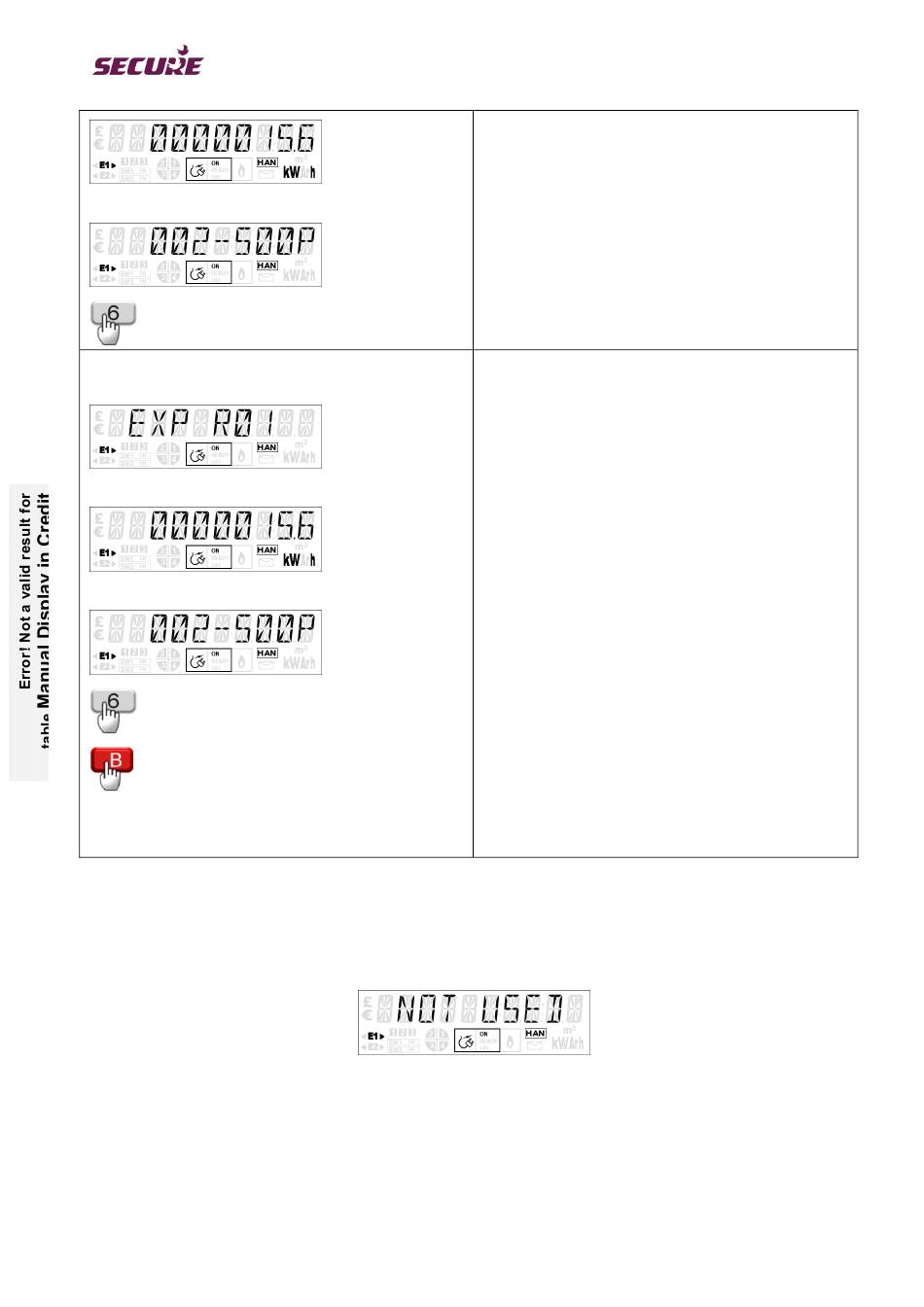

The example display shows that 15.6 kWh have
been recorded in this register and 2.50 pence is the
(timeout 4 secs)
current Rate1, Block1 cost per kWh.
(timeout 4 secs)
The 5
currently applicable and its cumulative value.
The example shows that 15.6 kWh have been
recorded in this register and 2.50 pence is the
(timeout 2 secs)
current R01 cost per kWh.
(timeout 4 secs)
(timeout 4 secs)
st
display.

Table 11: Key '6' display in Credit mode

th
set displays the export TOU tariff rate register
