Tony Ray's AeroModel Minimoa Build Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual

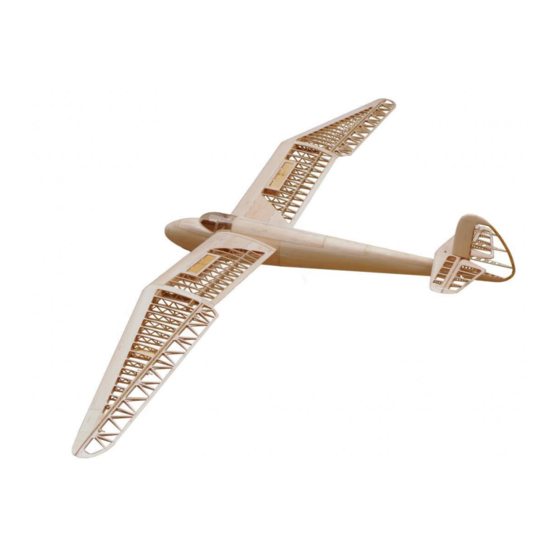

Minimoa
Build instructions
Specifications
Wing Span
112 in / 2844mm
Wing Area
54.8 sq dm
Flying weight
2.0kg-2.1g
Fuselage length
1246mm
Scale
1 / 6
Requires
RC transmitter with at least 5 channels
9g servos(ES08/DS395)*2
17g Servo(ES3004/AS82MG)*2
43g Standard Servo(ES3001/AS549)*2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Minimoa and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tony Ray's AeroModel Minimoa

Summary of Contents for Tony Ray's AeroModel Minimoa

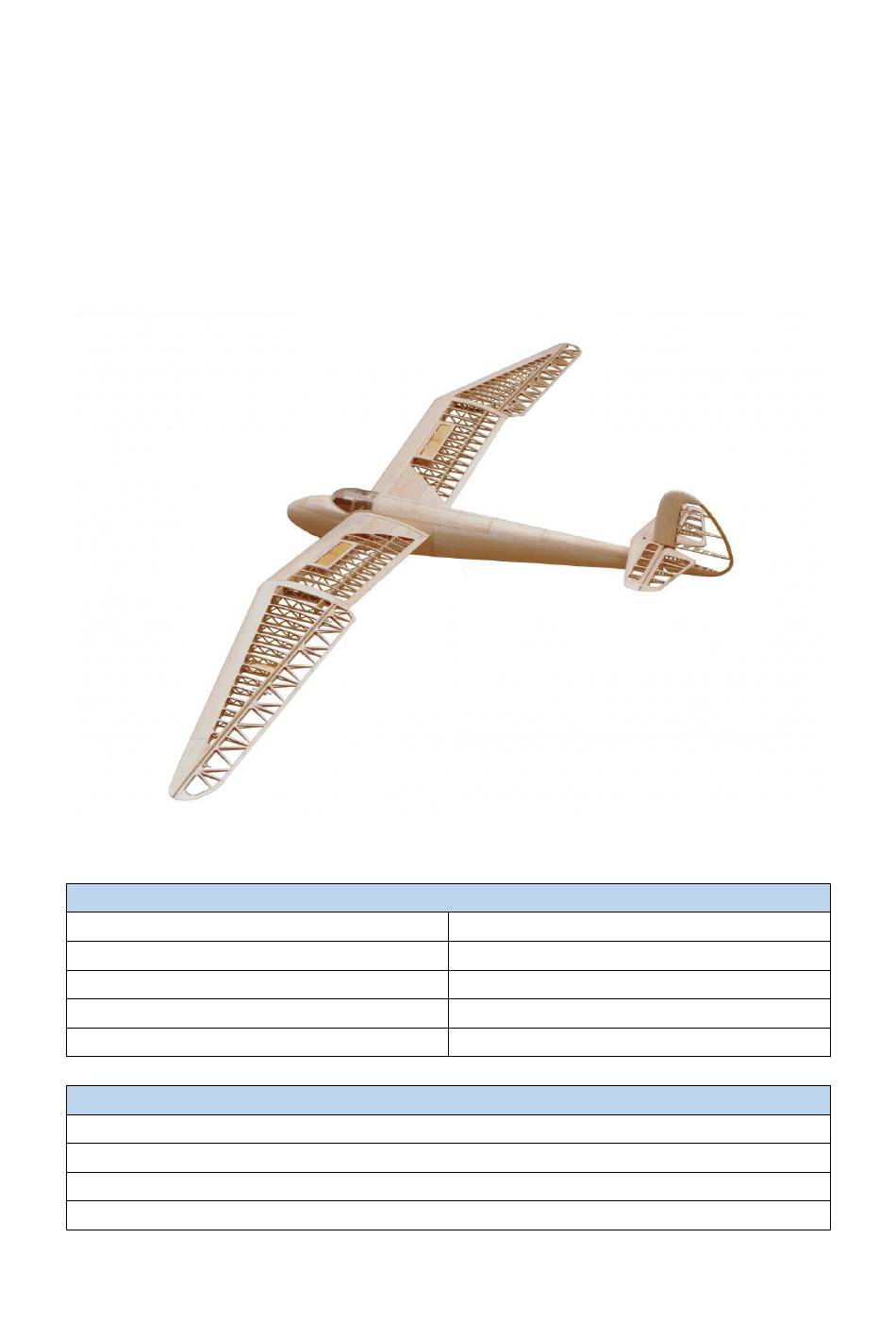

  • Page 1 Minimoa Build instructions Specifications Wing Span 112 in / 2844mm Wing Area 54.8 sq dm Flying weight 2.0kg-2.1g Fuselage length 1246mm Scale 1 / 6 Requires RC transmitter with at least 5 channels 9g servos(ES08/DS395)*2 17g Servo(ES3004/AS82MG)*2 43g Standard Servo(ES3001/AS549)*2...
  • Page 2 INDEX BEFORE YOU BEGIN-------------------------------------------------------------------------------------------P.3 KIT INVENTORY-------------------------------------------------------------------------------------------P.4~P.5 ASSEMBLY-Rudder--------------------------------------------------------------------------------------P.6~P.14 ASSEMBLY-Horizontal Tail---------------------------------------------------------------------------P.15~P.27 ASSEMBLY-Centre Wing Section-------------------------------------------------------------------P.28~P.51 ASSEMBLY-Outer Wing Section--------------------------------------------------------------------P.52~P.66 ASSEMBLY-Aileron-------------------------------------------------------------------------------------P.67~P.73 ASSEMBLY-Fuselage I----------------------------------------------------------------------------------P.74~P.92 ASSEMBLY-Fuselage II-------------------------------------------------------------------------------P.93~P.113 ASSEMBLY-Canopy---------------------------------------------------------------------------------P.114~P.120 ASSEMBLY-Before you fly-------------------------------------------------------------------------P.121~P.124...
  • Page 3 BEFORE YOU BEGIN Attentions and Tips 1.Read through the manual before you begin, so you will have an overall idea of what to do. 2. Check all parts. If you find any serious defects or missing parts, please contact your local dealer.
  • Page 4 KIT INVENTORY Sheet Wood Inventory Item: Mark Quantity 1.5mm Balsa B series:B1-B4, C series: C1-C10 2.0mm balsa A series:A1-A7. H series: H1-H4 5.0mm balsa D series: D1-D3 2.0mm Plywood E series: E1-E6 3.0mm Plywood F series: F1-F2 2.0mm Paulownia G series: G1-G2 2 separate airbrake surface parts 1mm Plywood 2 separate spar parts...
  • Page 5 Hardware parts Blister PVC canopy(Front) Laser cut PVC canopy(Behind) PVC Tube (Outer diameter: 12mm, Inner diameter: 10mm) Aluminum Tube (Outer diameter: 10mm, Inner diameter: 6mm) Plastic Hinges (Flaky Version) Plastic Hinges (Columnar Version) M2*8 Screws (Spacer Version) M2*10 Screws M3*35 Screws M3*25 Screws M2 Screw nut M3 Screw nut...
  • Page 6 Part1. Rudder Step 1 Step 2...
  • Page 7 Step 3 Step4...
  • Page 8 Step5 Step6...
  • Page 9 Step7 Step8...
  • Page 10 Step9 Step10...
  • Page 11 Step11 Step12...
  • Page 12 Step13 Step14...
  • Page 13 Step15 Step16...
  • Page 14 Step17 Step18...
  • Page 15 Part2. Horizontal Tail Step 1 Step 2...
  • Page 16 Step 3 Step 4...
  • Page 17 Step 5 Step 6...
  • Page 18 Step 7 Step 8...
  • Page 19 Step 9 Step 10...
  • Page 20 Step 11 Step 12...
  • Page 21 Step 13 Step 14...
  • Page 22 Step 15 Step 16...
  • Page 23 Step 17 Step 18...
  • Page 24 Step 19 Step 20...
  • Page 25 Step 21 Step 22...
  • Page 26 Step 23 Step 24...
  • Page 27 Step 25 Builder’s note:...
  • Page 28 Part3.Centre wing section Step 1 Step 2...
  • Page 29 Step 3 Step 4...
  • Page 30 Step 5 Step 6...
  • Page 31 Step 7 Step 8...
  • Page 32 Step 9 Step 10...
  • Page 33 Step1 1 Step 12...
  • Page 34 Step 13 Step 14...
  • Page 35 Step 15 Step 16...
  • Page 36 Step 17 Step 18...
  • Page 37 Step 19 Step 20...
  • Page 38 Step 21 Step 22...
  • Page 39 Step 23 Step 24...
  • Page 40 Step 25 Step 26...
  • Page 41 Step 27 Step 28...
  • Page 42 Step 29 Step 30...
  • Page 43 Step 31 Step 32...
  • Page 44 Step 33 Step 34...
  • Page 45 Step 35 Step 36...
  • Page 46 Step 37 Step 38...
  • Page 47 Step 39 Step 40...
  • Page 48 Step 41 Step 42...
  • Page 49 Step 43 Step 44...
  • Page 50 Step 45 Step 46...
  • Page 51 Step 47 Builder’s note:...
  • Page 52 Part4.Outer wing section Step 1 Step 2...
  • Page 53 Step 3 Step 4...
  • Page 54 Step 5 Step 6...
  • Page 55 Step 7 Step 8...
  • Page 56 Step 9 Step 10...
  • Page 57 Step 11 Step 12...
  • Page 58 Step 13 Step 14...
  • Page 59 Step 15 Step 16...
  • Page 60 Step 17 Step 18...
  • Page 61 Step 19 Step 20...
  • Page 62 Step 21 Step 22...
  • Page 63 Step 23 Step 24...
  • Page 64 Step 25 Step 26...
  • Page 65 Step 27 Step 28...
  • Page 66 Step 29 Step 30...
  • Page 67 Part5.Aileron Step 1 Step 2...
  • Page 68 Step 3 Step 4...
  • Page 69 Step 5 Step 6...
  • Page 70 Step 7 Step 8...
  • Page 71 Step 9 Step 10...
  • Page 72 Step 11 Step 12...
  • Page 73 Step 13 Step 14...
  • Page 74 Part6.Fuselage I Step 1 Step 2...
  • Page 75 Step 3 Step 4...
  • Page 76 Step 5 Step 6...
  • Page 77 Step 7 Step 8...
  • Page 78 Step 9 Step 10...
  • Page 79 Step 11 Step 12...
  • Page 80 Step 13 Step 14...
  • Page 81 Step 15 Step 16...
  • Page 82 Step 17 Step 18...
  • Page 83 Step 19 Step 20...
  • Page 84 Step 21 Step 22...
  • Page 85 Step 23 Step 24...
  • Page 86 Step 25 Step 26...
  • Page 87 Step 27 Step 28...
  • Page 88 Step 29 Step 30...
  • Page 89 Step 31 Step 32...
  • Page 90 Step 33 Step 34...
  • Page 91 Step 35 Step 36...
  • Page 92 Step 37 Step 38...
  • Page 93 Part7.Fuselage II Step1 Step2...
  • Page 94 Step3 Step4...
  • Page 95 Step5 Step6...
  • Page 96 Step7 Step8...
  • Page 97 Step9 Step10...
  • Page 98 Step11 Step12...
  • Page 99 Step13 Step14...
  • Page 100 Step15 Step16...
  • Page 101 Step17 Step18...
  • Page 102 Step19 Step20...
  • Page 103 Step21 Step22...
  • Page 104 Step23 Step24...
  • Page 105 Step25 Step26...
  • Page 106 Step27 Step28...
  • Page 107 Step29 Step30...
  • Page 108 Step31 Step32...
  • Page 109 Step33 Step34...
  • Page 110 Step35 Step36...
  • Page 111 Step37 Step38...
  • Page 112 Step39 Step40...
  • Page 113 Step41 Builder’s note:...
  • Page 114 Part8.Canopy Step1 Step2...
  • Page 115 Step3 Step4...
  • Page 116 Step5 Step6...
  • Page 117 Step7 Step8...
  • Page 118 Step9 Step10...
  • Page 119 Step11 Step12...
  • Page 120 Step13...
  • Page 121 Part9.Before you fly...
  • Page 124 90mm from the leading edge of the wing Control Travel ELEVATOR ±15° RUDDER ±15° AILERON ＋25°－15° Note ： In order to make the flying experience better, please avoid the same amount of aileron up and down, which will cause slight reverse sideslip...
  • Page 125 Thank you!
