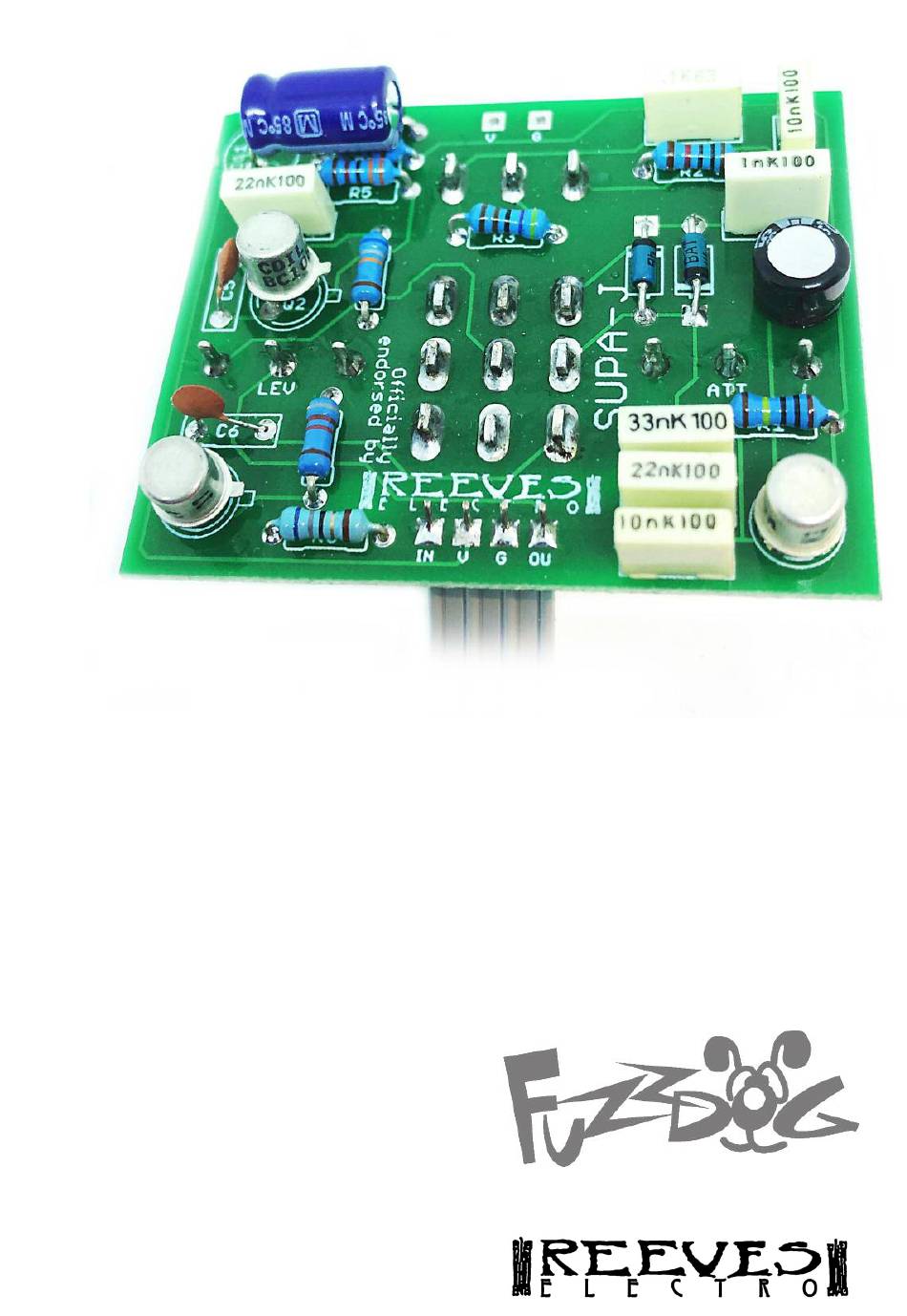

- Page 1 Supa-J Bringing the Reeves Electro fuzz to the masses in collaboration with Contents of this document are ©2023 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
-
Page 2: Important Notes
Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it. - Page 3 100u elec* SPDT ON-ON 3PDT ON-ON S1 switches between C3 and C4, changing the voicing S2 does quite a lot, switching between Supa-J and Marshall Supa-Fuzz modes *C11 needs to mount horizontally due to the height issues with the 3PDT.
- Page 5 The power and signal pads on the PCB conform See page 7 before you solder the pots and to the FuzzDog Direct Connection format, so can toggles - there’s a little fiddling to do to get be paired with the appropriate daughterboard for things lined up nicely.
- Page 6 Pesky tall switches, messing with the plan... Mount C11 as shown, above D3, R5 and R7. If you mount it normally then it’ll likely stop the enclosure from closing due to the extra height required for the 3PDT toggle switch. There are no rules.
- Page 7 Getting things straight... Unfortunately we have to deal with the extra height of the 3PDT toggle switch when getting the controls lined up. It’s not hard, just a little fiddly. You need to solder the 3PDT in place before the other switch and pots.
- Page 8 Test the board! Check the relevant daughterboard document for more info before you undertake this stage. UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
- Page 9 Now’s the time to refer to the daughterboard document for your chosen bypass method. Enjoy your pedal!
- Page 10 Wiggle room = good! 32mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
- Page 11 Drilling template Recommended drill sizes: without battery - top DC Pots Jacks 10mm Footswitch 12mm DC Socket 12mm Hammond 1590B - 60 x 111 x 31mm Toggle switches It’s a good idea to drill the pot and toggle switch holes 1mm bigger if you’re board-mounting them.
