Installation

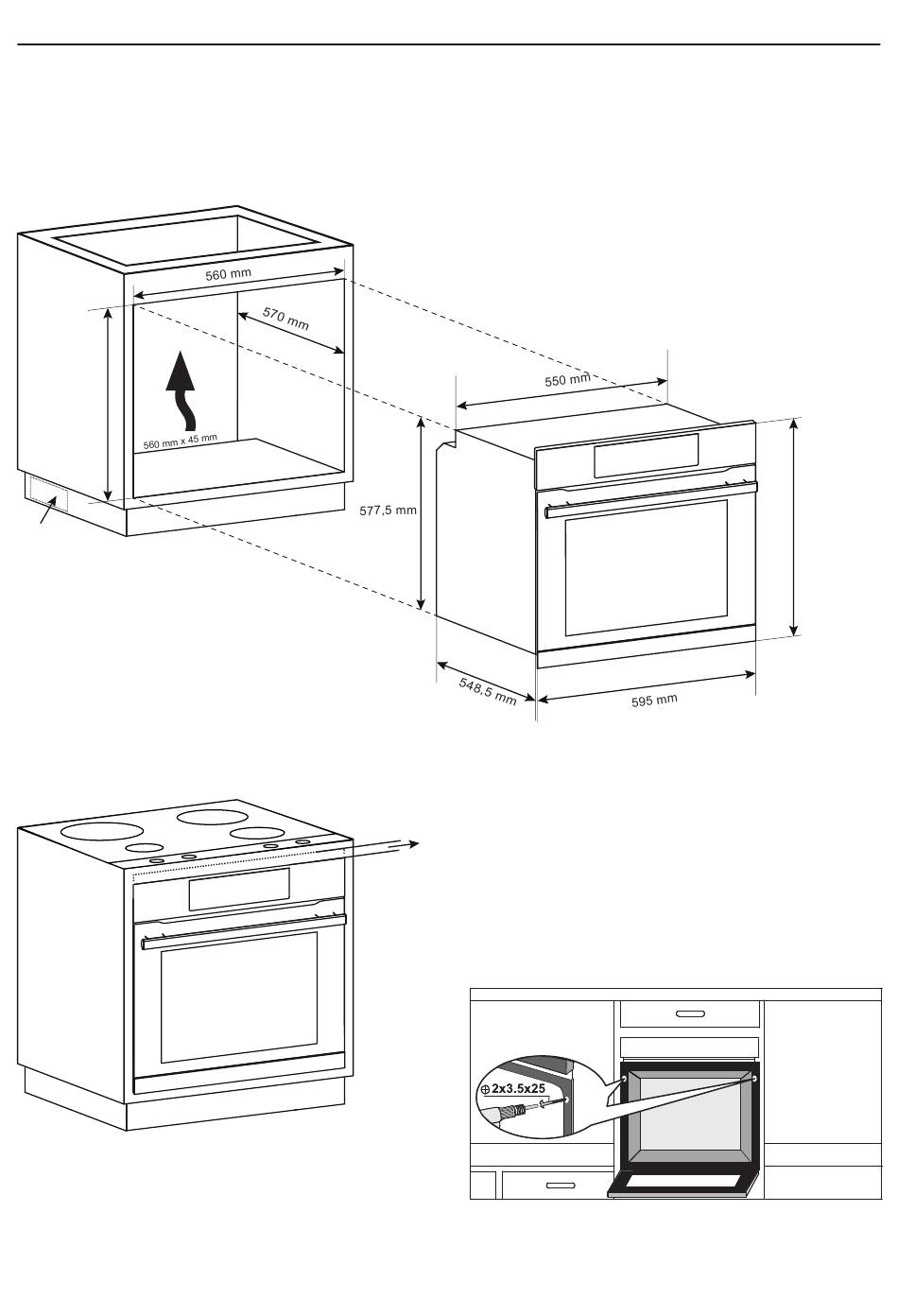

Mounting Under Cooktop
The cabinetry should follow the dimensions shown. This allows for sufficient airflow behind the oven and
between the oven and cooktop for cooling. If the cabinetry base is fully sealed, an opening(s) should be
provided to allow cool air to enter.
600 mm
595 mm
Air Entry
20 mm
Air Exit
5 mm gap
* mandatory for all types of installations
Note: be sure to consult the cooktop manufacturer's installation guide to ensure adequate clearances.
20
