- Page 1 Instruction WIFI AUTOMATIC WATERING PUMP KIT Model: IK10PW Free Hotline US: +1 833-381-5659 Web: www.rainpointonline.com (MON-FRI 9:30 AM-5:30 PM PST) EU: +44 800-808-5337 Email: service@rainpointus.com (MON-FRI 9:00 AM-5:00 PM CET ) WhatsApp: +1 626-780-5952...
- Page 2 Dear friend, Thanks for choosing RAINPOINT WiFi automatic watering system！ Your satisfaction as a RAINPOINT customer means everything to us. Before using this unit, please read these operating instructions carefullys, take special care to follow the warning and safety suggestions. If you have any questions or problems during using our product, please contact our customer service and your problem will be solved within 24hrs.
-
Page 3: Table Of Contents
1. PRODUCT APPEARANCE 2. PACKAGE INCLUDES 02-03 3. SPECIFICATION FCC NOTICE SIMPLE TO PAIR WIFI 05-11 1. INITIAL RAINPOINT APP SETUP 2. PAIR THE WATER PUMP 06-11 EASY TO INSTALL 12-16 1. TWO POWER SUPPLY METHODS 12-13 1.1 Install 4*AA 1.5V alkaline batteries for power 1.2 Plug in the USB cable for power... - Page 4 APP INTERFACE OVERVIEW 17-22 1. HOME INTERFACE 2. IRRIGATION SCHEDULE SETTINGS 3. DEVICE INFORMATION 4. SMART FUNCTIONS INTERFACE 20-22 5. PERSONAL DATE INTERFACE AUTOMATIC WATERING MODE MANUAL WATERING MODE RESET THE DEVICE TROUBLESHOOTING 26-27 WARRANTY CUSTOMER SUPPORT...
-
Page 5: Product Overview

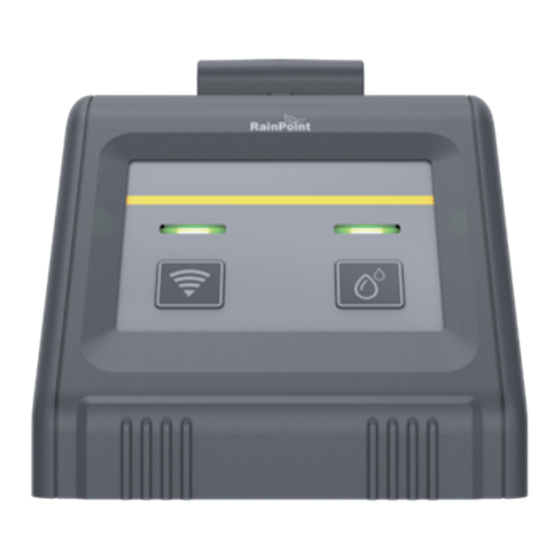

PRODUCT OVERVIEW 1. Product Appearance Name Function WiFi Button Pair WiFi or reset Manual Button Manual or pause watering Watering Indicator Light Indicates the status of watering Pair WiFi or power supply Indicates the status of Water conveying from container to pump Water conveying from pump to plants Power supply - 01 -... -
Page 6: Package Includes
2. Package Includes Accessories Name Function Included USB Cable Pair WiFi or power supply Len: 10m/32.8 Ft Tubing Inner diameter of pipe:0.17”(＞1/6”) Outside diameter of pipe: 1/4” Filter Filtering impurities from water Tubing End Caps Micro Drip root directly Emitters Straight Barb Conne cting water pipes Fitting... -
Page 7: Specification
Detachable Put it on the timer to make the timer hangable Hook Prevents water from backing up in the Check Valve pipes back to the pump Working Pressure 0.3Bar Water Flow 30L/H Water Proof IPX2 Pumping Head 2-3m Pumping Distance 2-3m Maximum Water Pressure ≥200kPa... -
Page 8: Fcc Notice
FCC STATEMENT: (FCC ID:2AWDBTTP106W) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: Simple To Pair Wifi
SIMPLE TO PAIR WIFI 1. Initial RainPoint App Setup 1.1 Search for "RainPoint"and download Android version or iOS version App for free. Or scan the QR code to download Rainpoint APP. 1.2 Create an account and login or login with an existing... -
Page 10: Pair The Water Pump
2. Pair the water pump 2.1 Click the button on the home page of the APP Timer with Pump - 06 -... - Page 11 2.3 Select 2.4GHZ Wi-fi Network and enter password. Then click " next ". Note： Rainpoint Wi-fi water pump only pairing with a 2.4GHz Wifi, for a dual-band router, please independently enable 2.4GHz WiFi band and name it differently from 5GHz WiFi band.
- Page 12 2.4 Always powered by USB cable (Included) for wifi connection and remote control. Light flashing guide Powered up and not paired Flashes quickly(once a second) Porwered on and no network Falshes slowly (once every 2 seconds) Powered on and paired Flashes always on (Network connected) 2.5 Press and hold 5 seconds of...
- Page 13 2.5 Powered the pump with USB cable and follow the instructions on the APP to reset first . Then click" "to confirm indicator rapidly blink and click "Next" to enter the pair mode. Note: • Pairing Wifi and accessing APP requires high current support , so make sure the USB cable is powered on before pairing •...
- Page 14 2.6 Wi-Fi pairing requires about 1-2 mins,once the device is paired successfully, the APP will show "Device added successfully". Note : • You can customize the name of the device as required. • If you have not been able to pair for over 2 mins, please go to page 16 and follow the instructions to fully reset the device and start pairing again from the beginning.
- Page 15 After paring, you can remotely manage multi-watering plans, notifications will be sent to APP when "Automatic" watering plans are active or pump is out of water. it's perfect to take care of your potted plants when busy with chores or away on vacation.
-
Page 16: Easy To Install
EASY TO INSTALL Battery power supply is only suitable for timed watering and manual watering that have been set to run, and cannot be remotely controlled. rand new AA (1.5V) alkaline batteries (not included) as the marked "-", "+" direction. light up when you press button. -
Page 17: Plug In The Usb Cable For Power
WiFi connection and remote control must keep the USB connection powered, otherwise the WiFi function will not work. 1) Plug in the USB cable (included) 2) When the power is on, the indicator will light up. Note: WiFi and accessing APP, so it is only available in USB cable-powered mode. -
Page 18: Determine The Correct Placement
2. Determine the correct placemen leaking and over-watering problem） water pipe can not be placed 100% straight, we recommend that the height between the plants and pump should n ot exceed 2.5m. 2.5m 2.5m - 14 -... -
Page 19: Connect The Hose Correctly
3. Connect the hose correctly 3.1 Cut the hose according to the distance of the device, the plant or you need 3.2 Put the head of hose into hot water for 10s or Put a veggie little veggie oil on the end of the hose before connecting Inlet Outlet... -
Page 20: Installation Completed And Tested
2) When you need to connect the hose while splitting to twoways, you can use the T 3) When you need to connect a hose while splitting to other 3 ways 3.7 When water needs to be delivered to the soil, you need to use the micro drip emitters Tips: deep, which will help water enter the plant roots. -
Page 21: App Interface Overview
APP INTERFACE OVERVIEW Add Device Weather Forecast Get the weather data for To add multiple Rainpoint smart devices. the town you selected. Created Home Customize home names of the different irrigation Added device(s): areas by entering "My Home". Click on your device then start your irrigation settings. -
Page 22: Irrigation Schedule Settings
2. Irrigation Schedule Settings Next Irrigation Device Information Countdown for the According to your needs next irrigation to set, please refer to Page. Automatic Watering Mode Watering Frequency: refer to Page to view. 1 hr to 7 days Watering Duration: 20s to 30 mins Manual Watering Switch... -
Page 23: Device Information
3. Device Information Open:send a message to FAQ & Feedback Remove Device Remove the device before feedback questions. resetting it, refer to Page to view. - 19 -... -
Page 24: Smart Functions Interface
Add Watering Plan. Automation Fun ction. Click to set the conditions Customize multi-irrigation and tasks for your plan. plans with Meteorological changes. Tap-to-Run Function. Set and control multiple devices and plans. Notice: creating existing 2. Make sure your device is always connecting and staying online to run Automation as normal. - Page 25 4.1 Condition Settings Setup arguments and add conditions as your required. - 21 -...
- Page 26 4.2 Task Settings Set up tasks as your required, then trigger task if conditions are met. - 22 -...
-
Page 27: Personal Date Interface
Setup arguments and add conditions as your required. Add or remove Home (group) as your need. - 23 -... -
Page 28: Automatic Watering Mode
AUTOMATIC WATERING MODE Step1: Click to setup Step2: Click to setup watering frequency as your watering duration as your required and "done" it. required and "done" it. Step3: Click and change it to green .Means that your schedule is running. Note: Please remember to activate step 3 after the setup is completed, otherwise the program won't run. -
Page 29: Manual Watering Mode
MANUAL WATERING MODE 1. Manual Operation Via App Click the switch to turn ON / OFF manual watering. 2. Manual Operation Via Device Click the watering button to turn ON / OFF manual watering. - 25 -... -
Page 30: Reset The Device
RESET THE DEVICE 2. Leave the device for about 30-60s. 3. Plug in the USB cable, press and hold the WiFi button until the indicator turns to a fast blinking green light, then open the APP to connect. TROUBLESHOOTING Problem Possible Cause Possible Solution WiFi can’t be... - Page 31 Problem Possible Cause Possible Solution Uneven water Too far away from pots and The further away from the pump the potted plant is, the weaker the water flow will become. Please water containers or too long use some clamps to hold the first few branches so pipes can reduce the pump's that the mainstream water can be delivered quickly and for a long time.
-
Page 32: Warranty
WARRANTY Rainpoint provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. CUSTOMER SUPPORT subscribe to our channel: RainPoint on YouTube. www. Support：https://www.rainpointonline.com/pages/support If you can not solve the problem of this time with this manual, please contact us with the LOT NO.
