- Page 1 Quick Start Guide W-318/W-318 RW Access Point Arista Networks www.arista.com DOC-05847-01...
- Page 2 © Copyright 2023 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of others.
-
Page 3: Table Of Contents
Contents Contents Chapter 1: About This Guide..............1 Chapter 2: Package Content..............3 Chapter 3: Overview of the Access Point..........5 3.1 Right Panel of the Access Point.................... 5 3.2 Rear Panel of the Access Point.....................7 3.3 Bottom Panel of the Access Point..................9 Chapter 4: Install the Access Point.............11 4.1 Mount the Access Point....................... -
Page 5: Chapter 1: About This Guide
Installing the AP constitutes your acceptance of the terms and conditions of the EULA mentioned above in this document. Intended Audience This guide can be referred by anyone who wants to install and configure the W-318/W-318 RW access point. Document Overview This guide contains the following chapters: •... -
Page 7: Chapter 2: Package Content
The W-318 package must contain the components shown in the following figure. Figure 1: W-318 package content The package content of W-318 RW access point includes an additional table mount stand, a power adaptor, and ethernet cables as shown in the following image:... - Page 8 Note the MAC address before mounting the AP on the wall or at a location that is difficult to access. If the package is not complete, please contact the Arista Networks Technical Support Team at support-...
-
Page 9: Chapter 3: Overview Of The Access Point

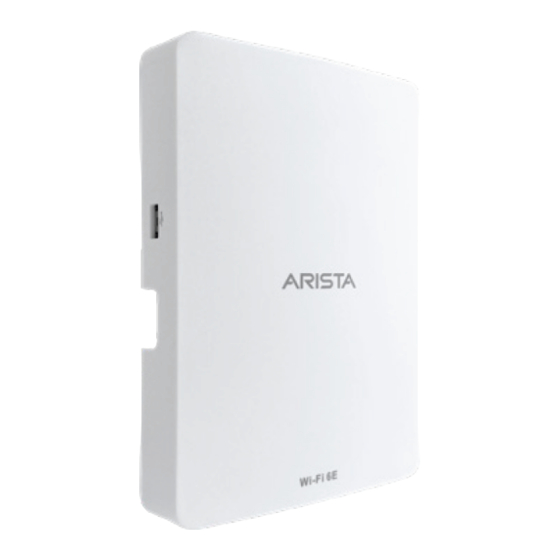

Chapter 3 Overview of the Access Point The W-318/W-318 RW access point (AP) is a 2x2:4 MU-MIMO, tri-band with multifunction radio, 802.11a/b/g/n/ac/ax access point. This chapter provides an overview of the AP and describes the following: • Right Panel of the AP •... - Page 10 Figure 3: W-318/W-318 RW Right Panel The following table describes the ports available on the right panel of the AP: Table 1: Right Panel Ports and Description Port Description Connector Type Speed/Protocol Console Port to establish a RJ-45 • RS 232 Serial ‘config shell’...
-
Page 11: Rear Panel Of The Access Point
Overview of the Access Point Port Description Connector Type Speed/Protocol Passthrough A wired port that Device connected facilitates extension through the Uplink of the wired network port (Ethernet port) at after the AP is mounted 10/100/1000 Mbps on the wall or stand. You can plug-in another device to the passthrough port of the... - Page 12 Figure 4: W-318/W-318 RW Rear Panel Table 3: W-318/W-318 RW Rear Panel Port Description Connector Type Speed/Protocol Passthrough A wired port that RJ45 facilitates extension of the wired network after the AP is mounted on the wall or stand. Another device can be plugged-in to the pass- through port of the AP.
-
Page 13: Bottom Panel Of The Access Point
802.3bt standard Bottom Panel of the Access Point The bottom panel of the access point and its corresponding ports are described below. Figure 5: W-318/W-318 RW Bottom Panel Table 4: W-318/W-318 RW Bottom Panel Port Description... - Page 14 Port Description Connector Type Speed/Protocol Ethernet (LAN1) Gigabit Ethernet port RJ45 10/100/1000 Mbps that can be used for Gigabit Ethernet wired extension for an SSID. Reset Resets the access point Pin hole push button Hold down and power to factory defaults. cycle the access point To reset the access to reset...
-
Page 15: Chapter 4: Install The Access Point
3851 for bidirectional User Datagram Protocol (UDP) and Transport Control Protocol (TCP) traffic on that firewall. This port number is assigned to Arista Networks. Zero-configuration cannot work if multiple APs are set up to connect to multiple servers. In this case, the APs must be configured manually. - Page 16 Figure 6: Attach bracket to the wall 2. Affix the mounting bracket on to the wall using the appropriate screws from the mounting accessories included in the package. Figure 7: Different screws provided in the package 3. Connect the cables to the appropriate ports in the rear-side of the access point.
- Page 17 Install the Access Point Figure 8: Connect the cables to the rear ports 4. Mount the AP on the bracket by aligning the two notches on the bracket with the two grooves on the rear panel of the AP. Slide the AP and tighten it onto the bracket with the screw provided in the package.
-
Page 18: Connect The Access Point To The Network
5. Log on to the server using ssh and run the get sensor list command. You will see a list of all Arista devices that are recognized by the server. Single Sign-On users can go to the MONITOR > WiFi > Access Points tab in CloudVision Cognitive Unified Edge and check whether the AP is visible under the Access Points tab. -
Page 19: Power On The Access Point
Install the Access Point Power On the Access Point You can power-on the access point (AP) by plugging one end of the Ethernet cable into the PoE (802.3af) switch or injector, and the other end into the Ethernet/PoE port on the AP. Ensure the PoE source you are using is turned ON. - Page 20 Figure 12: Attach stand to AP 3. The spring-loaded pin will automatically lock into the locking hole of the AP. If the pin is not aligned, pull the pin and align it to the locking hole. Note: To remove the AP from the stand, pull the pin and then remove the AP.
-
Page 21: Chapter 5: Access Point Troubleshooting
URL Content Filter between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. • If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact http://support- wifi@arista.com. -
Page 23: Chapter 6: Appendix A: Ap-Server Mutual Authentication
Chapter 6 Appendix A: AP-Server Mutual Authentication The AP-server communication begins with a mutual authentication step in which the AP and server authenticate each other using a shared secret. The AP-server communication takes place only if this authentication succeeds. After the authentication succeeds, a session key is generated. From this point on, all communication between the AP and server is encrypted using the session key. -
Page 25: Chapter 7: Appendix B: Product Compliance
Chapter 7 Appendix B: Product Compliance Singapore IMDA Registration Mark... -
Page 27: Chapter 8: Appendix C: Regulatory Model Numbers
Chapter 8 Appendix C: Regulatory Model Numbers This appendix lists the Regulatory Model Numbers(RMN), where applicable, for the product models for the Access Points described in the document. Table 5: Regulatory Model Number (RMN) Product Number W-318 AP-W318 W-318 AP-W-318-RW...
